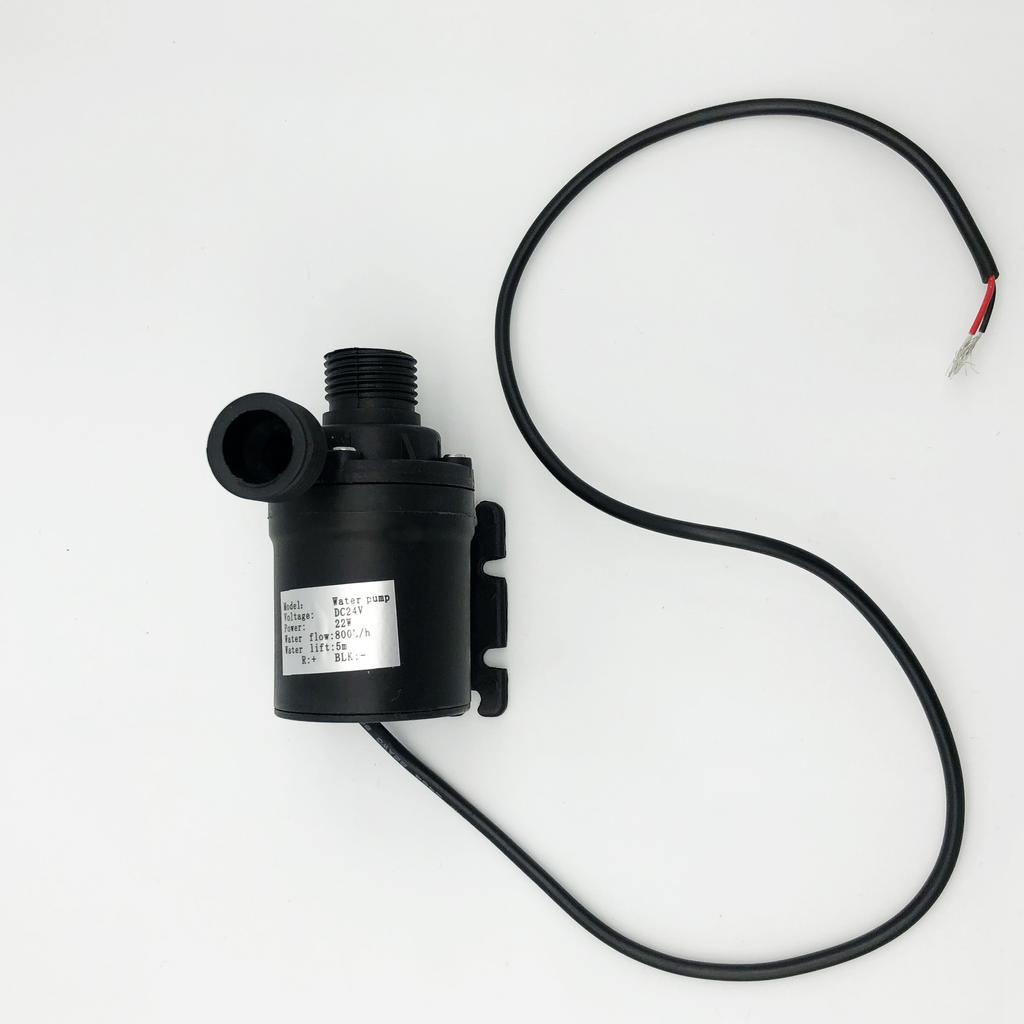

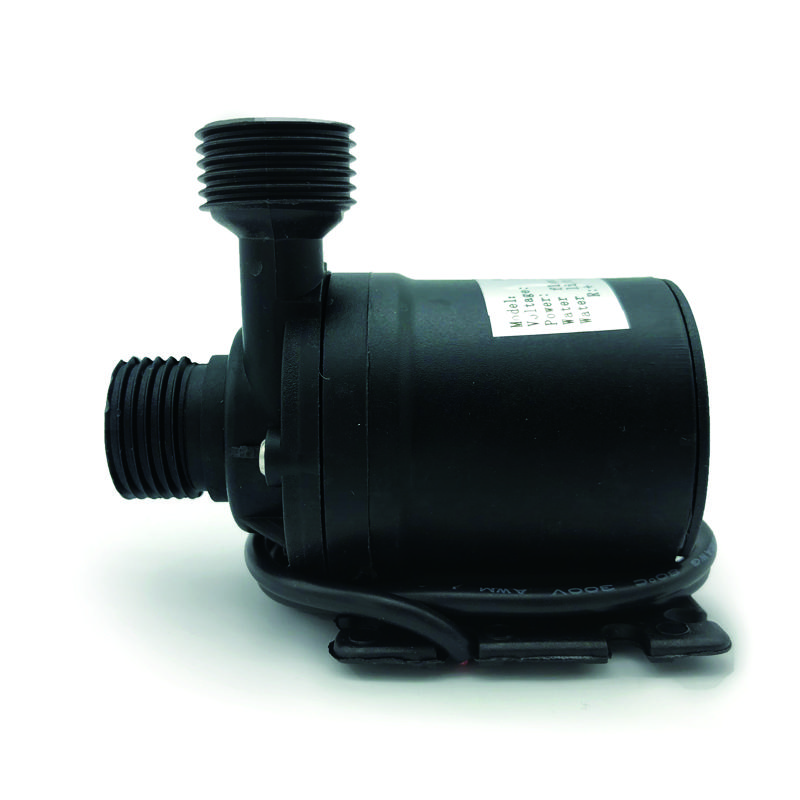

800L/h Mini DC 12V 24V 19W Water Pump 8000rpm 5.5m Lift Brushless Motor Ultra Quiet Submersible Pump for Cooling System

Manufacture Country: China Structure : Submersible Pump Model Number : - Power : HYDRAULIC Pressure : Other Usage : Water Fuel : Other Origin : CHINA Fuel : Other

It is only the pump, not include with the control. Features: - Uses advanced electronic components and high-quality wear-resistant shaft - Long working life, continuous power-on working time of more than 10,000 hours. - It is smooth operation, high efficiency, good performance. - Small volume, low noise, safety and environmental protection. Specifications: Name: Water Pump Housing material: ABS Pump shaft material: zirconia ceramic Rotor material: ferrite, POM Inlet/Outlet: 1/2 Threaded port Voltage: DC12V Power: 19W Maximum Rated Current: 1000MA Flow Rate: 800L/h(Max.) Water lift: 2.5-5.5m Maximum speed: 8000rpm Pump outlet diameter: ID: 12mm, OD:17.8mm Pump inlet diameter: ID:12mm, OD: 17.8mm Working environment temperature: 1-70  Noise: < 35 db (water) under operation Drive mode: Brushless, magnetic isolation Conveying medium: Water, oil, and other acid-base solutions Pump shaft position: horizontal Impeller structure: open impeller Impeller suction method: single suction type Waterproof rating: IP68 (dive installation) Cable line: 50cm Sizes:About 7.7x4.2x6cm/3x1.7x2.4in Package include: 1 x Brushless Motor Water Pump Usage: The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally. (Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.) Common Troubleshooting: 1.The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning). 2. When the pump does not run water. (There is air in the pump or in the pipeline.) Note: 1.Do not take the wrong pump positive and negative. 2.Prohibit not through the power converter will be connected directly to the 220V power supply pump. 3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium. 4.The pump is suitable for medium temperature 1 -60
