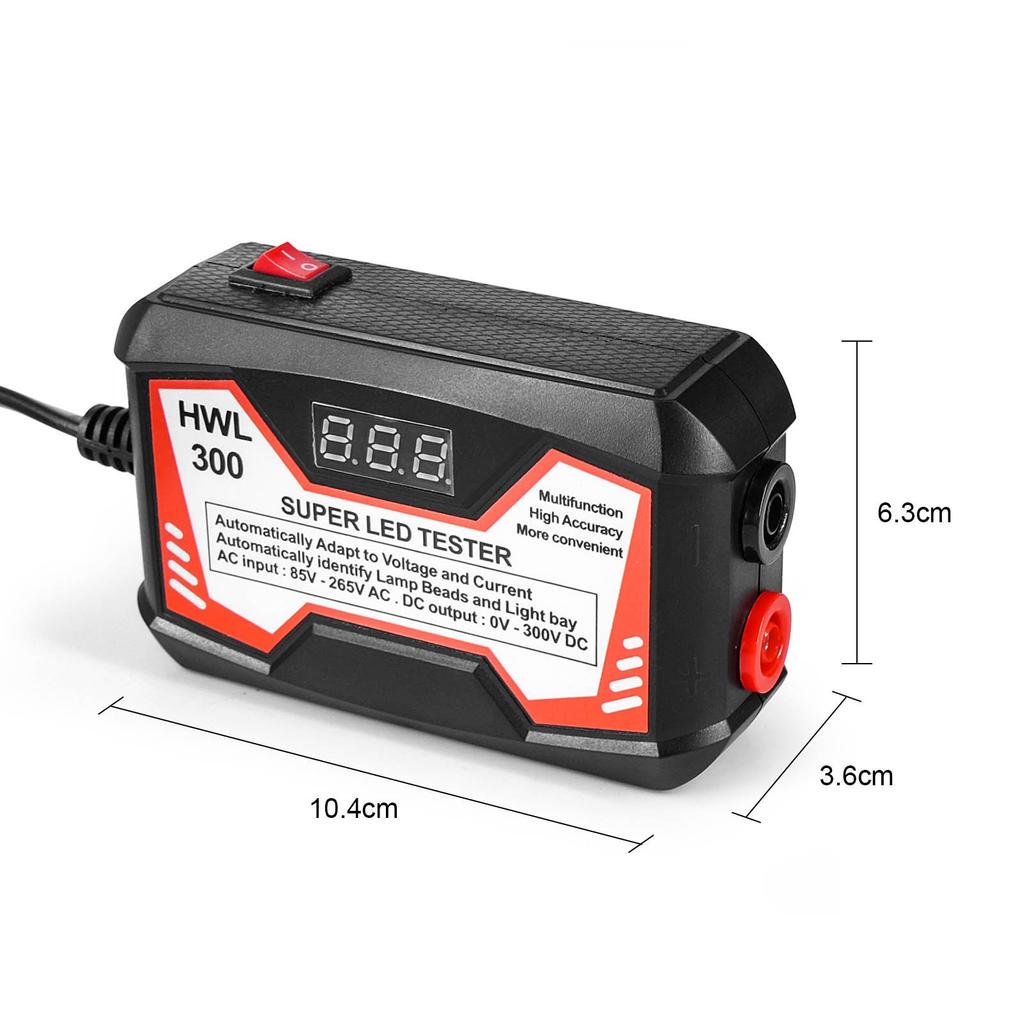

0-300V LED Lamp Beads Light Bar TV Backlight Tester LED Strips Beads Lamp Board Test Tool Capacitance Diode Voltage Testing 0-300V LED Lamp Beads Light Bar TV Backlight Tester LED Strips Beads Lamp Board Test Tool Capacitance Diode Voltage Testing
Features: Size: 180 * 105 * 40MM Weight: 254.5G Name: LED Bead Lamp Bar Tester Removable screen LED backlight LCD TV maintenance detection lamp bead lamp with lamp plate lamp strip tester lamp lighter 0-300V high brightness removable screen version: input voltage: 85-265V, output voltage: 0-300V, power: 18W. Automatic detection of output voltage and current. It can test LED backlight and lamp beads of any size. High brightness, you can judge the backlight without removing the screen. matters needing attention: When the positive and negative poles are uncertain, please use 19V voltage to detect the positive and negative poles. It is prohibited to use 300V voltage to detect the positive and negative poles. 300V voltage may cause damage to the equipment. Short circuit the pen for three seconds to S-witch between high and low voltages The functional features are as follows: 1. High speed single-chip microcomputer is used for voltage sampling test, and LED lamp is driven to display voltage (by no means other products on the market use purchased voltmeter heads, which are installed separately) to achieve board card integration and reduce defective rate (because the current is constant, O-nly the voltage display function is used.) 2. 0-300V adaptive voltage, suitable for most series and P-ARALLEL lamp bead tests. During the test, the gradual startup mode is adopted, the voltage is automatically adapted, the current is gradually increased, and the lamp beads will not burn, and the normal brightness can be achieved in three to five seconds. The positive and negative poles of the lamp bar and lamp bead are connected inversely, without burning the lamp bar and lamp bead. 3. Digital display of real-time voltage output, with adjustable voltage, the voltage value can be self calibrated. The digital meter adopts green light-emitting tube. 00 indicates short circuit and 300V indicates open circuit. The display voltage of each group of LED light bars of the same LCD TV shall be the same. 4. Cold and hot isolation, never get electric S-hock. The integrated design of the power cord and the machine box makes it easy to carry when going out. 5. You can light up the LCD TV screen without removing the screen. (The screen with bad lamp beads is lit as well. The LCD TV is generally divided into several groups in P-ARALLEL. The voltage can be used to see which group of voltages are different, so as to determine which group of LED lamp beads are damaged.) 6. When testing, do not look directly at the lamp bead because of the highlighted version. To avoid eye injury Package List: 1 * LED lamp bead lamp strip tester
Label: Yes
Manufacture Country: China
