Notice: Please push the left button for over 3 minutes to turn on the monitor, if it does not work, please try again after charging.
Features:
1. Solar power charging;
2. High and low pressure, leak alarm;

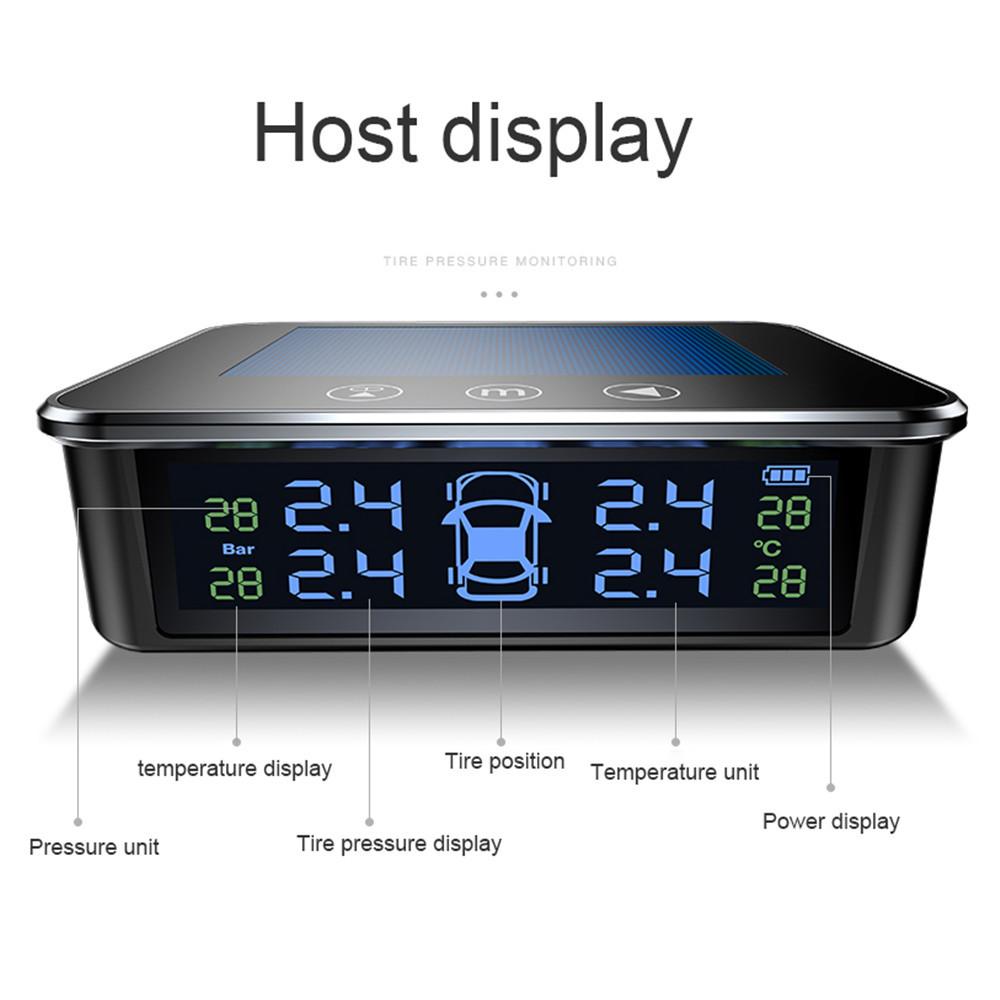

3. LCD display screen, Simple user interface
4. High accuracy, Using Freescale imported chips;
5. Real-time monitoring of tire pressure and temperature;
6. Smart start: parking automatically sleeps, and the car starts automatically wakes up.
7. Two units (PSI / Bar) are changeable, you can set the one you like.
8. Sensors' battery Changeable
Specification
1. Monitoring system body：
Operating voltage: 3.7-5V
Storage temperature:-30°C-90°C
working temperature:-30°C-85°C
RF Emission frequency:433.92MH±50KHz
RF Signal sensitivity:-90dbm
Display mode: LCD Color
Bright screen current:≤6mA
Black screen current:≤4mA
Size:85*95MM
2. External Sensor：
Battery life:24 months
Operating voltage:2.1-3.6V
Storage temperature:-30°C-90°C
working temperature:-30°C-85°C
Temperature resolution:±2°C（25°C）
Pressure range:0-3.5 Bar
Pressure resolution:±0.1Bar
Waterproof grade: IP67
Transmitted power:≤10dBm
Emission frequency:433.92MHz
Size:21mm*17mm
weight:≤8.0g
lithium battery: CR1632（Model）
Operation for Pairing Sensors:
Solve the sensor does not work: Match sensor with Air Valve
Long press /'/'menu key/'/' 3 seconds to /'/'U/S/'/',then short press /'/'menu key/'/' several times to enter/'/'LID/'/' interface,it shows ID of four tires and car icon.
Short press /'/'leftight select key/'/' to learn ID opertion.Select tire you plan to learn ID of sensor by press/'/'menu key/'/',default setting is /'/'FL/'/'>/'/'FR/'/'>/'/'RR/'/'>/'/'RL.
When tire is selected,display new /'/'ID/'/' in receiver after active sensor//'s ID(internal sensor active by charging/vent tier).
Do the same operation to match the other three sensors.When all sensor are matched,short press /'/'menu key/'/' to save and go to /'/'Ex/'/'.
Package includes:
1 * Solar Charging Tyre Pressure Monitoring System Host
4 * External sensors
1 * USB cable
1 * set Install Tool
