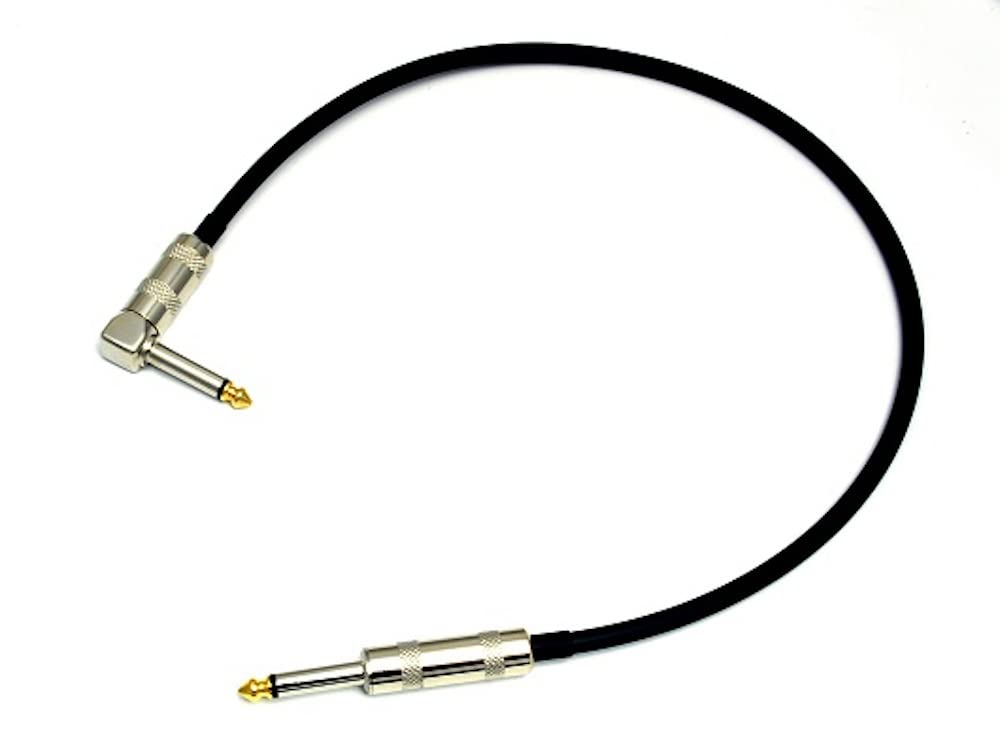

Canare GS-6 Patch Cable 75 cm Black L-S Plug
Product Description
Elevate your signal chain with this premium Canare GS-6 Patch Cable, 75 cm length, black color, with one right-angle (L) → straight (S) plug configuration.
🔌 Key Features
Top-tier cable construction — Canare GS-6 is built using 18 AWG oxygen-free copper (OFC) conductor.
Double shielding with >92% coverage — combines braided copper + carbon sleeve to reduce noise and microphonic artifacts.
Low capacitance & low resistance — approx. 160 pF/m, which helps preserve high frequencies and maintains clarity.
Robust flexibility — stays pliable even in sub-zero temperatures.
Compact patch length (75 cm) — ideal for pedalboard use, reducing excess cable loop and signal loss.
L → S plug configuration — right-angle plug on one end, straight plug at the other. Great for tight pedalboard layouts.
🎛 Specifications
Parameter Value
Cable model GS-6
Conductor 18 AWG oxygen-free copper (stranded)
Shielding >92% braid + carbon sleeve
Capacitance ~160 pF/m
DC resistance (conductor) <1.8 Ω / 100 m
Outer diameter ~5.8 mm / 0.228″
Jacket material / thickness PVC, ~1.0 mm thickness
Minimum bend / cold resistance –56 °F (–49 °C) brittle point
Length 75 cm
Plug types Right-angle (L) to Straight (S)
📈 Why This Cable Delivers
Clean and transparent tone — low capacitance and quality shielding preserve your sound even over longer runs.
Reduced microphonic noise — the carbon sleeve + braid system helps mitigate handling noise typical of instrument cables.
Flexible and durable — designed for real-world gig/stage use, even in cold environments.
Compact for pedalboards — 75 cm is a sweet spot for routing between pedals without excessive slack.
Reliable build quality — Canare is a respected name in pro audio with a reputation for durable, low-noise cabling.
🔧 Usage Tips
When soldering, carefully strip insulation and avoid cutting into the carbon sleeve to prevent shorts.
Tighten plugs firmly but avoid over-torquing to prevent stress on the cable.
On pedalboards, keep the right-angle side toward the pedal input side for better cable routing.
Test with a high-quality instrument cable to ensure no signal degradation after installation.
📦 Package Includes
1 × Canare GS-6 Patch Cable (75 cm, black, L-to-S)
(If applicable) protective caps or covers for plugs
