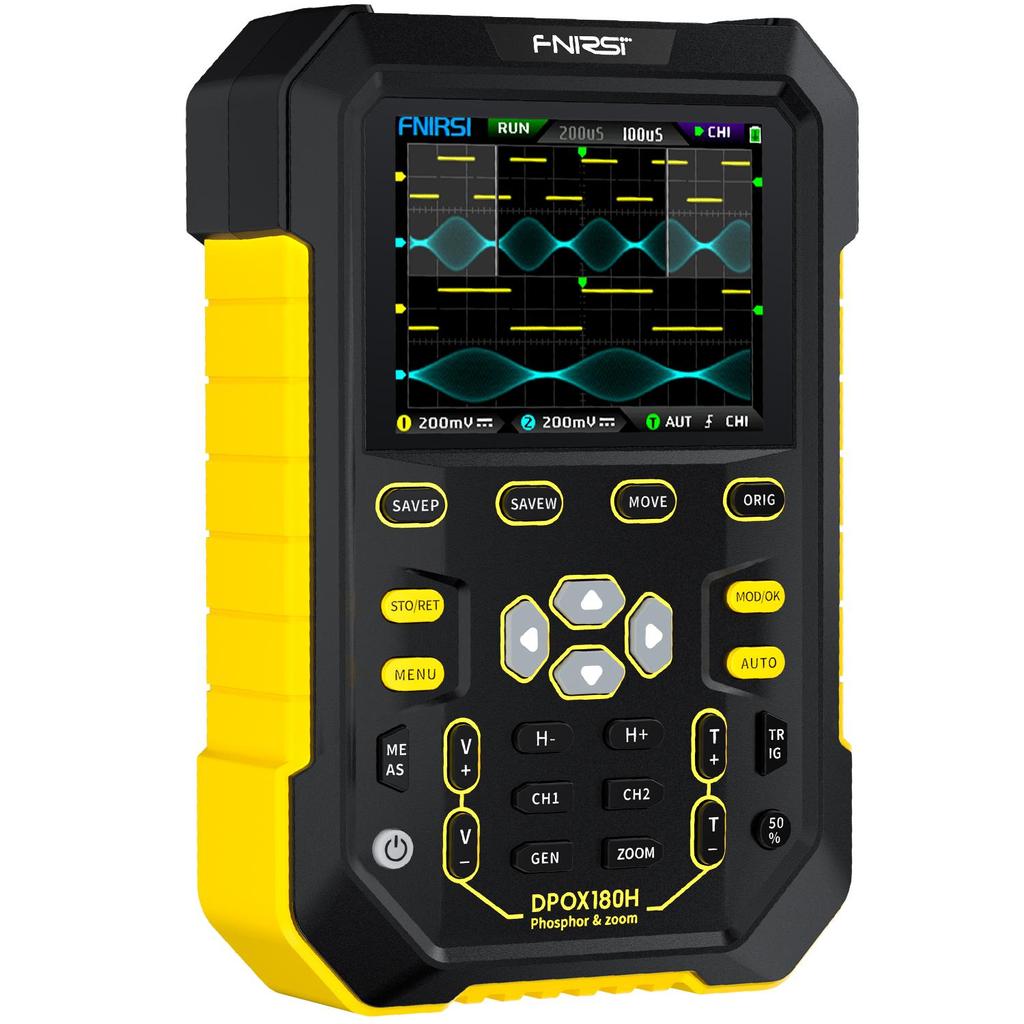

DPOX180H is a cost-effective handheld dual-channel digital phosphor oscillographlaunched by FNIRSI with a two-in-one oscillograph and signal generator. The oscillograph has a real-time sampling rate of 500MSPS and an analog bandwidth of 180MHz. In terms of display, a high-contrast 2.8-inch IPS full-vision LCD screen and digital fluorescent technology are used. The waveform display effect is good, and the color ways are grayscale and color temperature. With a waveform refresh rate of up to 50000wfm/s, it is easier to display abnormal signals with low probability. The time base system includes a ZOOM time base for easy analysis of digital protocol signals. With a vertical sensitivity as low as 5mV, it can better measure small signals of 5mVPP. Ultra-high signal-to-noise ratio, fully sealed shielding measures, stable circuit feedback design, clean and clear waveform. The original adjustable automatic bandwidth limit and adaptive adjustable trigger suppression are suitable for analyzing and measuring signals with relatively large noise. 20M hardware bandwidth limit, can filter out noise above 20MHz. The trigger adopts digital trigger technology with high precision. It has three trigger modes: automatic/single/normal. It has a strong ability to capture periodic signals, burst signals and protocol signals. The DDS signal generator has 14 kinds of function signal waveforms and a free-customized chopping waveform. The frequency of the sine wave can reach up to 20MHz, and the other waveforms can reach up to 10MHz. The original chopping output function can store up to 500 customized signals. It has three time base modes of YT, XY and rolling. Manual cursor measurement is suitable for measurements with large noise signals. Efficient one-button automatic adjustment, adaptive 25%, 50%, 75% electric level trigger, it only takes 2 seconds to measure 1VPP/1KHz. Save waveforms and screenshots with one key, up to 250 sets of waveform data or 90 pictures can be stored, and 500 intercepted wave data can be stored at the same time. The data browser can browse and view the currently saved waveform data and pictures, and the waveform data supports operations such as zooming and moving. High voltage anti-burning protection, all gears can withstand high voltage up to 400V. USB data export, you can connect to a computer to copy picture files, and you can also copy system files to the oscillograph for system upgrades. 5V2A fast charging, and 1 hour can charge to 80%.
Number of channels：2
Analog bandwidth：180MHZ
Maximum sampling rate：500MSPS
Input coupling：DC/AC
Rise time：2.5nS
Storage depth：120Kpts
Input impedance：1MΩ-18PF
Vertical sensitivity：5mV ~ 10V(1X)
Time base range：5nS ~ 50S
DC accuracy：±2%
Time accuracy：±0.01%
Measurement range：40mV ~ 80V(1X)
Digital phosphor technology：support
Color temperature display：support
Zoom scaling time base：support
20M hardware bandwidth limitation：support
Adjustable automatic bandwidth limitation：support
X-Y mode：support
FFT：support
Cursor measurement：Frequency/Period/Amplitude
Trigger detection：Digital trigger
Trigger mode：Auto/Single/Normal
Trigger edge：Rising/Falling
Roll mode：support
Screenshot storage：90
Waveform storage：250 groups
Capture signal：500
Parameter measurement：12 kinds
Signal generator：14 standard function signals
Auto-adjustment support
Waveform manager：support
Waveform output：support
High-voltageburnout protection：support
Screen size 2.8：inches
Screen resolution：320x240
Display technology：IPS full view
Expansion interface：USB transmission interface
Auto power-off：5minutes-2hours
Firmware upgrade：support
Charging requirements：5V 2A
Battery capacity：3000mAh
Standby time：3.5 hours at full charge
Dimensions：135mmx90mmx40mm
packing list:
1 * DPOX180H Digital Phosphor Oscillograph
2 * Matching 200MHz Probe (1X & 10X）
1 * 5V2A Power Adapter
1 * USB Data Line
1 * User Manual
