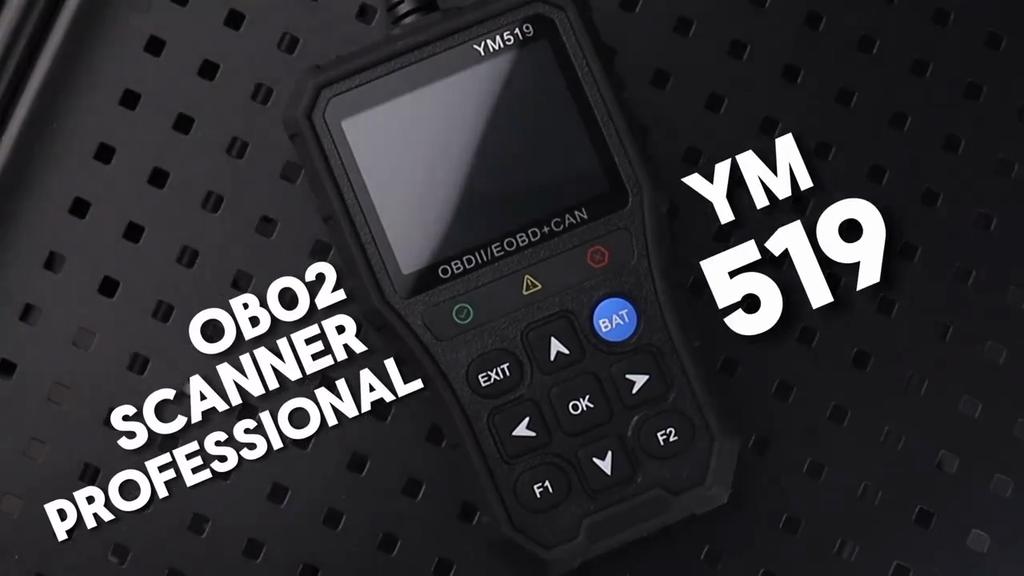

Check Engine System YM519 OBD2 Code Reader Car Diagnostic Tool Battery Tester Code Reader Clear/Erase Codes Fault Code Scanner Multi-language

Functions: 1, A new generation of UI interaction (picture overlay bottom + changeable themes + GPU Turbo faster response and faster display) 2, With TPU protective case. 3, New silicone buttons. 4, Three high brightness indicator lights.

Specification: 1、Support OBDII/EOOBD nine standard protocols to read the car engine fault code 2、Clear the engine fault code 3、Freeze frame of automobile fault 4、I/M readiness status 5、Vehicle information 6、Automobile real-time data flow 7、Real-time curve of automobile data 8、Mode 6 test (component system test) 9、Oxygen sensor test 10、Parts test 11、Fault code query 12、Vehicle battery voltage reading 13, vehicle battery voltage monitoring 14, vehicle battery life assessment (exclusive features) 15, the product built-in 13 languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)

Support protocol: 1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2(5 baud init, 10.4Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 251 Kbaud)

Package Included: 1 x OBD2 Scanner 1 x English Manual
