About this item:
1. [Full OBDII Functions]: The OBD2 diagnostic device can support diagnostic function with 10 modes OBDII to get car error codes, clear codes, shows freeze frame data, vehicle information, easy to determine the cause of engine checking, component tests, on-board monitoring, on sensor test, I/M Readiness, and can also support voltage test. Car Code Scanner for O2 Sensor/EVAP System/Smog Test
2. Wide compatibility: the YA101 car diagnostic code reader is suitable for cars from the USA after 1996 and cars from the EU after 2000, i.e. for all vehicles 12V cars and light trucks, but not for 24V trucks. Also works on all OBDII protocols, KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network), and equipped with 9 languages: English, French, Russian, German, Italian, Spanish, Portuguese, Japanese, Chinese
3. [Battery Test]: The YA101 is not only an OBDII scanner, but also a battery tester. It is able to display the 12V car battery voltage and status for car owners in seconds, which helps users monitor their car batteries more conveniently

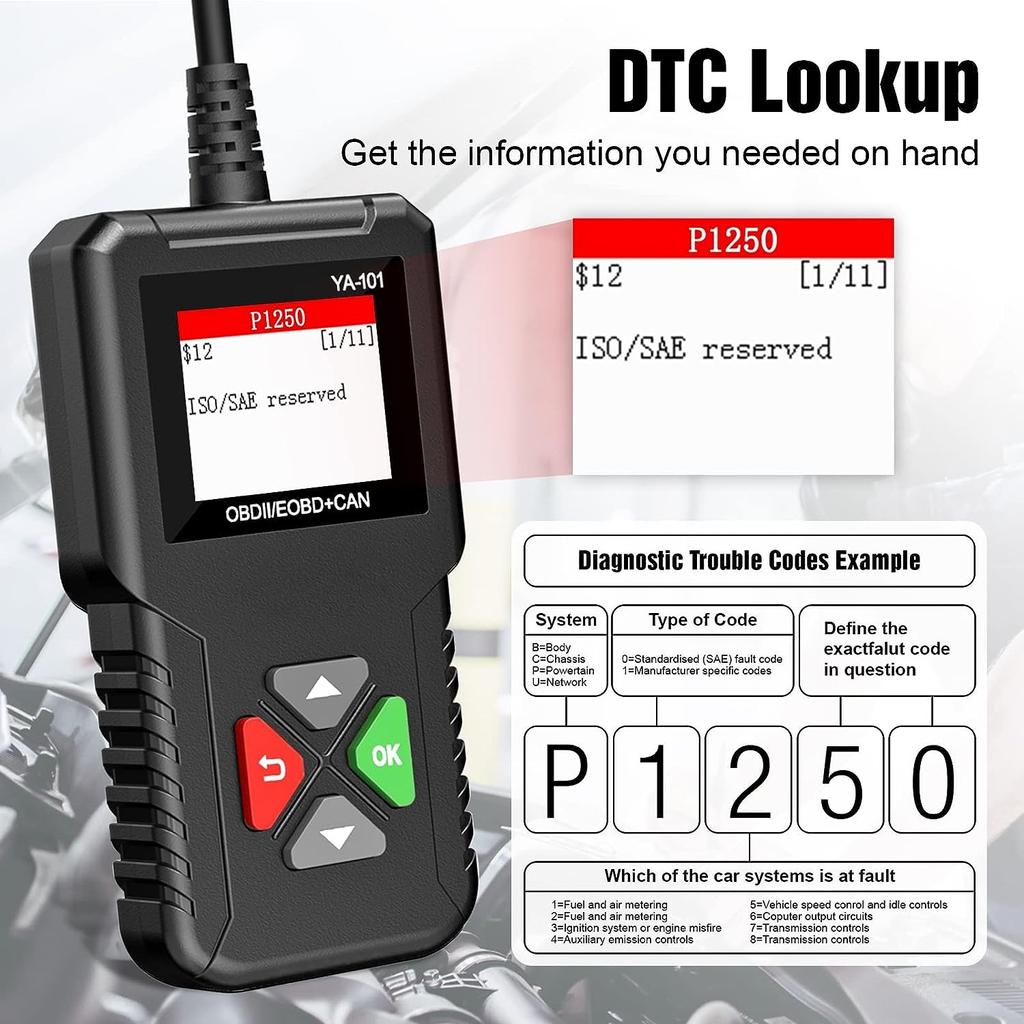

4. [Plug and Play]: OBD2 diagnostic device is connected to your vehicle, diagnose your car in a few seconds and read the engine code. Go to "DTC LOOK UP" and enter the code that gives you a general interpretation, shows possible cause of the problem. The I/M readiness function supports you to diagnose the problem of vehicle emission monitors such as O2 sensor, EVAP system, etc. are checked and live data and still images are displayed
5. [Screenshot function]: export it quickly and effectively via a USB cable from your PC or laptop, when the OBD2 reader is connected, the laptop detects it as a removable disk. You can copy and paste files to easily export them
Product Description

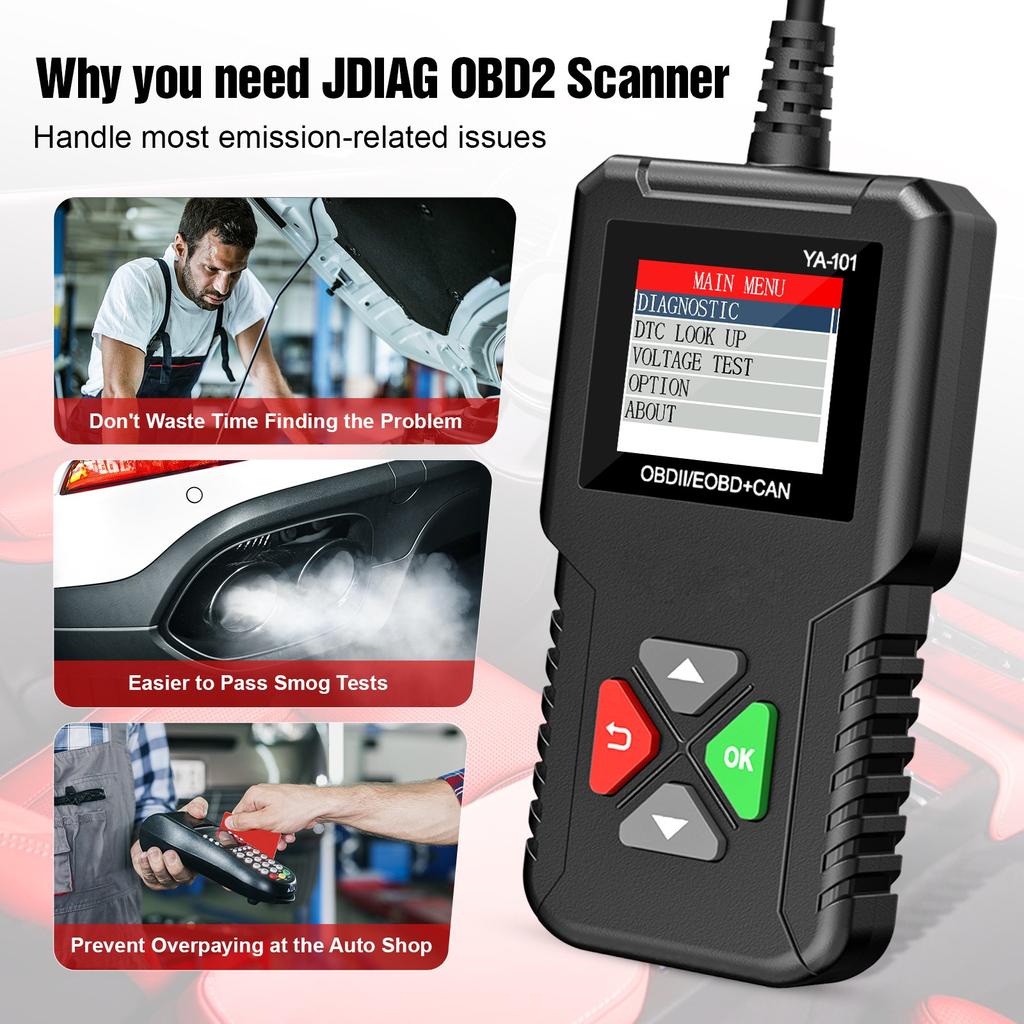

Why do you need a YA101 OBD2 scanner?

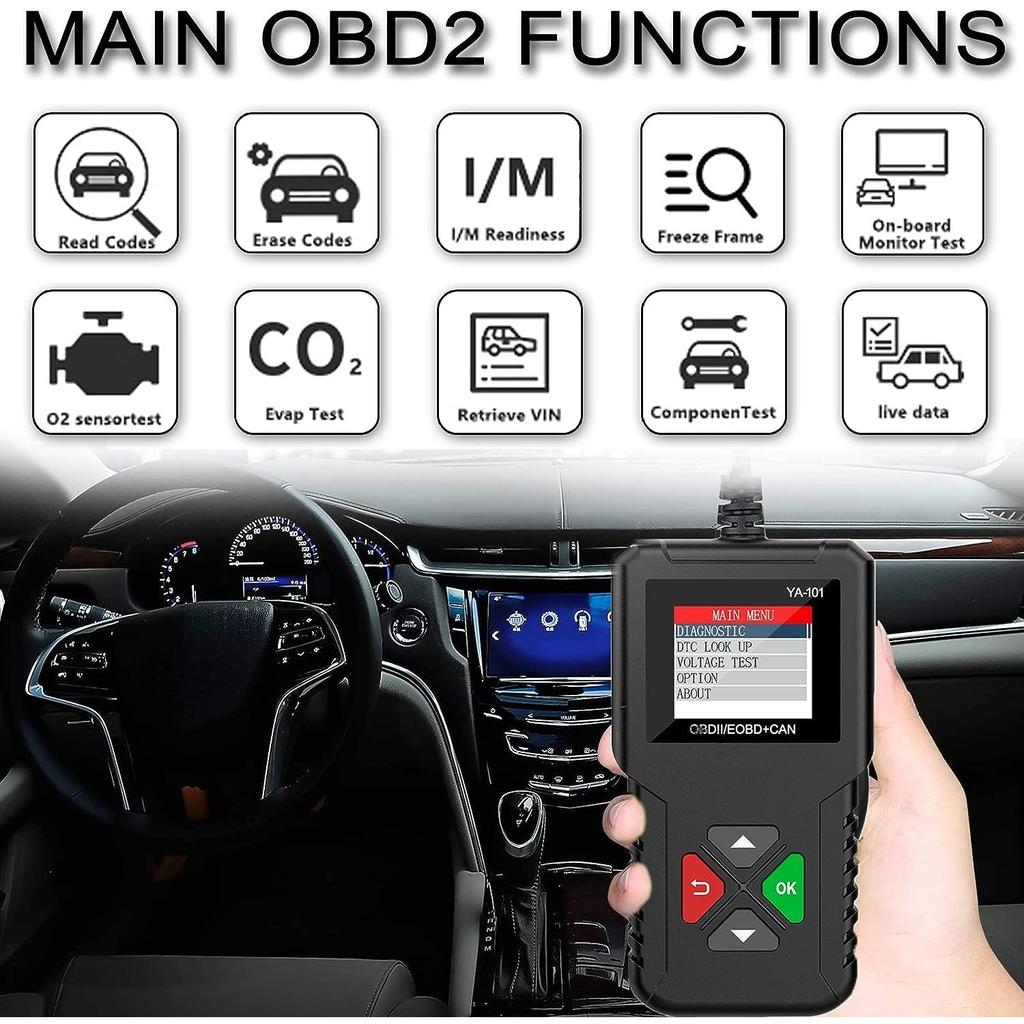

1. Supports OBD full mode diagnostics

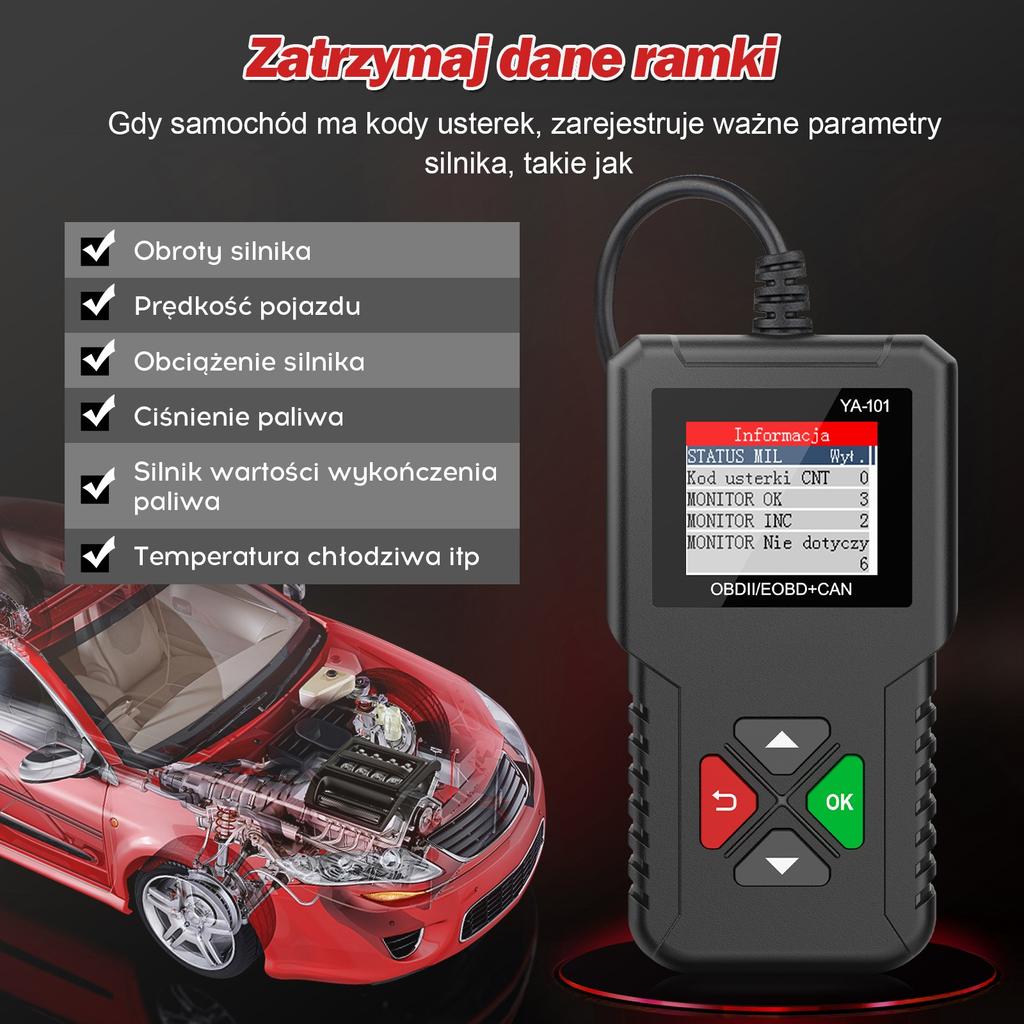

Read codes: Read the existing error code in the current control unit. Delete codes: Clear the error code in the current control unit. Live data stream. Read: Read and display live ECU / PCM data stream. Read vehicle information: Display information such as chassis number (vehicle identification number), CID (calibration ID), and CVN (calibration check number), etc. I/M readiness status: Shows whether the various emission-related systems of the vehicle are working properly and are ready for inspection and maintenance tests. Still image data displays: If the vehicle has an error, an error code is generated and the still image can be used to display the vehicle data at the time of generating the error code. On-board monitor test: Retrieves and displays test results for emission-relevant drivetrain components and systems. O2 sensor test: Allows you to retrieve and display the test results of the O2 sensor monitor for the last tests carried out from the vehicle's on-board computer. Component test: Certain vehicle components can be operated by commands sent by the scanner to test their functionality.
2. Don't worry about compatibility

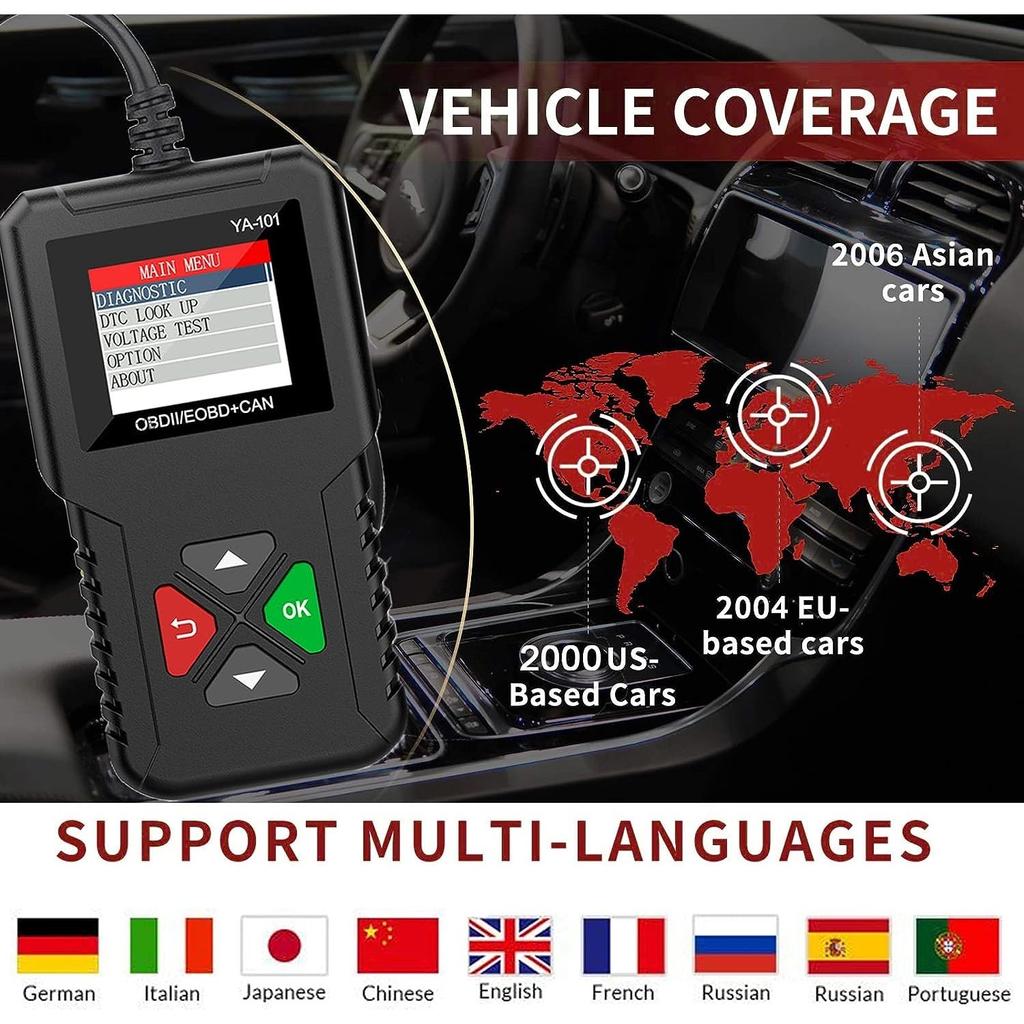

If you have an OBDII compliant vehicle, YA-101 can help you diagnose. This is because the diagnostic tool is compatible with most models manufactured worldwide from 2000 and supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN
European car: You need standard OBD2 protocols from 2001 to Present For Alfa Romeo For SAAB For Acura For Opel For Au-di For Seat For Peugeot For Renault For Bentley For Skoda For Daewoo For Benz For Daihatsu For Land Rover For BMW For Vauxhall For Citroen For Volvo For Fiat For Ford For Jaguar .(eight Jaguar ..Size: Ya-101 is not compatible with many Vauxhall from 2000) [American Car]: Need standard OBD2 protocols from 2000 to today for Chrysler, for Ford, for GM, for Jeep...[Japanese Car]: Need standard OBD2 protocols from 2006 to now for Isuzu, Honda, Mitsubishi, Dacia, Lexus, Mazda, Nissan, Subaru, Suzuki, Toyota ... [Chinese Car]: Need standard OBD2 protocols from 2009 to now.
3. Turn off the MIL within minutes
Connect our YA-101 to your car's on-board computer system and follow the following steps:
Plug YA-101 into the OBD2 port, which is usually located under the dashboard or under a panel under the handbrake Read codes and find the error point via the DTC search after your code reader is on. Fix the problem yourself or seek professional help from mechanics. Use this tool to clear the code and the check engine indicator is switched off off
There is also an exact reason why the light is on what could be:
[Oxygen sensor defective / missing or loose tank cap / defective catalyst / defective air mass meter / defective spark plugs / defective ignition coils / damaged spark plug cables / defective exhaust gas recirculation valve / defective thermostat / problematic injectors]
4. Professional OBD2 Diagnostic Tools
5. Turn off engine light

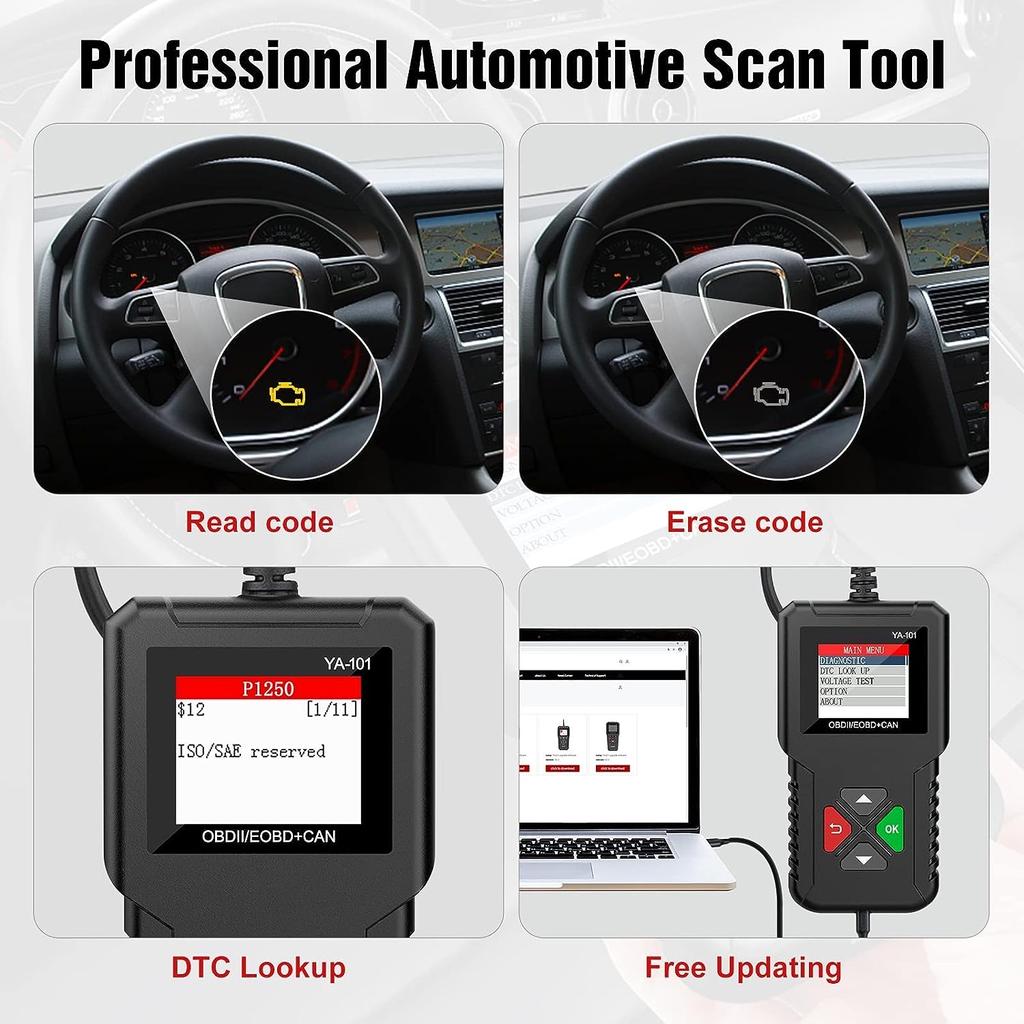

The YA-101 OBD2 scanner can access the PCM module of OBD2 compatible vehicles and read and clear diagnostic error codes (DTCs), ensure your engine is in good condition, and turn off the engine light when the proper repair has been done according to the DTC displayed on the DTC backlit screen.
1. Fix the problems with the engine.
2. Turn off the MIL (fault indicator lamp).
3. Monitor car exhaust emissions.
4. Check the condition of the car battery quickly and efficiently.
5. OBD2 diagnostic device is no additional battery required for power supply.
6. YA-101 covers all OBD2 protocols and all OBD diagnostic services.
7. It works with virtually all OBD2 vehicles with 16 pin data connection port.
8. Only suitable for 12V cars and light commercial vehicles. Not for 24V trucks.
Selling point:
1. Free update
2. Screen support
3. Real-time data display
4. Smog test
5. Battery test
6. Plug and Play
7. Strong compatibility
1. I / M Readiness
With the I/M readiness function, you will learn whether the various emission-related parts or systems are ready for testing and maintenance of the vehicles. It contains MIL SYS, Misfire, FUELSYS, CATALYST, O2 sensor and other important data.
Clear
2. O2 sensor test
Allows you to retrieve and display the test results of the O2 sensor monitor for the last tests carried out from the vehicle's on-board computer. Accurately identifies oxygen sensor errors and errors related to vehicle emissions.
3. Control the engine light
The OBD2 scanner can quickly and accurately find out why the engine light lights up, simply erase the codes after some repairs and the light is automatically switched off.
4. Get vehicle information
This OBD2 code reader can easily access the vehicle's ECU and retrieve its information, including VIN (vehicle identification number), CID (calibration identification) and CVN (verification number) calibration) for accurate diagnosis. No need to search for the VIN.
5. Powerful Compatibility
OBD2 diagnostic device works most after 2000 and newer vehicle models in America, Europe and Asia. It supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN
6. 9 languages available
Supports 9 languages - English, French, Russian, Spanish, German, Italian, Portuguese, Japanese, Chinese, What this scanner can be used internationally to meet more customer requirements

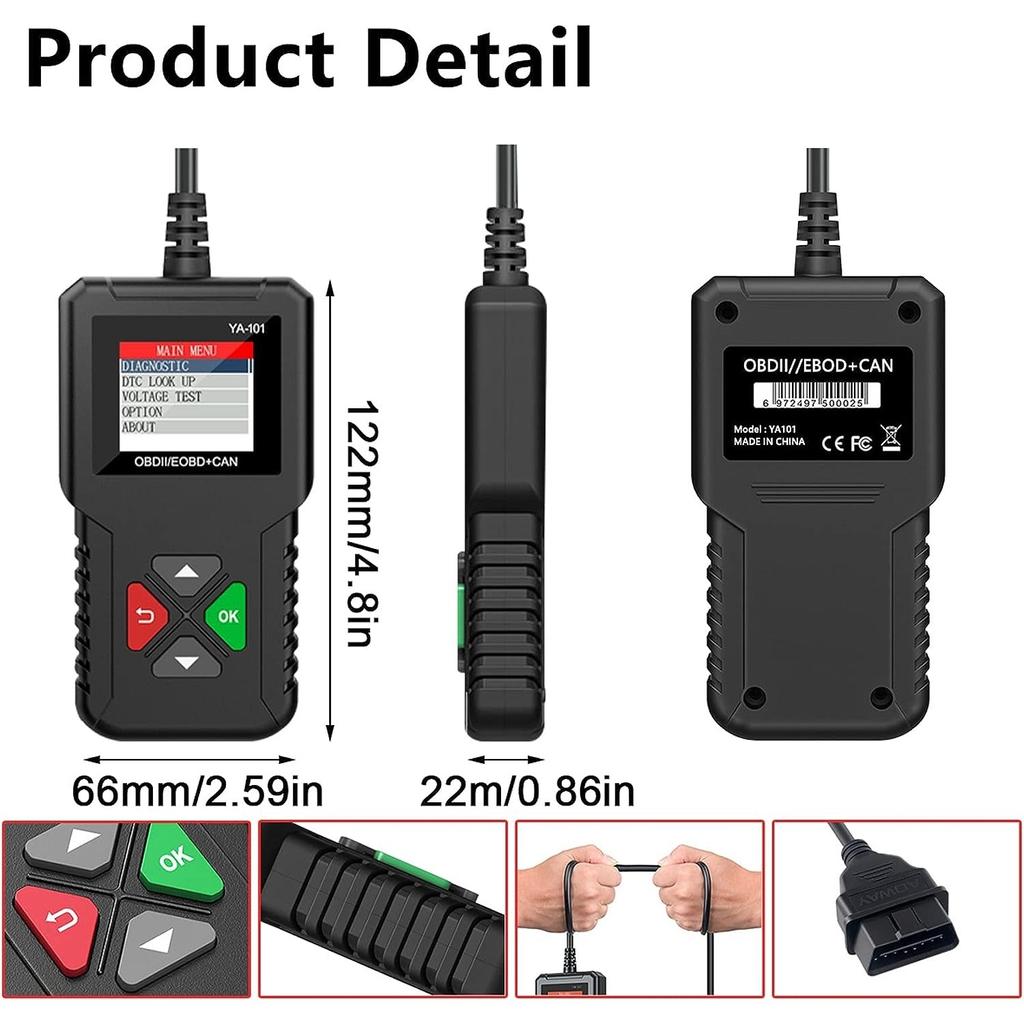

Product specification:
Package size: 7x5.3x15.2cm
Item weight: 210g
Product size: 12.2x6.6x2.2cm
