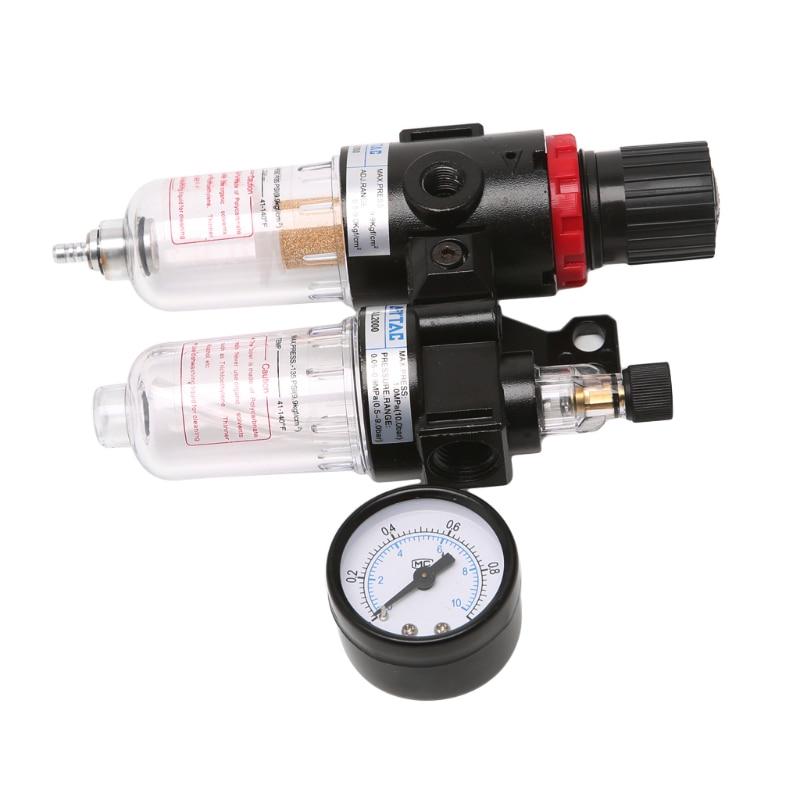

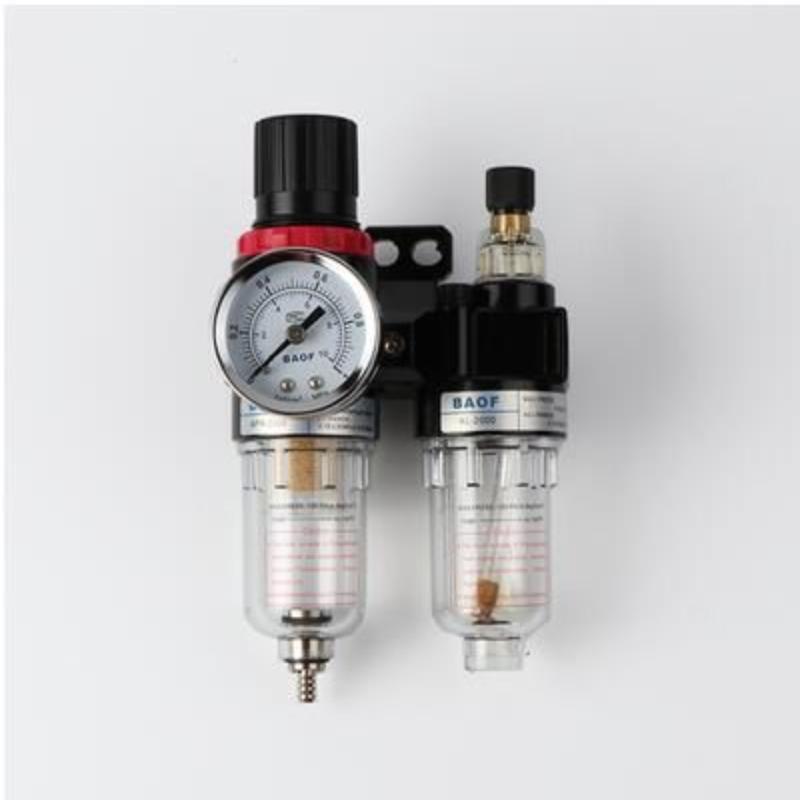

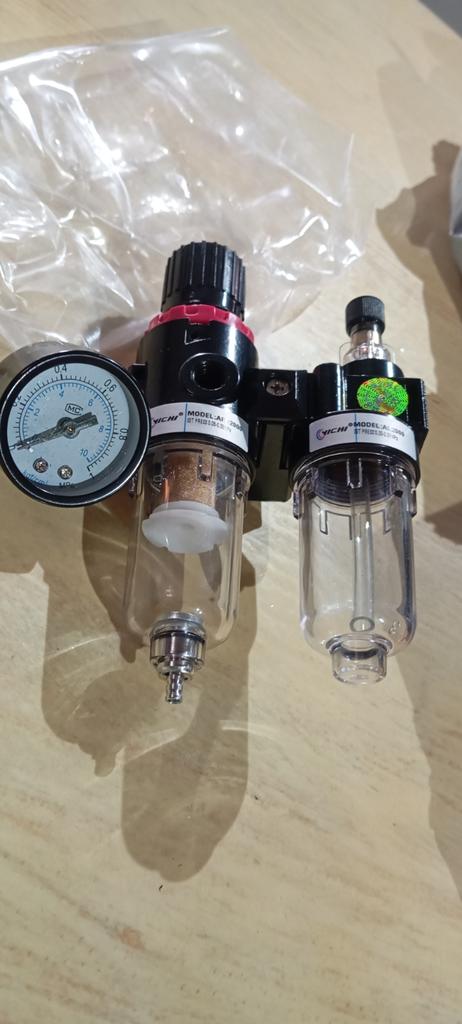

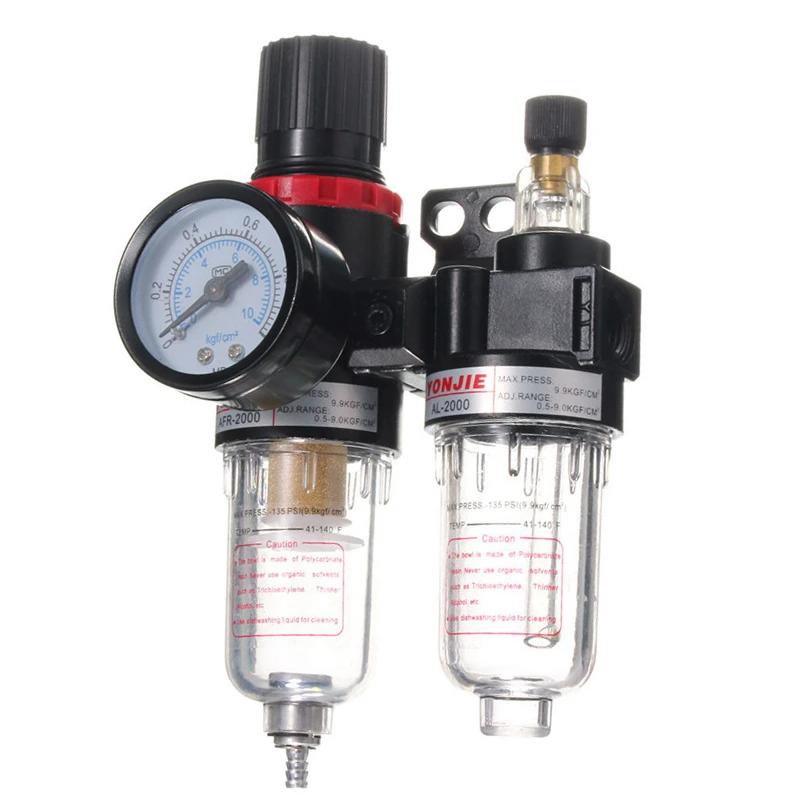

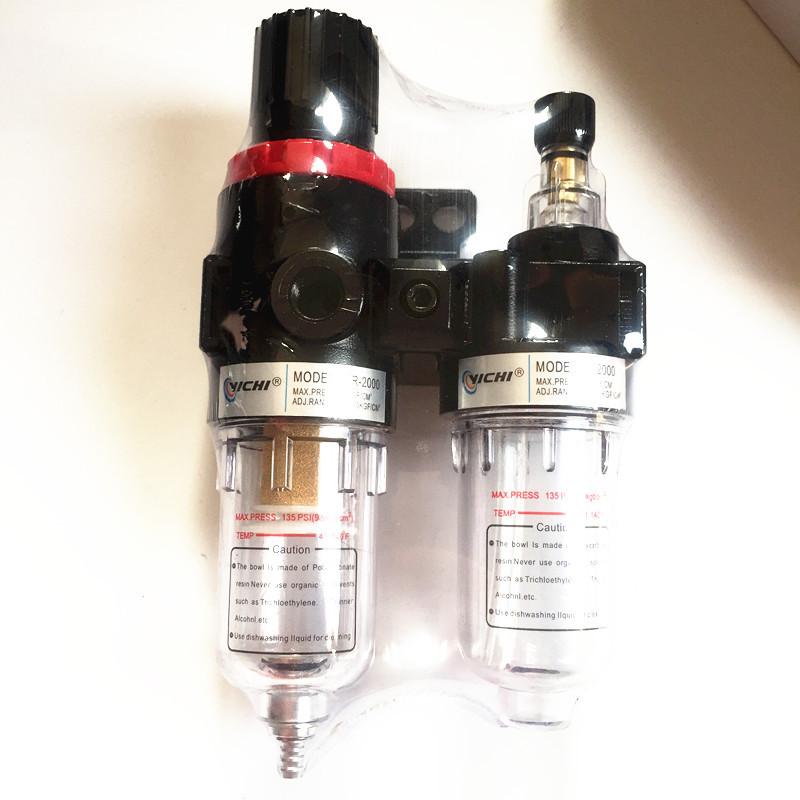

G1/4" In Line Air Compressor Filter Regulator Gauge Trap Oil-Water Filter Air Separator Pressure Regulator Airbrush Compressor

Features: Usage scenarios: air compressors, pneumatic tools, gas connection installation, effective filtration of air moisture. Use to control the pressure element and the backlog. It uses the intake throttle pressure, by the force balance and overflow regulator. To change the gas line pressure, first pull out the hand wheel, and then to get any pressure within the specified range through mediation plastic handwheel. Clockwise to increase pressure and anticlockwise reduce pressure.

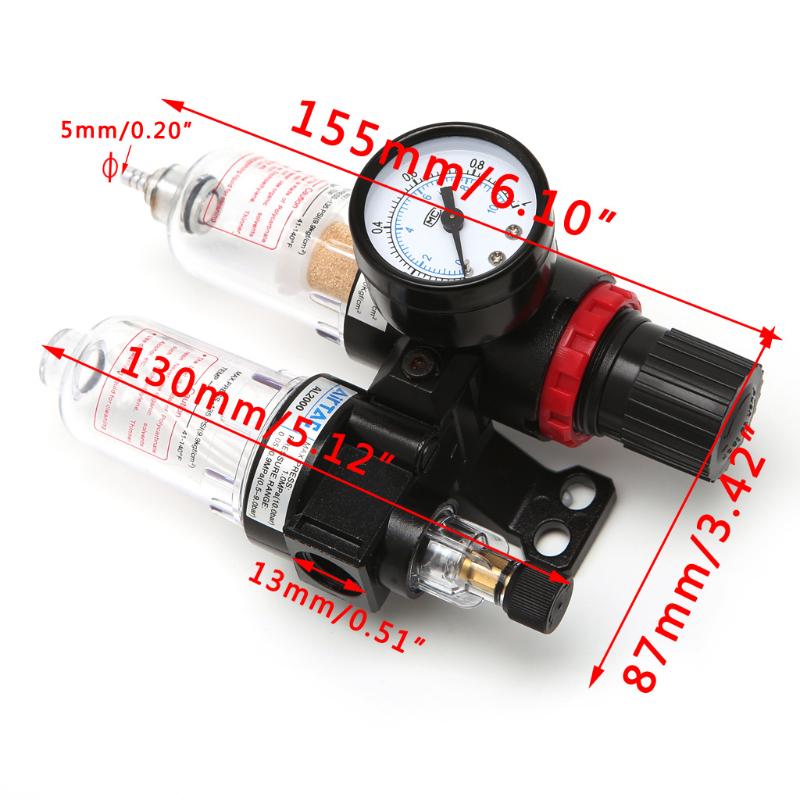

Specifications: Material: Metal, Plastic Operating fluid: Air Joint Pipe Bore: 1/4" Filter Accuracy: 40μm Adjustable pressure range: 0.5-8.5Kgf/cm2 Max. adjustable pressure: 9.9kgf/cm2 Pressure Range: 0~1.0MPa (manual drain: 0-9.5kgf/cm2, differential pressure drainage: 1.5-9.5kgf/cm2) Operating Temperature Range: 5-60Degree Pressure gauge caliber: G1/8 Water-filtered volume: 15cc Feedoil cup volume: 25cc Length: 130mm/155mm Hole Diameter: 13mm Quantity: 1 Set Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents: 1x Air Filter Regulator Moisture Trap Compressor 1 x Gauge
