This incubator has multiple intelligent functions, is easy to operate, precise in control, safe and reliable, and is suitable for the incubation of all types of poultry. Large capacity design and good user experience make it an excellent choice in the incubation field.
Features:
1. Multi-function: This incubator has multiple functions such as temperature control, humidity control, automatic egg turning, ventilation, humidification, etc., to meet different hatching needs, and is flexible and convenient to operate.
2. Precise control: Using intelligent PID control method, the temperature control accuracy can reach ±0.1℃, and the humidity control accuracy can reach ±3%RH, ensuring a stable incubation environment.
3. Intelligent design: Automatically records the number of culture days, various parameter settings can be adjusted freely, and has a variety of icon functions. The operation is simple and intuitive, ensuring ease of use.
4. Safe and reliable: Made of food-grade PP and 304 stainless steel, the temperature measurement error is only ±0.1°C, and the humidity measurement error is ±3%, ensuring a safe and stable incubation process.
5. Large capacity design: 1.8L ultra-large capacity, which can hatch different types of poultry at the same time to meet the needs of different users.

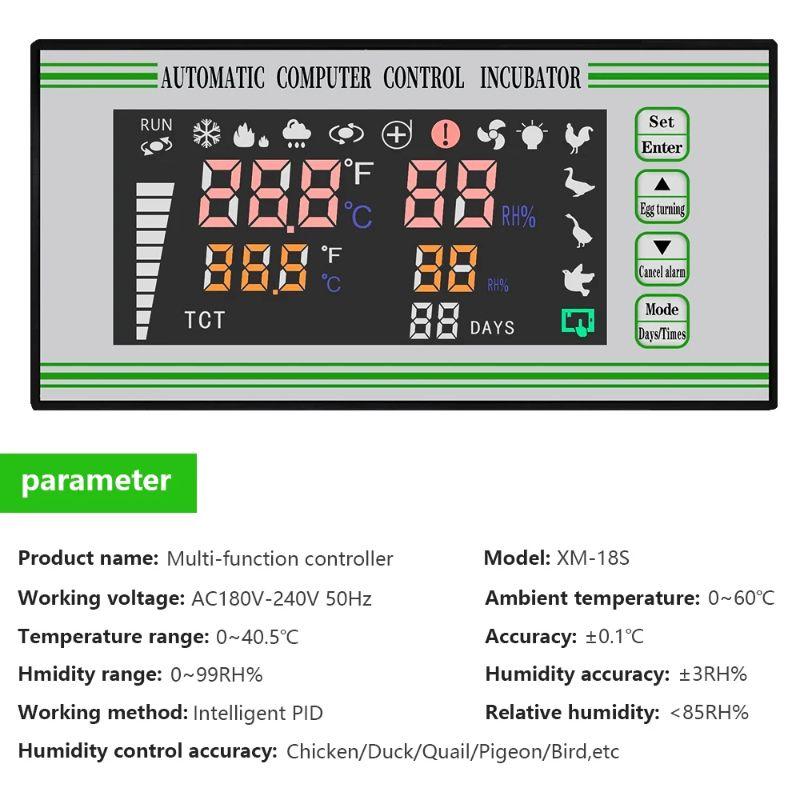

Specification:
Overall dimensions: 155*85*80 mm.
Weight: 0.75kg
Working voltage: 180-240V, 50Hz
Ambient temperature: 0-60℃
Temperature display range: 0~40.5℃
Temperature control accuracy: ±0.1℃
Humidity display range: 0-99%RH.
Humidity control accuracy: ±3%RH.
Calculation method: Intelligent PID
Ambient temperature: -20℃-70℃
Measurement objects: chickens, geese, ducks, quails, pigeons.
Humidity measurement error: ±3%
Temperature measurement error: ±0.1℃
Control Type: Temperature and Humidity
Humidity range: 0-99%
Temperature range: 0~40.5℃
Main features:

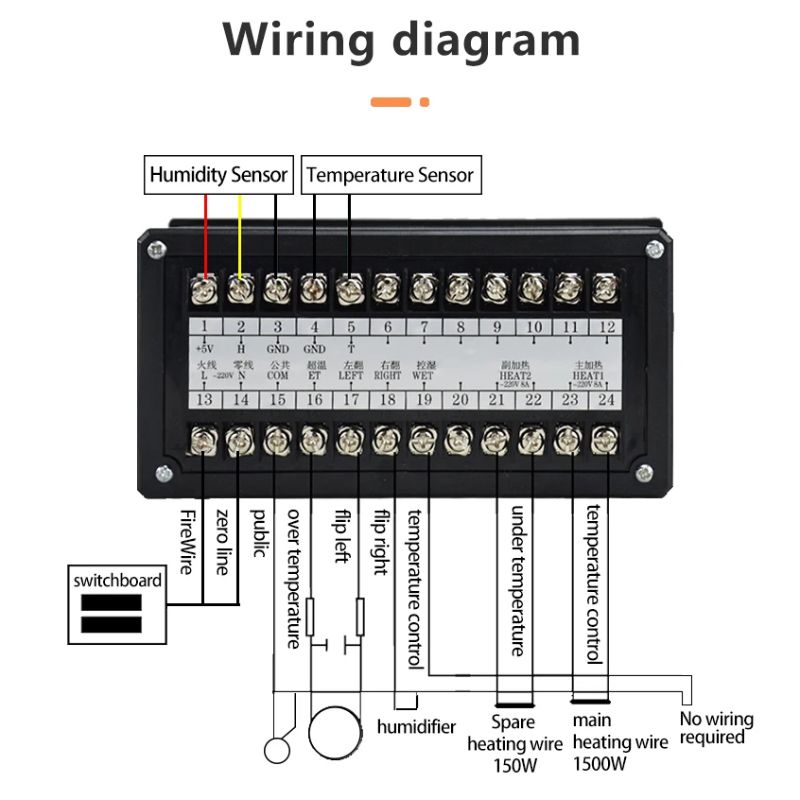

Number of output channels: 6 channels: (main and auxiliary heating, main and auxiliary heating, exhaust, ventilation, left turn, humidification)
Output current: Please note: 30A for overheating and 10A for other outputs.
Number of egg flips: (maximum record - 999 times)
Measuring line length: about 1.5 meters
packing list:
1*Incubator controller

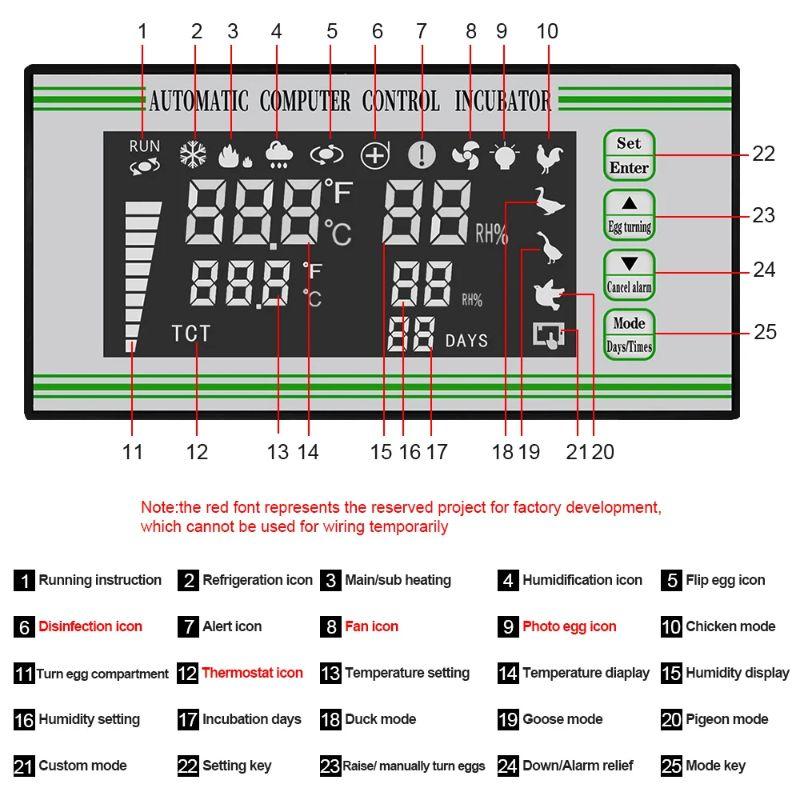

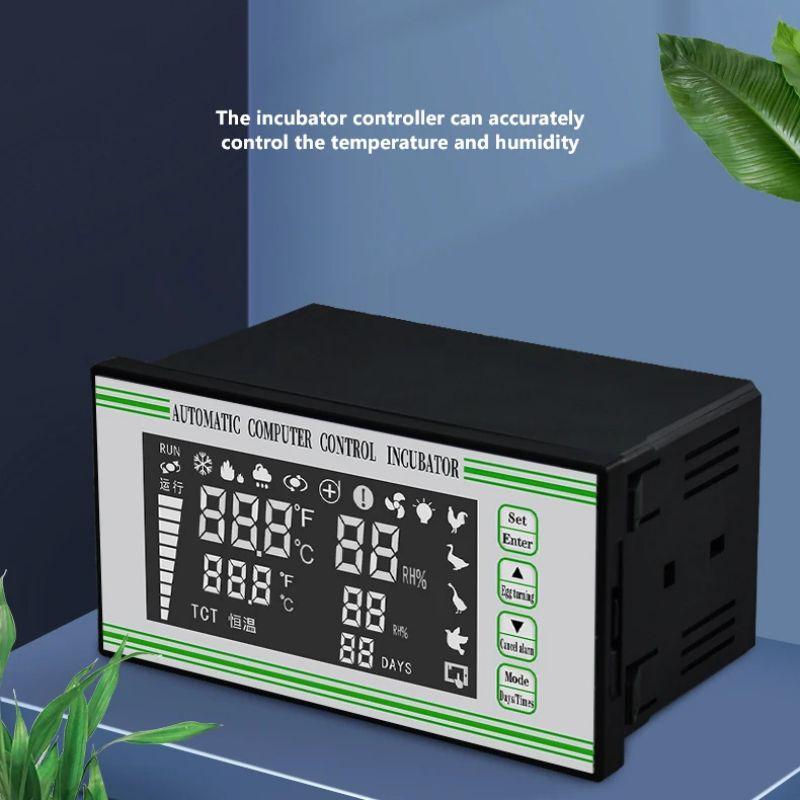

Detailed description of icon function:
1. Work indicator light: When the machine is powered on, the work indicator light lights up, indicating that the machine has started working.
2. Egg-turning interval area: The ten beams represent the countdown percentage of egg-turning time, calculated once every minute. For example, if the egg-turning interval is 90 minutes, a beam will be extinguished every 9 minutes from top to bottom.
3. Temperature display: Real-time display of the internal temperature of the box.
4. Humidity display: Real-time display of humidity in the box.
5. Temperature setting: When the plate is not in the setting state, when the temperature is turned on, the set temperature value will be displayed, otherwise the number of times the eggs have been turned will be displayed. This function can be performed by pressing the Mode/Page button. When setting the status: For details of the displayed content, please refer to the specific setting instructions.
6. Humidity setting: When RH% is turned on, if the humidity parameter is not in the setting state, the set humidity value will be displayed. Otherwise, the number of times the egg was flipped is displayed. This function can be achieved by pressing the Mode/Page button. When setting the status: For details of the displayed content, please refer to the specific setting instructions.
7. Number of days of incubation: a window showing the number of days of incubation.
8. Air cooling/cooling icon: When the measured temperature exceeds the set value by 0.2°C, the icon will light up, indicating that the machine is in a cooling state (air cooling).
9. Main heating icon: When this icon lights up, it means that main heating has started. When the icon goes out, the main heating has stopped.
10. Additional heating icon: When this icon lights up, it indicates that the main heating has started. When the icon goes out, it means main heating has stopped
11. Humidification icon: When the icon lights up, it means humidification is in progress; when it turns off, it means humidification has stopped.
12. Egg-turning icon: When the icon lights up, it means the machine is turning eggs; when it goes off, it means the egg-turning has stopped and the machine is in intermittent egg-turning state.
