Feature:
1. Power Automatic Transfer Switch: Provides a seamless transition between two power sources, ensuring uninterrupted power supply for essential devices.
2. and : Made from flame retardant PC and silver materials, with a PC level grade for added safety and longevity for long working hours.
3. Easy Installation and : Designed with a compact size, this ATS can be easily installed in various settings. It features a quick switching time of less than 50ms.
4. Versatile Configuration: This automatic transfer switch is equipped with 3P configuration and two relays, each with two groups of contacts for versatile control options.
. High Performance: With a rated insulation voltage of AC 690V, rated voltage of AC 400V, and a rated short circuit current of 50kA, this ATS delivers performance in any situation.
Specification:
Item Type: Power Automatic Transfer Switch

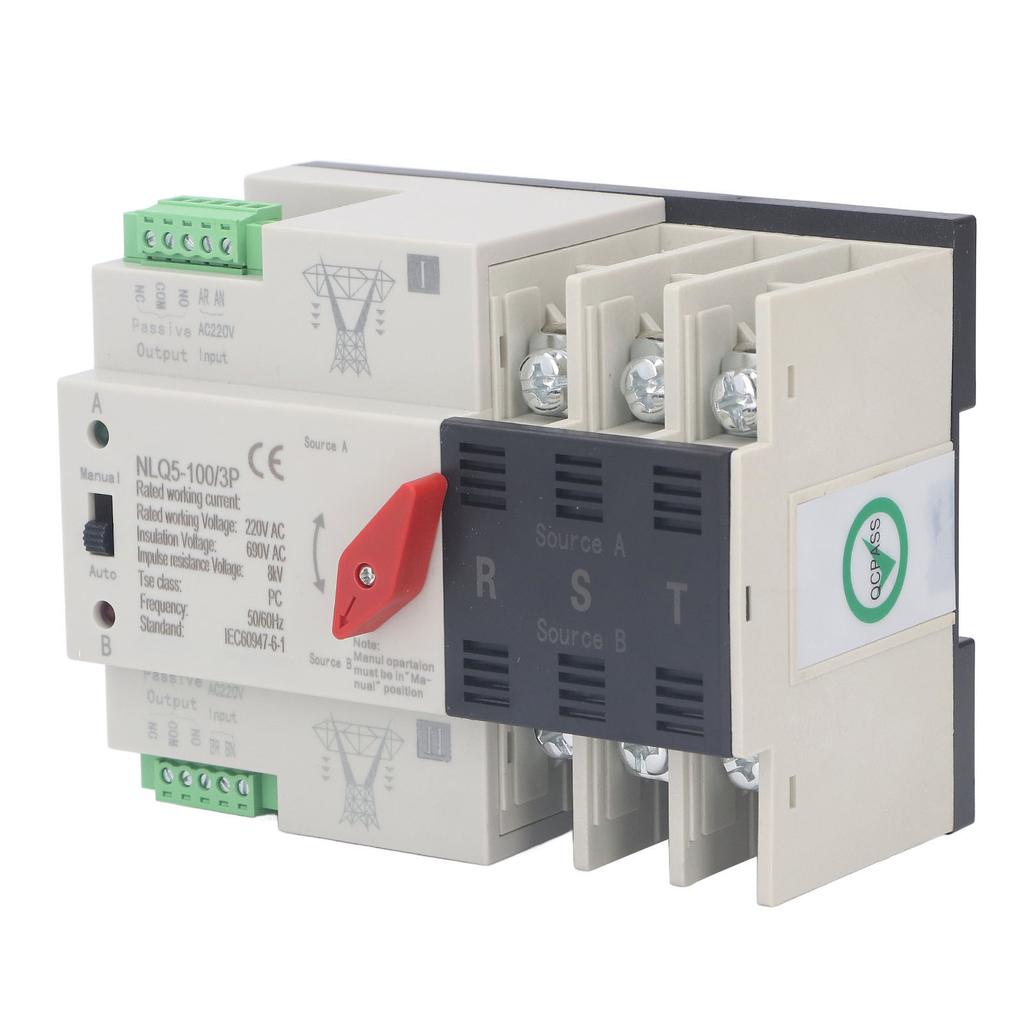

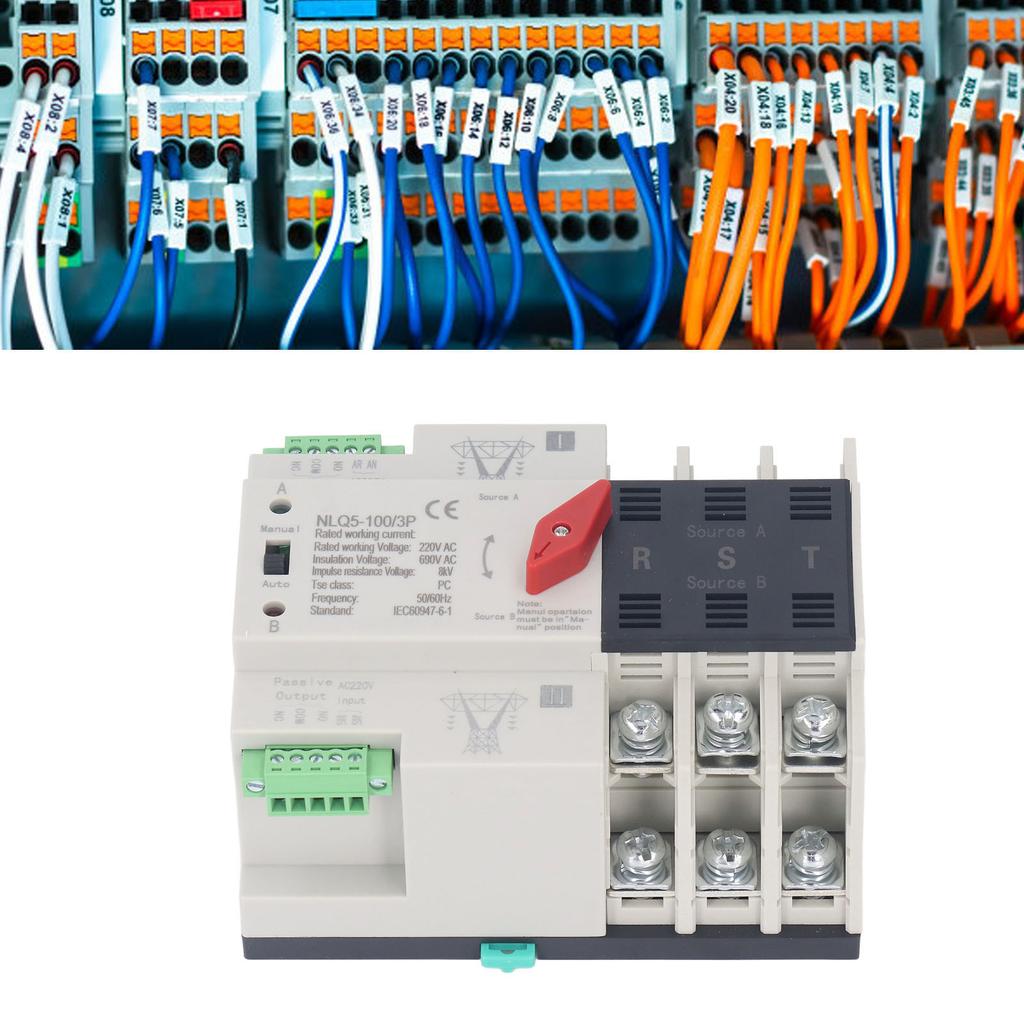

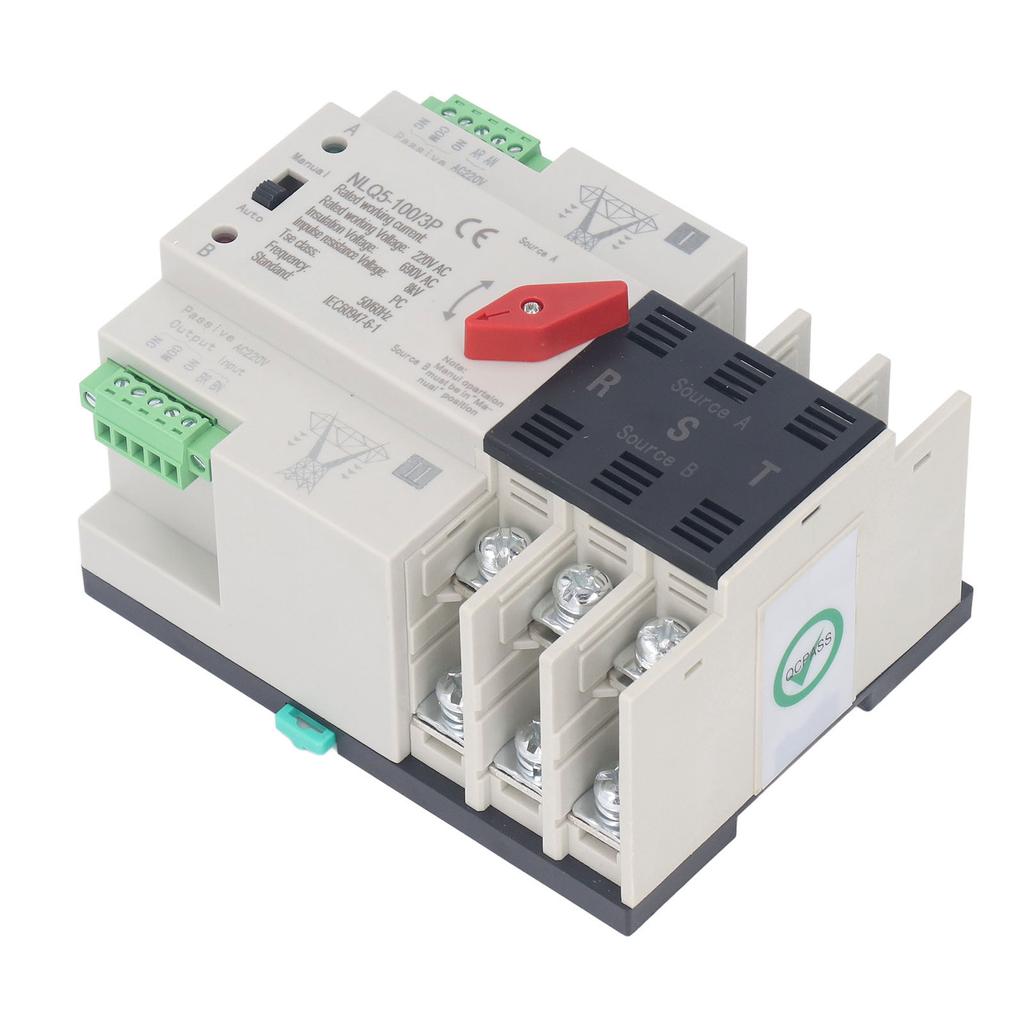

Model: NLQ5-100/3P
Material: Flame Retardant PC, Silver
Insulation Voltage Ui: AC690V 50HZ
Rated Voltage Ue: AC400V 50HZ
Level: PC level
Specification: 3P
Rated Control Voltage US: 220VAC 85% Us-110% Us
Life: Electrical: 2,000 times. Mechanical: ,000 times.
Rated Short Circuit Current: 50kA
Fuses: RT16-00-63A
Rated Impulse Withstand Voltage: 8kV
Auxiliary Circuit: Two relays, each with two sets of contact capacity: AC220V50HZ le=5y.
Touch Time: <50ms
Conversion Time: <50ms
Return Time: <50ms
Closing Time: <50ms
Package List:
1 x Power Automatic Transfer Switch
1 x User Manual
Note:
1. The maximum ambient temperature shall not exceed 40 ??, the minimum temperature shall not be lower than ? ??, and the average temperature within 24 hours shall not be higher than 35 ??.
2. The altitude of the installation site should not be higher than 2000m.
3. When the maximum temperature reaches 40 ??, the relative humidity of the installation site should not exceed 50%. When the temperature is the lowest temperature ???, the relative humidity is higher, for example, when the temperature is 25??, the relative humidity is 90%. Due to temperature changes, special measures should be taken to deal with occasional condensation on the of the product.
