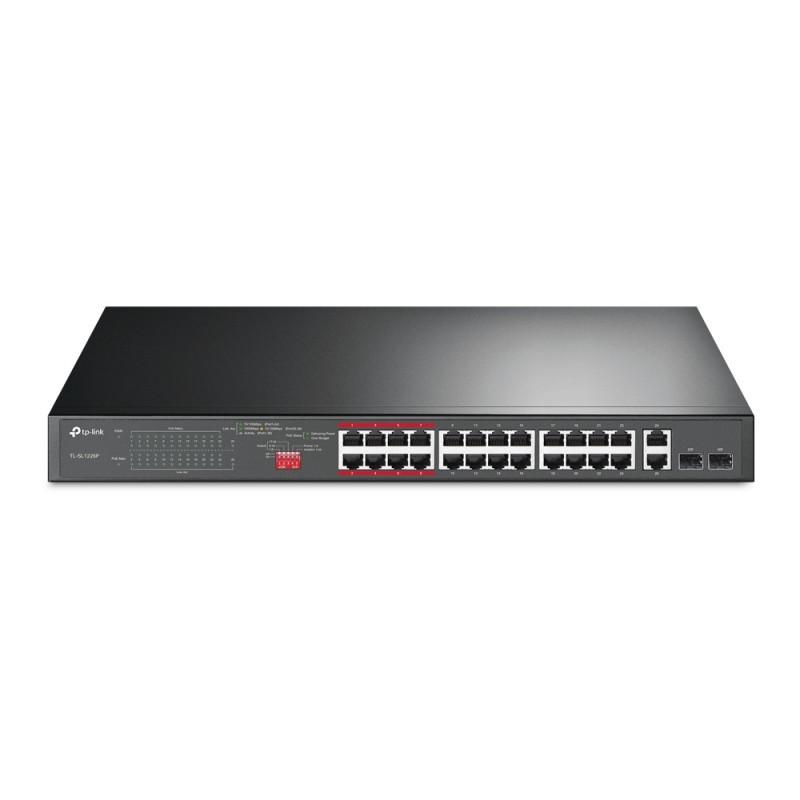

24-Port 10/100Mbps Switch + 2-Port Gigabit PoE+ Unmanageable Dedicated 24-Port PoE+ Wide Distance Switch for Applications with 250W Total PoE Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total power output of 250W PoE* for all 24 × PoE ports makes it have a wide range of applications, such as surveillance, offices, dormitories and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc. Dedicated Design for IP Surveillance?Up to 250 m Transmission. Thanks to extended mode, the PoE transmission distance can reach up to 250 m*?perfect for IP Camera deployments in large areas. *Port speed on each port in extreme mode drops to 10 Mbps. The actual distance may vary depending on the quality of the cable used.Dedicated Design for IP Surveillance?High Performance and Security.Priority mode and Isolation mode allow for smooth and secure surveillance.-Guaranteed Video Quality Guarantee.The quality of sensitive applications, such as video monitoring in critical business areas, is guaranteed by offering higher priority options for ports 1?8 when when Priority Mode (One-Click) is active.-Traffic Separation (One-Click) for Ports 1-24With the push of a button, Isolation Mode splits traffic from ports 1?24 to avoid interference and manipulation. This allows the switch to isolate the transmission storm, improving LAN security and data transmission. Smooth HD Video Monitoring. 2× gigabit RJ45 ports and 2× gigabit SFP combo ports ensure smooth video transmission even when 24x cameras IP HD work simultaneously. Wide Operating Temperature with Good Heat Dissipation. Durable metal casing and professional heat dissipation design ensure wide operating temperature. (0?fifty ?) with reliability.Features:-24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× Gigabit SFP combo slots.-High power PoE up to 30 W per port and a total of 250 W PoE*.-Up to 250m transmission distance data and PoE power in Extender mode**, ideal surveillance systems.-Priority mode ensures high priority on ports 1?8 guaranteeing the quality of sensitive applications such as video monitoring.-Isolation mode (isolation) allows the separation of client traffic for greater security and performance, with one click. -Plug and play, without the need for configuration and installation. specs:Hardware Features:-Interface: 24 PoE+ 10/100 Mbps RJ45 Ports - 2 10/100/1000 Mbps RJ45 Ports - 2 Gigabit SFP Combo Ports-Network Media: 10BASE-T Cable: UTP category 3, 4, 5 (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) - 100BASE-TX Cable: UTP category 5, 5e (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) - 1000BASE-T Cable: UTP category 5, 5e, 6 or higher (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) - 1000BASE-X MMF, SMF-Number of Fans: 2-Physical Security Lock: Yes-Power Supply: 100-240 VAC, 50/60 Hz - Backup Bandwidth: 8.8 Gbps-Dimensions: 440 x 180 x 44 mm -Maximum Power Consumption: 18.32W (220/50Hz. without PoE devices connected) - 294W (220/50Hz. with 250 W of connected PoE equipment)-Max Heat Dissipation: 62.47 BTU/hr (without PoE Equipment connected) - 1002.54 BTU/hr (with 250 W of connected equipment)-Switching Capacity: 8.8 Gbps-Packet Forwarding Rate: 6.5472 Mpps-PoE+ Ports (RJ45): Compatible Standard: 802.3at/802.3af - PoE Ports: Port 1? Port 24 - Total PoE Supply: 250W-Jumbo Frame: 10 KB-MAC Address Table: 8 KSoftware Features:-Transmission Method: Storage and Shipping - Advanced Features: Compliant with IEEE 802.3at/af - Extended Mode (Up to 250m of PoE and data transmission) - Priority Mode - Isolation Mode - PoE Equipment Detection - Intelligent Power Supply - Mac Address Auto-Learning and Auto-Aging - IEEE802.3x Flow ControlOthers:-Certifications: CE, FCC, RoHS - Package Contents: TL-SL1226P - Power Cable - Installation Guide - 2 Wings for rack mountingEnvironmental Factors: -Operating temperature: 0?~40? (32?~104?)-Storage temperature: -40?~70? (-40?~158?)-Operating Humidity: 10%~90% non-condensing.-Storage Humidity: 5%~90% non-condensing. Claims will only be attended to up to 5 days after receiving your order.
