Power Meter Load Charger Adjustable Testing Module US Plug Electronic Load 4-wire Lithium Battery Tester 150W 10A DC Digital Analyzer

Features:

This product supports 0~150V, 0~20A within the maximum 150W load

Over-voltage, over-current, over-power, over-temperature protection and reverse connection protection below 100V

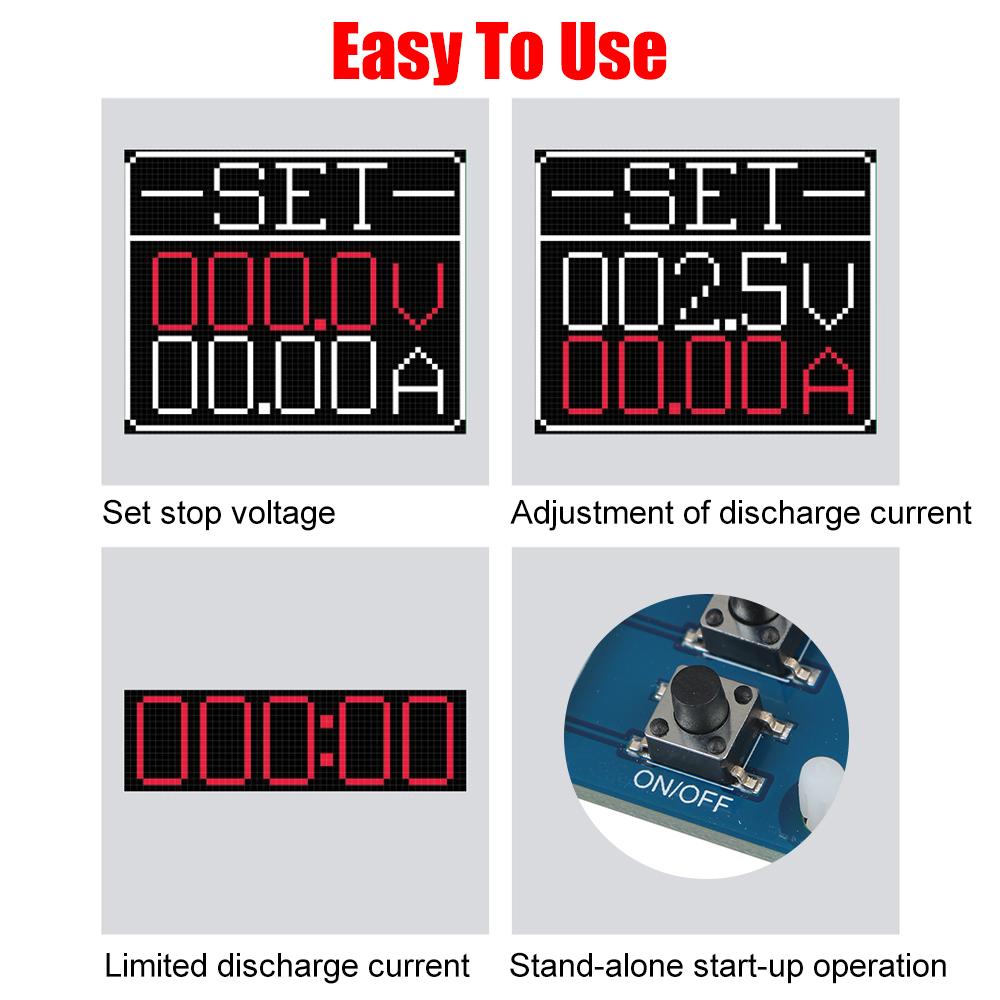

Support timing shutdown and specified voltage shutdown

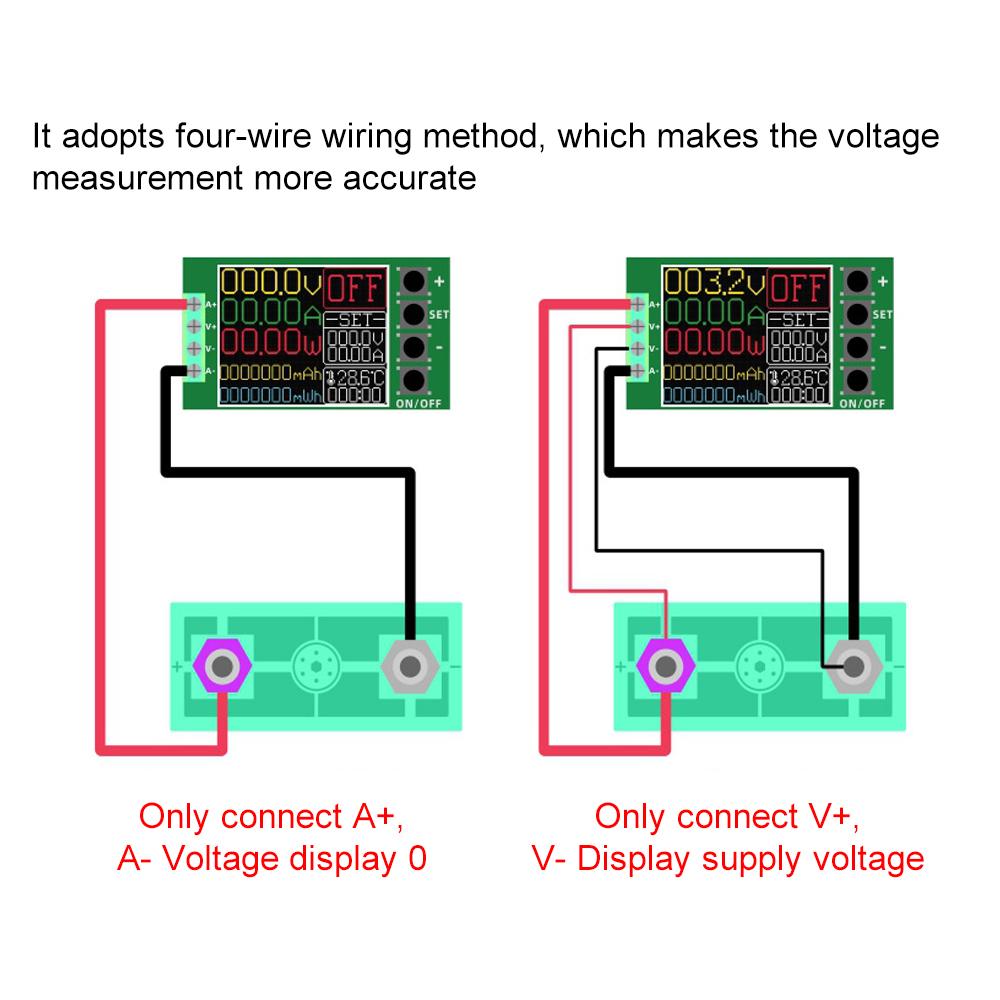

Four-wire wiring system for more accurate capacity measurement

Active heat dissipation with load current above 3A or core temperature ≥40℃ to start the fan

Specifications:

Load voltage-U: DC0V~150V

Load current-I: 0~20A

Load power-W:U×I≤150W(max)

To avoid pulse damage, the total load power is capped at 60W when the load voltage is ≥120V

Capacity metering range:0~999999mAh

Energy measurement range:0~999999mWh

Applicable power supply: DC12V 1A

Wiring mode: four-wire system A+ V+ V- A-

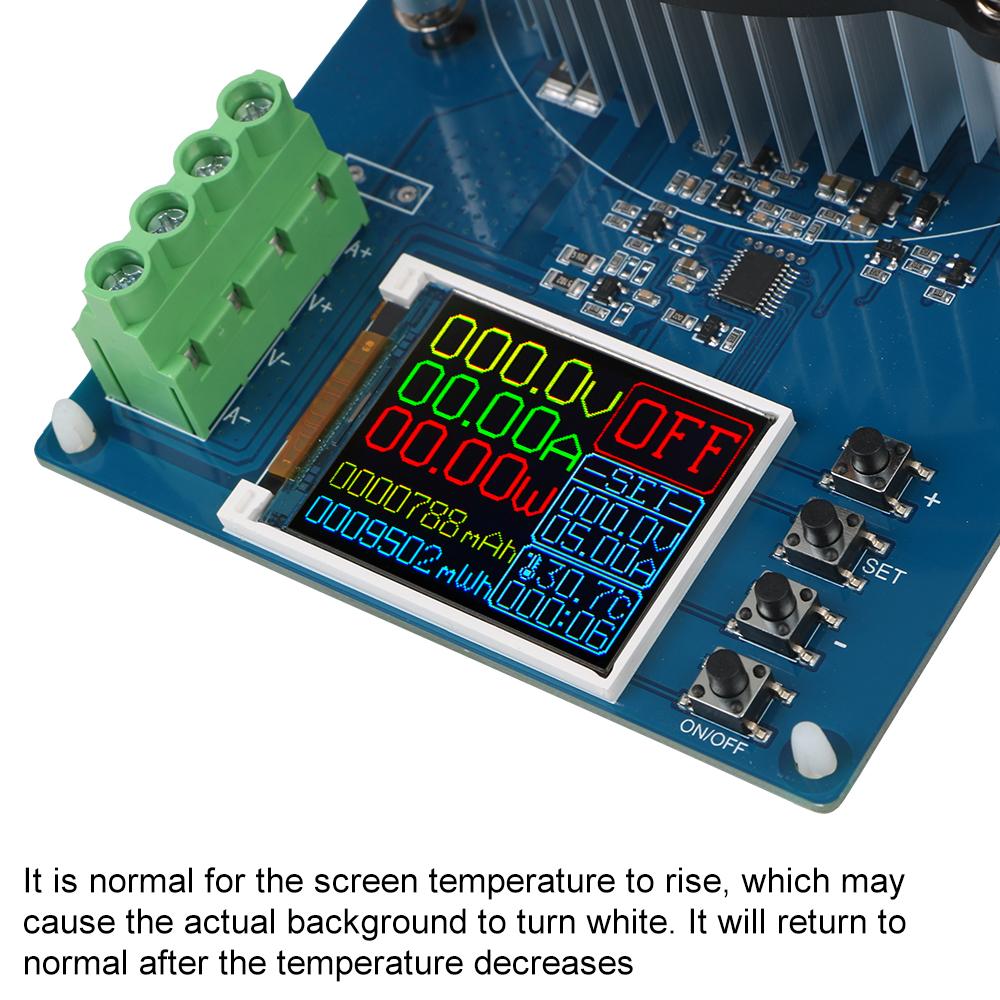

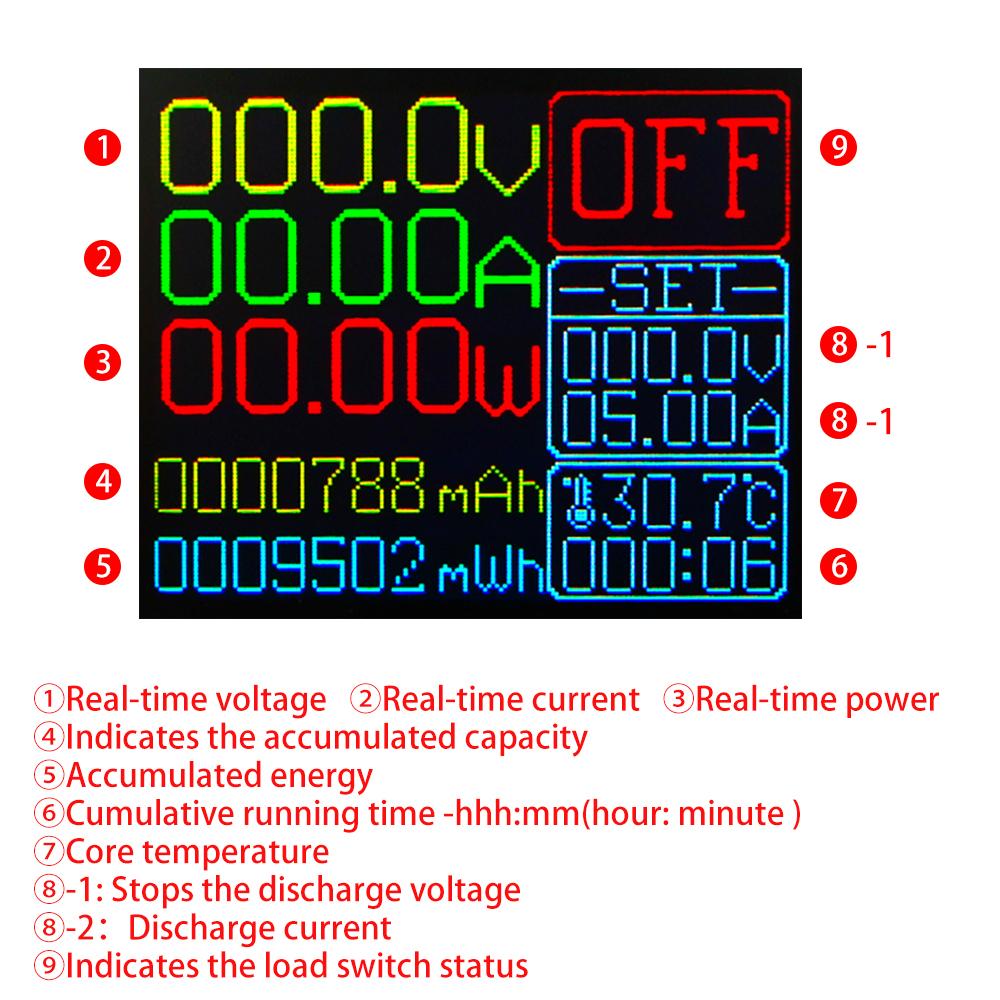

Display mode: 1.77 inch TFT color screen

Control operation: 4 button control

Heat dissipation mode: active heat dissipation load current 3A or more or core temperature ≥ 40 ℃ to start the fan

Online view: not supported

Over-voltage protection: support

Overcurrent protection: support

Over power protection: Support

Over-temperature protection: the core temperature exceeds 80 ℃ to stop the load (non-adjustable)

Time limit discharge: Support

Power failure save: Support

Restore Factory Settings: ①Device power off ②Press and hold the "SET" key and do not release ③Equipment power on, wait for the display normal display and then release the "SET" key, the operation is complete

Package Included:

1 x Instrument main unit

1 x US adapter
