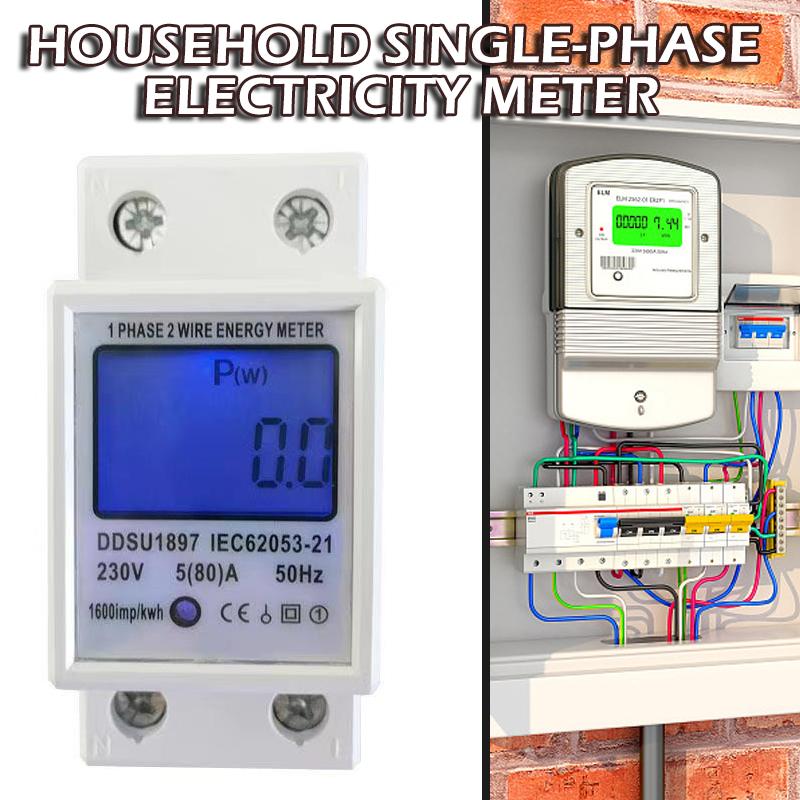

35mm LCD Display Din Rail Energy Meter AC 230V 5(80) A 50HZ/60HZ Power Meter Rail-Type Energy Meter

Features:

Using microelectronic technology and digital processing technology, accurate and reliable measurement of electric energy.

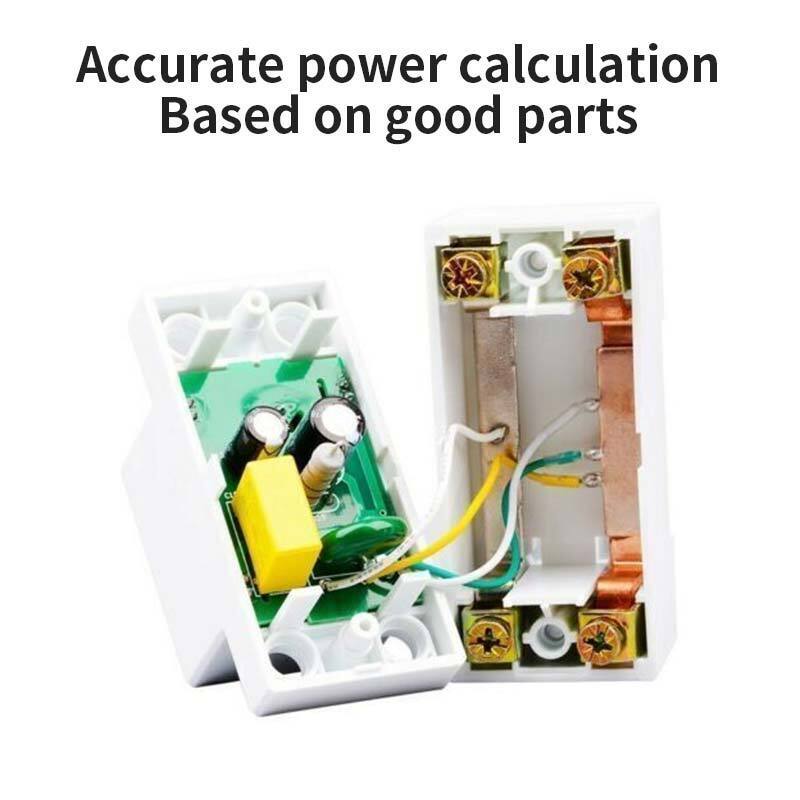

The internal integrated circuit is manufactured with precision SMT technology,

which has good anti-electromagnetic interference ability and stable performance.

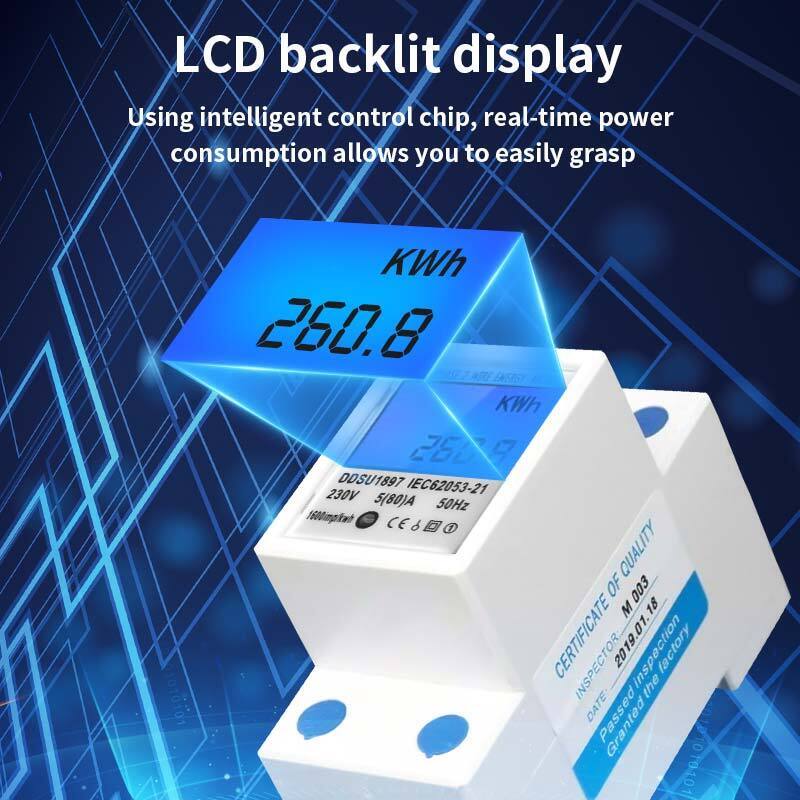

The meter measures positive active energy when measuring electricity, which is clearly displayed on an LCD backlit screen.

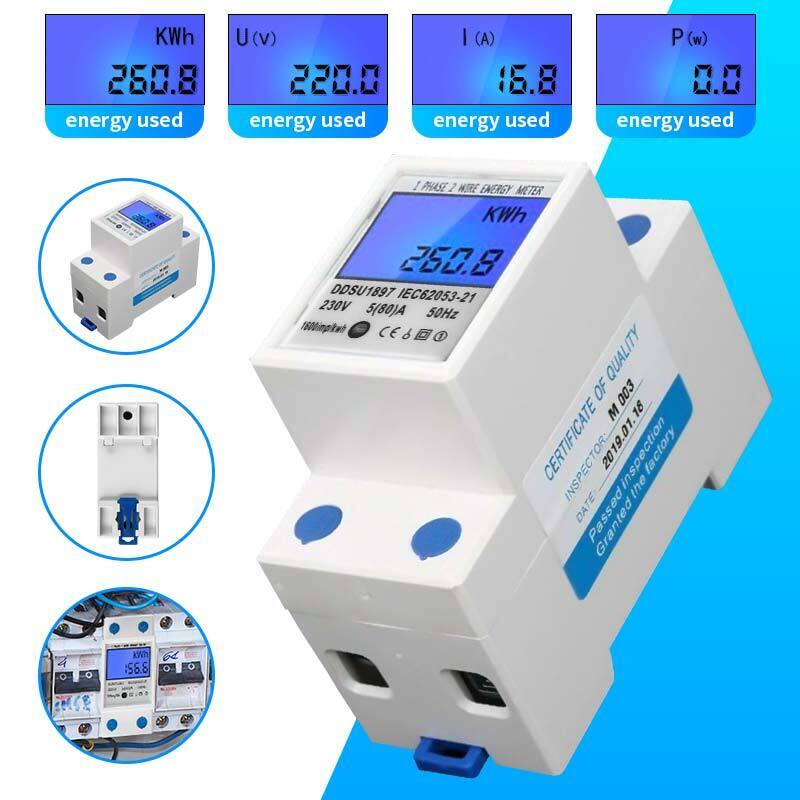

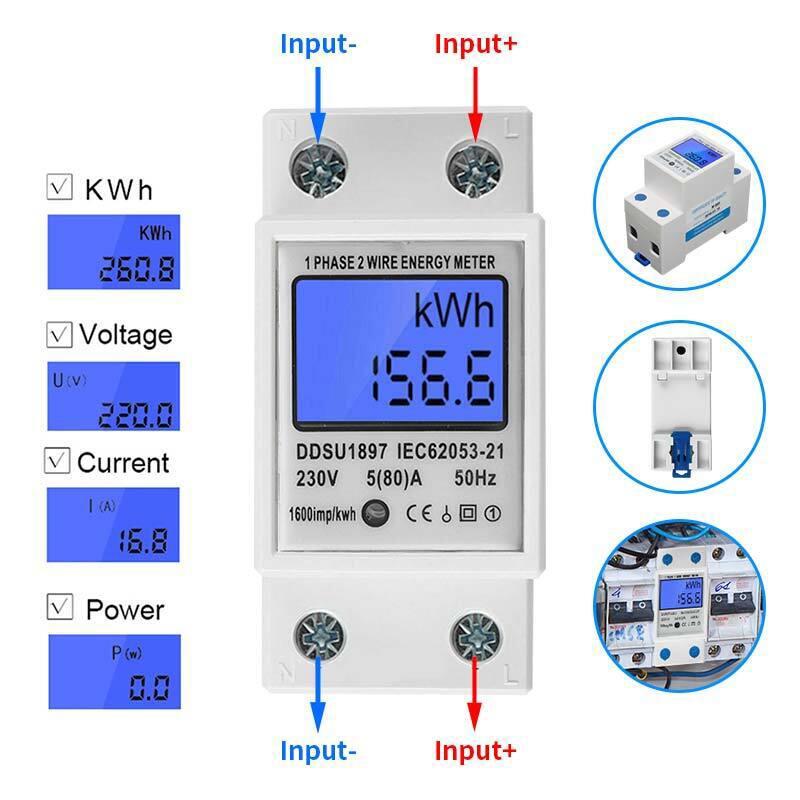

It shows voltage, current, power and energy KWh in cycles.

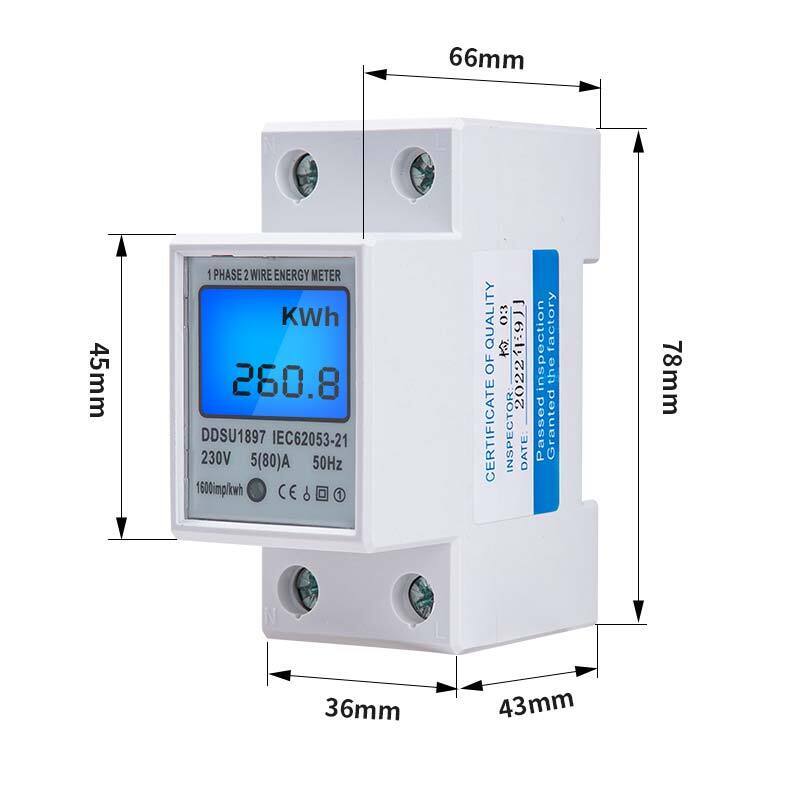

Small size, light weight, 35mm DIN rail installation.

It has low power consumption, high precision, high overload and anti-theft current.

Specification:

100% brand new with high quality

Rated voltage: 230 V AC

Rated current: 5-80A

Load capacity: 0.05Ib SiImax (direct access type) or 0.02Ib SiImax (access via transformer)

Data display: LCD display

Power indicator: Green light indicator

electric energy pulse: red light (when a scanning signal is present, it lights up for about 80ms)

Mounting type: 35mm DIN rail

Working environment: -25 to 55 degree Celsius, ≤95% rF

Package Included:

1 x Energy meter

1 x Manual

Note:

The colors may be a little difference for the different monitor display.

Please check as much as possible to make sure the item is the one that you need.

Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
