This meter is integrated the function of oscilloscope and multimeter, with 2.8inch full-view true color IPS display, with high resolution and large font for easy data reading, which makes it can applicable to various measurements under complex environment. Support the multimeter functions of AC/DCvoltage, AC/DCcurrent, resistance, capacitance, diode, frequency, and temperature measurement, and circuit on-off test. And the oscilloscope functions of full waveform measurement, with single-channel 10MHz bandwidth and 48MSa/s real time sampling rate. With high accuracy, high speed, high sensitivity, and multiple measurement modes, and can be widely used in testing and debugging work in the fields of electronics, communications, computers, etc.
Features:
【Premium Material】: The housing is made of ABS and TPE material, with double injection molding and reinforced structure, fall and impact resistant, with long durability.
【2.8inch IPS Color Display】: 2.8inch full-view true color IPS display, with high resolution and large font for easy data reading, which makes it can applicable to various measurements under complex environment.
【2in1 Design】: Support oscilloscope and multimeter dual modes switching. It can simultaneously measure a variety of electrical parameters, and display the waveform and spectrum of electrical signals.
【Multimeter Function】: Support AC/DCvoltage, AC/DCcurrent, resistance, capacitance, diode, frequency, and temperature measurement, and circuit on-off test.
【Oscilloscope Function】: The oscilloscope will automatically identify the waveform type (sine or square wave) and adjust the control method so as to accurately display the waveform of the input signal.?Support full waveform measurement, with single-channel 10MHz bandwidth and 48MSa/s real time sampling rate.
【Waveform Storage and Review】: The tested data can be stored and transferred for more convenient to back up and analyze.
【Wide Applications】: With high accuracy, high speed, high sensitivity, and multiple measurement modes, and can be widely used in testing and debugging work in the fields of electronics, communications, computers, etc.
Specifications:
Name: Oscilloscope Multimeter
Material: ABS + TPE
Battery: 1 * built-in battery (included)
Display (3inch IPS color display): 9999 Counts
Operating mode: Automatic/Manual
Bandwidth: 10MHz
Real-time sample rate: 48MSa/s
ACvoltage: 0.1mA-750V, ±(1.0%+3)
DCvoltage: 0.1mV-999.9V, ±(0.5%+3)
ACcurrent: 0.001A-10A, ±(1.0%+3)
DCcurrent: 0.001A-10A, ±(1.0%+3)
Capacitance test: 0.001nF-99.99mF, ±(2.0%+5)
Resistance test: 0.01Ω-99.99mΩ, ±(0.5%+3)
Temperature test: -20 to 1000℃/-4℉ to 1832℉
Frequency test: 0.01Hz to 999.9KHz
Diode: Yes
True RMS: Yes
ON/OFF beep: Yes
Package size: 216 * 130 * 65mm / 8.50 * 5.12 * 2.56in
Package weight: 720g / 1.59lb

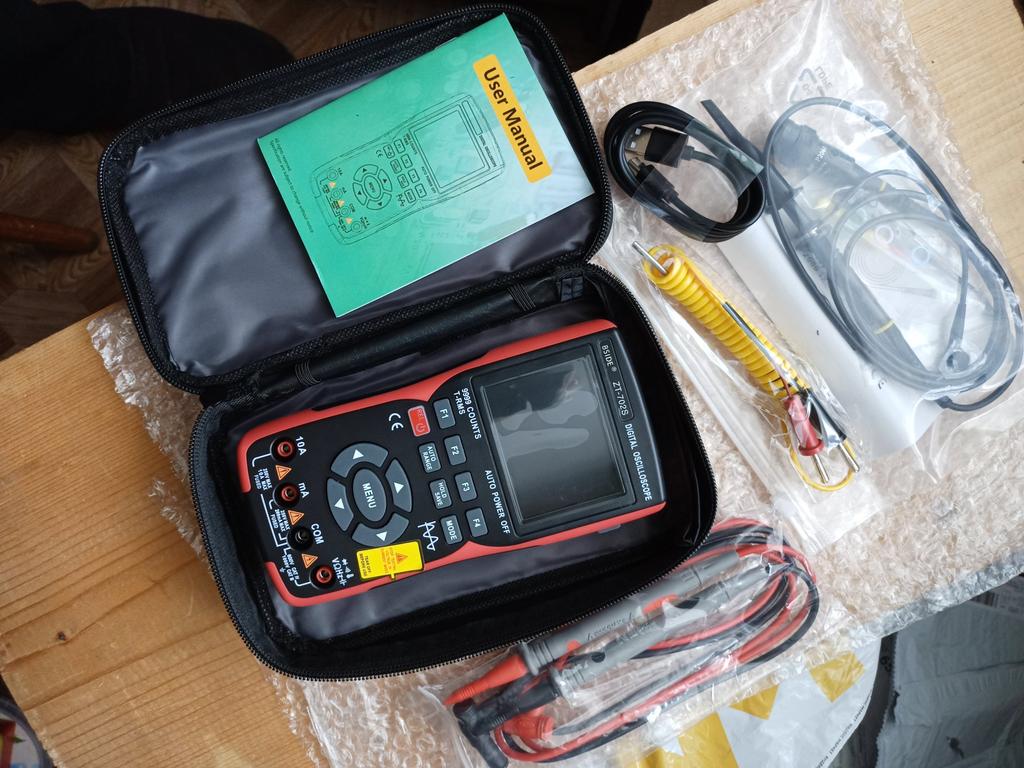

Packing List:
1 * Oscilloscope Multimeter
?
