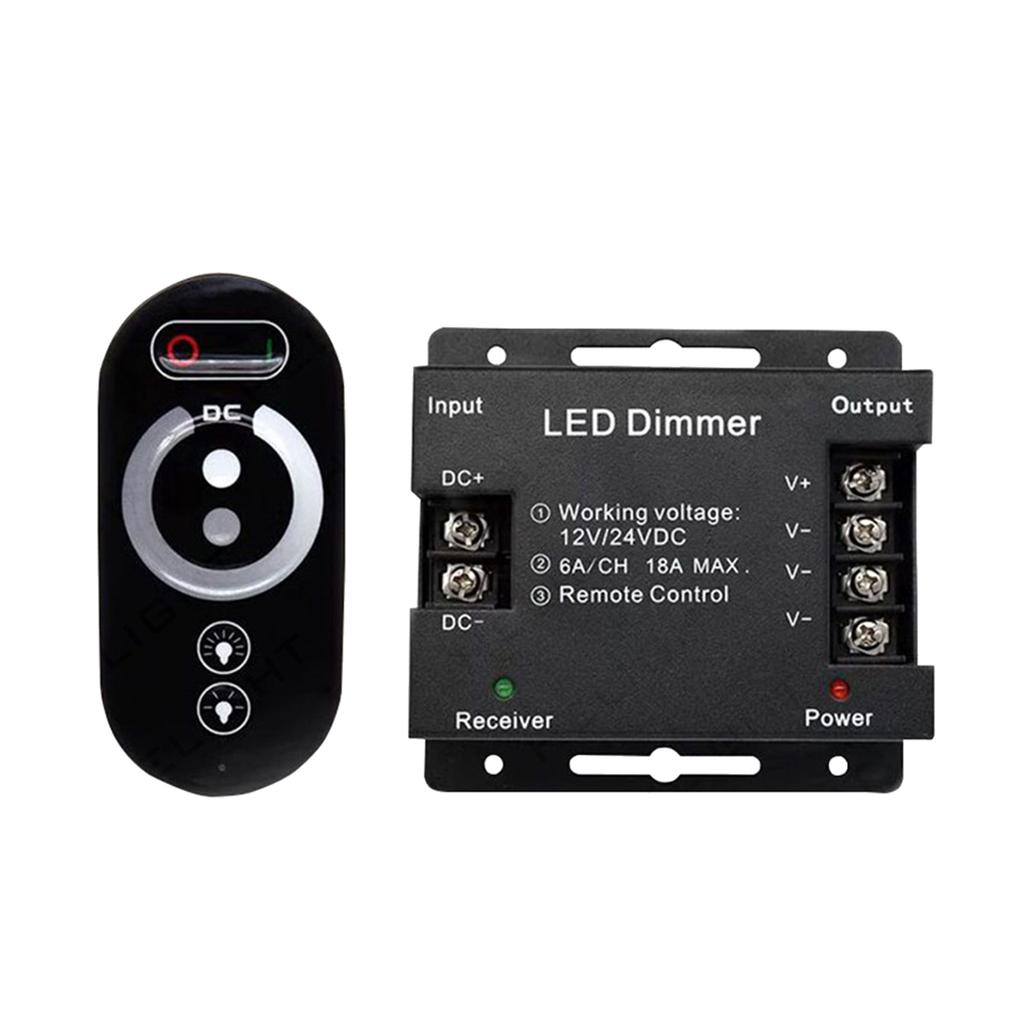

Features:
DC 12V-24V Please check whether your power supply is a DC power supply before purchasing (this product is only suitable for DC power supply, not for AC power supply).
Upgraded Led Dimmer: 0percent -100percent stepless dimming, easy adjustment of brightness through touch remote control to meet different preferences and needs.
Memory FunctionThe LED dimmer switch has a memory function so that it retains the last dimming level after switching on via the wall switch.
Wireless RF Remote ControlThe LED string lights dimmer comes with a RF remote control, which supports up to 65FT long range control with strong and stable signal transmission.
Specifications:
Working temperature:-20 celsius ~+60 celsius
Supply Voltage:DC5V, 12V, 24V available(Please specify the voltage when place order)
Output:3 single color channels N-MOS Drain open output in parallel
Connection mode:common anode
controller dimension:L83*W79*H33 mm
Package size:L205*W134*H47mm
Net Weight:227g
Gross Weight:379g
Static power consumption: less than 1W
Output current: less than 18A(each channel)
Output power:5V: less than 90W, 12V: less than 216W, 24V: less than 432W

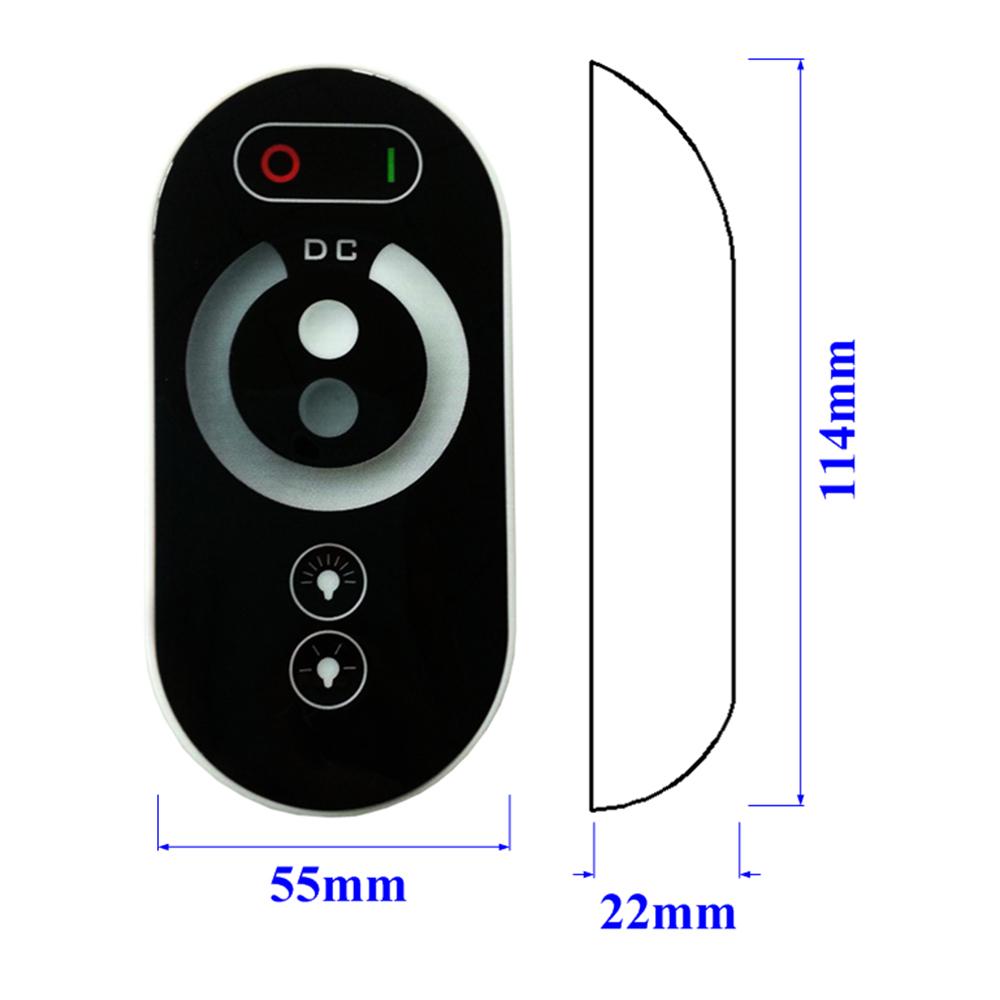

Romoter
Working temperature:-30 celsius ~+60 celsius
Power supply mode:3pcs NO.7 Battery
Supply voltage:3V
Static power consumption: less than 0.09mW
Remote-controlled distance: more than 20M
Package List:
1 * LED Light Dimmer
1*Remote Control(3xAAA batteries not included)
1*User Manual
