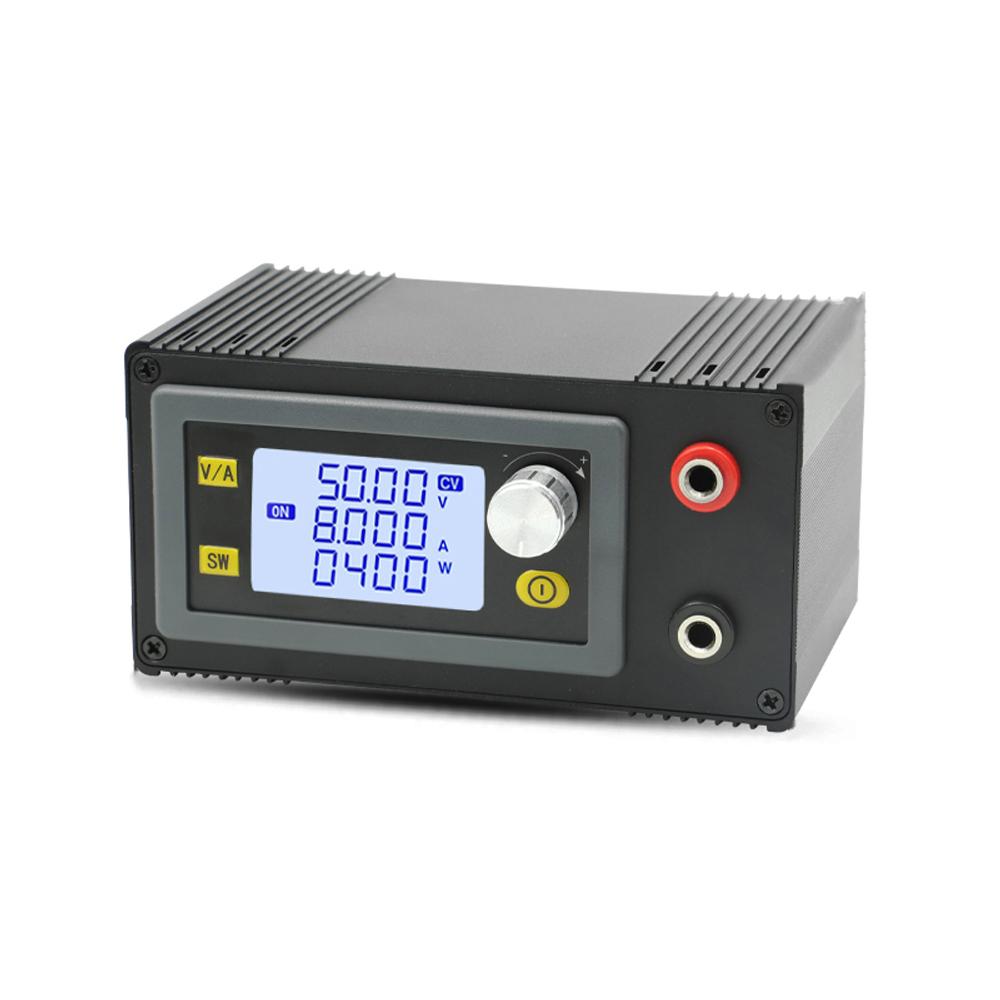

This step-down module has large LCD display, the working state is clear at a glance, easy to operate. In the operation interface, short press the knob, power (W) capacity (Ah) energy (Wh) time (h) will displays in turns. When the power is off, the set voltage and current are displayed in turns. Support setting voltage and current, quick setting voltage or current, parameter setting (maximum capacity, maximum energy, maximum running time), input and output voltage display, powercapacityenergytime viewing, with lock function. Suitable for computer power conversion, DIY desktop small power supplies.
Features:
LCD Display: Large LCD display, the working state is clear at a glance, easy to operate. In the operation interface, short press the knob, power (W) capacity (Ah) energy (Wh) time (h) will displays in turns. When the power is off, the set voltage and current are displayed in turns.
Multi-functional Design: Support setting voltage and current, quick setting voltage or current, parameter setting (maximum capacity, maximum energy, maximum running time), input and output voltage display, powercapacityenergytime viewing, with lock function.
Rich Interfaces: Equipped with PD interface, automatic activation after inserting and output 20V high voltage; spare expansion port; power battery interface; 5.5 * 2.5 direct current plug, input voltage 6.0-70VDC (Note: the input voltage can not exceed the input voltage ranges of the power supplys); unplugged terminals; intelligent temperature control fan interface.
Multiple Protections: With input anti-reverse connection protecting, output short circuit protecting, input undervoltage protecting, overvoltage protecting, overcurrent protecting, over temperature protecting, over power protecting.

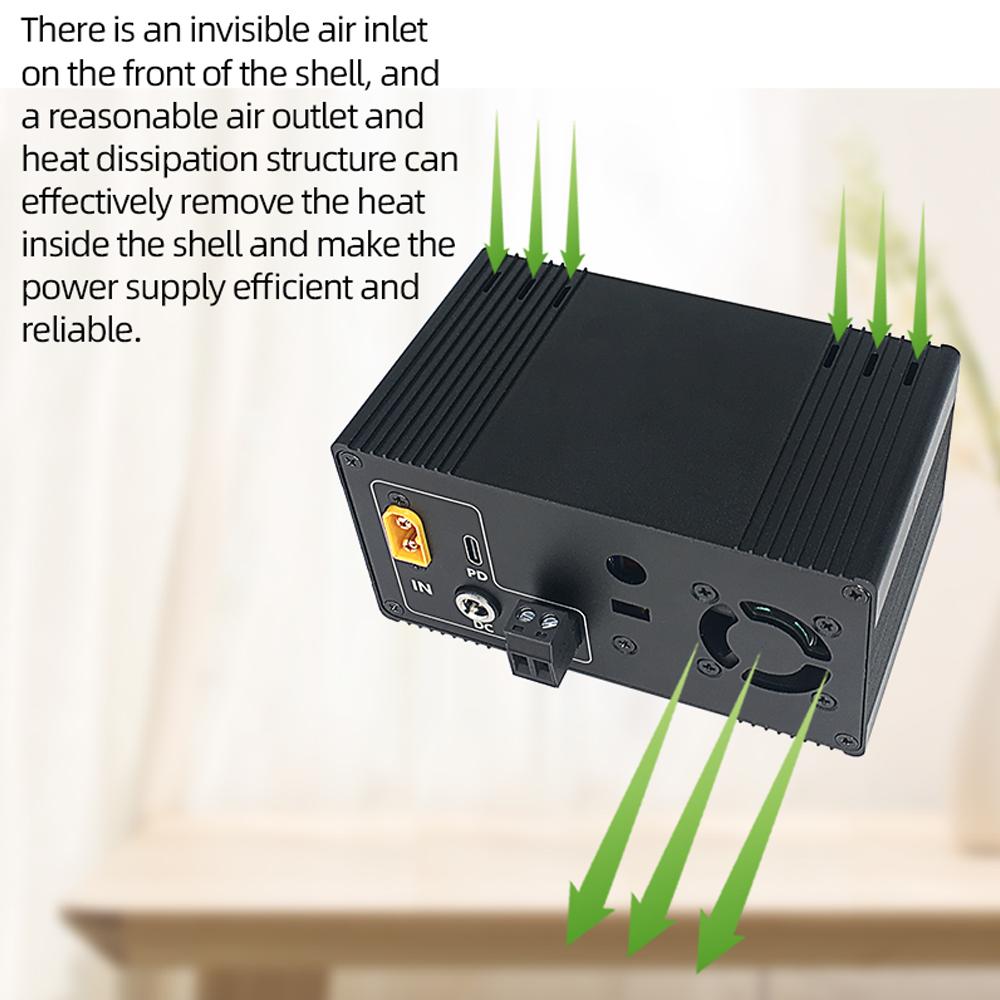

Efficient Heat Dissipation: The the front housing has invisible air inlet, with reasonable air out of the cooling structure, which can effectively take away the heat inside the housing, so that the power supplying efficient and reliable operation
Wide Applications: Suitable for computer power conversion, DIY desktop small power supplys.
Specifications:
Name: Step-down Module

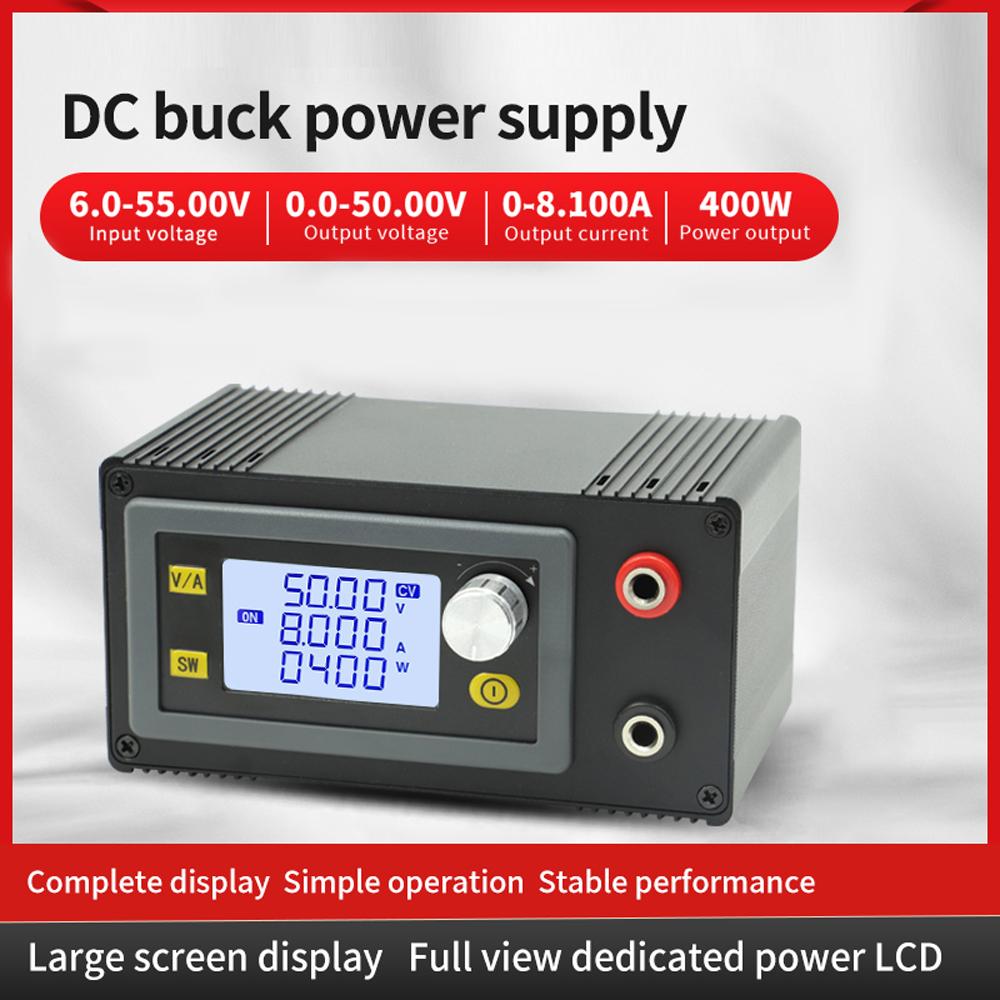

Model: XY5005E, XY5008E (optional)

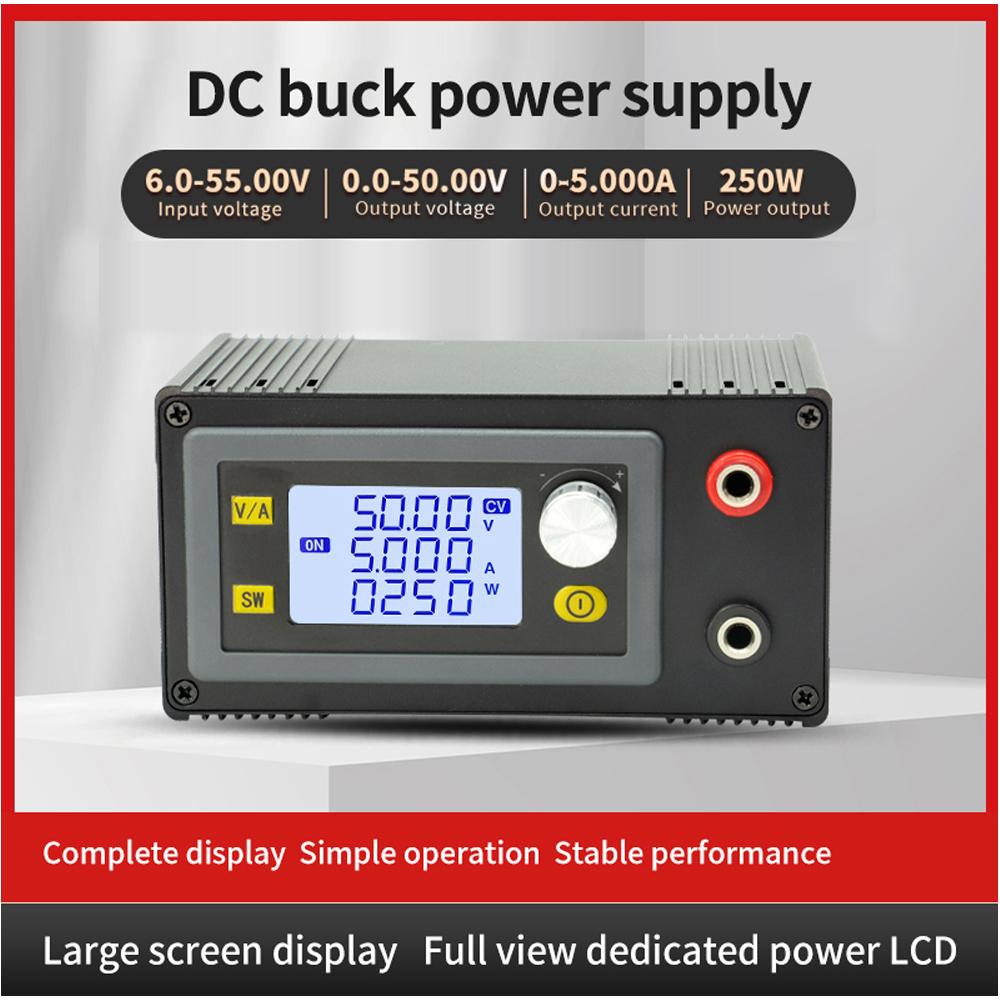

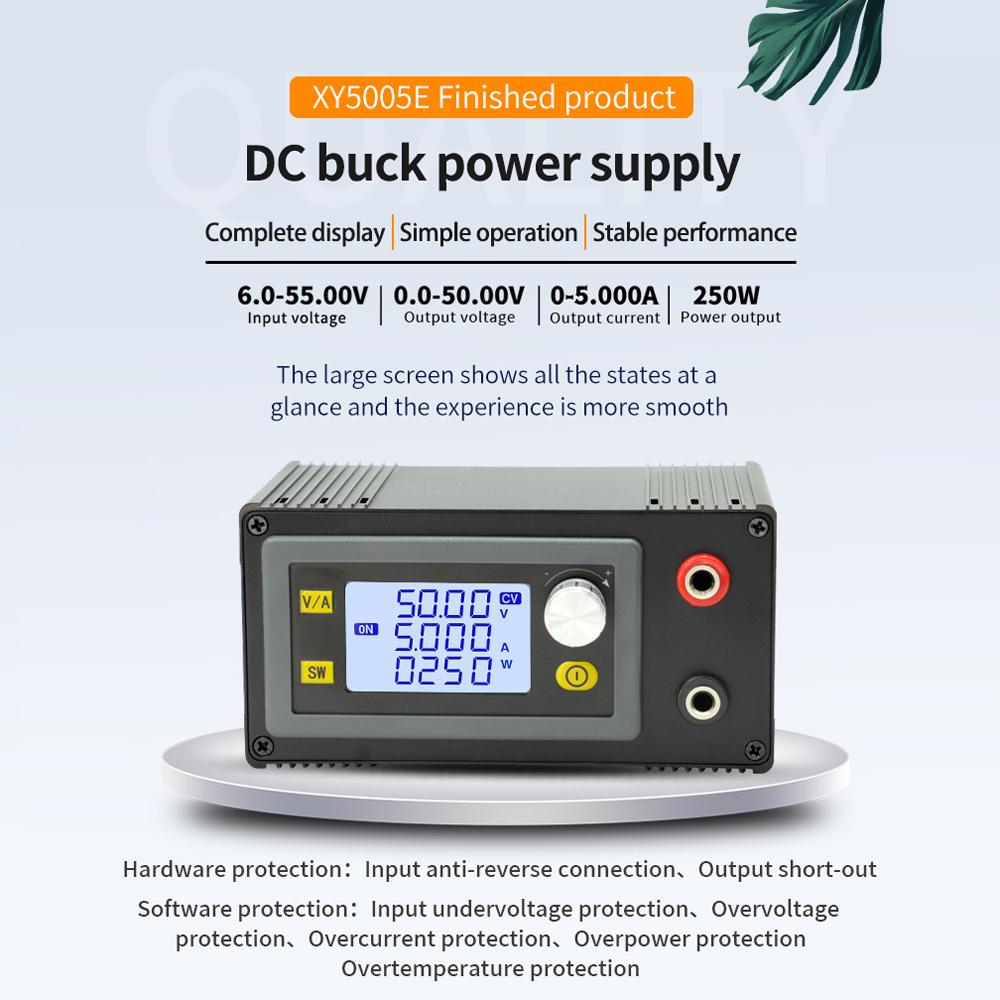

XY5005E:
Input voltage: 6.0-55V
Output voltage: 0.0-50V
Output current: 0.000-5.000A
Voltage accuracy: +-0.4percent + 1 word
Current accuracy: +-0.5percent + 3 word
Output power: 0-400W
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: 95percent
Soft starting: yes
Reverse connection protections: yes
Output short circuit protections: yes
Input undervoltage protections: 4.8-30V adjustable, default 4.8V
Output over-voltage protections: 0-52V adjustable, default 52V
Output overcurrent protections: 0-5.0A, default 5.0A
Output over power protections: 0-250W, default 250W
Over temperature protections: yes, default 100 celsius
Timeout protections: 0-100H adjustable, default off
Overcapacity protections: 0-9999AH adjustable, default off
Overenergy protections: 0-9999WH adjustable, default off
XY5008E:
Input voltage: 6.0-55V
Output voltage: 0.0-50V
Output current: 0.000-8.100A
Voltage accuracy: +-0.4percent + 1 word
Current accuracy: +-0.5percent + 3 word
Output power: 0-400W
Voltage resolution: 0.01V
Current resolution: 0.01A
Conversion efficiency: 95percent
Soft starting: yes
Reverse connection protections: yes
Output short circuit protections: yes
Input undervoltage protections: 4.8-30V adjustable, default 4.8V
Output over-voltage protections: 0-52V adjustable, default 52V
Output overcurrent protections: 0-8.2A, default 8.2A
Output over power protections: 0-410W, default 410W
Over temperature protections: yes, default 100 celsius
Timeout protections: 0-100H adjustable, default off
Overcapacity protections: 0-9999AH adjustable, default off
Overenergy protections: 0-9999WH adjustable, default off

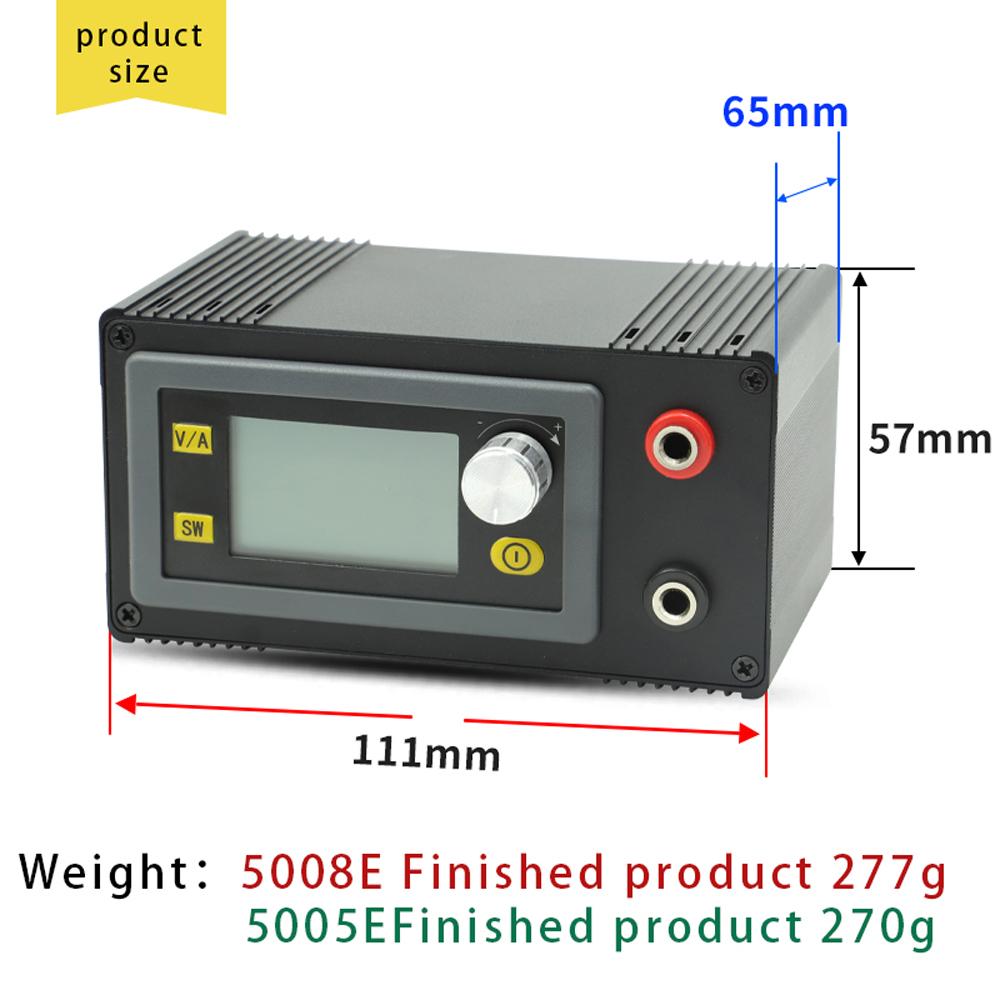

Item size: 111 * 57 * 65mm 4.37 * 2.24 * 2.56in
Package size: 130 * 90 * 65mm 5.12 * 3.54 * 2.56in
Package weight:
XY5005E: 270g 9.52ounce
XY5008E: 277g 9.77ounce
Packing List:
1 * Step-down Module
