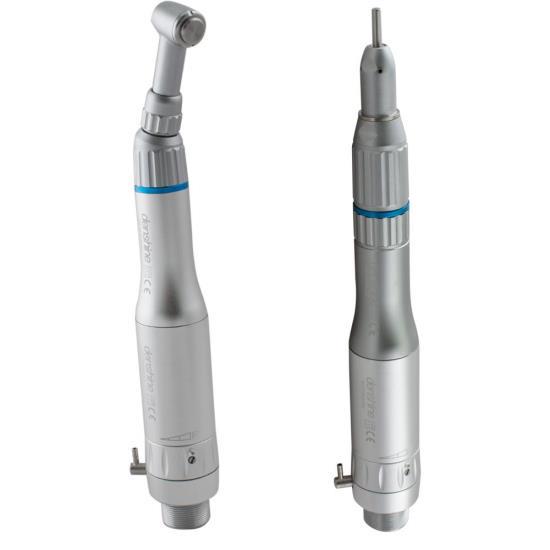

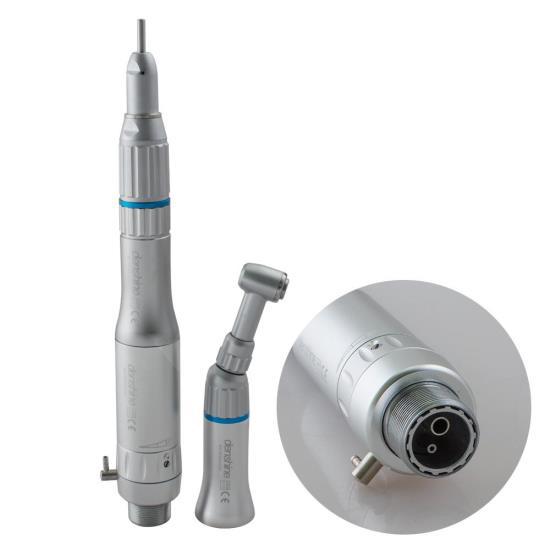

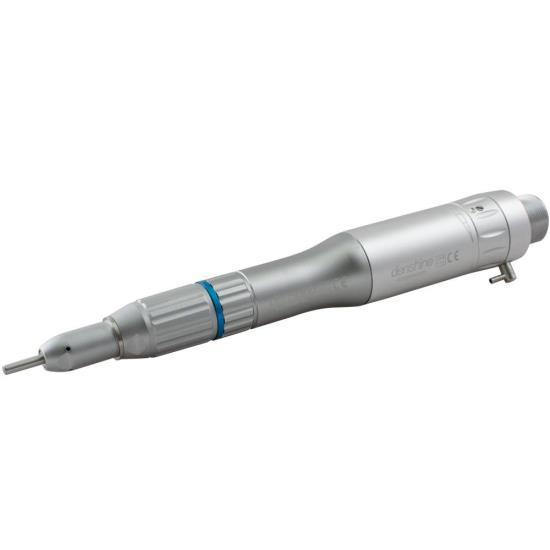

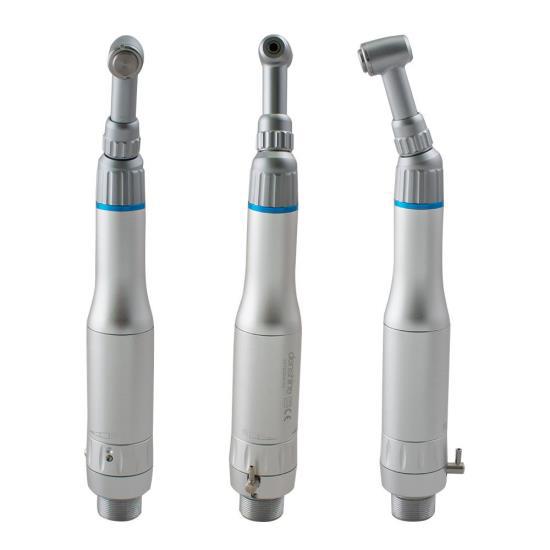

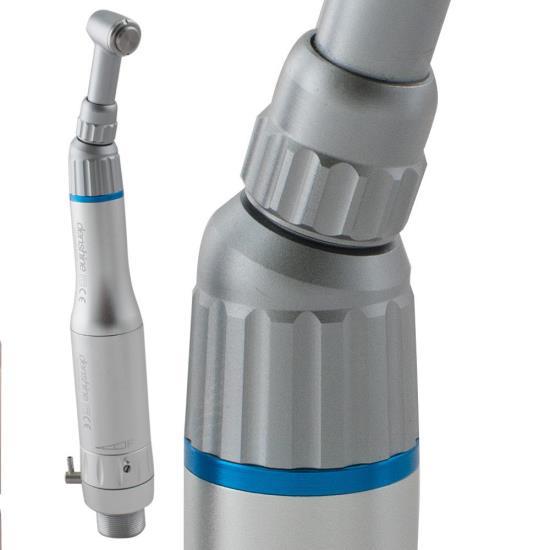

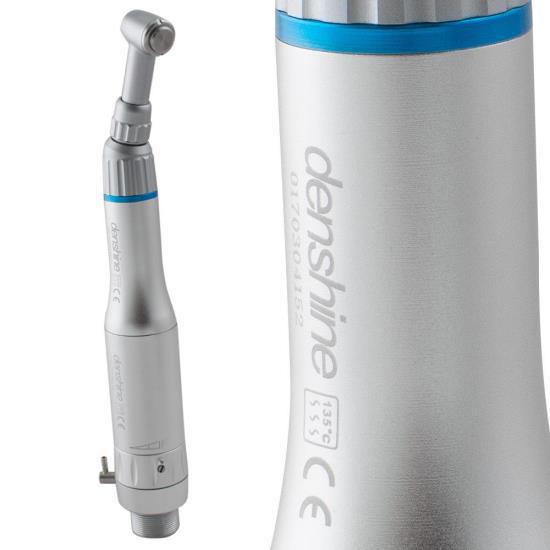

Contra Angle Straight Nose 2H Dental Slow Low Speed Handpiece Kit

Denshine Dental Slow Low Speed Handpiece Kit Push Button Contra Angle Air Motor 2H E-type

This complete kit includes low speed handpiece contra angle model, low speed handpiece straight model and low speed dental air motor. Features For Dental Handpiece: - E-type connector- Push Button- Precise technology, Steady, no vibration while revolving, offering a steady operation.- Suitable for any E-type handpiece accords with ISO standard- 135°C Autoclavable, suitable for both steam and chemical autoclave Contra angle handpiece- Low Speed 22,000-27,000 rpm.- The shank of the instrument mounted therein is 2.35 mm- Fastening of the instruments with a turning latch- Autoclavable 135°C- For any lab or E-type motors Straight Nose cone- Working pressure: 0.3MPa (4-hole);- 0.25MPa (2-hole) (Measure meter is installed at the end of air motor to measure the air pressure).- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)- Noise: ≤68dB- Air consumption: about 56L/min- Ratio: 1:1- Max speed of contra angle: 25000rpm/min. Air Mortor - Supply air pressure: 245-392KPa (2.5-4kgf/CM2)- 1:1 Direct Drive- 2 holes- Max speed 20,000 min-1 Specifications For Dental Handpiece:

Air-in Pressure(kg/c㎡)

Motor Rotation(rpm)

Air Wastage:(N1/min)

2.5

22,000

42

3

25,000

51

4

27,000

72

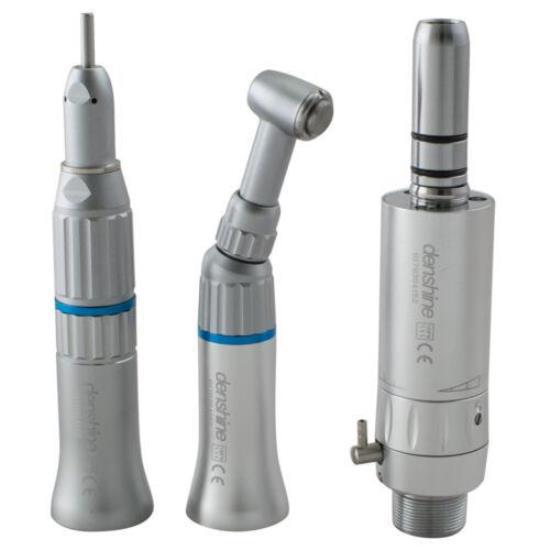

Packing List:- E-type air motor 2-Hole: 1 each- Straight nose cone: 1 each- Contra Angle handpiece: 1 each- Water spray nozzle: 1 each- CAP Spanner: 1 each- English manual: 1 each
