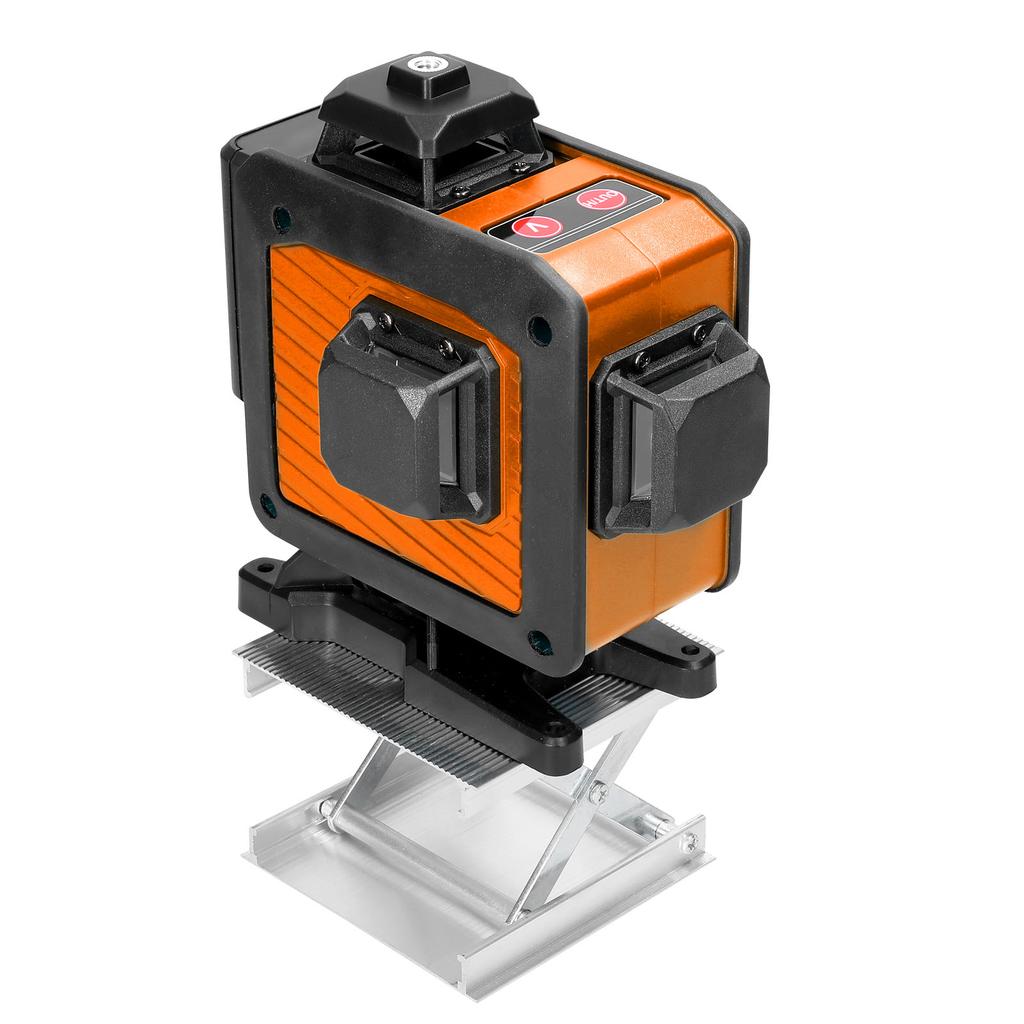

This is a kind of fine quality level instrument, 16 lines for finer positioning, with 3° self-leveling system, flexibility and stability. With vertical and horizontal laserlines, convenience to use. It is perfect for a variety of uses, including flooring, tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, socket and switch layout, wall stud layout and partition installation. You can have a try.
Features:
Adopts optical glass, fine transmission, with clearly laser light.

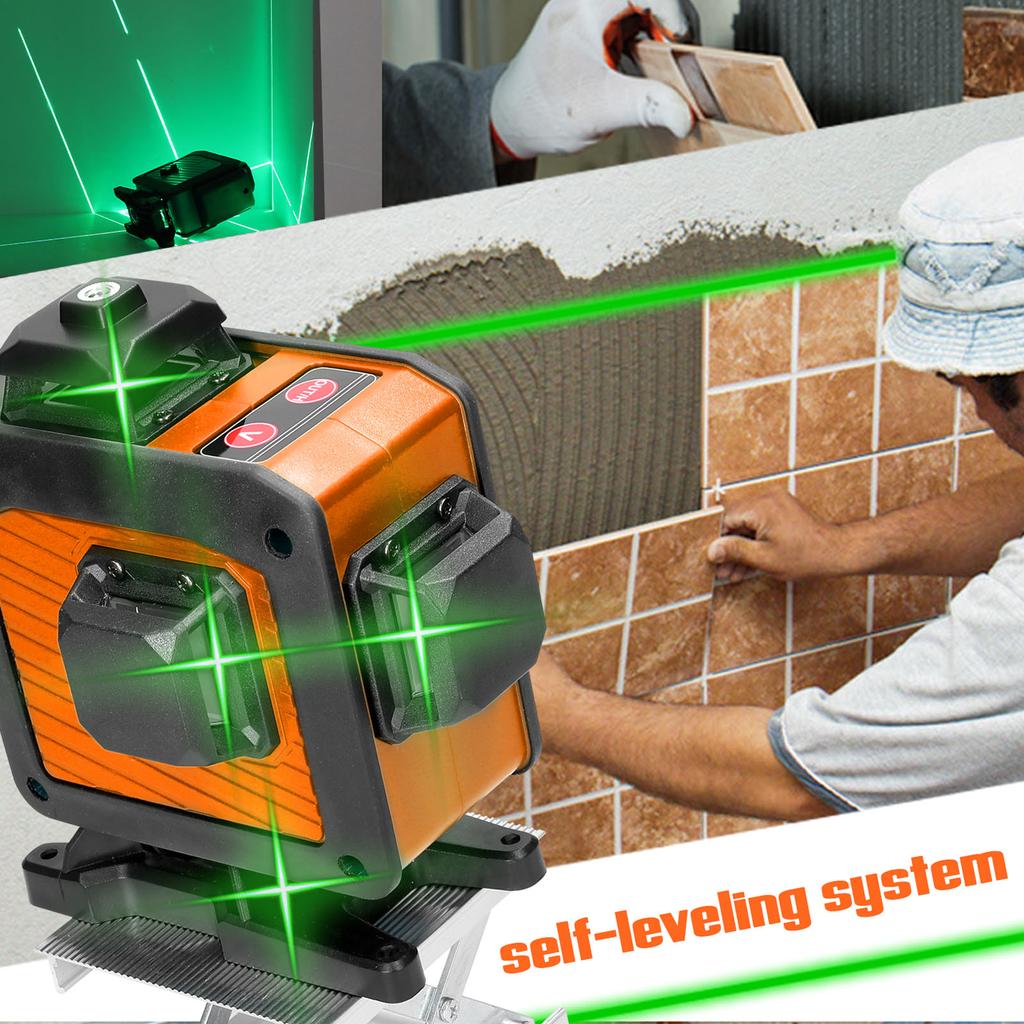

16 lines for finer positioning, with self-leveling system, flexibility and stability.
Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and also has beep sound to reminding you to reset them on a flat ground.
The magnetic-damping compensation system ensures quick levelling time.
Two touching buttons design, one V button, one H/OUT button, the button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.

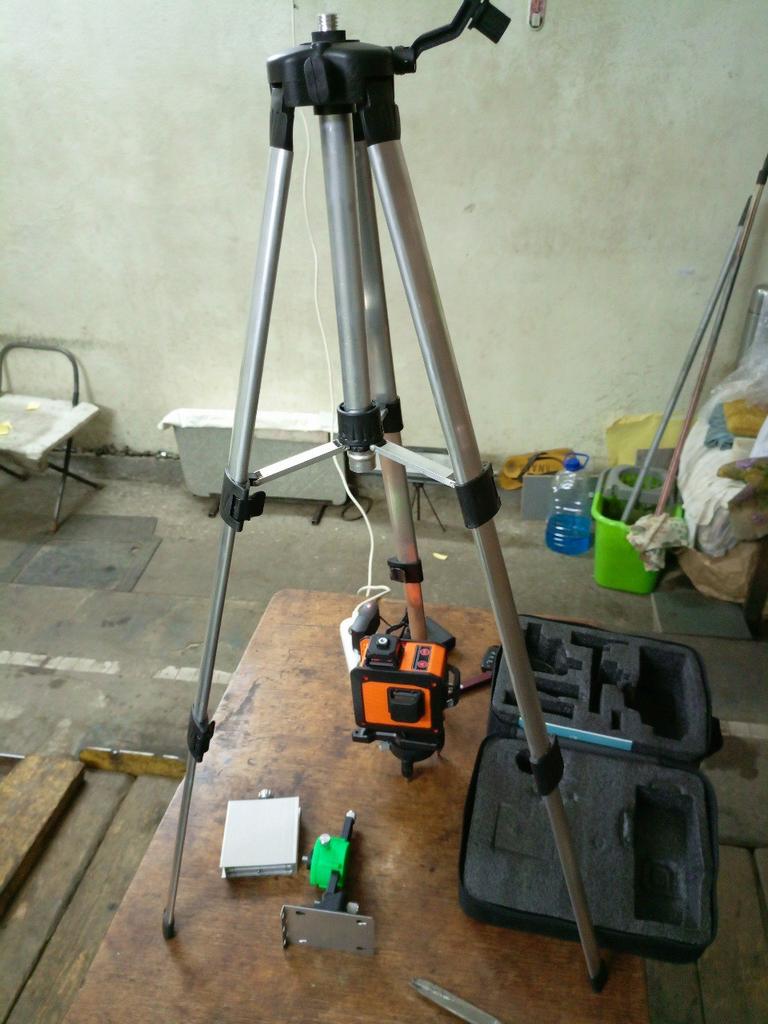

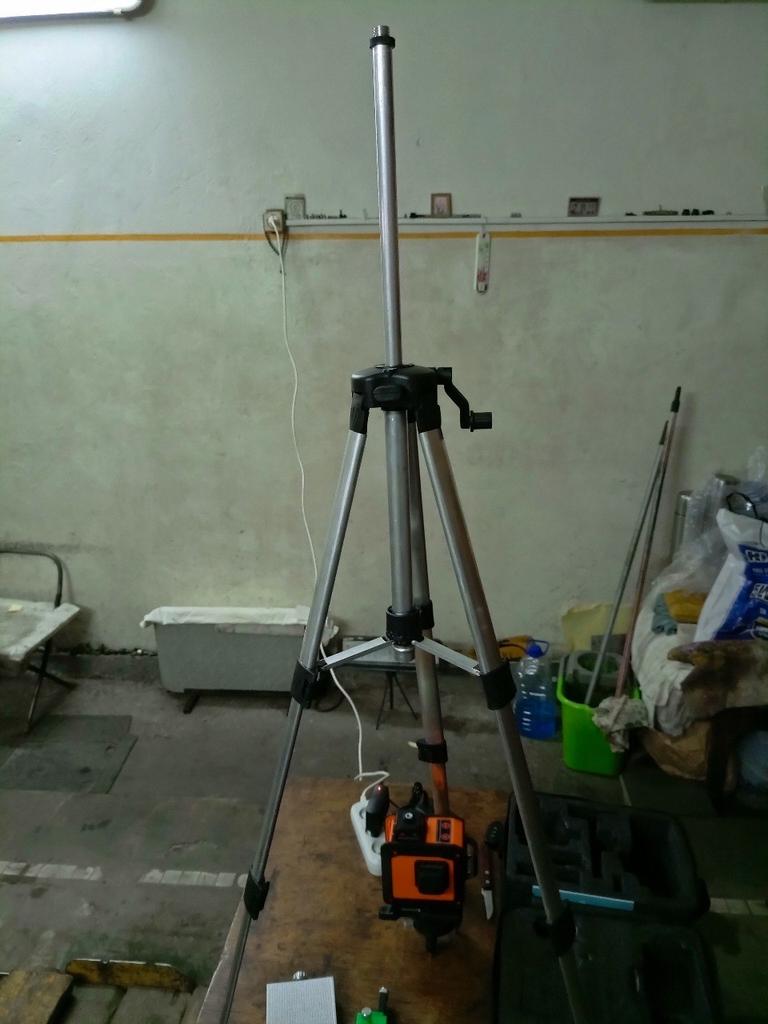

1/4" screw size rotation base for easy connection, it also can be used with tripod by it's 5/8inch thread to adjust the working height of the machine and work with 180° oblique line.

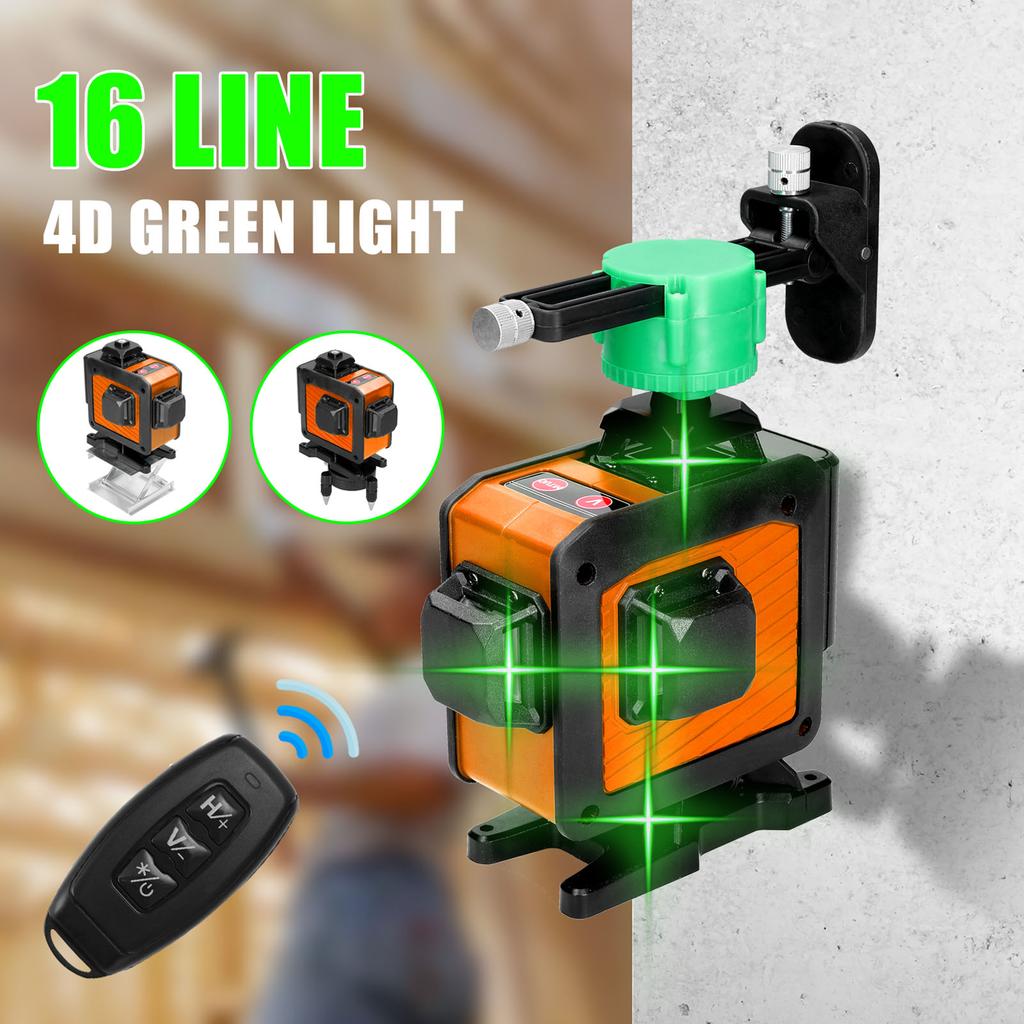

Comes with one T-type wall mounting bracket, 7mm wall mounted distance, general for indoor and outdoor use.
The laser level lift bracket, height adjustable, anti-slip texture design for increasing friction, more stable placement.

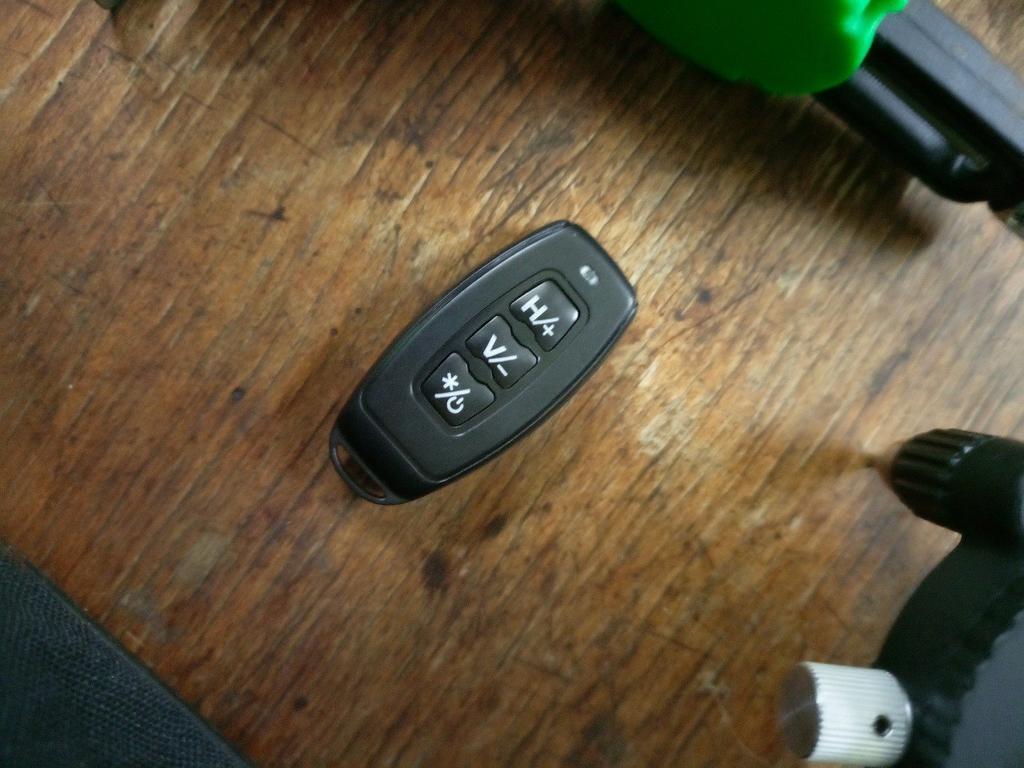

Comes with one remote controller, "V"=vertical line, "H"=horizontal line, and you can adjust the quantity of laser lines easily by press the "+"or "-" button.
Scanning QR code on the back of remote controller to download mobilephone APP, convenient to control the level machine(the voice control function is not supported).
Comes with the carrying bag, easy to carry, providing quick and convenient mobility and storage.
Note: Please do not let the laser line shoot to your eyes directly.
Specifications:

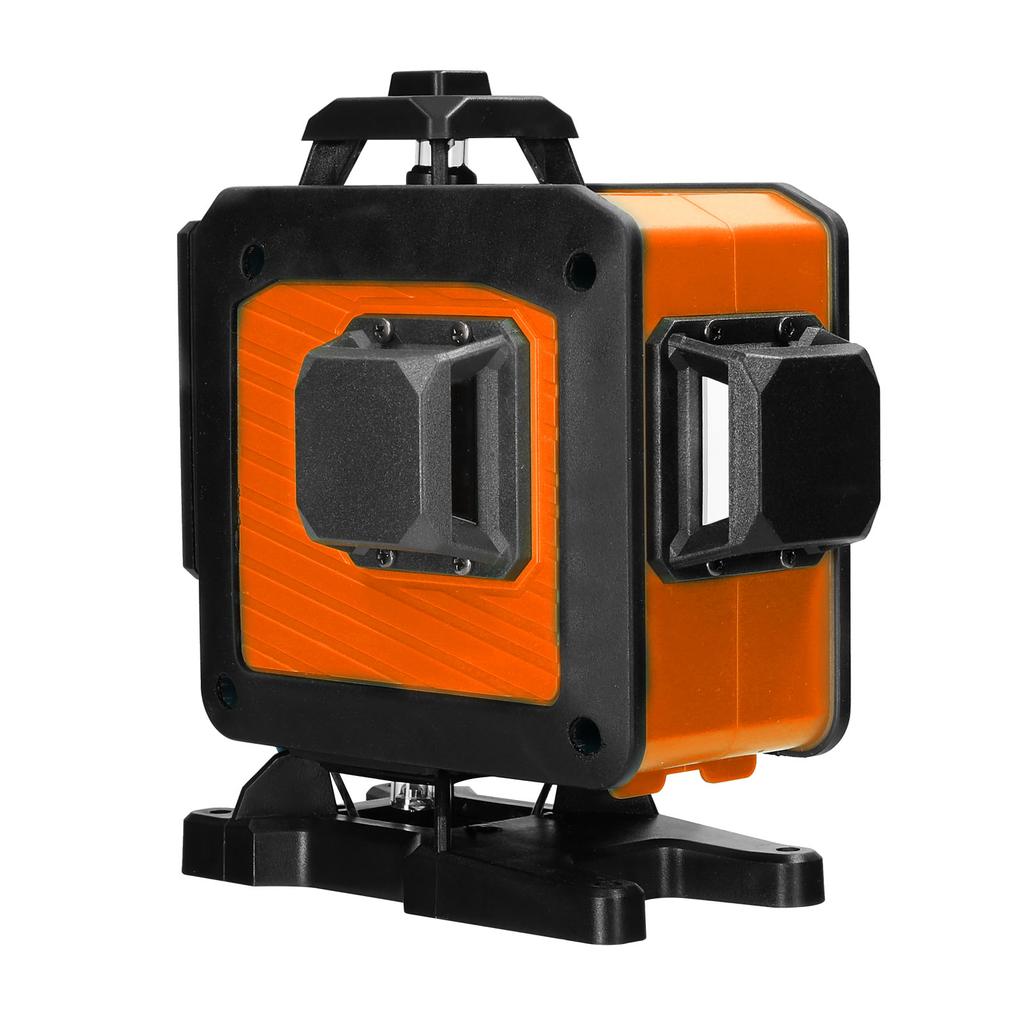

Name: Laser Level
Main material: plastics+metal

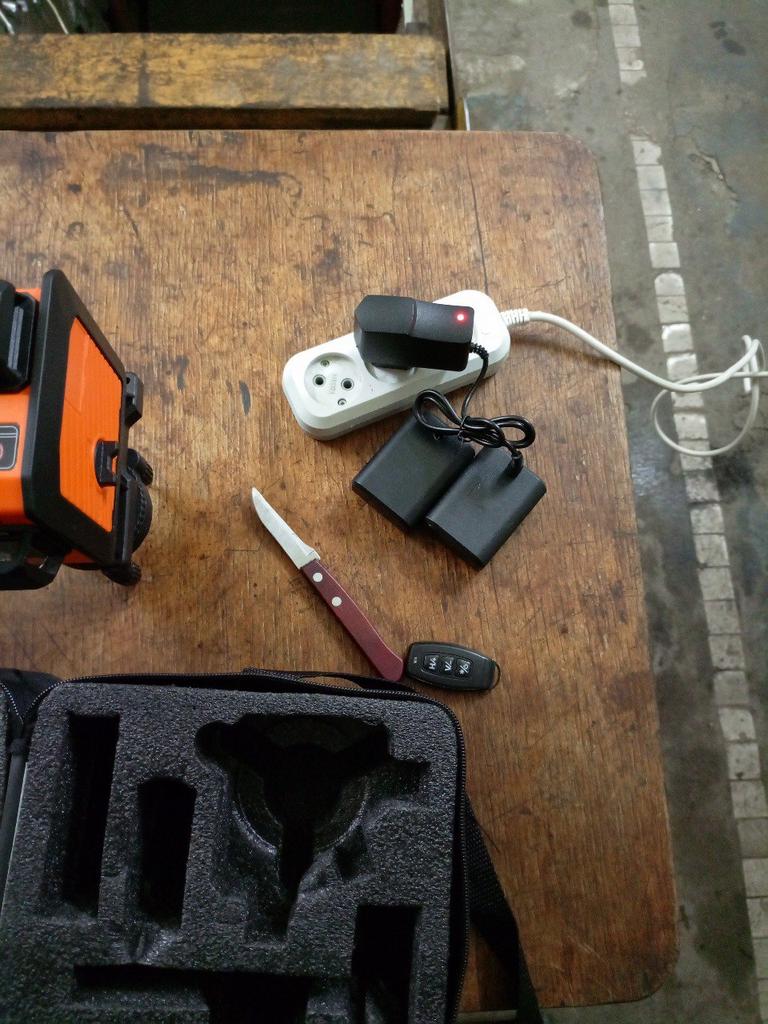

Battery: 2 * rechargeable lithium battery, 3.7V, 1200mAh (included, you will find there are two batteries inside if disassemble it)

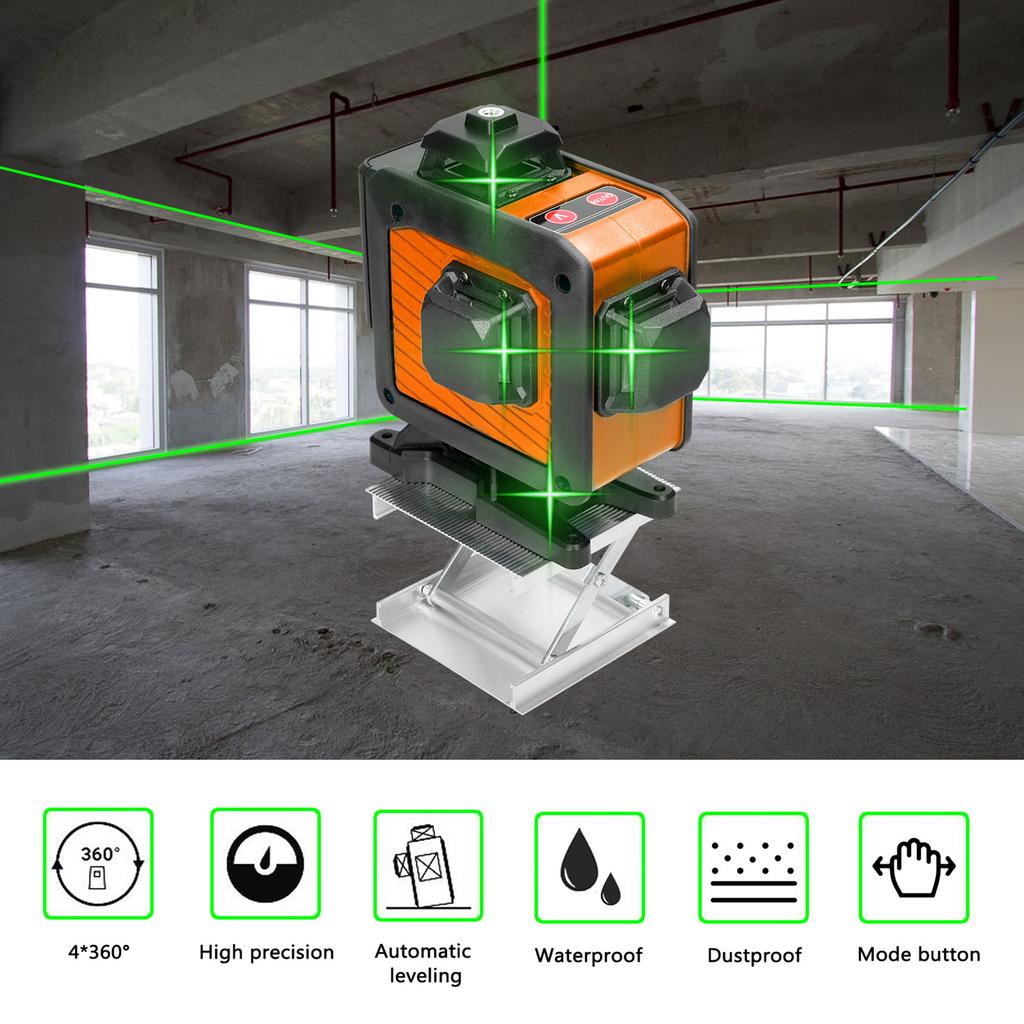

Laser ray: 360°* 4, 16 lines(4D)
Wavelength: green light 520nm
Horizontal/vertical accuracy: ±1mm/7m
Self-levelling-range: ±3°
Waterproof grade: IP54
Working distance: 10m
Green light working temperature: -5℃ to 50℃

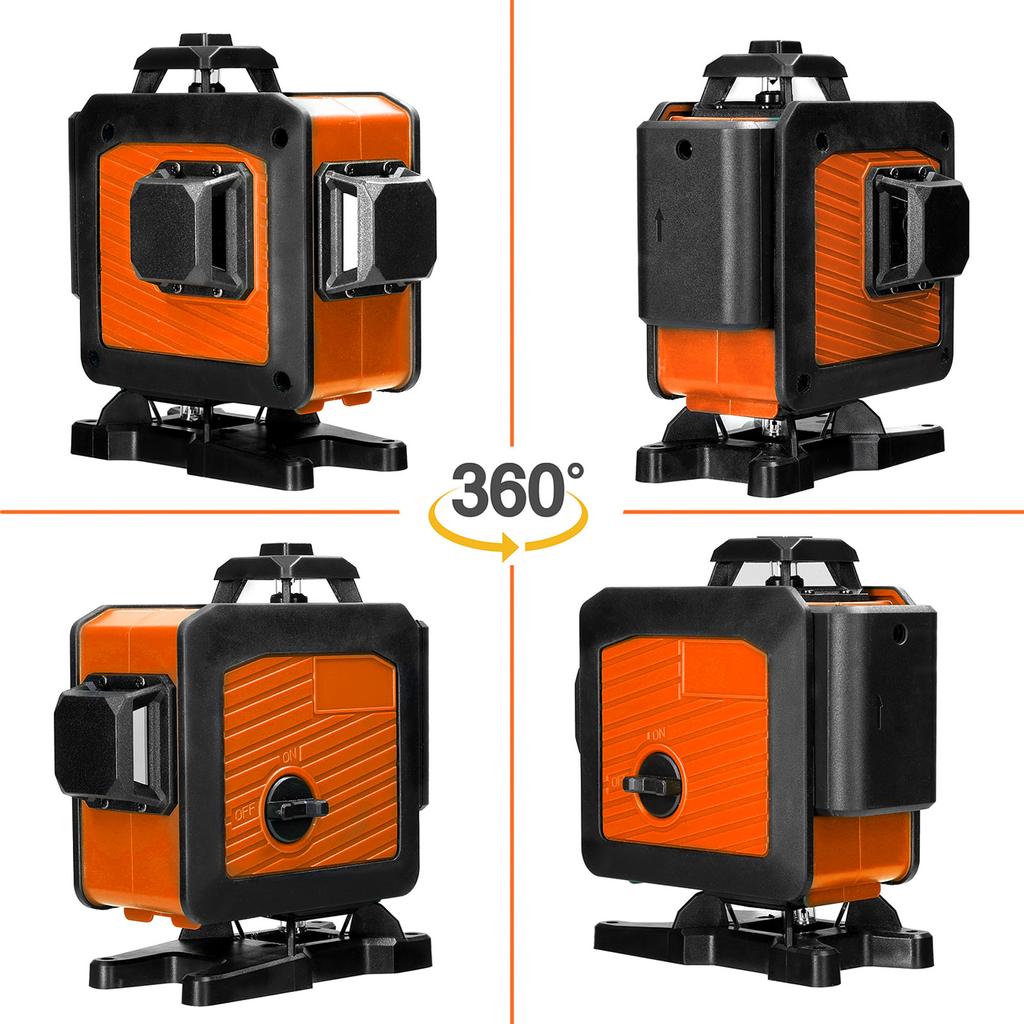

Level machine size(assemble with battery): 153 * 95 * 158mm / 6.02 * 3.74 * 6.22in
Rotation base size: 97 * 83 * 73mm / 3.82 * 3.27 * 2.87in
Wall mounted bracket size: 85 * 72 * 160mm / 3.35 * 2.83 * 6.30in
Iron board size: 100 * 60 * 12mm / 3.94 * 2.36 * 0.47in
Platform size: 111 * 91 * 30mm / 4.37 * 3.58 * 1.18in
Carrying bag size: 277 * 217 * 175mm / 10.91 * 8.54 * 6.89in
Item weight: 1535g / 3.38lb
Package size: 310 * 210 * 85mm / 12.20 * 8.27 * 3.35in
Package weight: 1742g / 3.84lb

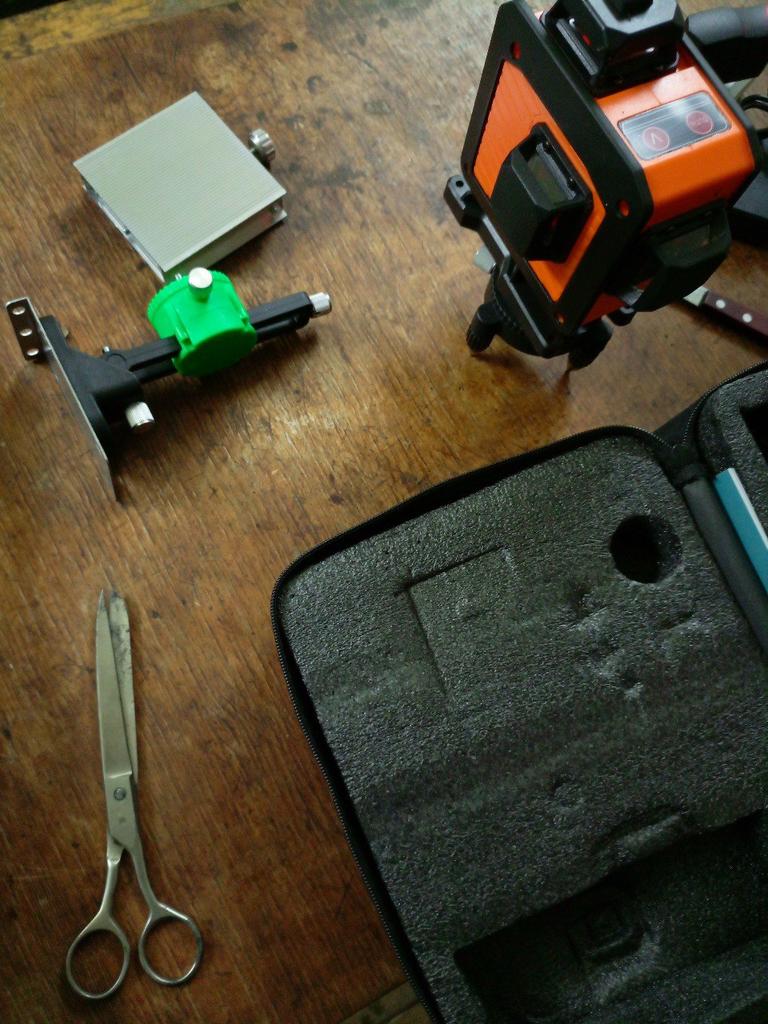

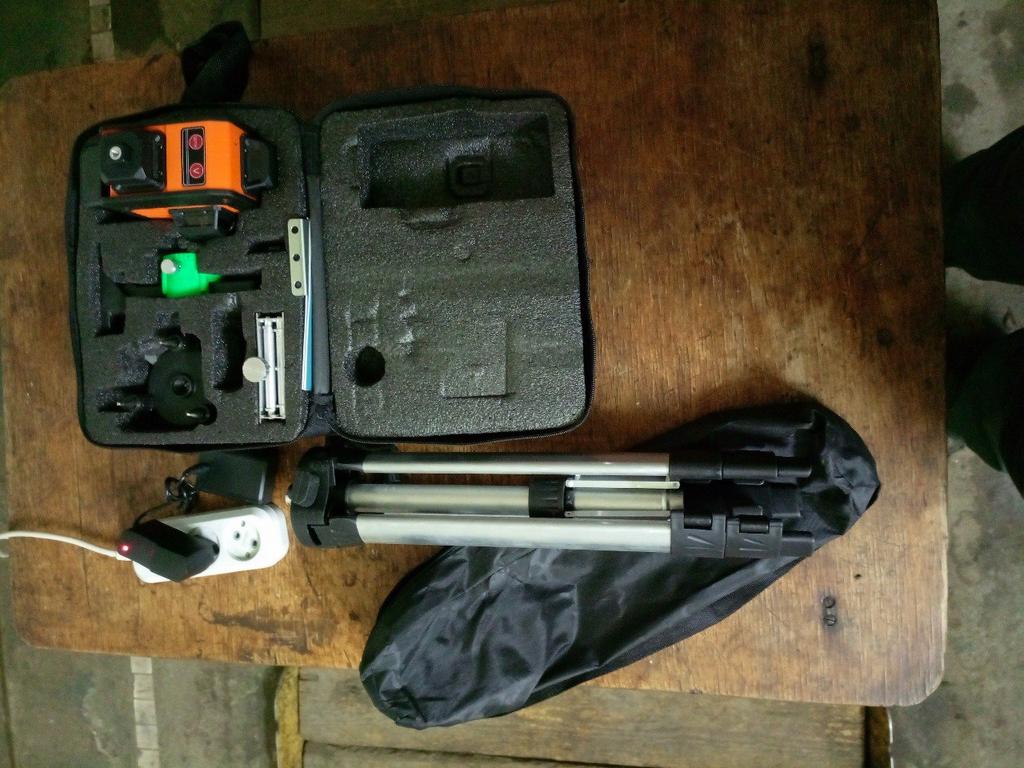

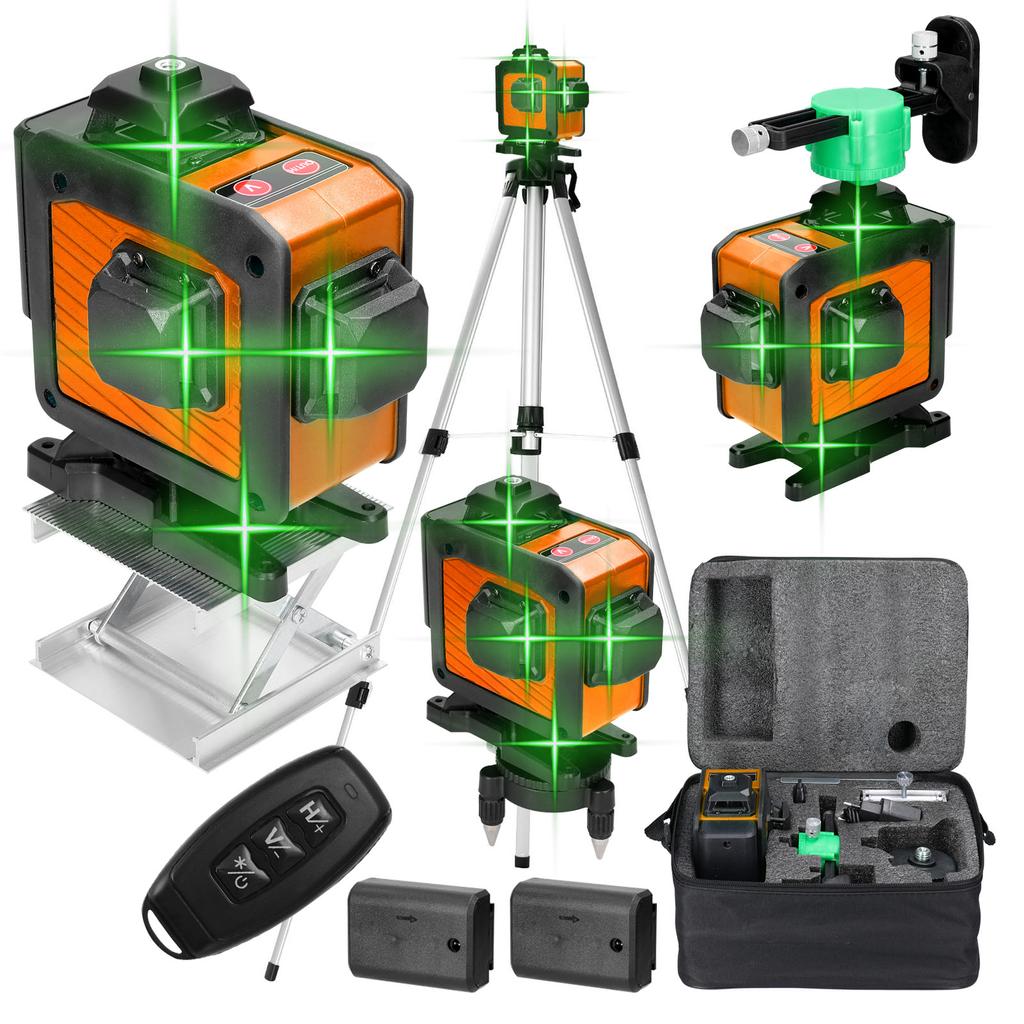

Packing List:
1 * Level Machine
2 * Battery
1 * Battery Adapter

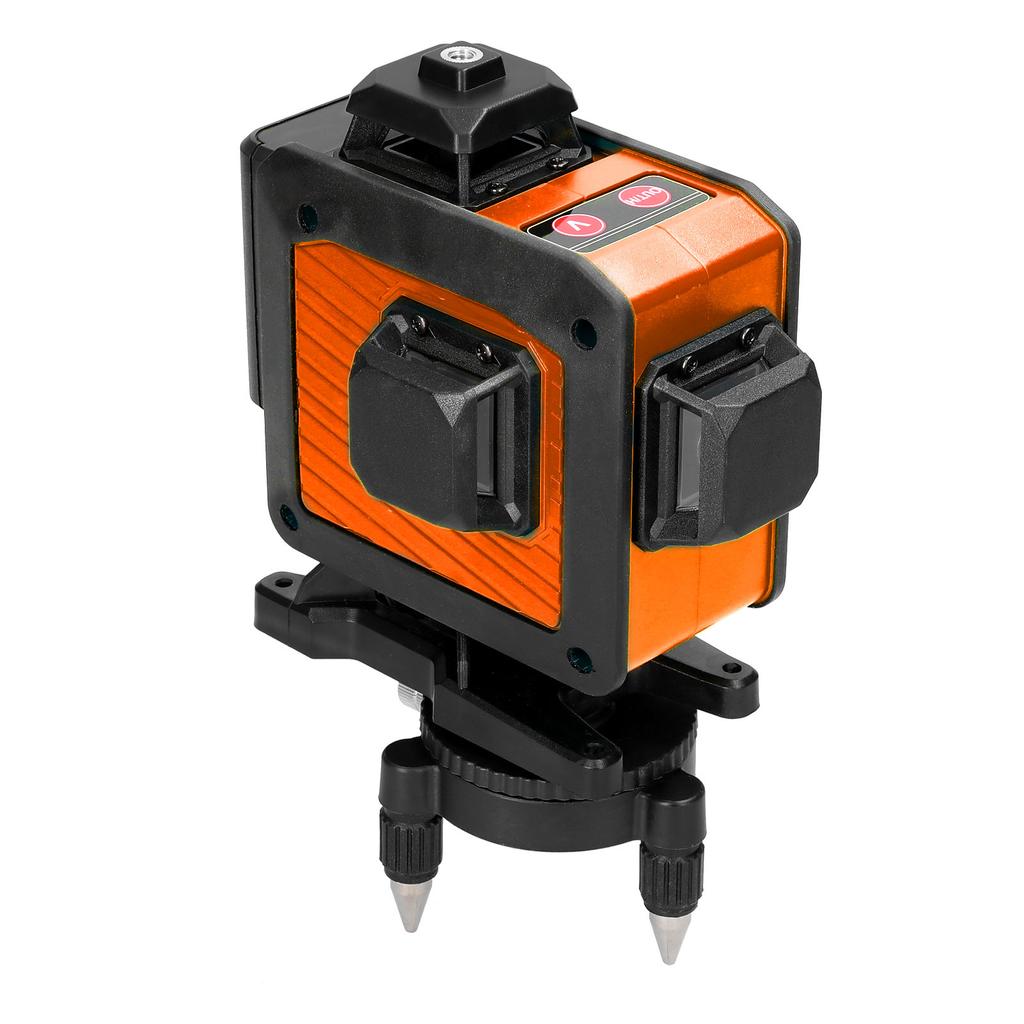

1 * Rotation Base
1 * Wall Mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller

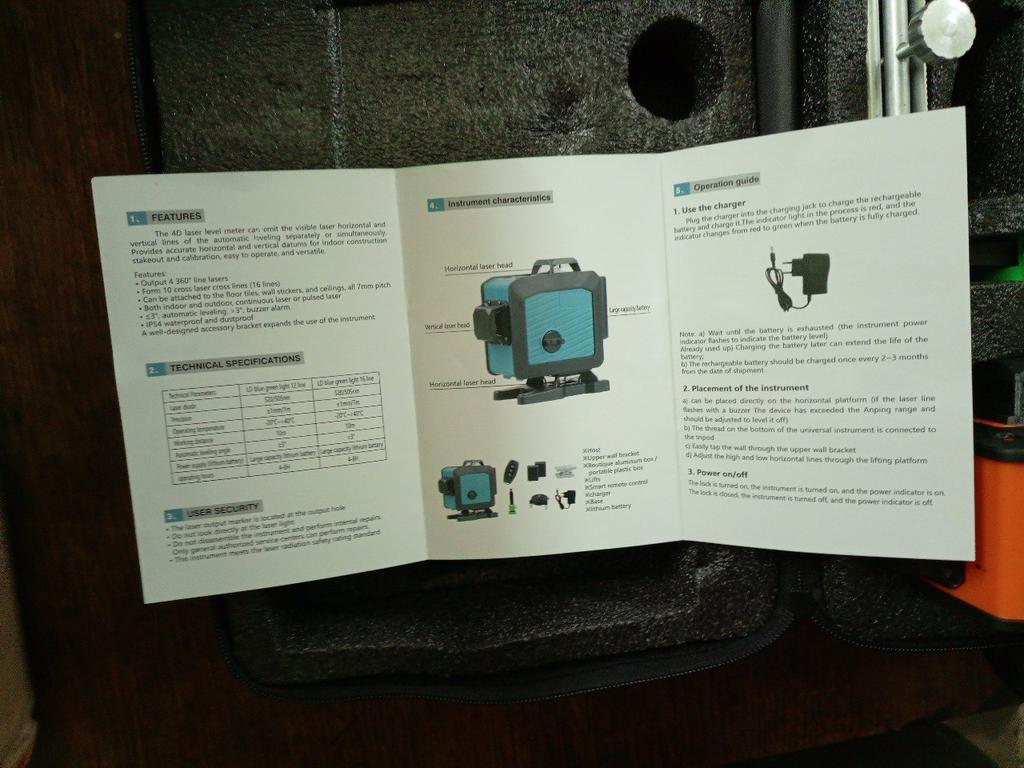

1 * Guideline

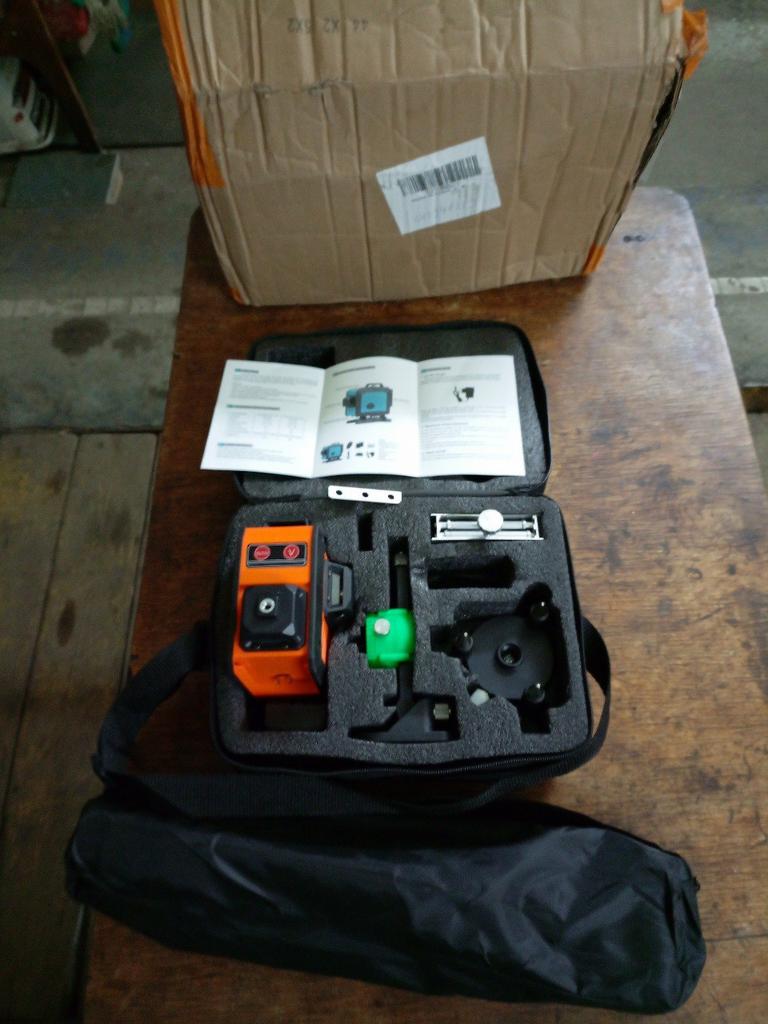

1 * Carrying Bag
