MinderRC DH30 MAX Portable Spot Welding Machine 10000mAh For Welding Battery U Disk Firmware Upgrade Spot Welder

DH30 MAX Features: Bigger battery,10000mAh Color Screen,easy to set U Disk Firmware Upgrade

DH30 MAX Specifications: Material: Metal Case Screen: Color Battery Capacity: 10000mAh Welding Output: MAX 650A Charging Port: Type-C Product Weight: 470g Product Size: 150x83x29mm U DIsk Firmware Upgrade

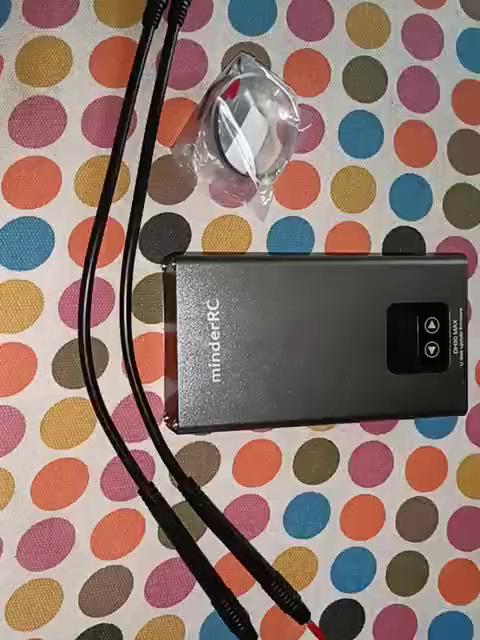

DH30 MAX Packaging Include: 1 x Mini Spot Welder 1 x Welding Pen 1 x Type C Charging Cable 1 x 0.12mm*8mm*2m Nickel Plated Steel Belt 1 x Storage Bag (Optional) 1 x EU Power Adapter (Optional)

How to Use DH30 MAX: Note: need full charging before using; Long click the button more than 3 seconds to power on or off the spot welder;

Start with the first gear and increase the power slowly until it can be welded. Do not increase the power if it can be welded. Avoid MOS bombs. The black solder joints indicate that the power is too high;

When welding, press down the soldering pin lightly, and the nickel sheet and the battery can be bonded together. The harder you press, the less solid the welding will be. It will automatically trigger after pressing down for one second,we suggest use gear 11 or 12 to welding 0.12mm Nickel steel strip

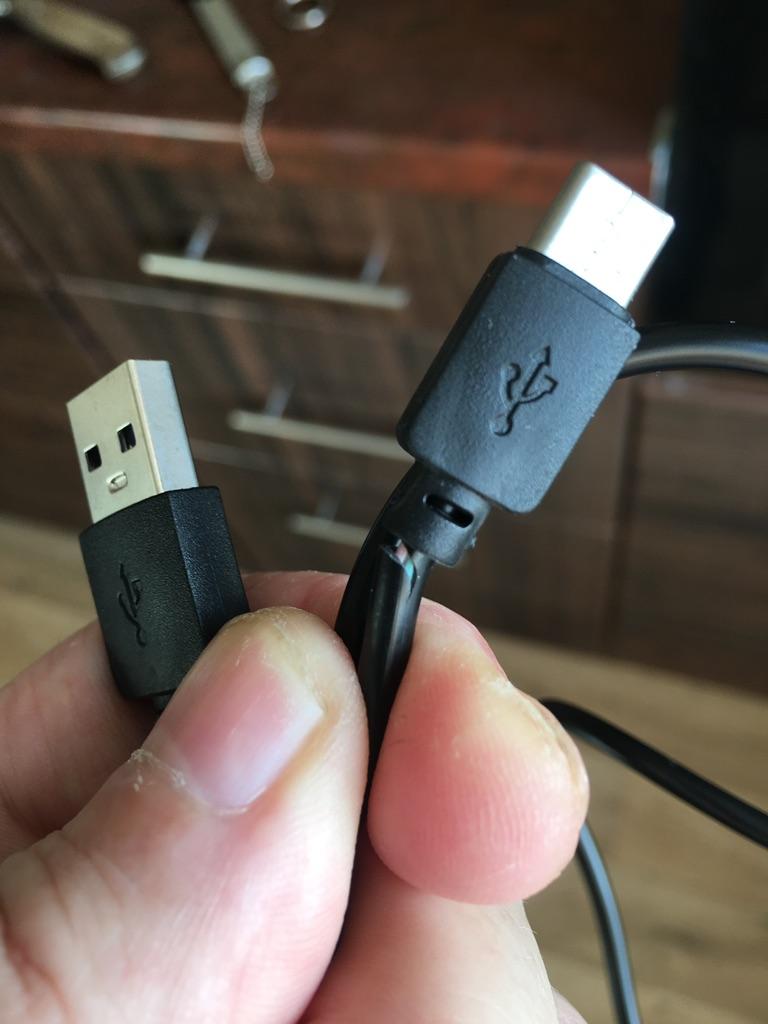

How to Charging: We suggest directly connect the black charging wire coming with spot welder from power adapter to spot welder，and power adapter need 5V current above 2A.

We not suggest use PD charger or connect any other voltage current meter,because some PD charger and wire can not output a 5V voltage,type C to type C connect will have some charging problem!

Spot Welder include high discharge lipo battery,for safe delivery,it have low power,inside IC control charging current when battery is low power, In the case of low power, there may be a low voltage alarm and the screen is not bright, continue to charge, the screen will return to normal charging，we suggest charing more than 30 minutes.
