This 12 LED Lighting System Kit is suitable for 1/10 RC cars. It have four colors lights, include white headlights, blue taillights, red brake lights and yellow turn lights. With improved circuit board, it can support High-V receiver and normal receiver. And one set of lights can be controlled by the transmitter.
Features:
Input voltage: 4.8-6.0V. Working current: 100mA
LED wire length: 35cm. Suitable for 1/10 RC cars
Improved design of circuit board, HOSI power saving
Headlight white, blue taillight, brake light red, turn light yellow
12 LED Multi-color RC Car Flashing LED Light Lamp. Easy to install and operate
Specifications:

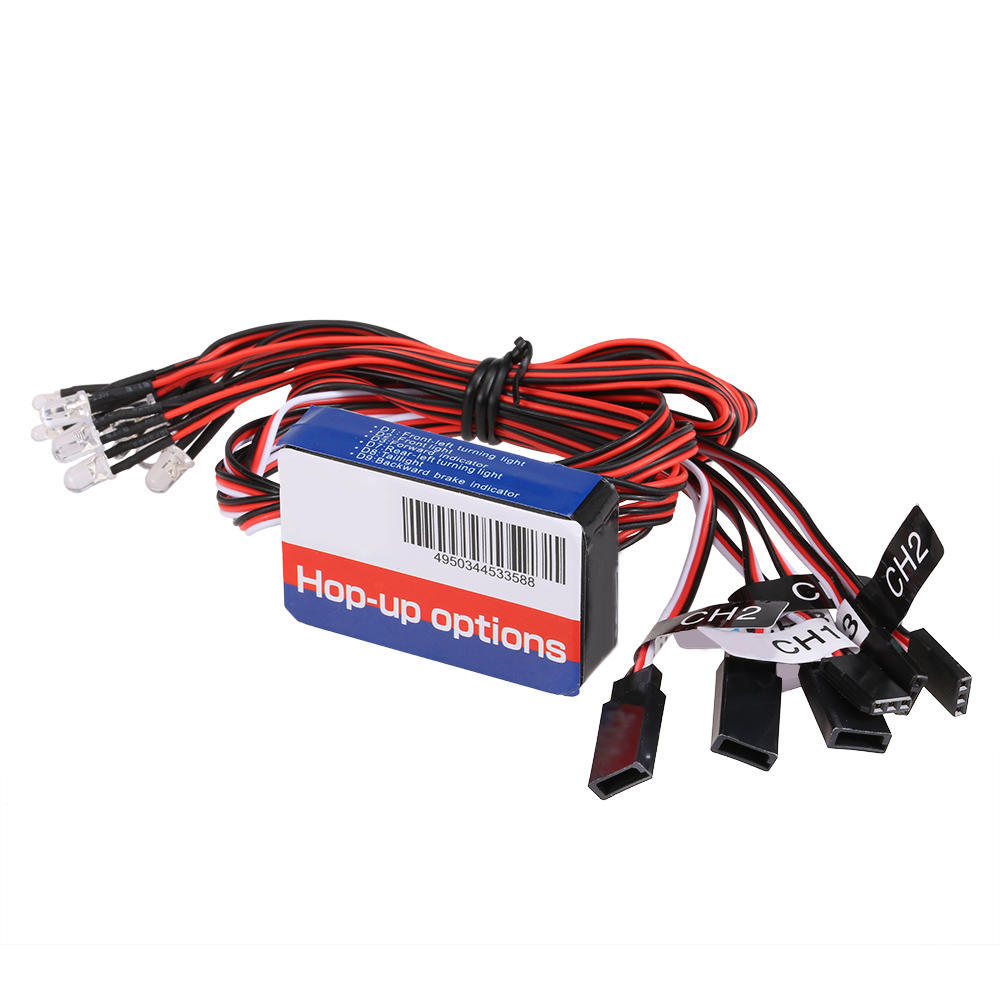

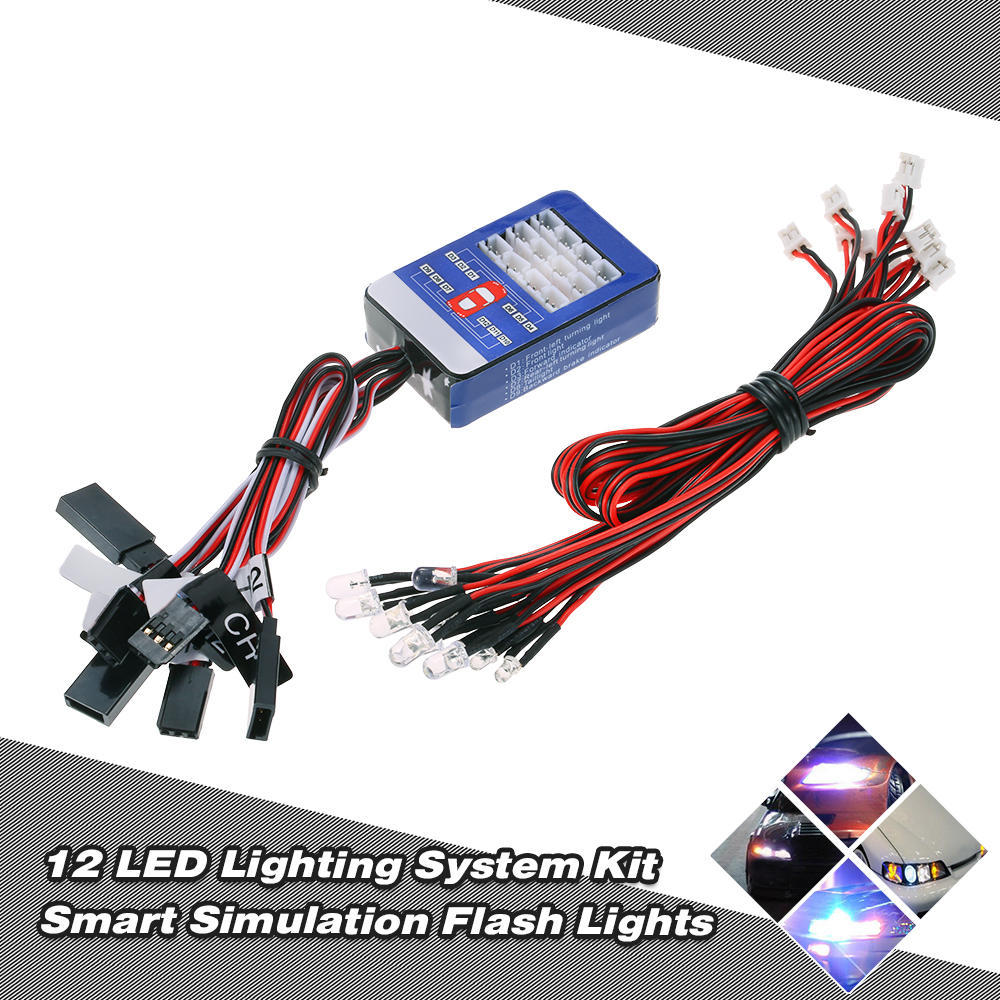

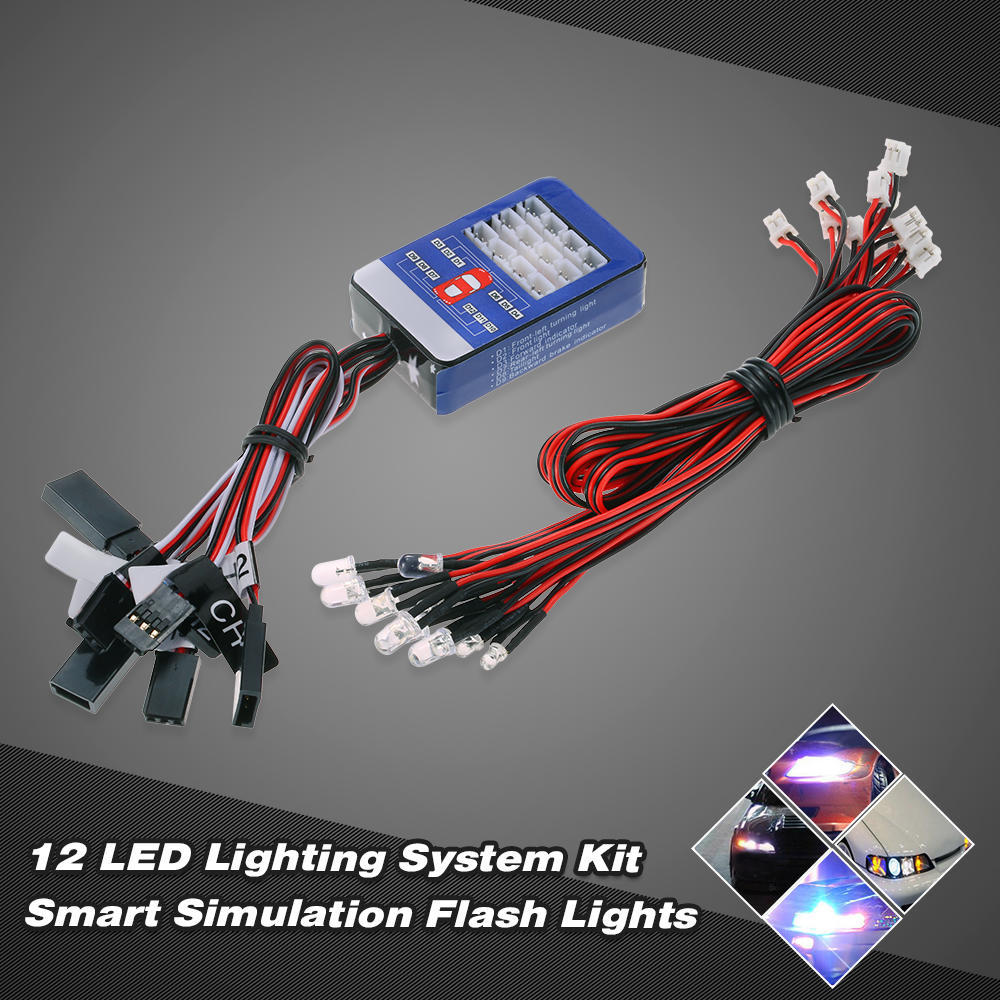

Name: 12 LED Lighting System Kit
Material: Plastic
LED bulb quantity: 12
Working Current: 100mA
Input voltage: 4.8V - 6.0V

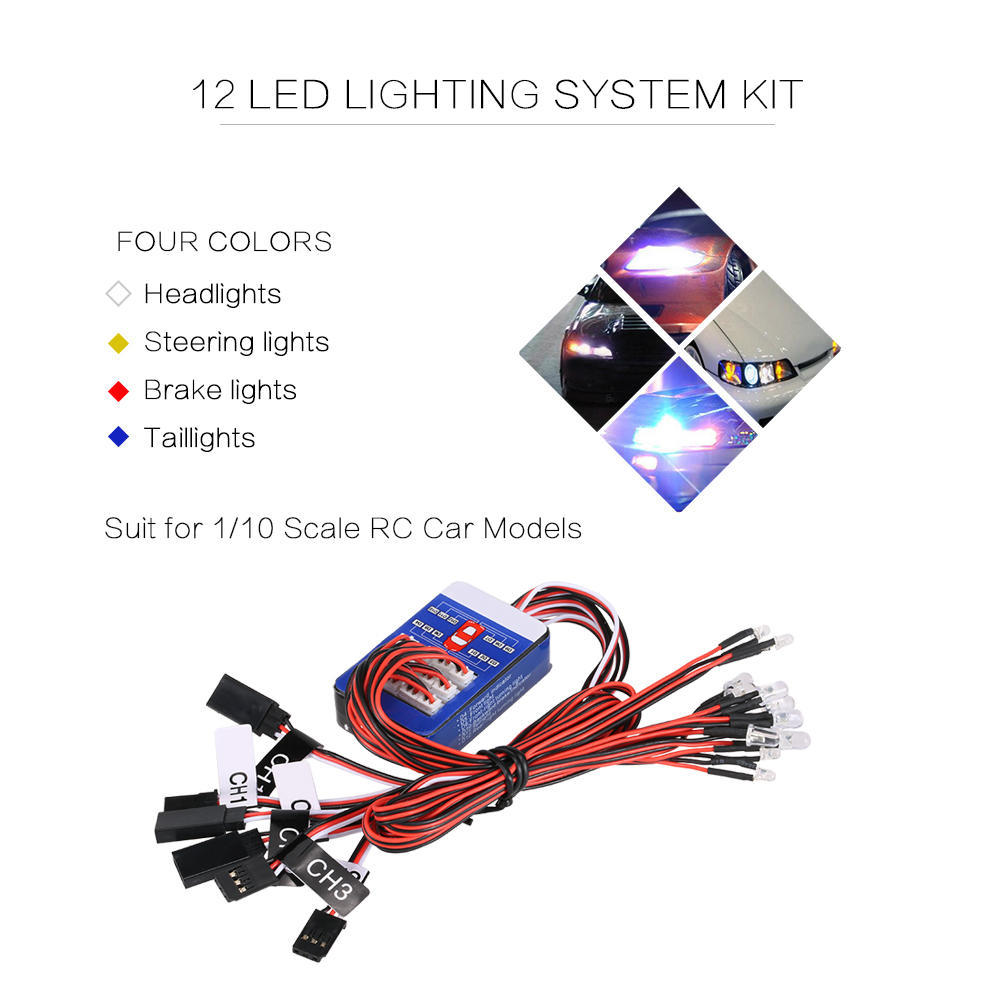

Lights color: White, red, yellow, blue

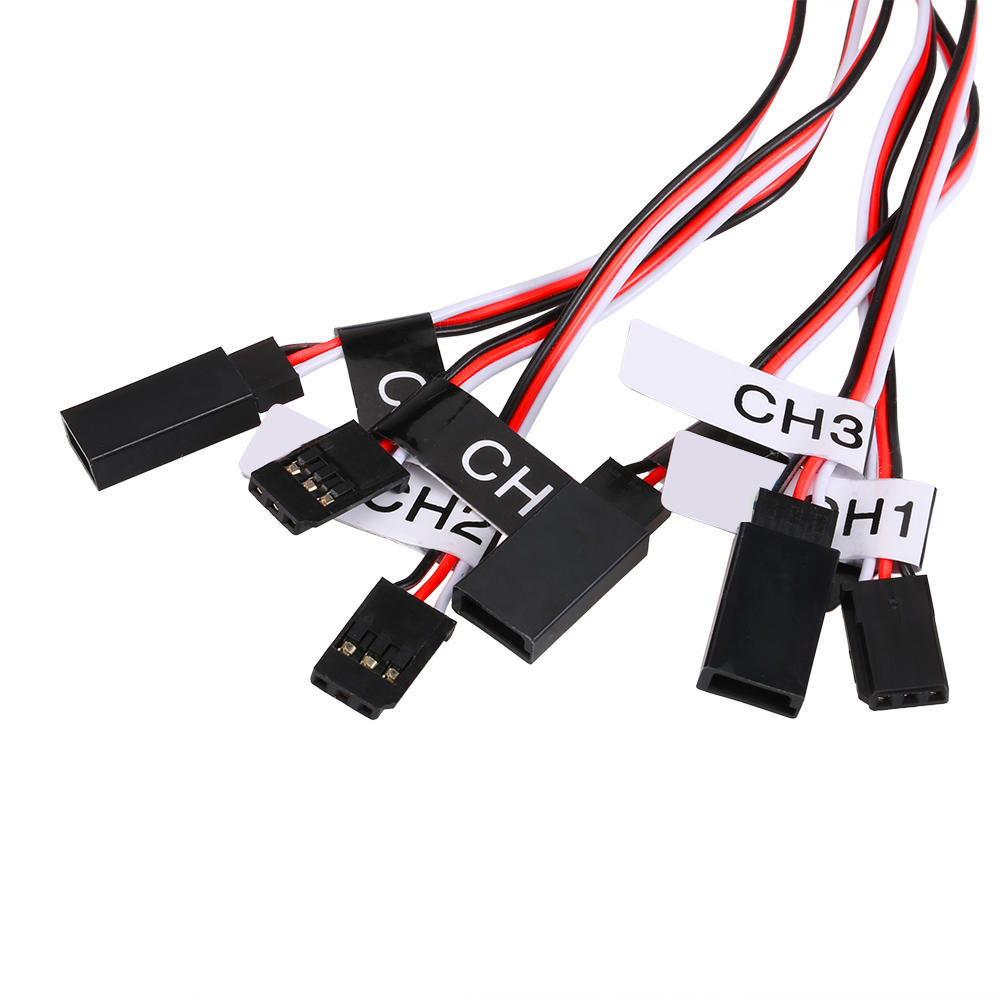

Connection method: CH1 - Servo
? ? ? ? ? ? CH2 - Speed controller
? ? ? ? ? ? CH3 - Receiver
Suitable for: 1/10 RC cars

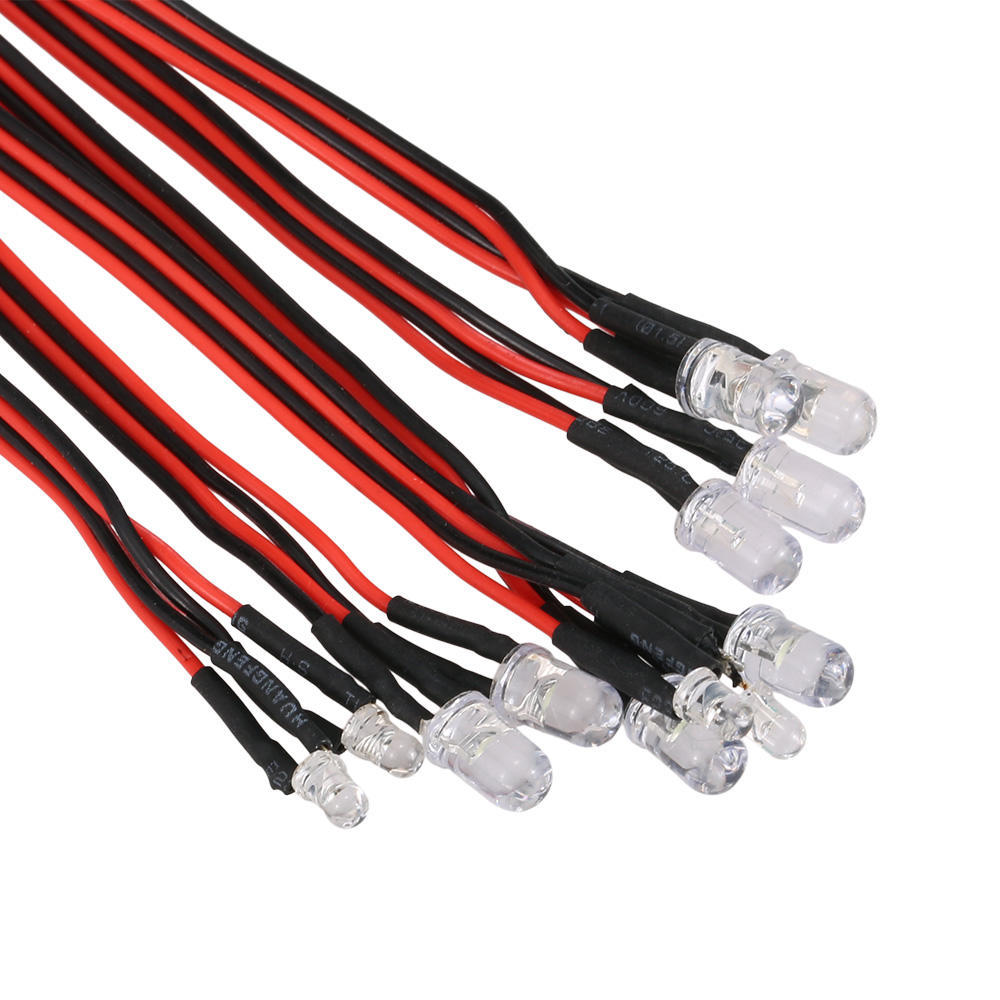

LED cable length: about 350mm
Control wiring length: 185mm

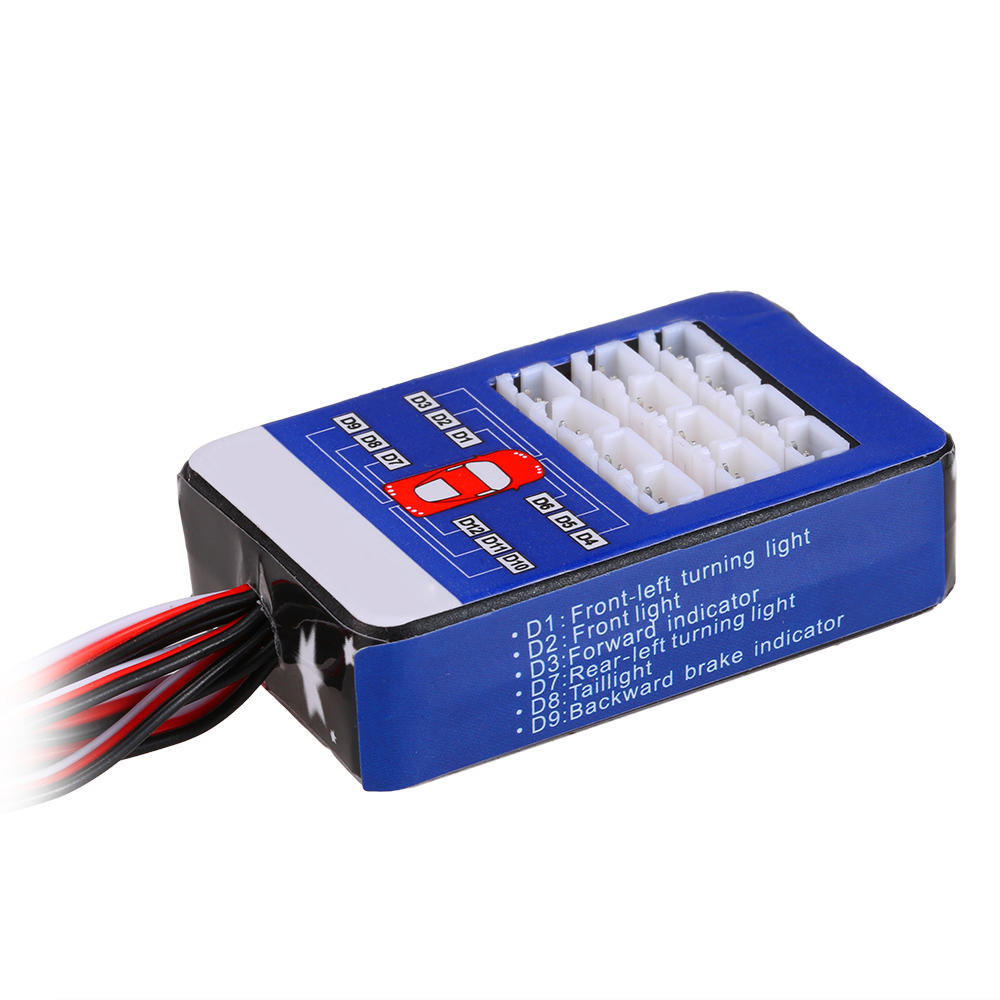

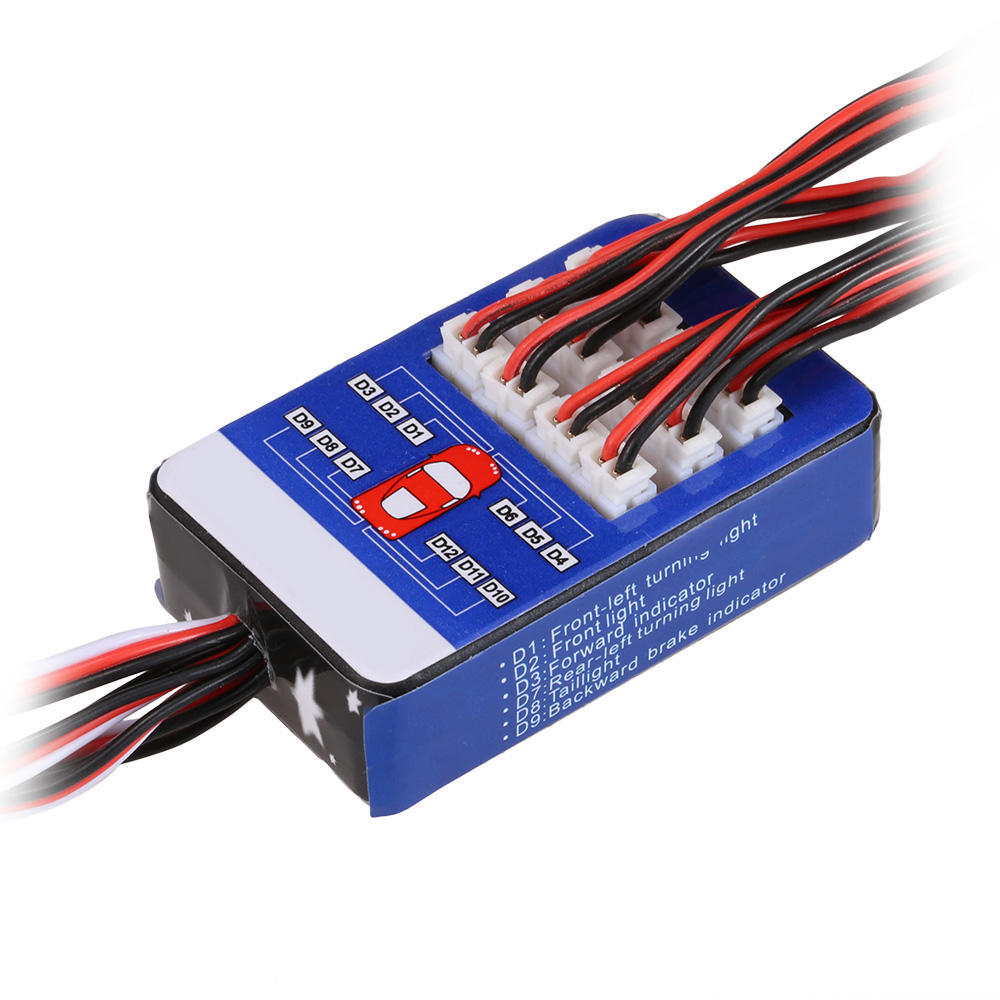

Circuit board size: 55 * 35 * 15mm
Weight: 50g
Lights Description:
Headlights: 4 white LED lights
Connect the lighting system to the CH3 on receiver: the transmitter can independently control a group of lights, another group of lights are on when the car speed up;?Not connect to the CH3 on receiver: one group of lights are always on, another group of lights are on when the car speed up.
Turn lights: 4 yellow LED lights
With the remote control change the direction, the lights will synchronous flashing.
Taillights: 2 blue LED lights, 2 red LED lights
The blue lights are always on. When the car speed up or brake, blue lights will go out. Only when brake, the red lights on.

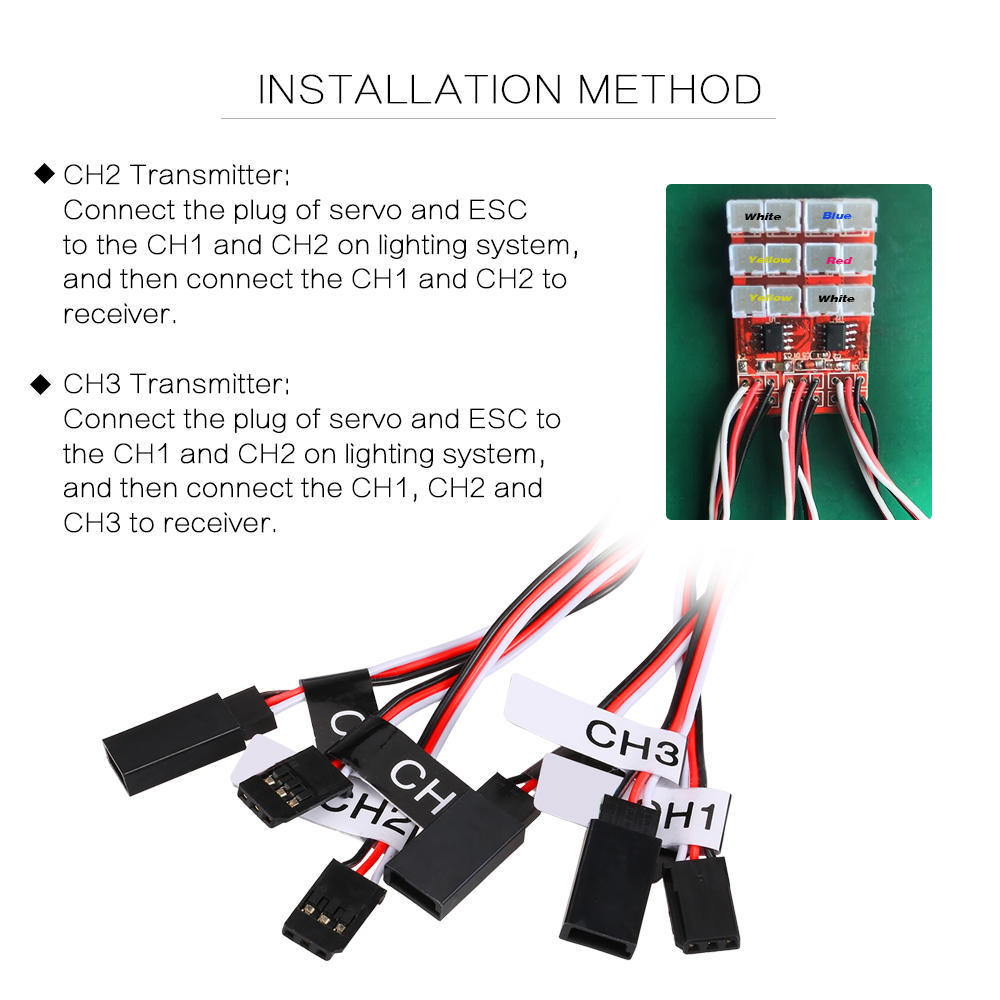

Installation Method:
CH2 Transmitter:
Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1 and CH2 to receiver.
CH3 Transmitter:
Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1, CH2 and CH3 to receiver.
Package information:
Package size: 16 * 7 * 4cm / 6.3 * 2.8 * 1.6in
Package weight: 60g / 2.1oz
Polybag package
Package List:
1 * 12 LED Lighting System Kit
