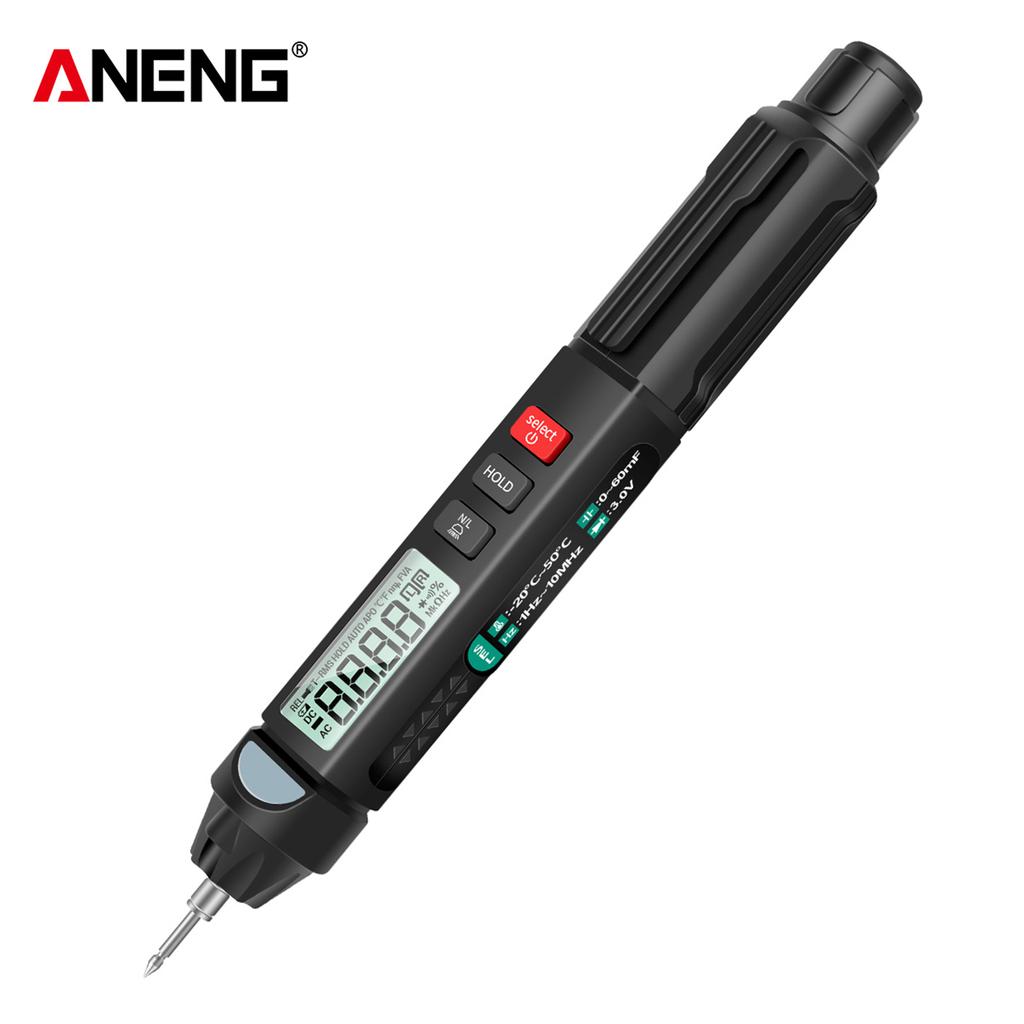

a pocket type 3 5/6 digits pen-type smart multimeter, with true RMS. It will automatically identify DC voltage/AC voltage/resistance and measure, with no need to turn the dial to switch, easy to operate. Also, it Features with stable performance, high precision, auto-off after 5min non-operation for energy saving, capacitance/diode/more test, overload protection, continuity test, non-contact voltage measurement(NCV), zero live line measurement, phase sequence measurement, etc. A perfect tool for professional, factory, school, enthusiast or family use.
Features:
VERSATILE PEN MULTIMETER: This multimeter

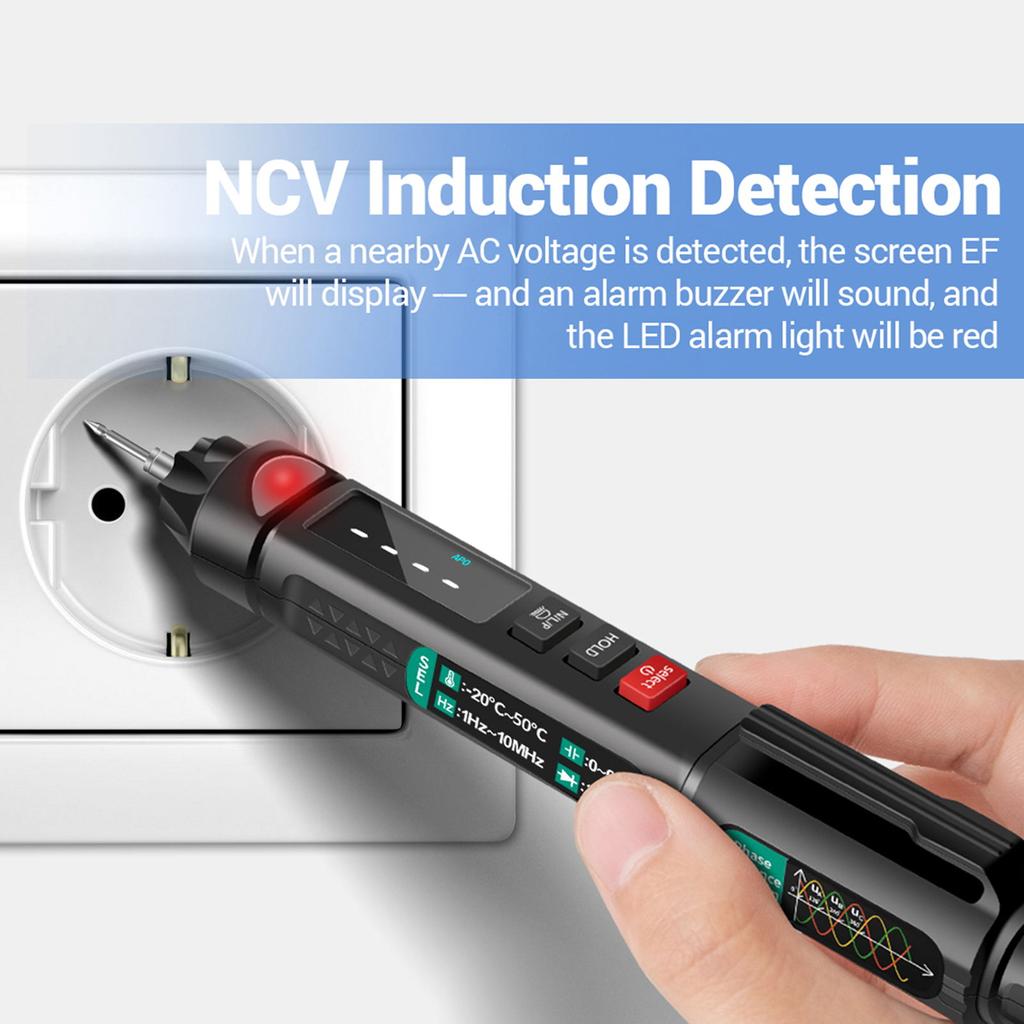

Features test of voltage/resistance/capacitance/diode/frequency/temperature, continuity, zero line & non-contact phase sequence detection, etc.
FAST RESPONSE & HIGH ACCURACY: ANENG , 6000 counts digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement.

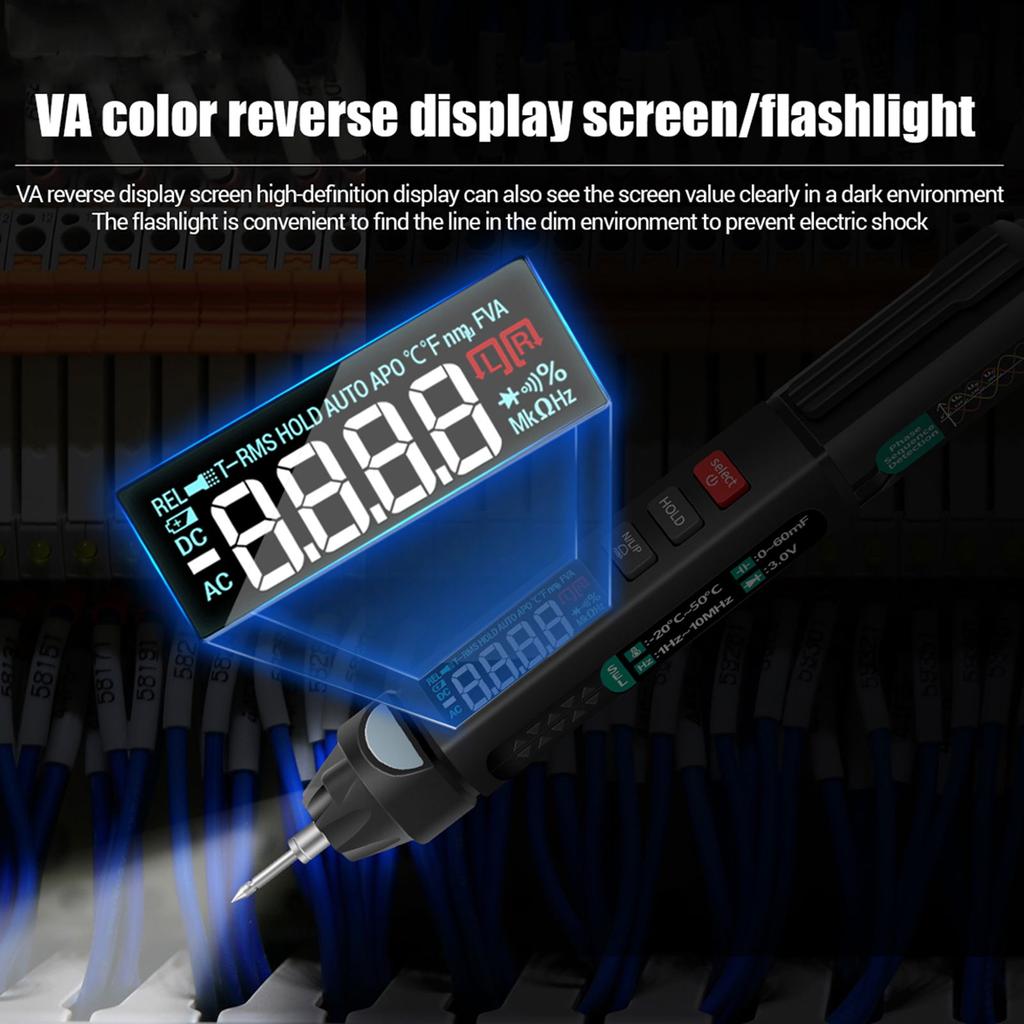

EASY OPERATION: It has LCD clear screen, easy to read the measured values, flashlight available for darkness, data retention function convenient to query data, alarm beep when in use.
DURABLE MATERIAL & PORTABLE SIZE: The meter, made from selected electronic components and sturdy plastic housing, is designed with light weight and easy-to-carry pocket size, comfort to grip.
WIDE APPLICATION: The digital multimeter--a handy instrument and assistant, for testing, diagnosing and solving a variety of automotive and daily household electrical problems safely and accurately.
Measurement Range & Accuracy:
DC Voltage: DC6V/DC60V/DC600V +/-(0.5%+4); DC1000V +/-(0.8%+10)
AC Voltage: AC6V/AC60V/AC600V +/-(0.5%+4); AC700V +/-(0.8%+10)
Resistance: 600 Ohm +/-(0.8%+5); 6k Ohm /60k Ohm /600k Ohm /6M Ohm +/-(0.8%+3); 60M Ohm +/-(2.5%+3)
Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF +/-(3.5%+20); 60mF +/-(5%+3)
Temperature: -20~50 celsius ,+/-(1.0%+5) less than 50 celsius ; 0~122 Fahrenheit ,+/-(0.75%+5) less than 122 Fahrenheit
Specifications:
Brand: ANENG
Material: ABS
Test Line Material: Brass / PVC
Main Color: Black
Screen: LCD display
Maximum Display: 5999 (3 5/6) automatic polarity display
Measurement Method: Double integral A/D conversion
Sampling Time: About 3 times / second
Over-range Indication: "OL" is displayed on the highest position
DC Voltage Test: Yes
AC Voltage Test: Yes
Resistance Test: Yes
Capacitance Test: Yes
Diode Test: Yes
Continuity Test: Yes

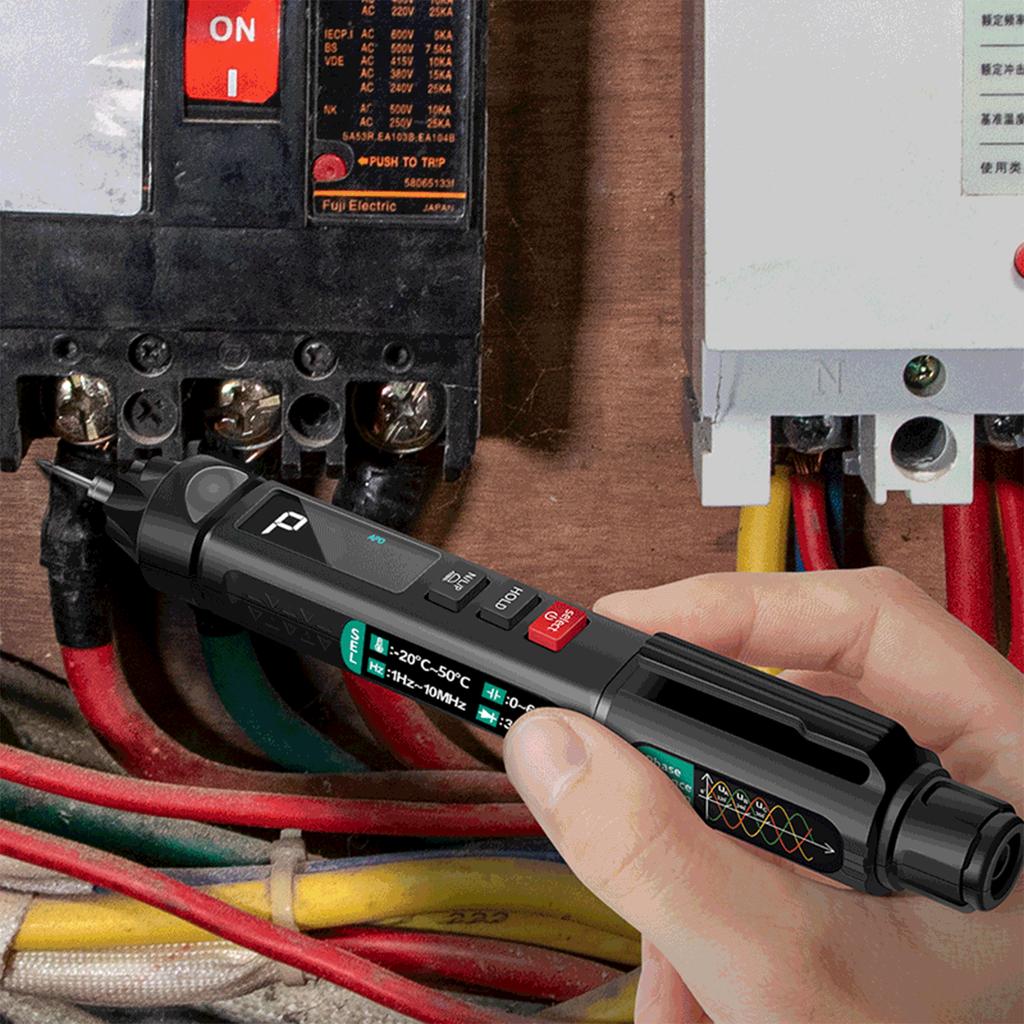

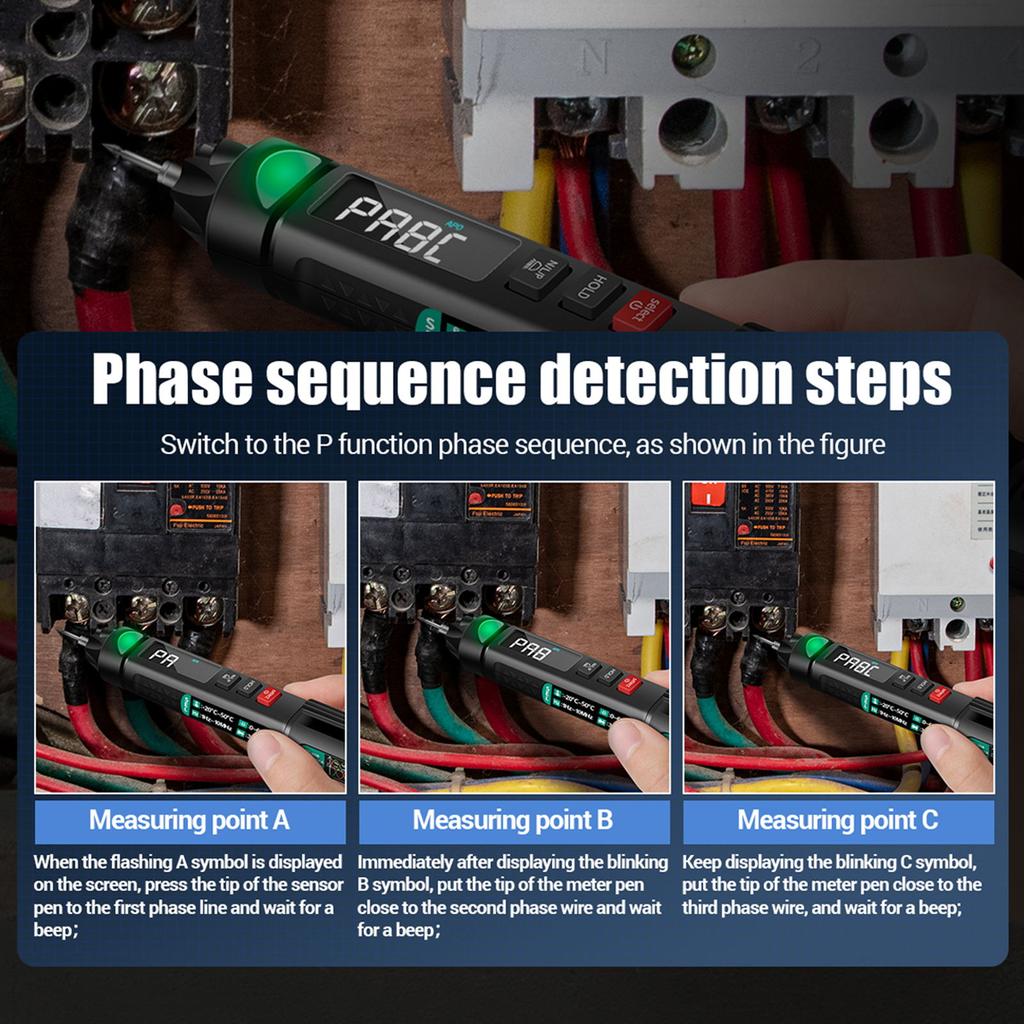

Non-contact Phase Sequence Test: Yes
Color Screen: Yes
NCV: Yes

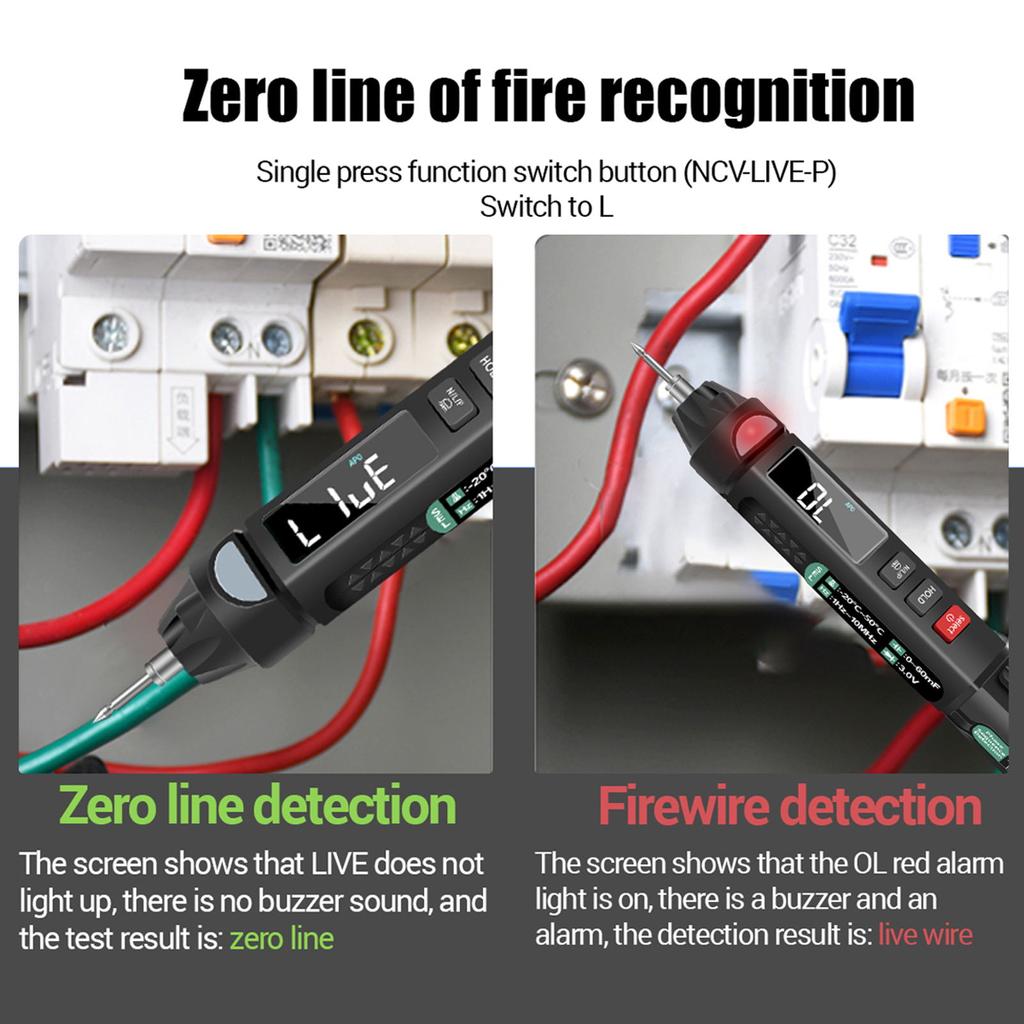

Neutral / Fire Test: Yes
Full Unit Symbol: Yes
Backlight: Yes
Auto Power Off: Yes
True RMS: Yes
Data Hold: Yes
Temperature ( celsius / Fahrenheit ): Yes
Hz: Yes
Flashlight: Yes
Working Condition: 0~40 celsius temperature, less than 80% relative humidity
Power Supply: 1* 1.5V AAA battery (NOT included)

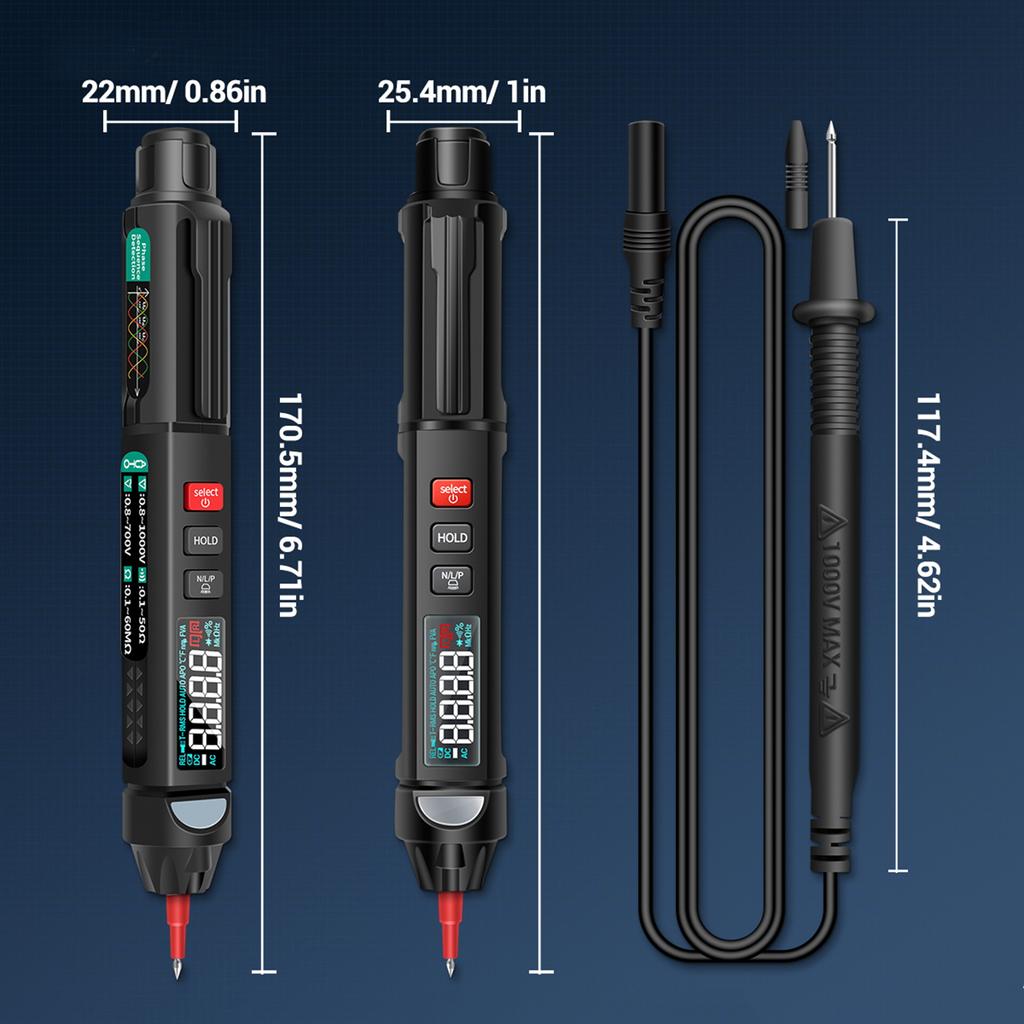

Test Lead Length: 117.4mm / 4.62in
Product Size: 170.5*25.4*22mm / 6.71*1.0*0.86in
Product Weight: About 50g / 1.76oz
Package Size: 190*80*35mm / 7.48*3.14*1.37in
Package Weight: 170g / 5.99oz
Note:
Multimeter only, other accessories in the pictures are not included.
Please read the user manual carefully for more information before use.
Due to manual measurement, there may be deviation, please in kind prevail.
Due to lighting or other reasons, the picture and material object may slightly differ.

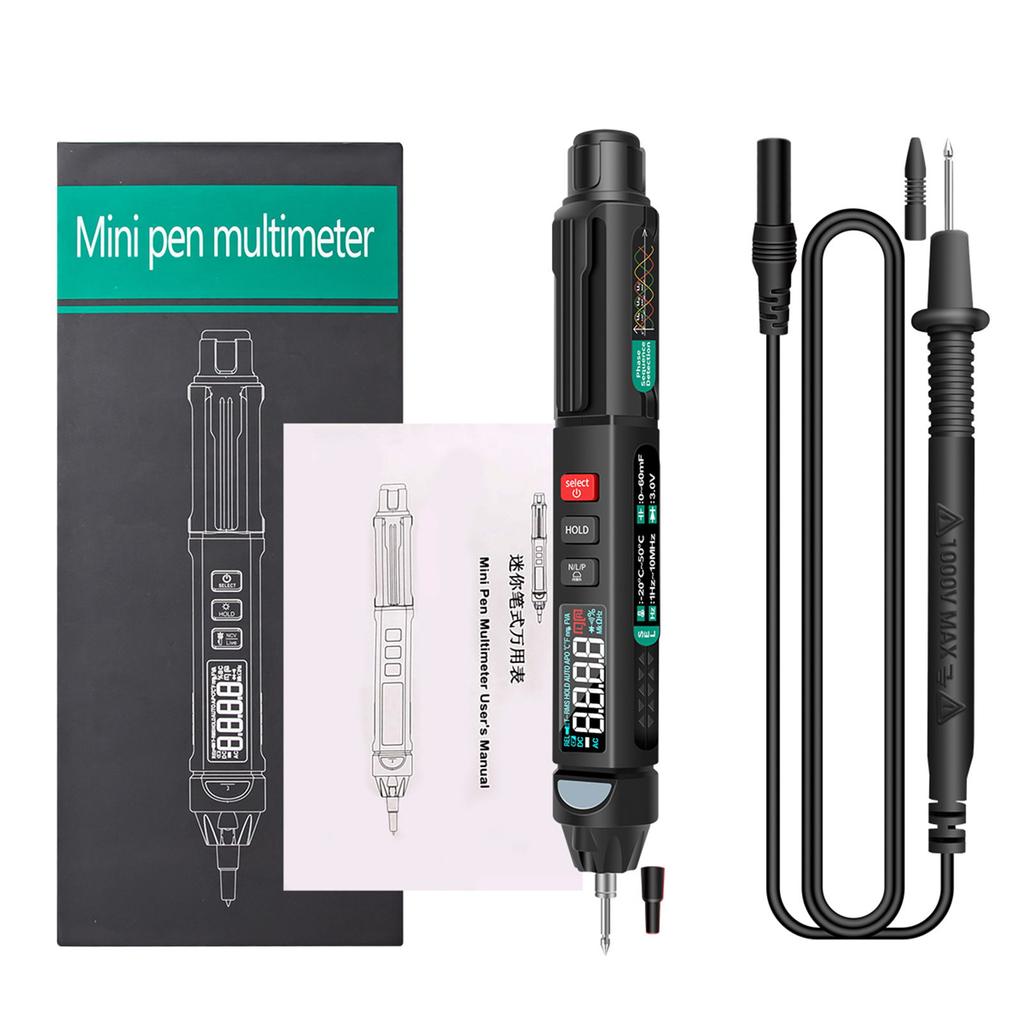

Packing List:

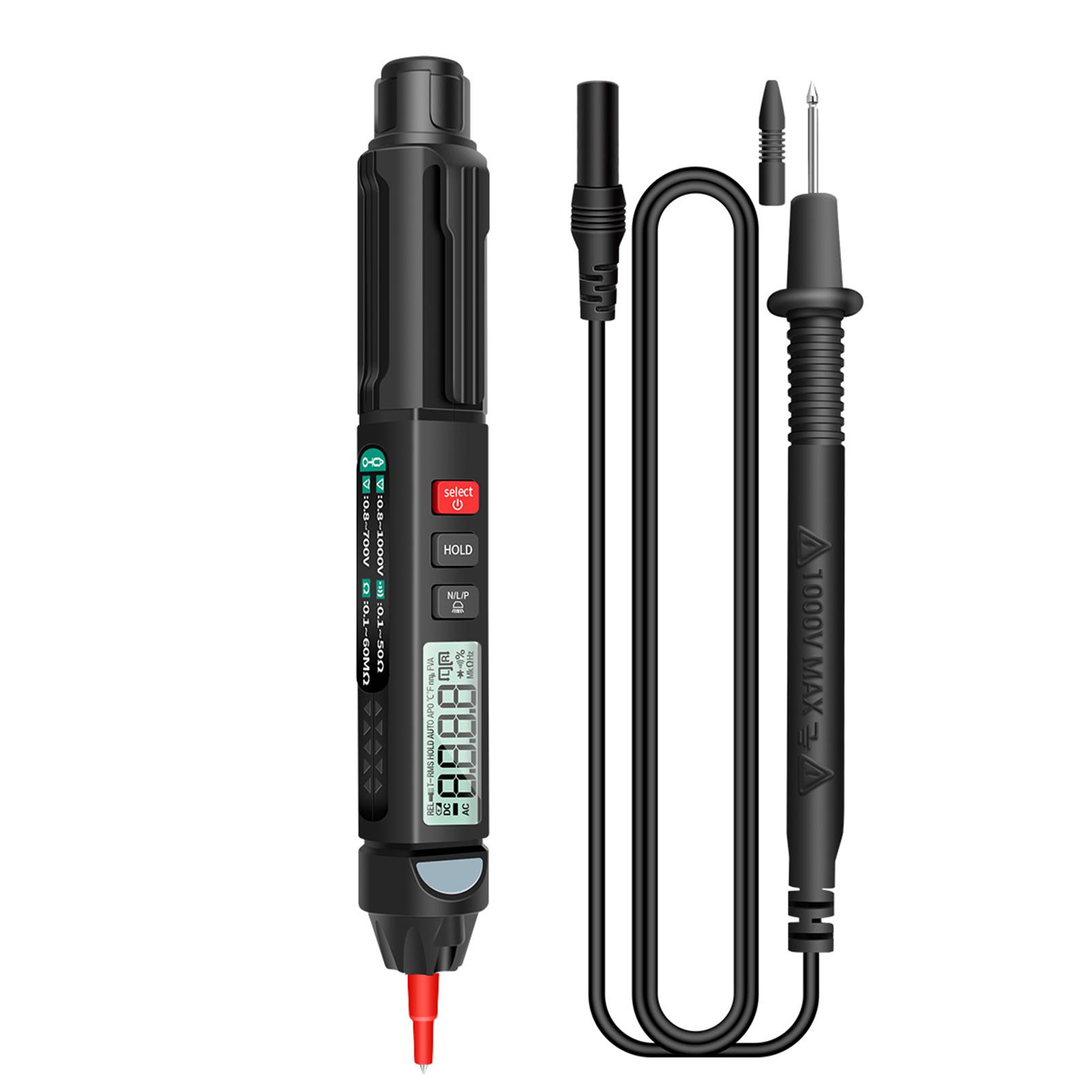

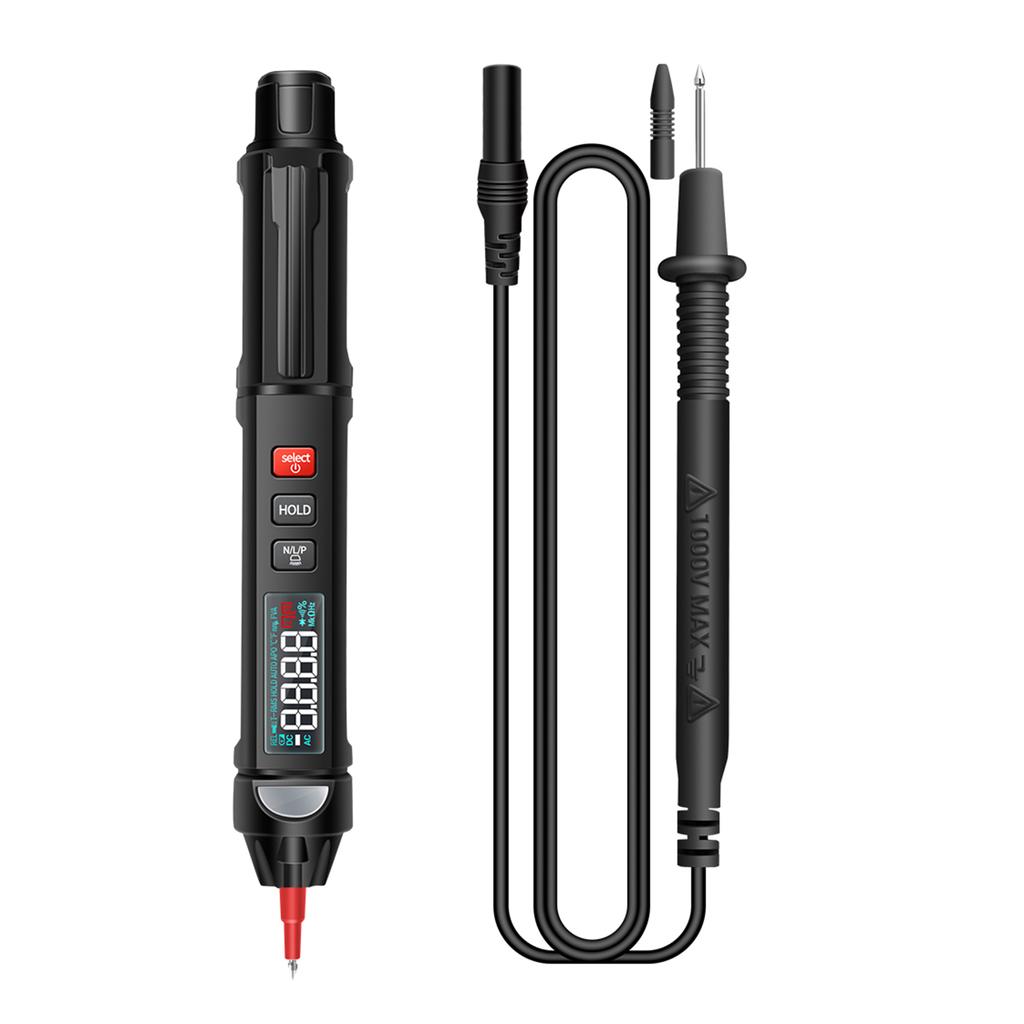

1 * Multimeter
1 * Test Lead
1 * User Manual
