Feature:
Automatically detect optical ,coaxial input signal.
Support 5.1 to 2-channel output.
Input interface:optical interface X1, coaxial X1.
Output interface:RCA interface X6.
Panel design input audio channel LED, indicating input audio format.
Support power on/off auto noise canceling function.
Support no-signal input auto mute function.
Aluminium alloy shell, good touch feeling, strong anti-interference ability.
Output interface uses RCA interface or 3.5mm jack, convenient to use.

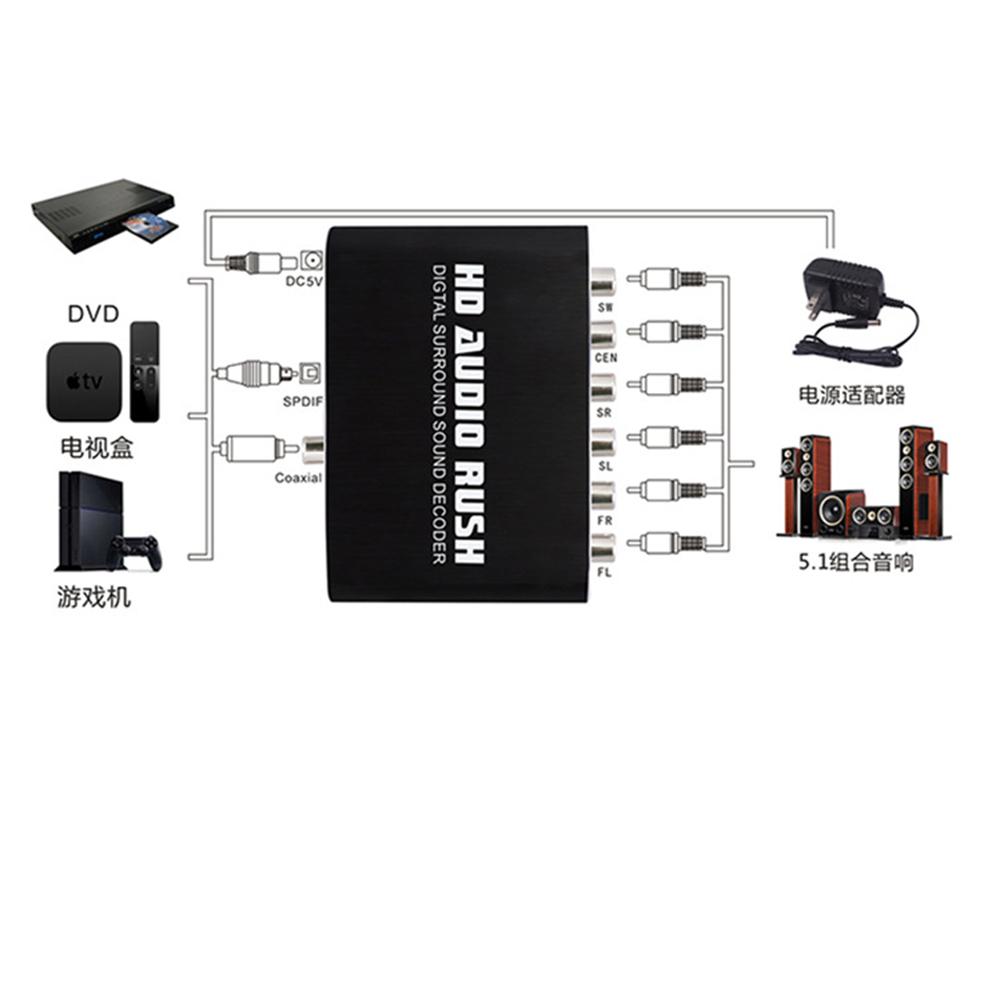

This audio decoder can convert optical signal,coaxial digital audio signal analog audio signal output, supporting decode Dolby AC-3/DTS.So it is widely used in families, schools, squares, concert halls, cinemas and other public places to enjoy the shock effect of DTS or Dolby.
Description:
Material:ABS, PC, aluminium alloy shell
Model:AY42B

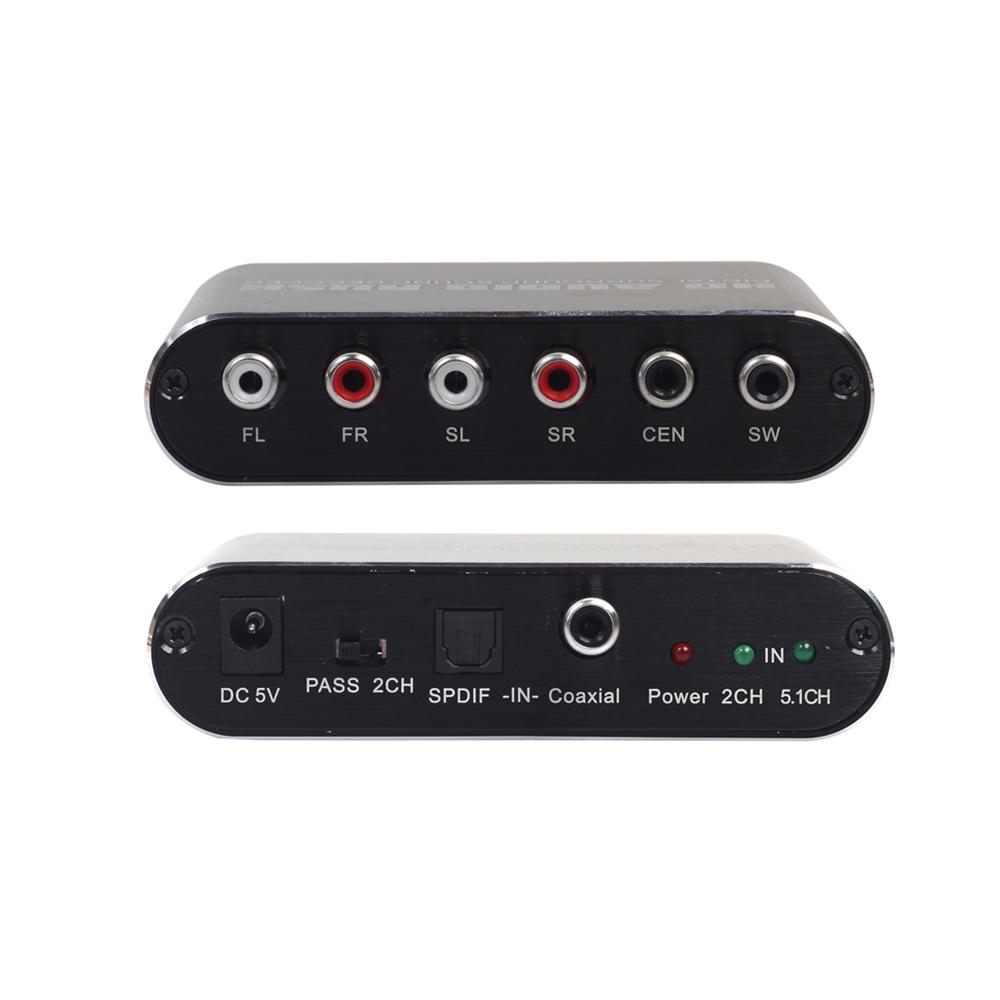

Interface:FL,FR, SL,SR, CEN,SW; DC 5V, PASS 2CH, SPDIF, Coaxial.
Name:5.1 decoder 3.5mm output AY42A
Interface:3.5mm interface, RCA coaxial, optical interface.
Weight:311g
Supported audio format:MP3, AC3, DTS, WAV, WMA, AAC, FLAC,APE, OGG, M4A,M3U8.
SNR:120db
Degree of separation:80db (1KHZ)
Imbalance channel:0db
Sampling rate:32~192 KHzBit rate:16~24 Bit
Response frequency:20Hz~20KHz +/-0.7db
THD:20Hz~20KHz 0.25-0.065%
THD+N:1KHz 0.15%
Analogue output level:2.2V
Size:105×75×25mm
Input interface:optical interface X1, coaxial X1
Output interface:RCA interface X6
Max working current:400mA
Working temperature/humidity:0-70℃/10%-80%R (No condensation)
Storage temperature/humidity:-10-80℃/5%-90%RH (No condensation)
Package List:
1x Decoder
1x Adapter
1x Connection Cable
1x User manual
