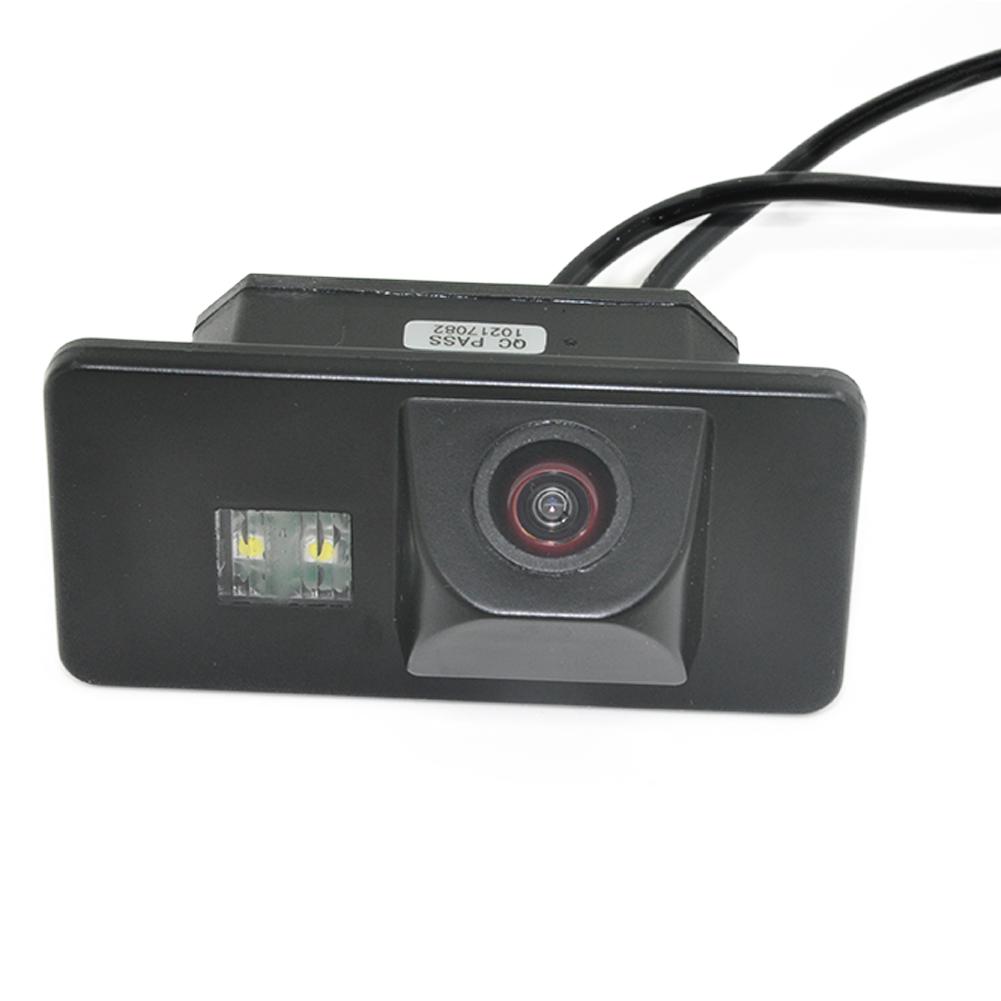

Car Rearview Reversing Camera For BMW 1/3/5/6 Series X6 X5 E39 E81 E87 E90 E91 E92 E60 E61 E70 E71

All cameras will be checked before sending to you

specification: Image Sensors: 1/4 "color CCD TV System: NTSC and PAL Effective pixels: 728 x 512 Resolution: 520 TV lines Video output: 1.0Vp-p, 75 Electronic shutter: 1/60 (NTSC) -1 / 10000s, 1/50 (PAL) -1 / 10000s Waterproof Class: IPX 68 Operating temperature: -20 ° C ~ + 80 ° C RH95% Operating power (DCV): 12 Current consumption: 90 mA max

Installation: 1.Install the camera in the license area of the plate of your car 2. Adjust the camera lens to its best position. 3. Connect the power cord (red and black) to the headlight of the power wires of your car. 4. Connect the video output (yellow wire) to the display.

About the TV system of the car rear view camera:

Default send NTSC, default with guide lines

Packing list: 1 * CCD Car Rear View Camera 1 * 6m video cable 1 * power supply cable 1 * User's Manual
