Joom: Безопасная зарядка вашего электровелосипеда или электроскутера
• Не оставляйте аккумулятор без присмотра, когда вы находитесь вне дома или спите.
• Не накрывайте зарядные устройства или аккумуляторные блоки во время зарядки.
• Не перегружайте розетки и не используйте неподходящие удлинители.
• Не заряжайте и не храните аккумуляторы под прямыми солнечными лучами или в помещениях с температурой выше 45⁰C.
• Не заряжайте аккумуляторы вблизи горючих материалов или опасных веществ.
• По окончании зарядки всегда отключайте зарядное устройство от сети.
• Всегда используйте только оригинальное зарядное устройство, подходящее для данного аккумулятора.
• Всегда обращайтесь к профессионалам при переоборудовании вашего электровелосипеда или электроскутера.
• Всегда проверяйте аккумулятор (и зарядное устройство) на наличие видимых повреждений.
-----
【Powerful 100Nm Mid-Drive Motor for Efficient Performance】
The Mivice X700 mid-drive motor delivers 100Nm of torque, ensuring powerful acceleration and easy hill climbing. This mid-drive system provides better weight distribution and higher energy efficiency, making it ideal for urban commuting and longer trips.
【Ultra-fast 8A charging with Samsung battery】
The 48V 15Ah (720Wh) Samsung battery supports fast 8A charging and is fully charged in just 2 hours. It retains 80% of its capacity after 800 cycles, which corresponds to a lifespan of approximately 80,000 km. The advanced battery management system (BMS) optimizes charging and ensures real-time monitoring for safety and long service life.
【Smart Anti-Theft with IoT and GPS Tracking】
ENGWE IoT module integrates GPS tracking, 4G connectivity and motion detection, providing real-time alerts to protect the bike from theft. Through the ENGWE app, users can monitor their bike’s location, receive safety notifications and track their rides remotely.

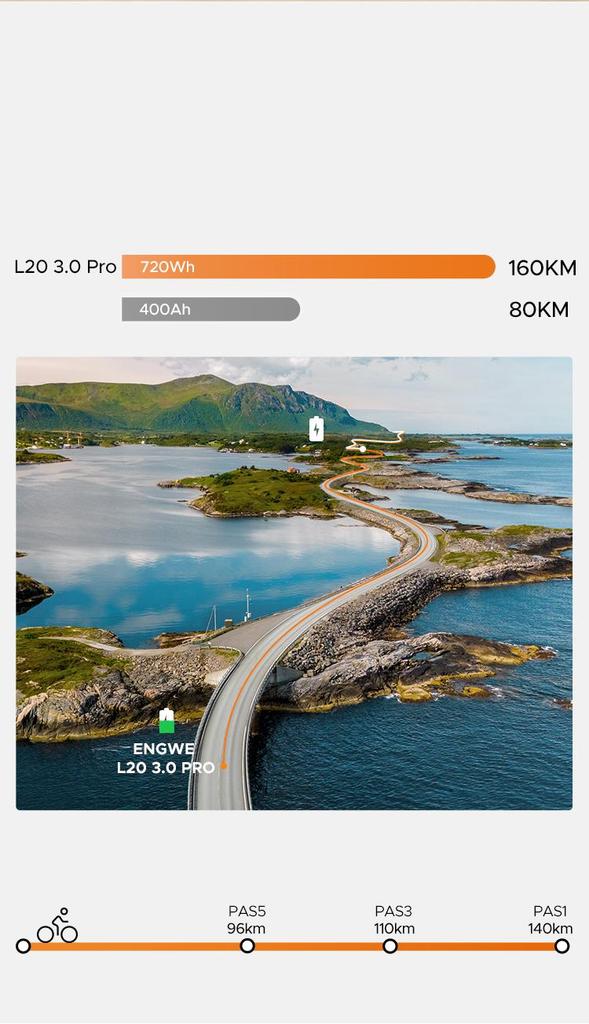

【160km Extended Range with High-Efficiency Pedal Assist】
The high-capacity 720Wh battery provides a maximum range of up to 160km in PAS mode, making long rides worry-free. Under real-world conditions, it reaches 140km (PAS 1), 110km (PAS 3) and 96km (PAS 5), providing customized riding efficiency based on user preferences.
【Full Suspension and Hydraulic Brakes for Maximum Comfort and Safety】
The hydraulic front fork with adjustable lockout and 30mm rear suspension absorb up to 90% of road vibrations, ensuring a smooth ride on city streets and rough terrain. The hydraulic dual-piston brakes with 180mm rotors provide powerful and responsive braking force, increasing safety during high-speed riding.
【Specifications】

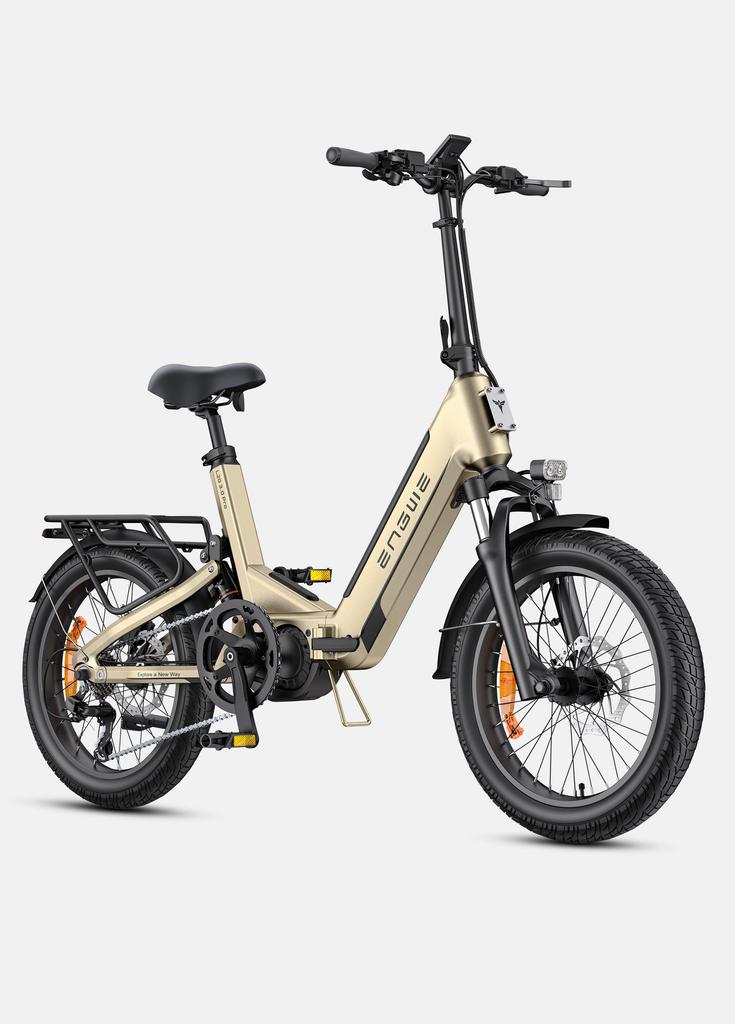

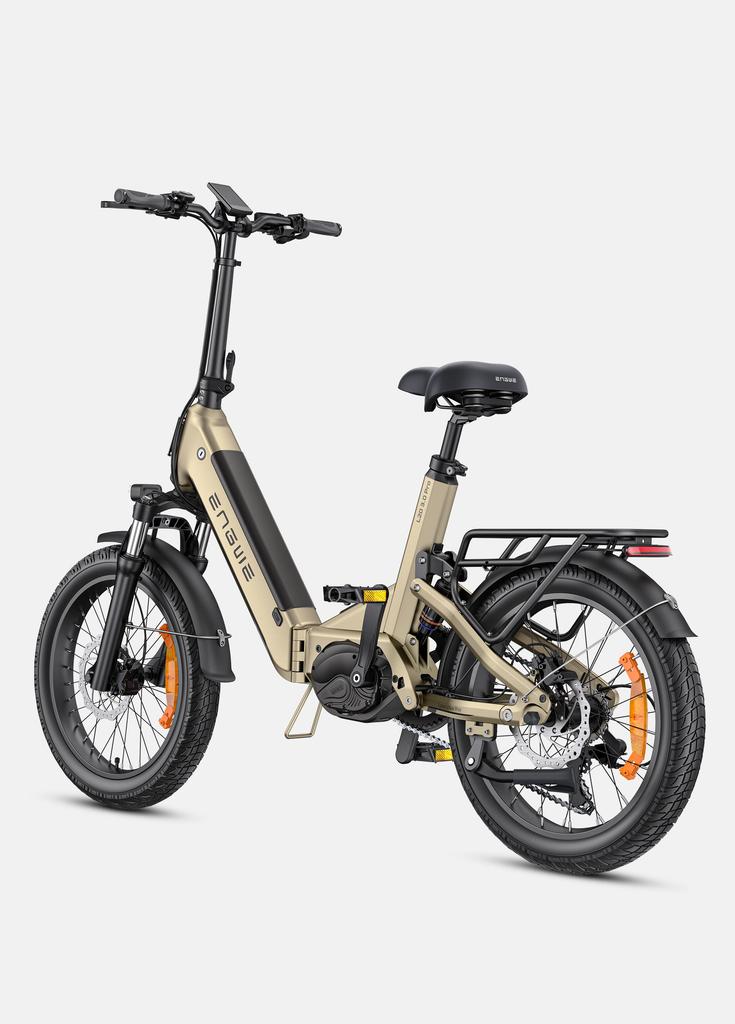

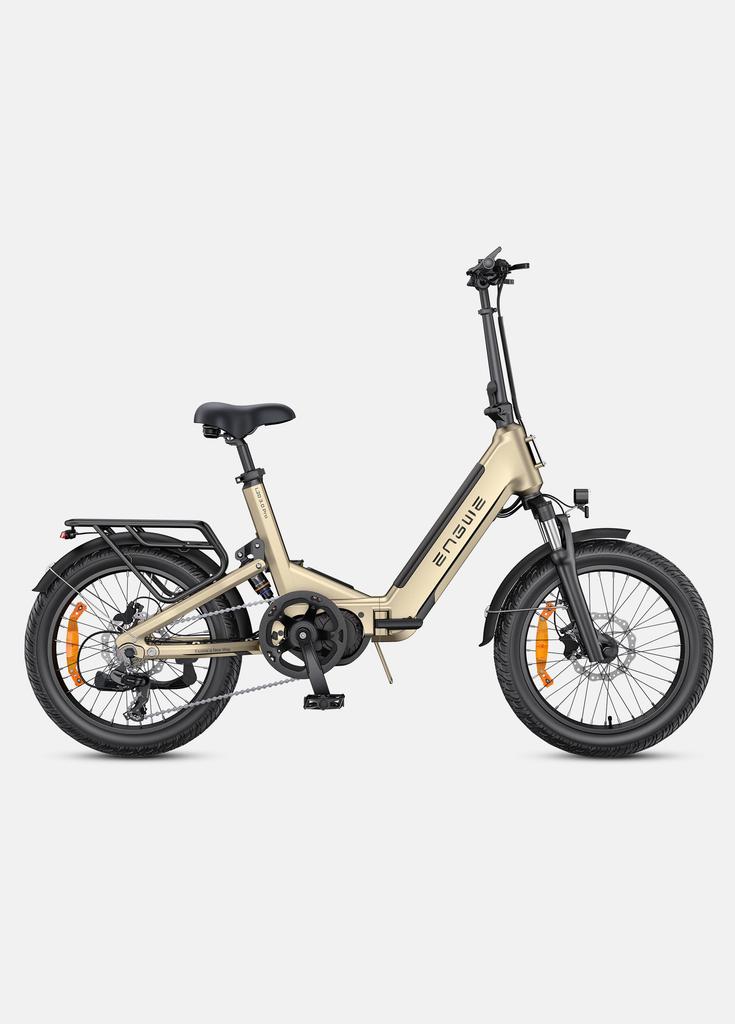

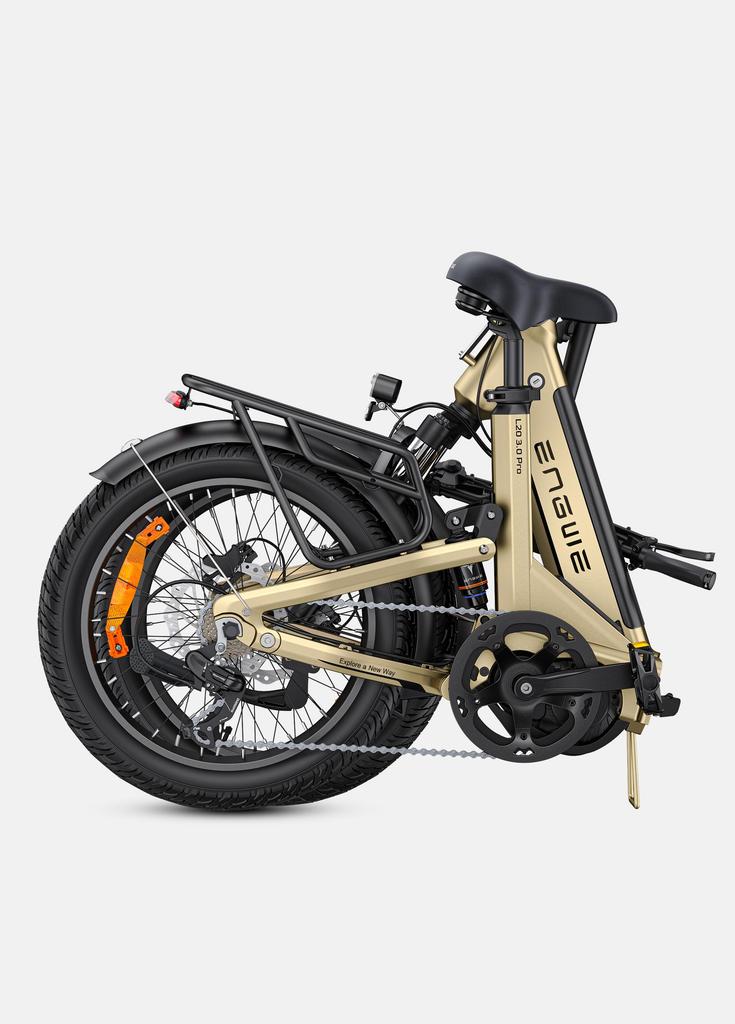

Model/Item No.: L20 3.0 Pro
Frame Material: 6061 Aluminum Alloy
Frame Type: Step-through design, compact, full suspension
Motor: Mivice X700 mid-drive, 48V
Max. torque: 100Nm
Battery: 48V 15Ah (720Wh), Samsung 21700 cells with internal BMS
Pedal assist: 5 levels
Laboratory tested range: 160 km (fully charged)
Actual range: 140 km (PAS 1), 110 km (PAS 3), 96 km (PAS 5)
Fork: Hydraulic, adjustable lockout, one-piece cast aluminum
Rear suspension: 30 mm travel

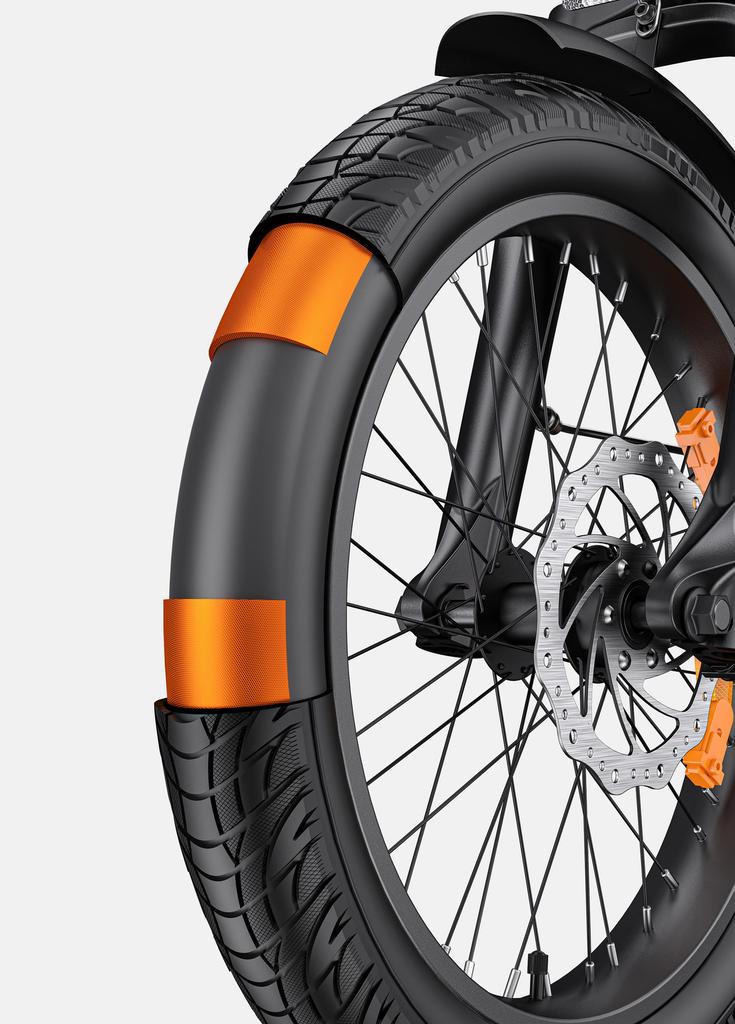

Tyres: 20" × 3.0" urban hybrid tires
Puncture protection: 3 mm puncture protection layer
Wheels: 20-inch, 12-gauge spokes, 36-hole, double-walled aluminum
IoT: ENGWE IoT module with GPS, 4G and Bluetooth
Assistance system: Torque sensor

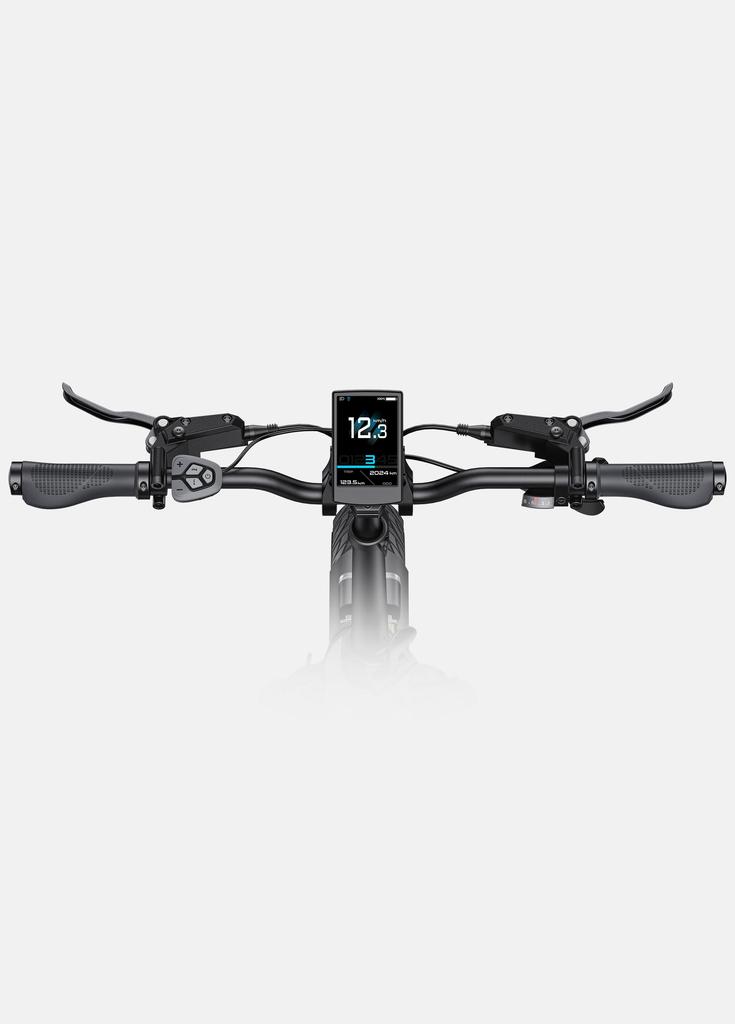

Screen: 3.5-inch LCD color screen, ENGWE designed, center mode
ENGWE App: App control available
Charger: 54.6V 8A output
Headlight: 30 Lux with integrated electronic signal
Taillight: Automatically turns on when braking or shaking
Brake type: Hydraulic, double piston
Disc: 180 mm front and rear
Chain: KMC E8S stainless, 112 links
Chain drive: 48T
Weaving: 170 mm

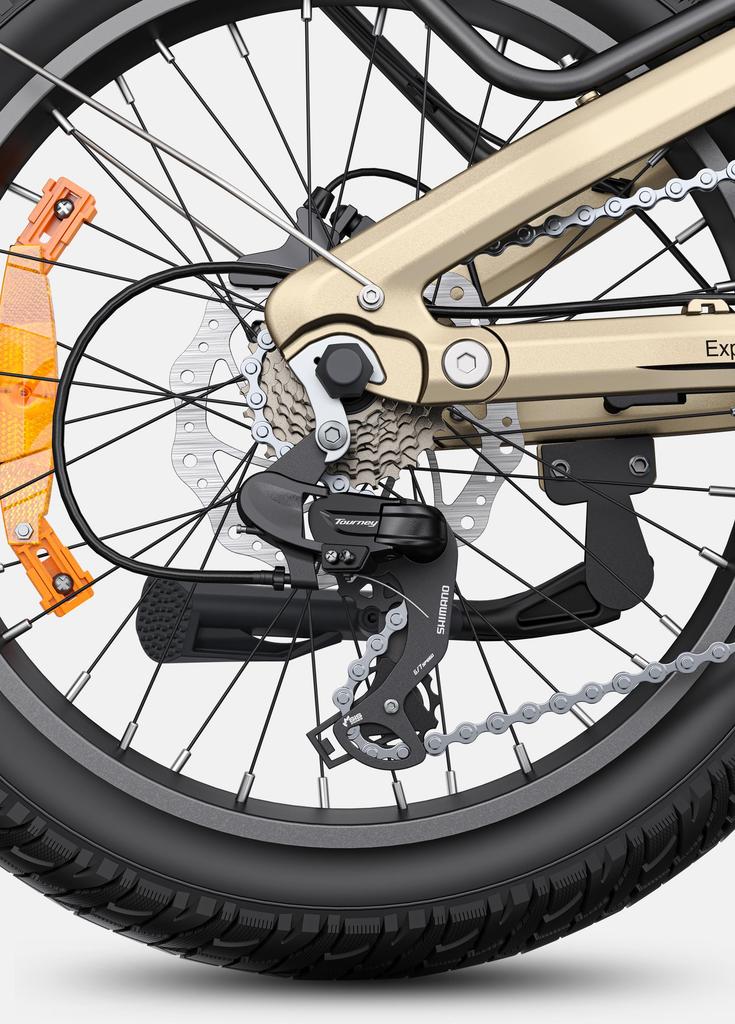

Rear derailleur: Shimano Tourney RD-TY300, 7-speed
Shifters: Shimano SL-M315-7R
Cassette: 7-speed 14T-28T
Pedals: Boron steel, non-foldable

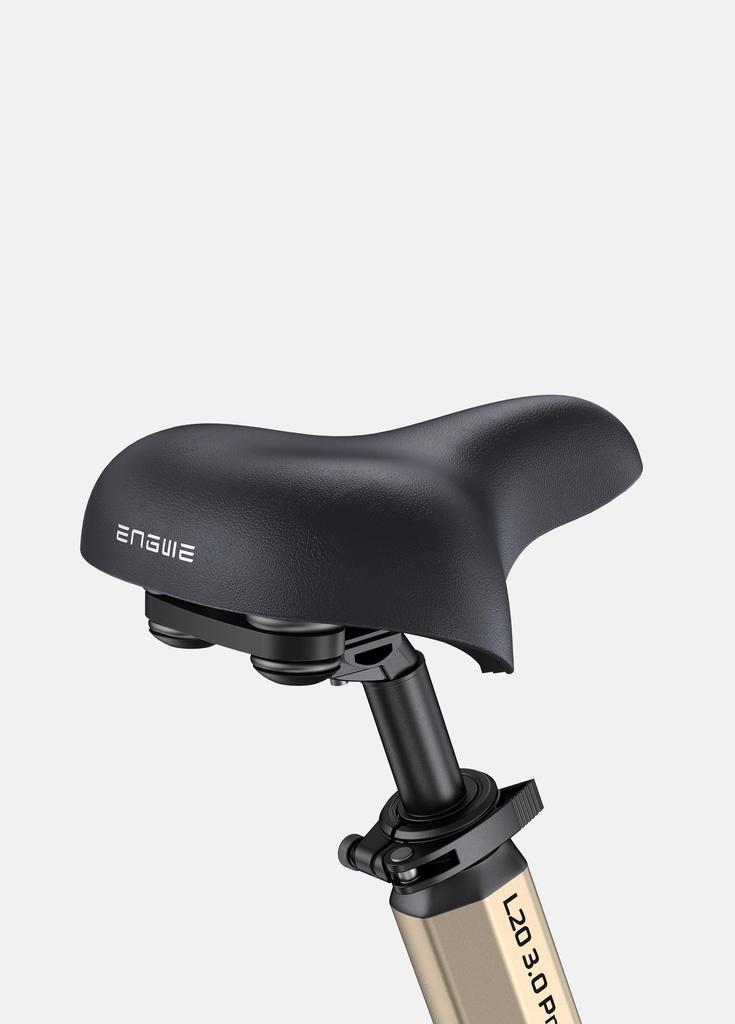

Saddle: ENGWE Soft saddle
Seat post: 10-level adjustable
Handlebar: 680 mm width
Stem: Foldable
Seat clamp: Quick release
Waterproof rating: IPX7 (waterproof wires) IPX6 (screen and lights) IPX5 (motor and controller) IPX4 (battery box)
Terrain: Paved roads and bike paths/Country roads and paved paths
Bike length: 155 cm - 190 cm
Max. load: 150 kg
Bike weight: 32.8 kg
Gross weight: Approx. 42 kg
Package size: 144 * 27 * 64 cm
Folded size: 102 * 53 * 78 cm
Unfolded size: 172 * 78 * 110cm
【In the box】
Electric bicycle*1
Battery*1
Charger*1
Pedals*2
Front and rear fenders*1

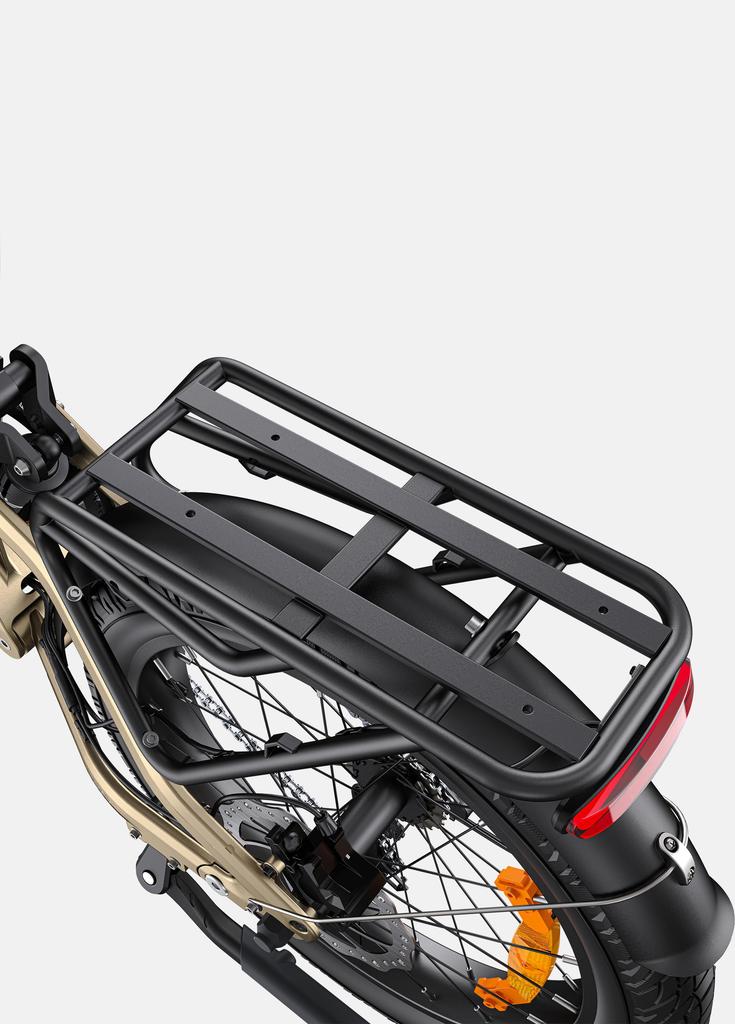

Rear luggage rack*1
Bicycle stand*1
Assembly tools*1
Instructions*1
