Features:

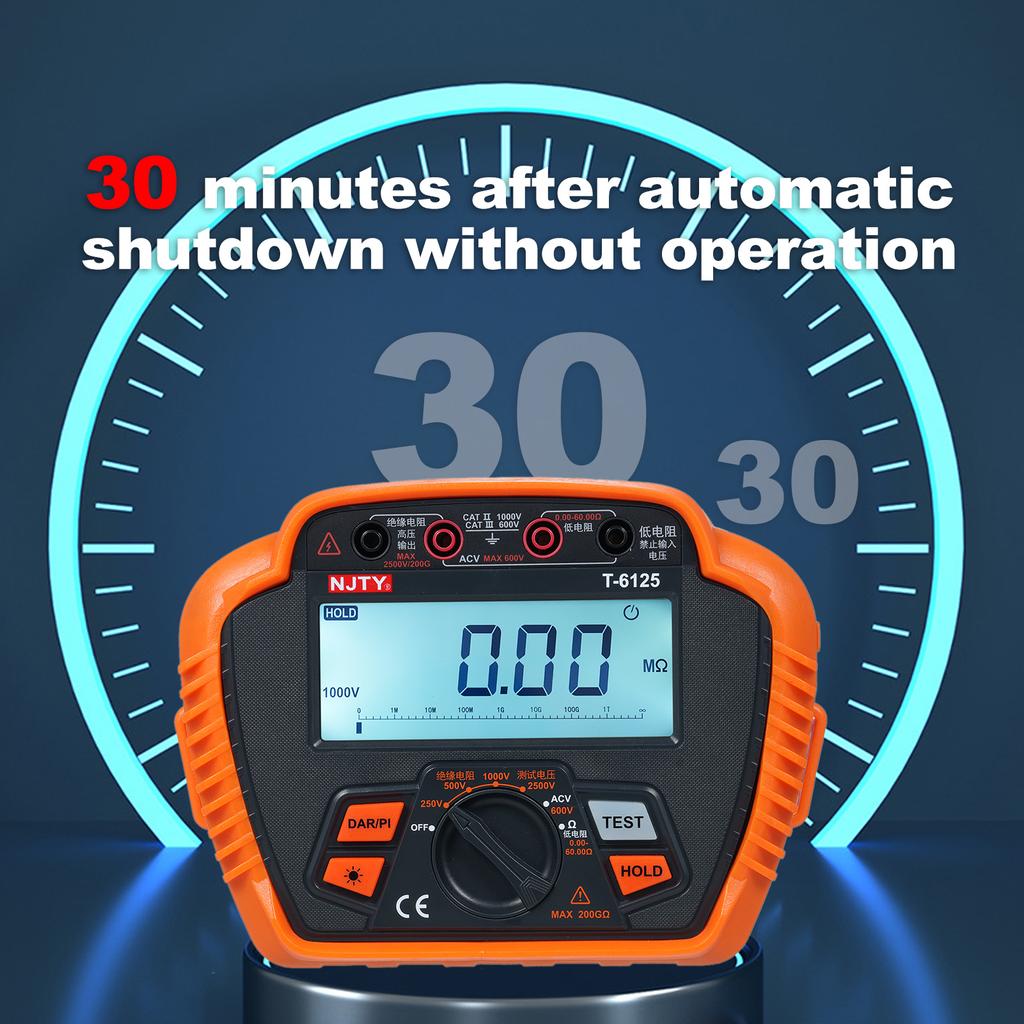

The T61 series insulation tester has the main functions of measuring insulation resistance, absorption ratio and polarization index, AC voltage, low resistance, etc. It also has functions such as measurement data retention, overrange alarm, and automatic shutdown.
This instrument is designed with largescale integrated circuit of professional software running, with wide measuring range, large output power and multiple output voltage levels (there are 4 voltage levels).

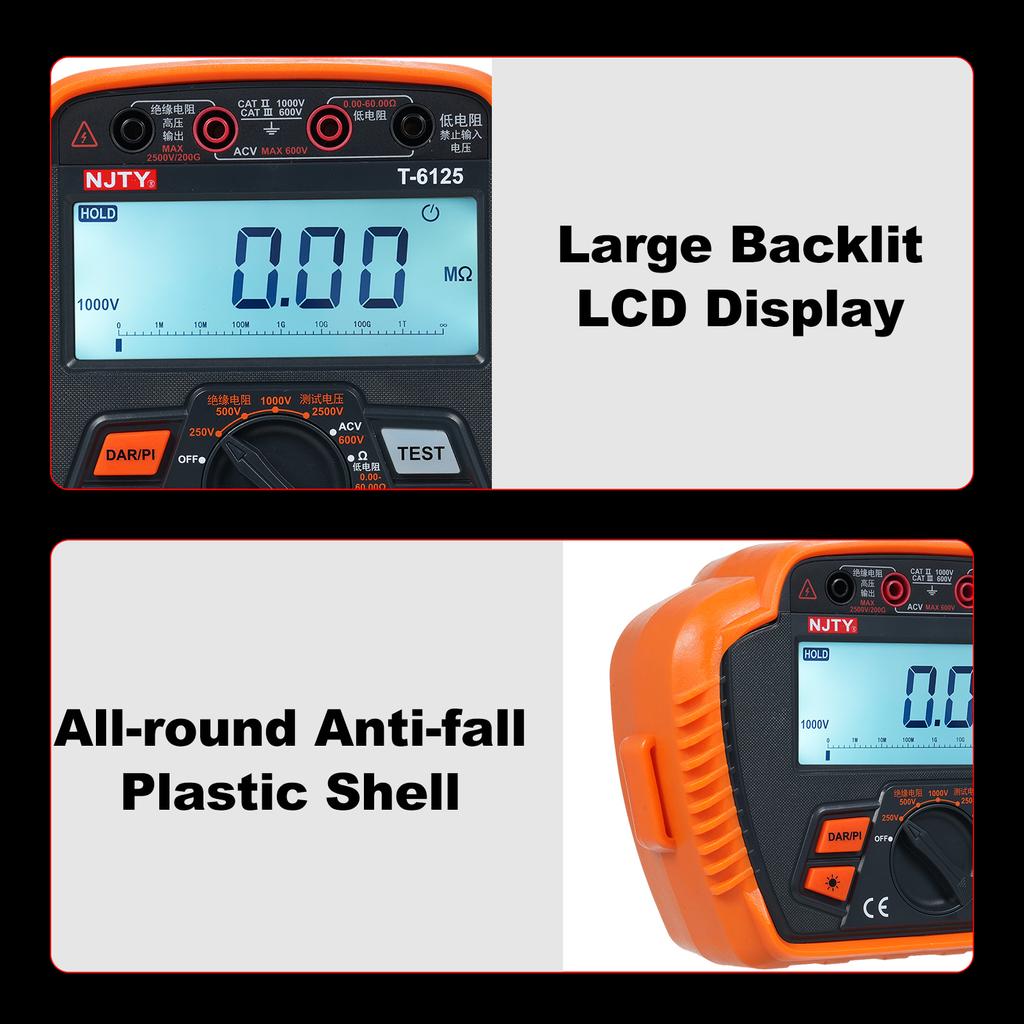

The whole machine has a largescreen LCD graywhite backlight display, which is beautiful and highend. It is easy to carry, easy to operate, accurate, reliable, stable in performance, and has strong antiinterference ability.
It has a shockproof, dustproof and moistureproof structure, making it an ideal test instrument for measuring the insulation resistance of various electrical equipment such as transformers, transformers, generators, motors, power capacitors, power cables, and lightning arresters.
Specifications:

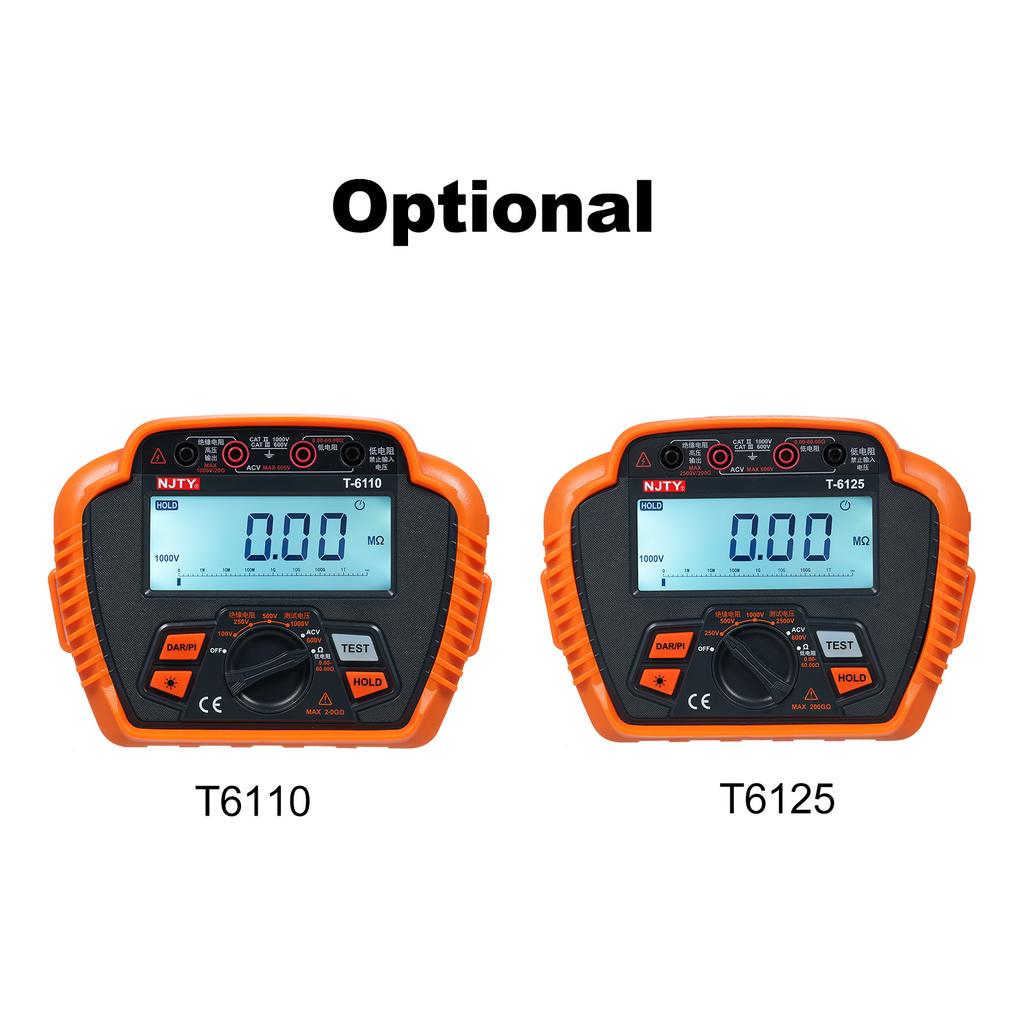

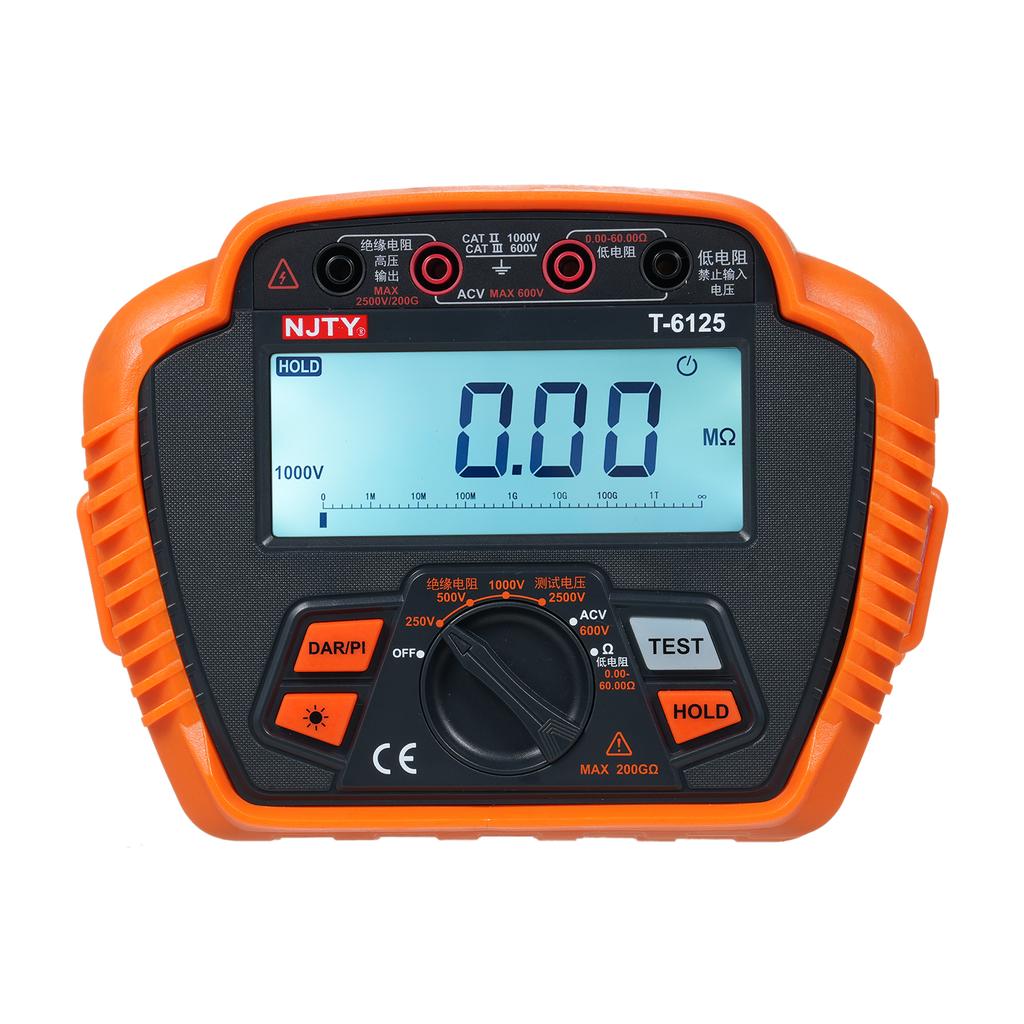

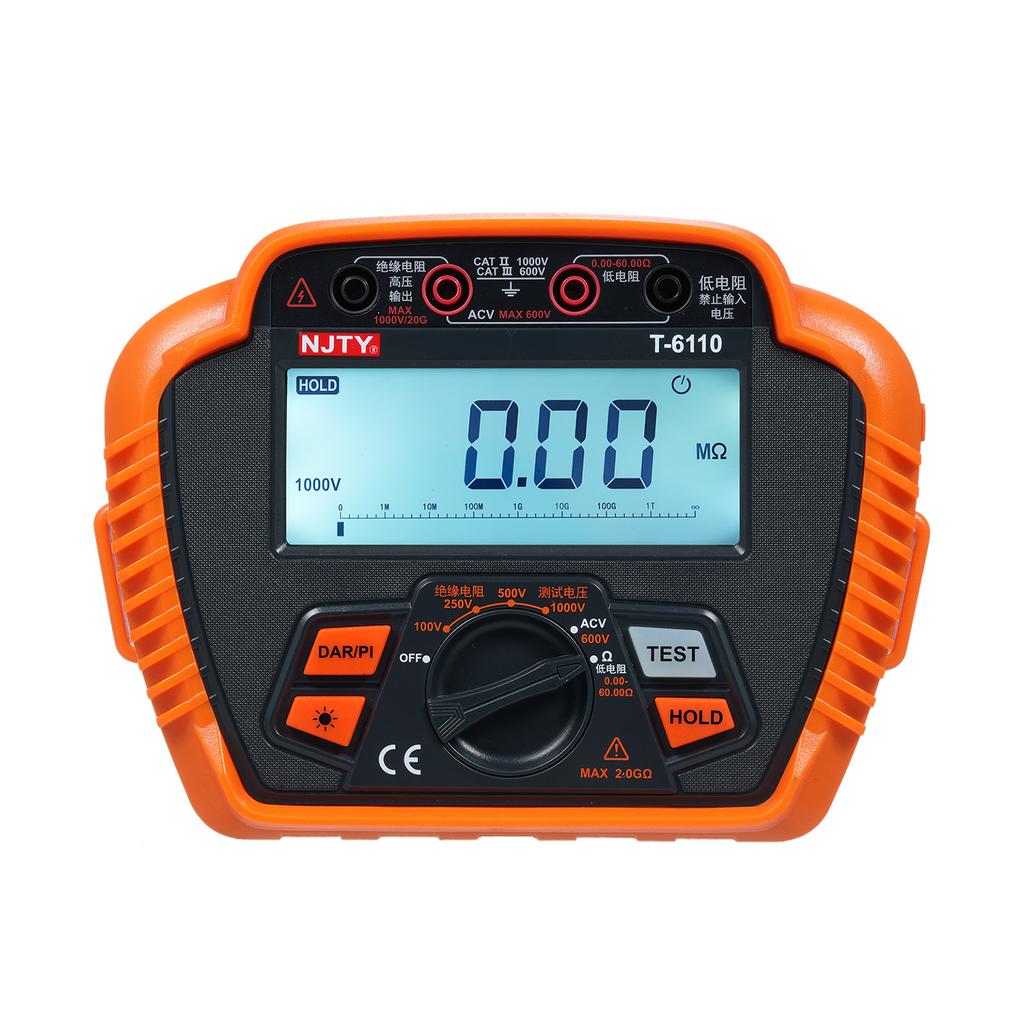

Model: T6110 T6125 (Optional)
Material: ABS

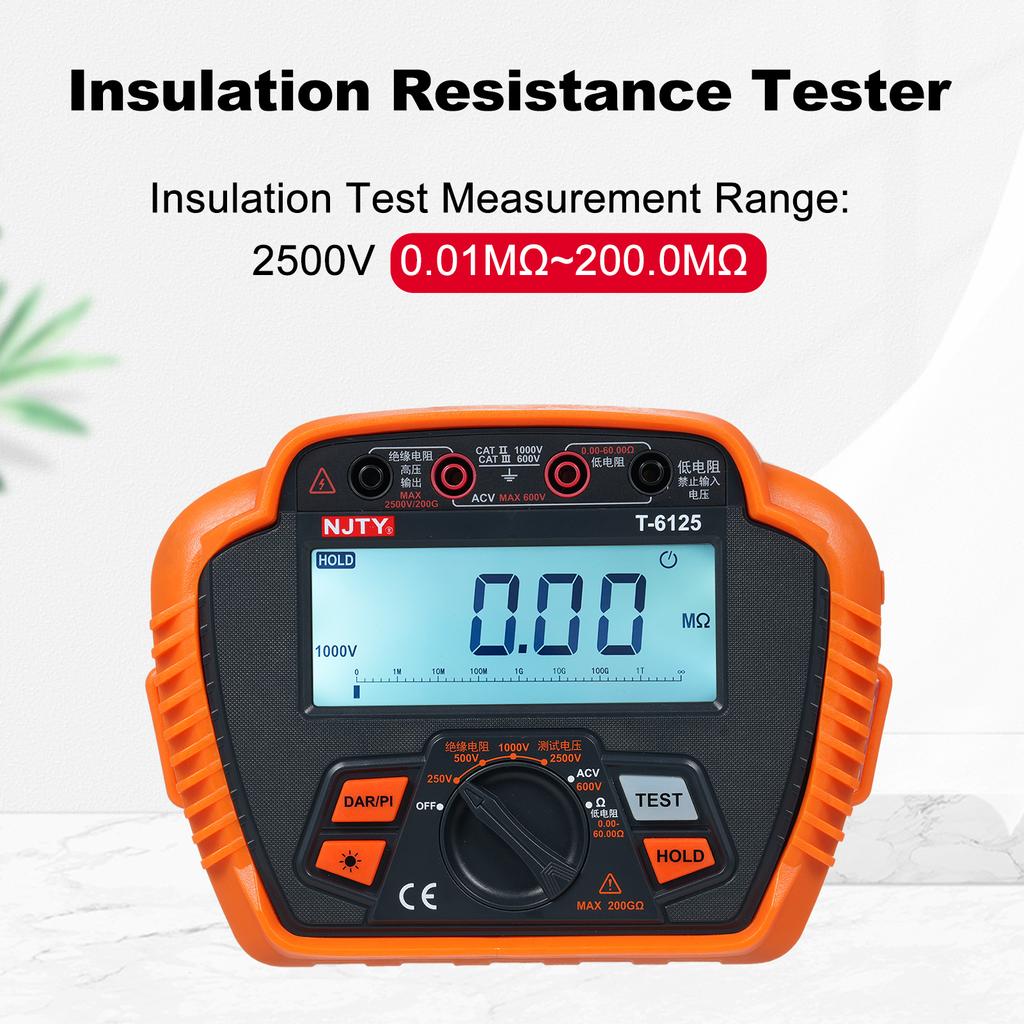

Insulation Test Measurement Range: 0.01M Ohm ~200.0G Ohm
Insulation Test Test Voltage: 100V, 250, 500, 1000, 2500V
Insulation Test Output Voltage Accuracy: + 10%
Insulation Test Short Circuit Test Current: about 2 mA
Insulation Test Automatic Discharge Function
Storage Temperature: 20 celsius ~60 celsius
Working Conditions: 0 celsius ~40 celsius
Altitude: 2000m
Relative Humidity: 40%~75%
Power Supply: 8 * 1.5V AA batteries (Not included)

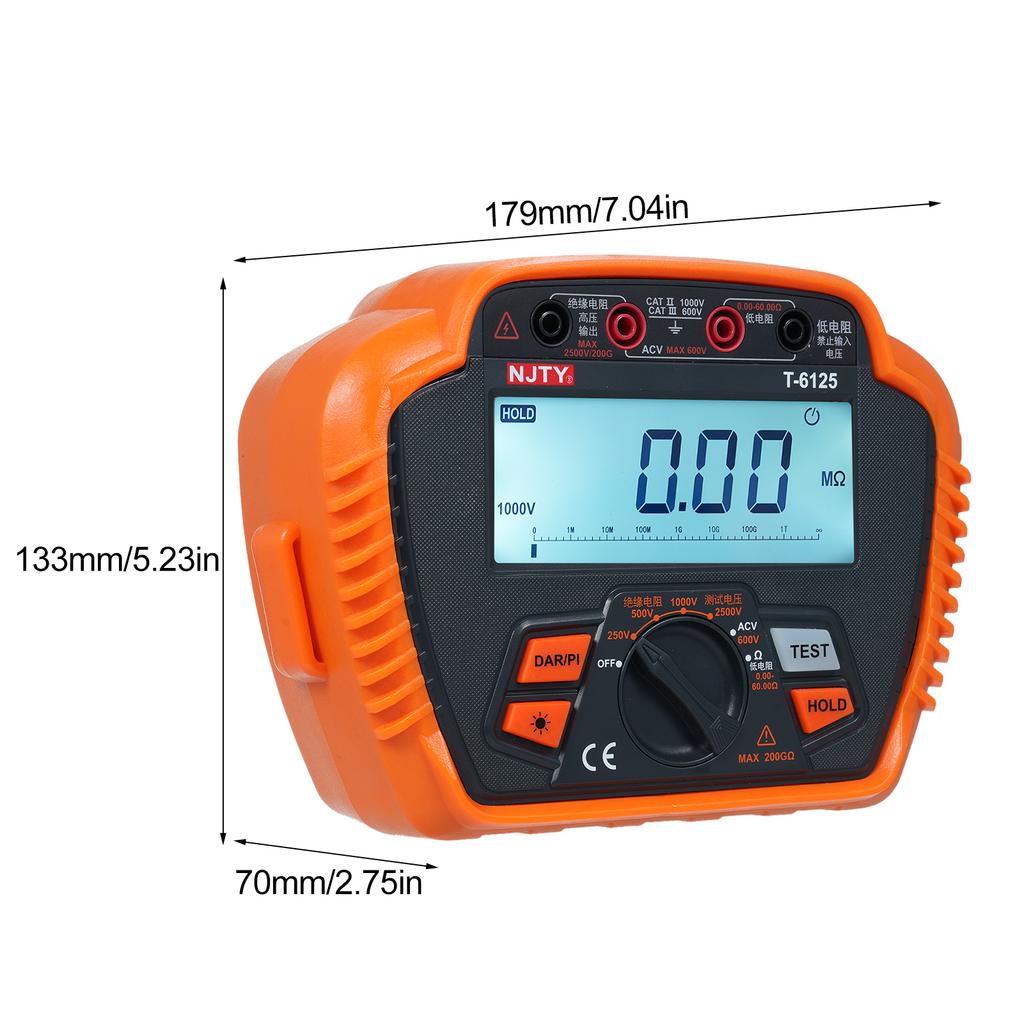

Item Size: 179 * 133 * 70mm 7.04 * 5.23 * 2.75in
Item Weight: 570g 1.25lb
Package Weight: 914g 2.01lb
Package Size: 21.7 * 19 * 8.5cm 8.54 * 7.48 * 3.34in
Package List:
1 * Insulation Resistance Tester
1 * Pair of Test
1 * External Power Plug (5.5mm)
2 * Alligator Clip

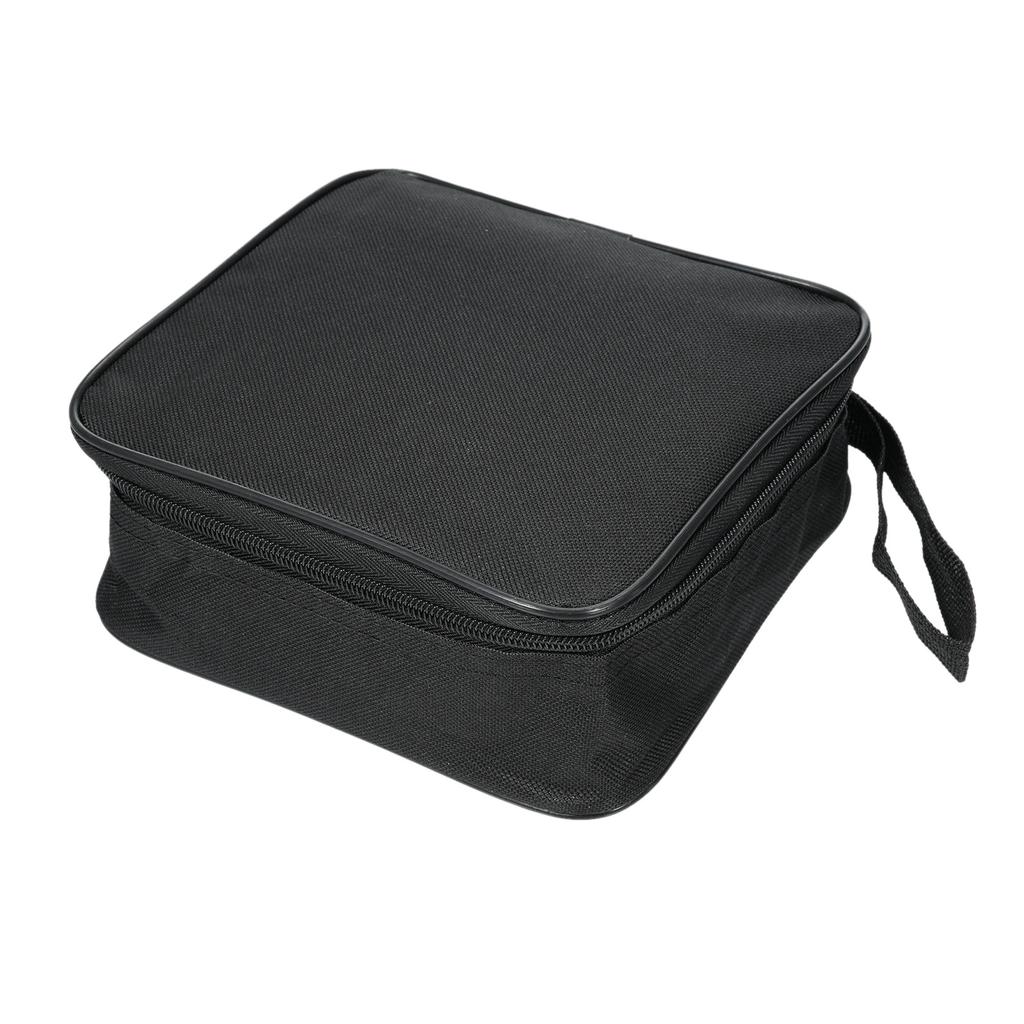

1 * Cloth Bag
1 * User Manual (English)
