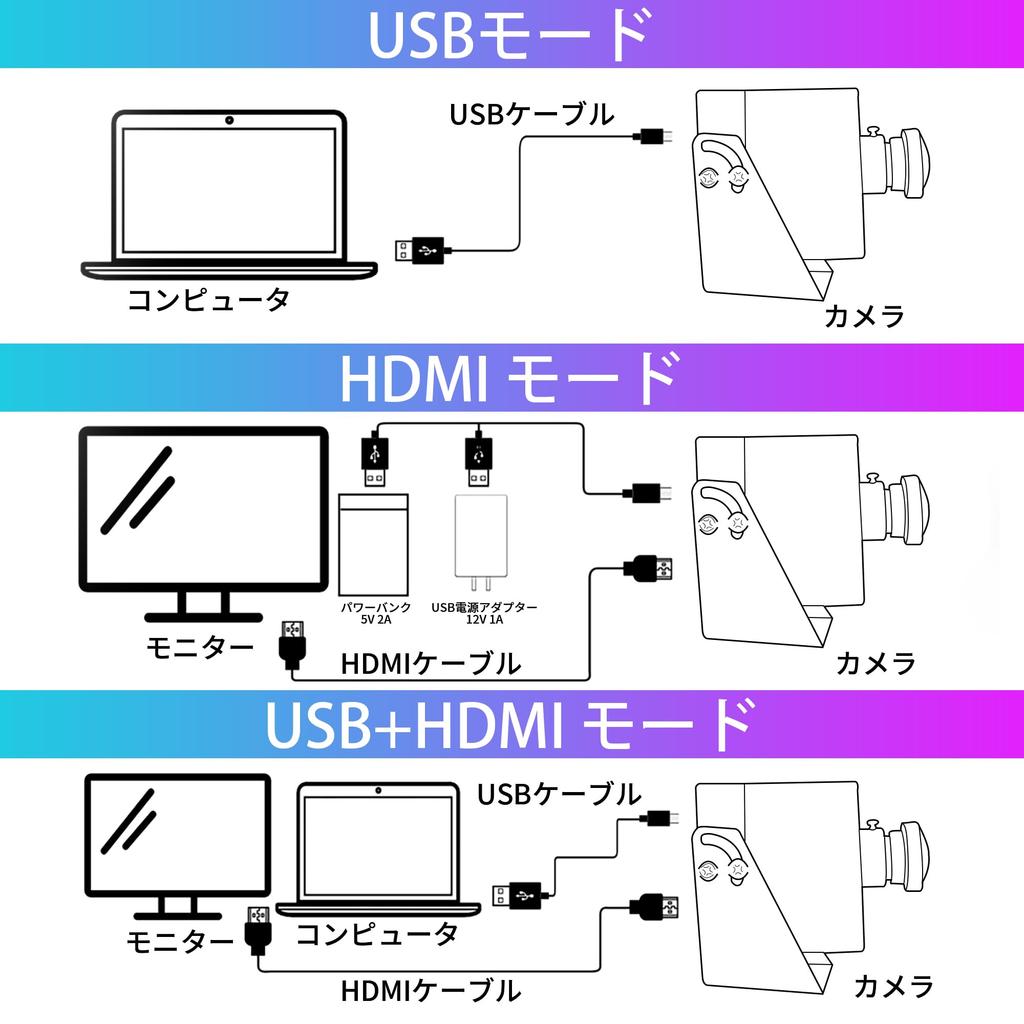

4K USB and HDMI manual zoom camera, USB Type-C power supply, Type-C and HDMI display simultaneously.
Super clear, highest resolution: 3840 (H) * 2160 (V), high speed 4K@60fps.
It uses a high-quality 1/2.8" IMX415 image sensor.

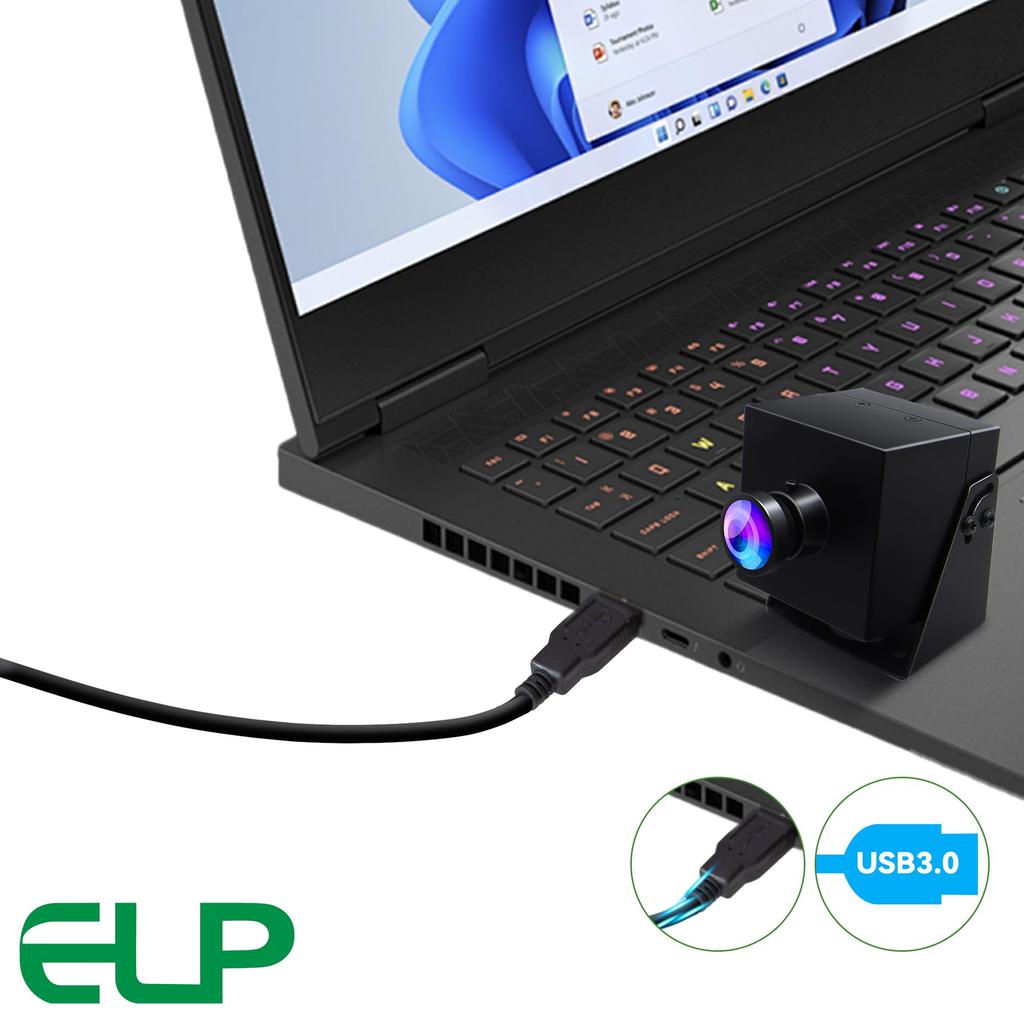

High-speed USB3.0 interface, more efficient data transfer.
It uses a low distortion lens with a wide angle of 120 degrees, and the HFOV is approximately 120 degrees.
H.264/MJPEG/YUY2 compression format options

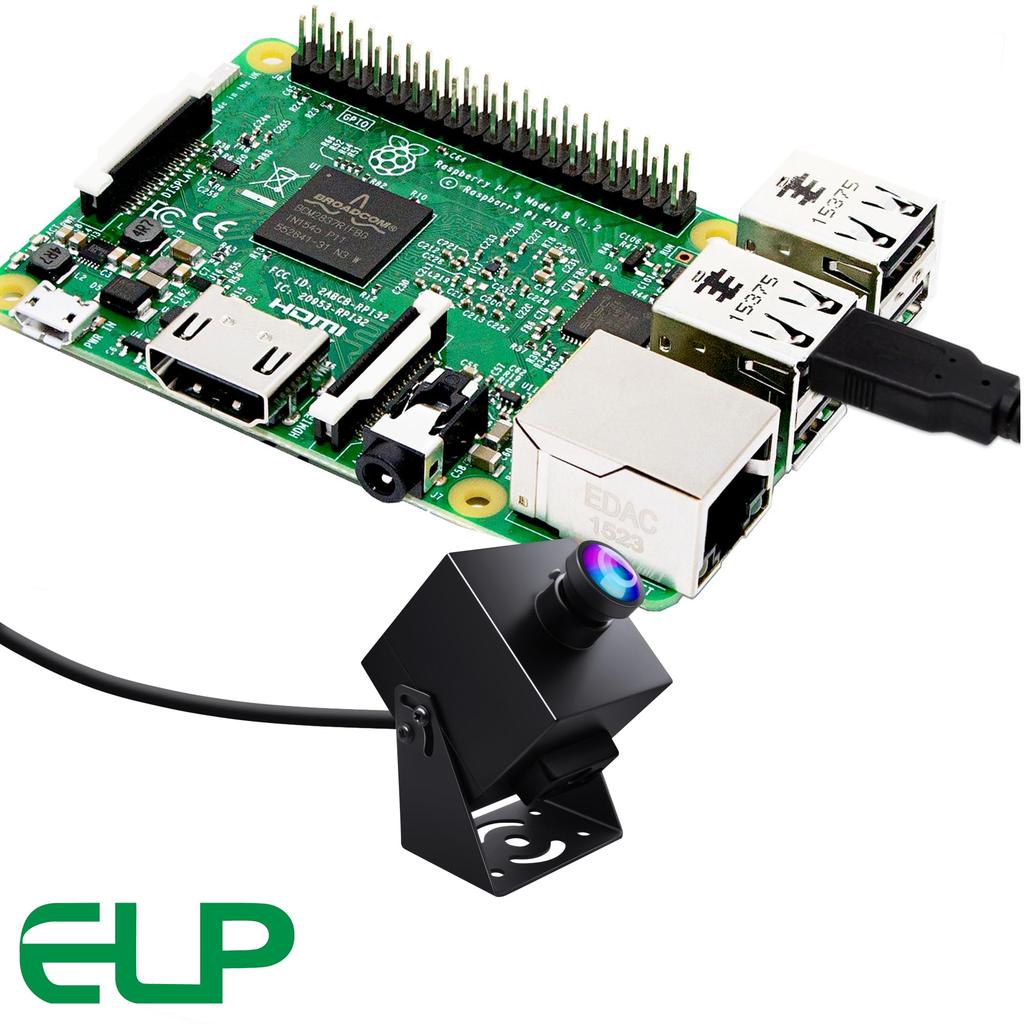

UVC camera for Windows, Linux, Mac, Raspberry Pi, Jetson Nano etc.

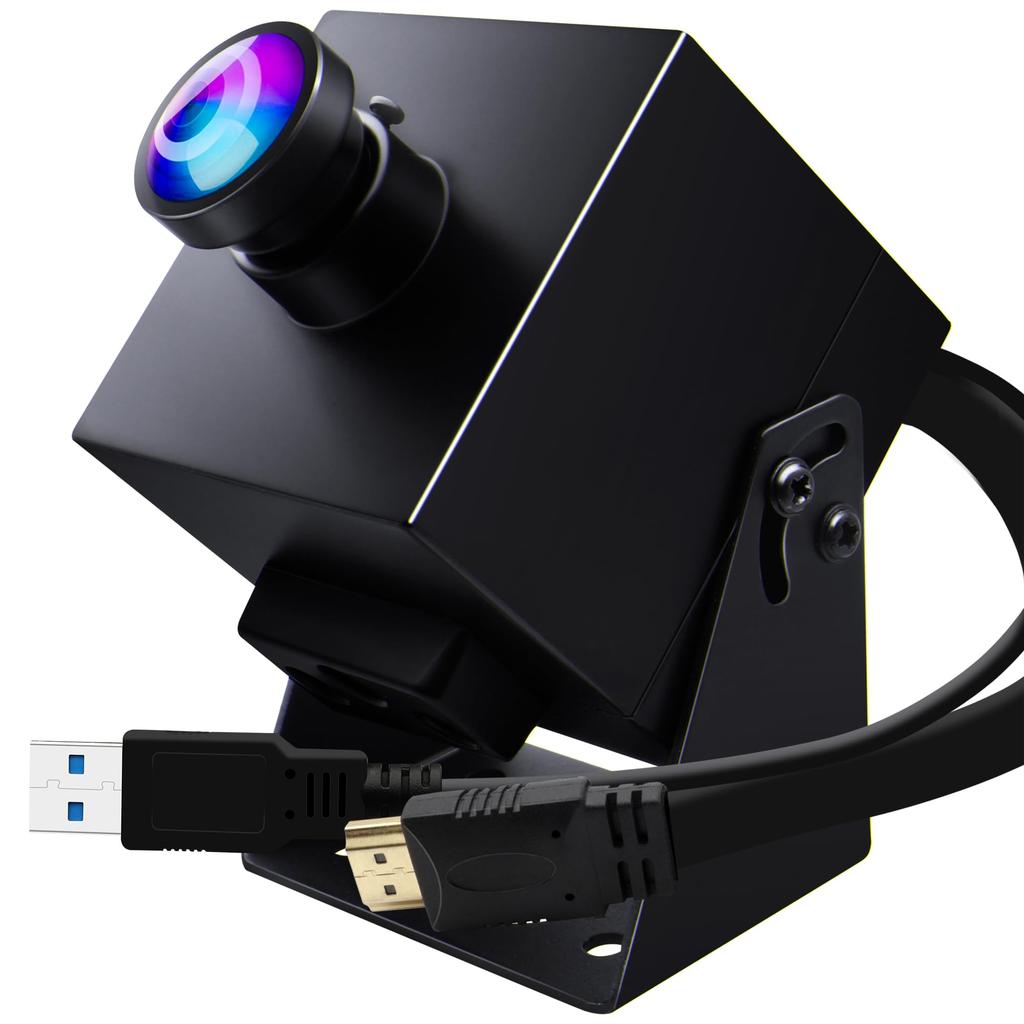

Equipped with two cables: 1PCS 1.5m cable for Type-C port, 1PCS 1.5m cable for HDMI port
Plug and play, UVC compatible, connect the camera to your PC, laptop, Android device or Raspberry Pi with the included USB cable without installing any additional drivers.
This mini light barn camera with a focal range of 10mm to infinity is designed for use in industrial environments, making it ideal for monitoring 3D printers, laser cutters, and routers. It's stable and can be used in environments where cheap webcams aren't suitable.
Sensor: 1/2.8" IMX415 Maximum resolution: 3840 (H) * 2160 (V)
Sensitivity: 0.65V/lux-sec@550nm Pixel Size: 1.45µm x 1.45µm Video Compression: MJPEG / YUY2 (YUYV) / H.264
Resolution and Frame Rate: 3840x2160 MJPEG 60fps/H.264 60fps/YUY2 15fps 2560x1440 MJPEG 60fps/H.264 60fps / 1920x1080 MJPEG 60fps/H.264 60fps/YUY2 60fps 1280x720 MJPEG 60fps/H.264 60fps/YUY2 60fps 640x480 MJPEG 60fps/H.264 60fps/YUY2 60fps Image Processing Time: Approximately 10 seconds after opening the preview software Center Definition: 1000LW/PH (Center)
S/N ratio: 30dB Minimum illumination: 0.2Lux
Shutter type: Electronic rolling shutter/frame exposure
Connection port type: USB 3.0 interface & HDMI v1.4 interface, AEC/AWB/AGC support
Adjustable parameters:
Brightness, contrast, bright bright bright bright brightness, bright bright brightness, contrast, bright bright bright brightness, bright bright brightness, bright bright brightness, contrast, bright bright brightness, bright bright
Lens parameters: 120 degree low-light lens Power supply and interface: USB Type-C power supply, Type-C and HDMI display simultaneously Working voltage: DC 5V Working current: 700-780mA
Storage temperature: -20°C to 80°C Working temperature: -10°C to 70°C USB cable: 1.5m cable with Type-C port HDMI cable: 1.5m cable with HDMI port
Operating System Requirements:
Win7/Win8/Win9/Win10/Win11 etc.
Linux on UVC
MAC-OSX10.4.8 or later Android5.x or later
