For measuring sensor output and analog output from equipment

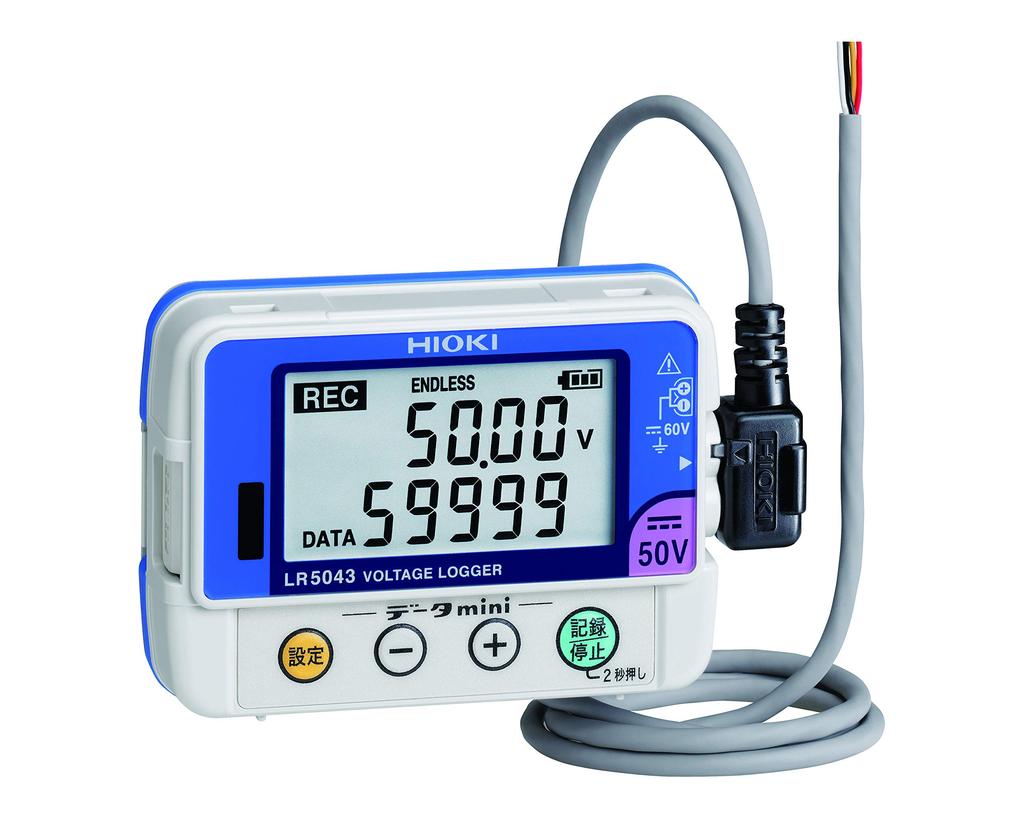

HIOKI Data Mini Voltage Logger LR5043 (DC ±50V)
● Compact, lightweight, pocket-sized logger that takes up minimal space
● Easy-to-read two-parameter display
● Data transfer to PC without stopping recording
● Battery replacement while recording (recording continues for approximately 30 seconds even after battery removal)
● Up to three times the recording capacity (60,000 data points per channel)
● New statistical recording mode captures every change without missing a beat
● Measurement data is not lost even if the battery runs out
● Rest assured even in the unlikely event of an operational error (previous recorded data is backed up)
*To collect data recorded with the LR5000s Data Mini and transfer it to a PC, an optional LR5091 or L Requires either the R5092 or R5092.
■Basic Specifications (1-Year Accuracy Guarantee)
[Measurement Item] DC Voltage 1 Channel
[Measurement Range] -50.00 to 50.00V
[Accuracy] ±0.5% rdg. ±5 dgt.
[Recording Capacity] Instantaneous Value Recording: 60,000 readings, Statistical Value Recording: 15,000 readings
[Recording Interval] 1-30 seconds, 1-60 minutes, 15 settings
[Recording Mode] Instantaneous Value Recording: Records instantaneous values at each recording interval.
_______Statistical Value Recording: Measures at 1-second intervals and records instantaneous, maximum, minimum, and average values at each recording interval.
[Recording Method] One-Time: Recording stops when memory is full.
______Endless: When memory is full. Deletes old data and overwrites it.
______ Starts via key operation or scheduled time.
______ Stops via key operation or scheduled time, or automatically stops when memory is full (one-time recording).
[Other Features] Preheat output function available (requires external power supply when using this function), always backs up the previous recorded data, backs up recorded data and settings even when the battery is low, and maintains recording operation and clock for approximately 30 seconds when replacing the battery.
[Dustproof/Waterproof] IP54 (EN60529) (with the connection cable connected, excluding the tip of the cable).
[Interface] Communication adapter or data collector. Data and infrared communication
Power: One AA alkaline battery (LR6); Battery life: Approximately 2 years (1-minute recording interval, display power-saving mode, instantaneous value recording, at 20°C), approximately 2 months (1-second recording interval, display power-saving mode off, instantaneous value recording, at 20°C)
Dimensions/Weight: 79W x 57H x 28D mm, 105g
Accessories: One AA alkaline battery (LR6, built-in), one LR9802 connection cable, one instruction manual, one operation guide, one stand
Note: Either the LR5091 or LR5092 is required to collect data recorded by the LR5000s Data Logger and transfer it to a computer.
