Descriptions:
The
biggest advantage of this product is that the components adopt SMT
patch technology, built in insurance ,anti
reverse connection
,
is a multi purpose converter. The MOS
tube and the rectifier tube adopt the new original installation to
ensure the safety and stability of the converter. The shell uses new
aviation aluminum to heat the heat quickly. Decreasing PCB board area,
circuit board wiring is more reasonable, system work
steadily
.
Features:
This converter adapter features high inverter frequency, fast response, small size, light weight, low energy consumption.
High efficiency, energy saving energy,
with a strong adaptability, such as
low temperature, high
temperature, humidity, corrosion, dust, vibration, etc. environment.
Work
steadily
and with wide voltage.
The heat dissipation is faster and the load capacity is stronger.
With reverse
connection
, overflows and short circuit protection, safe and reliable.
The range of anti voltage fluctuation is wide, the ability is strong, the control precision is high.
The modular design of
circuit structure
are convenient for
fast
installation.
Specifications:
Input voltage: DC36V 72V
Output voltage: DC12V
Output current: less than 15A
Output power: less than 150W, Maximum output power 180W, continuous output power 140 W
Output voltage waveform: square wave
Inverter efficiency: 90 (percent )
Voltage adjustment rate: 0.5 (percent )
Load adjustment rate: 1 (percent )

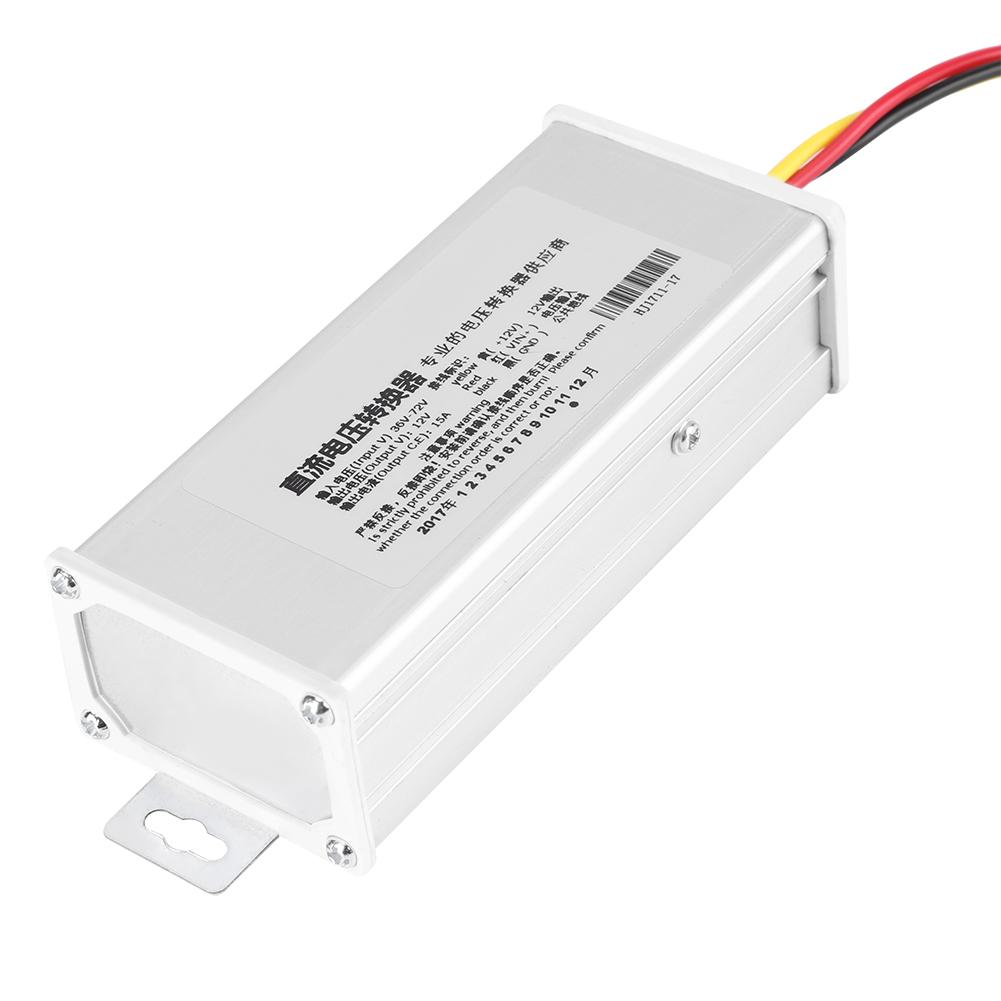

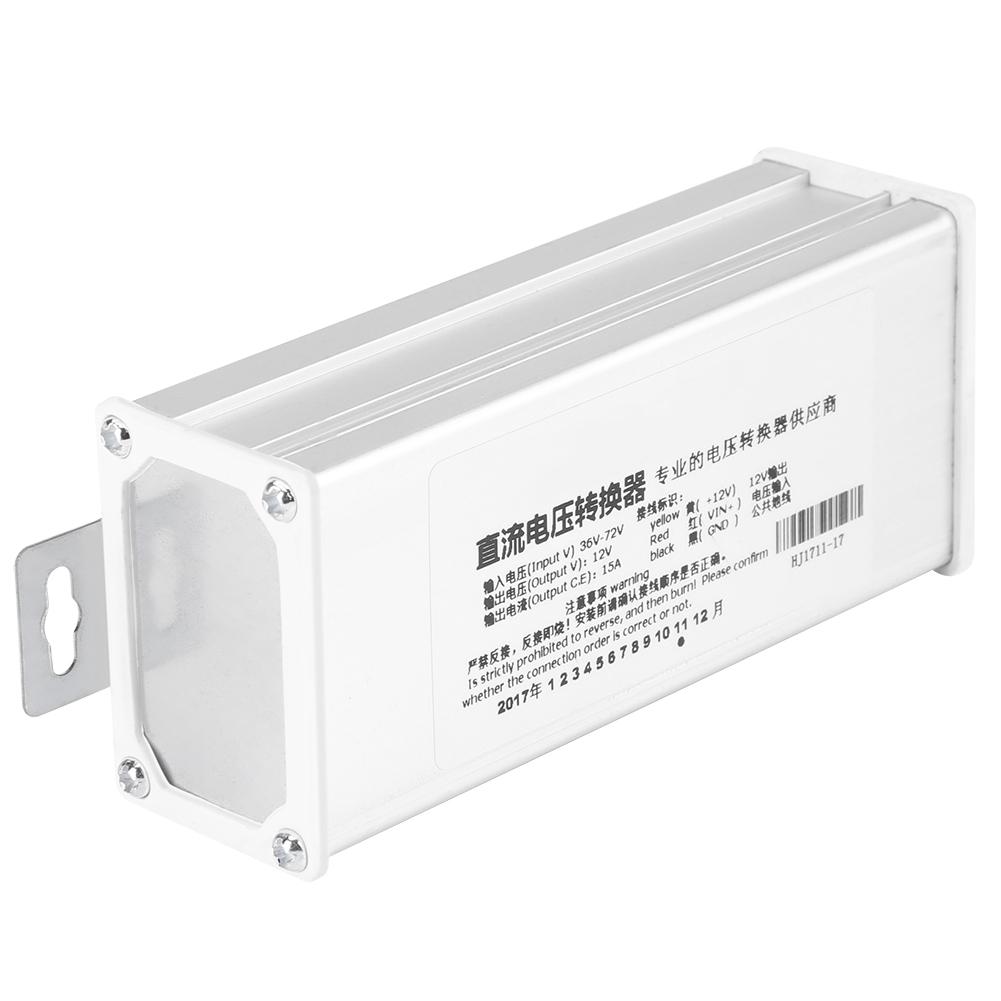

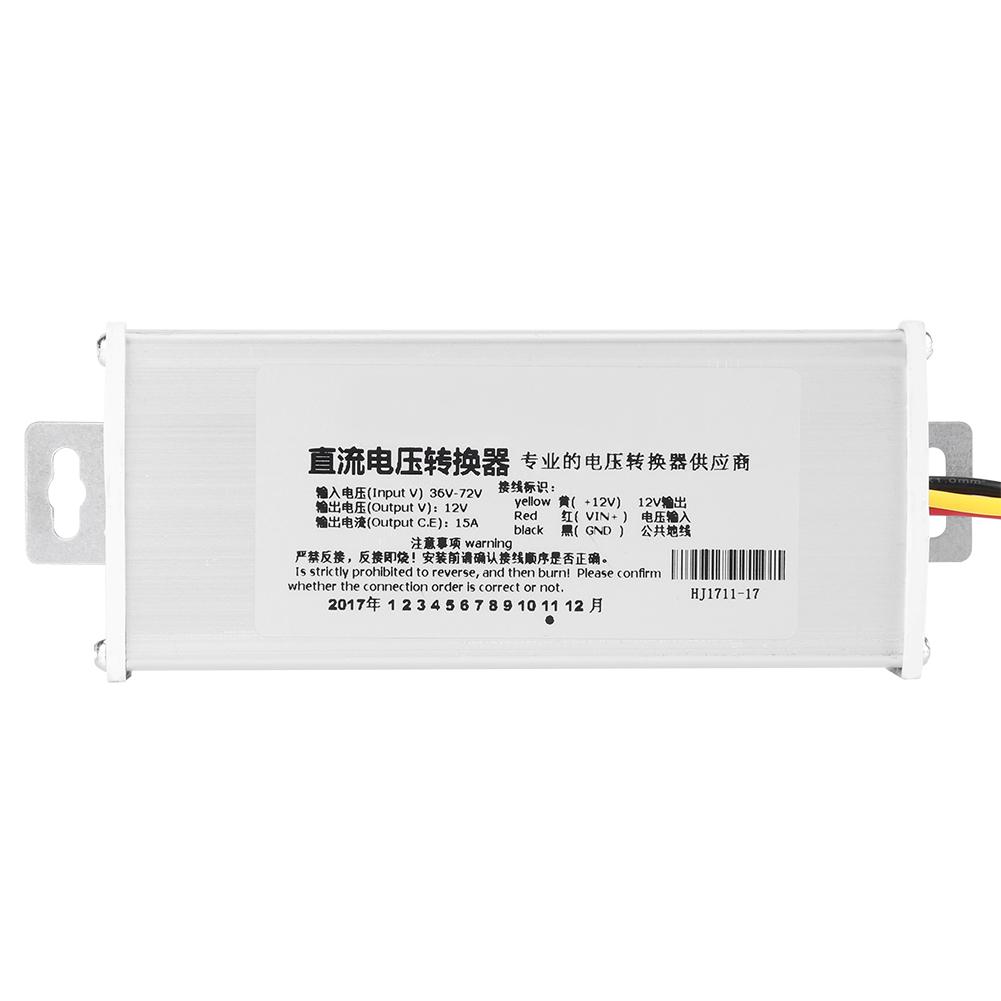

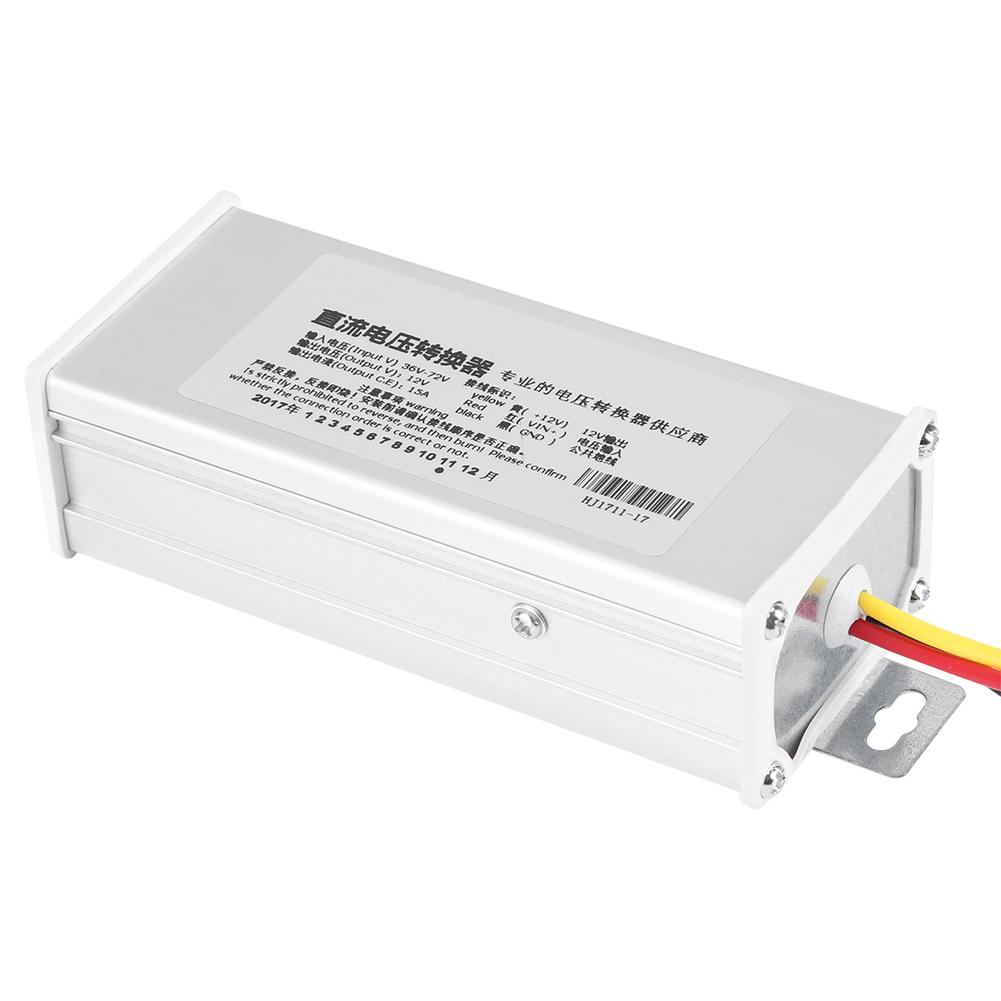

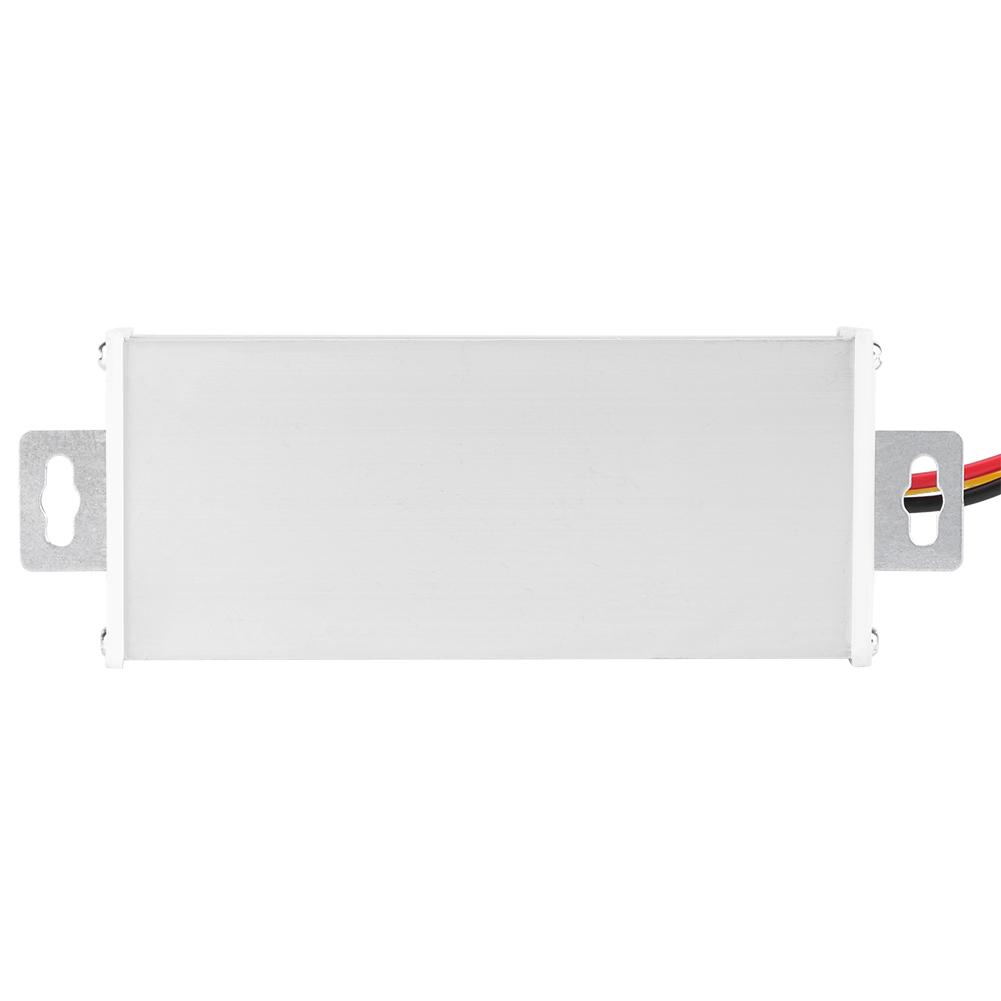

Product size: as the picture
Application: Electric Scooter, horn, LED, hernia lamp, instrument panel, etc
Weight:135g
Package Included:
1 x
Electric Scooter
Converter Adapter
Note:
This converter adapter is suitable for
Electric Vehicle
with 2 3 wheels, not suitable for
electric
car with 4 wheels.
