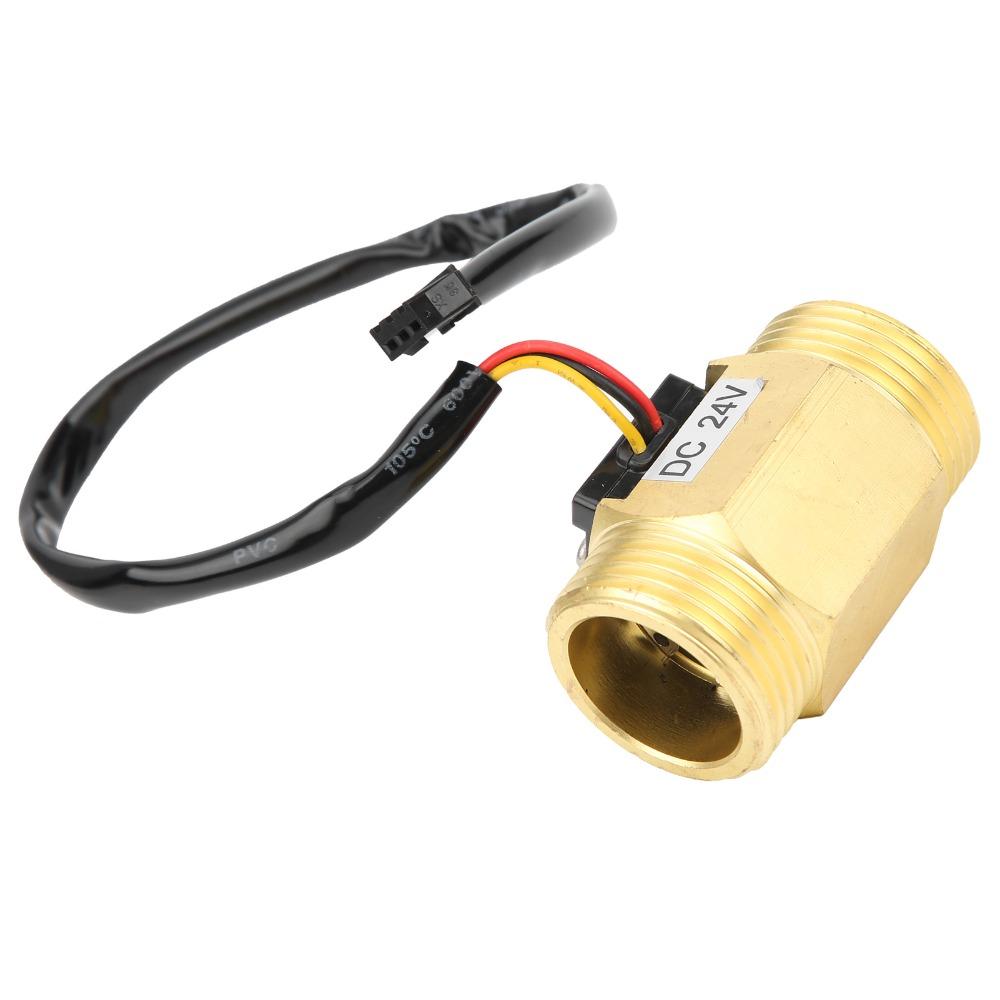

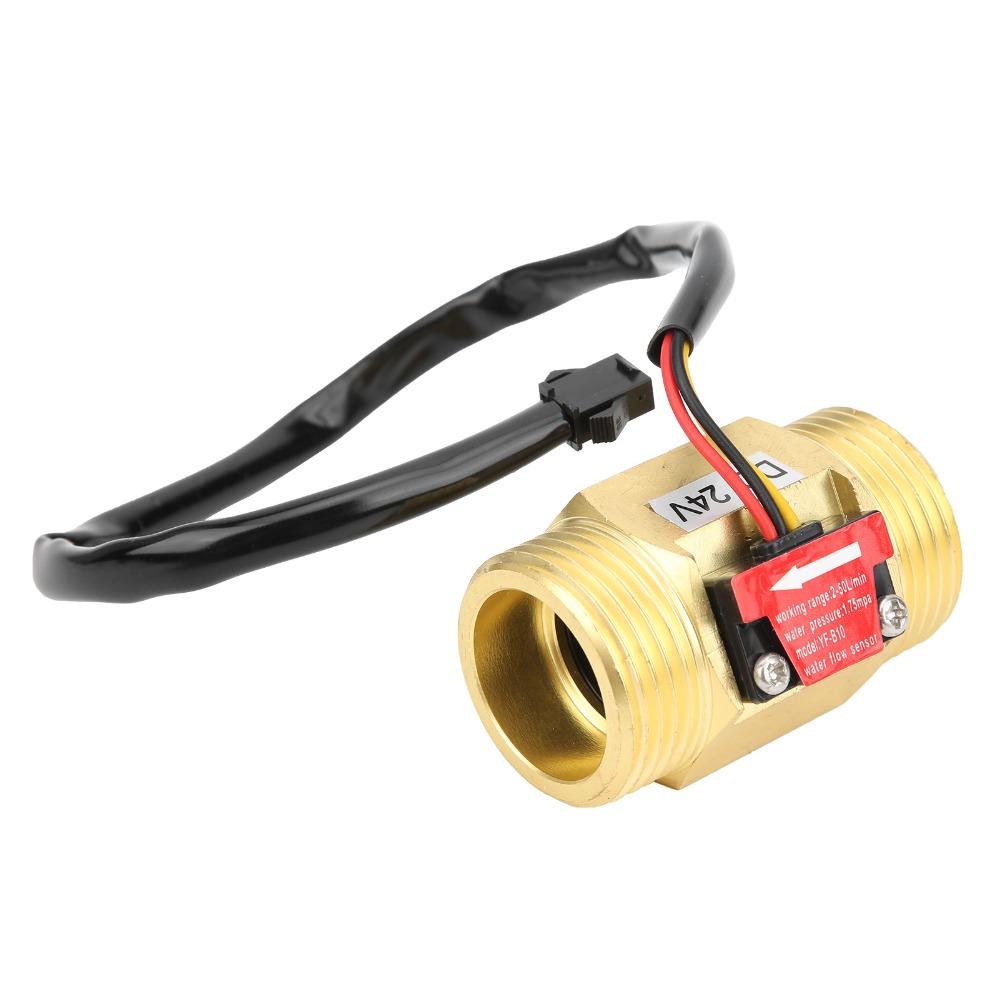

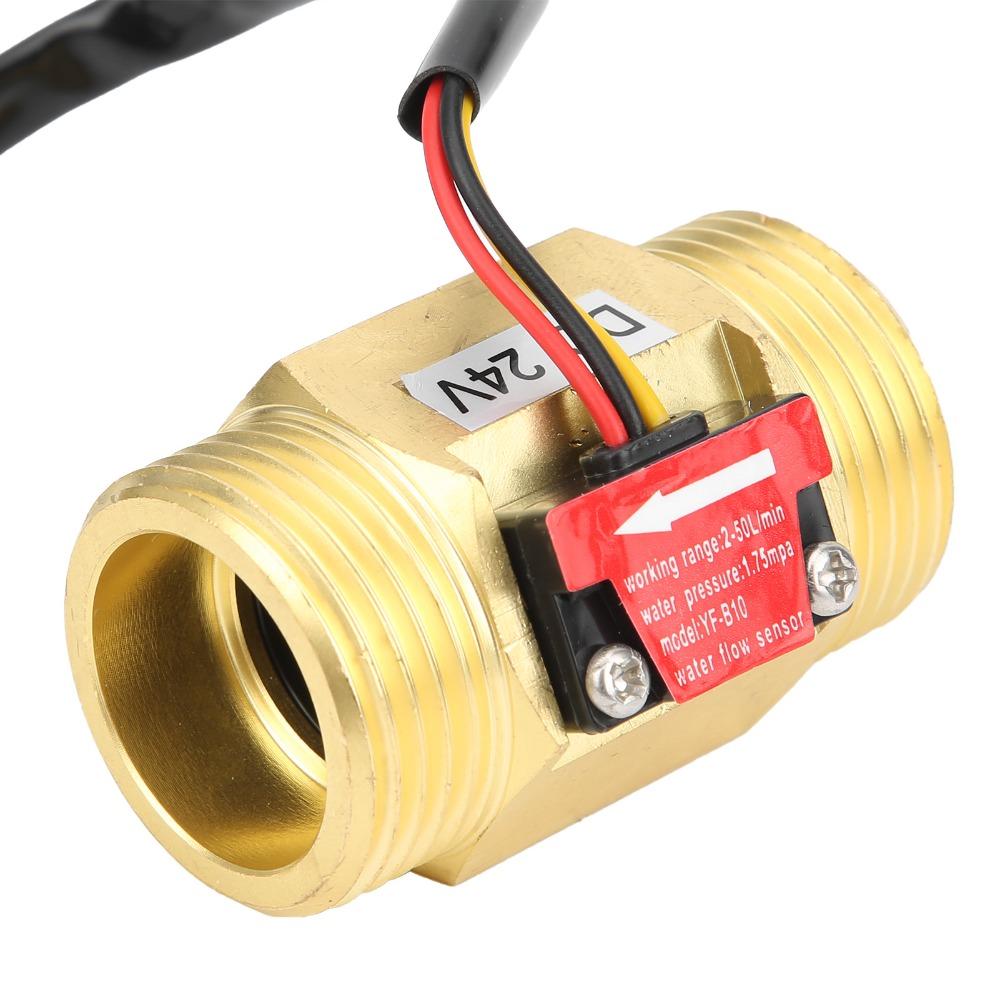

DC24V Hall Flowmeter G1in Water Flow Sensor Flow Switch Turbine Flowmeter Water Flow Monitoring

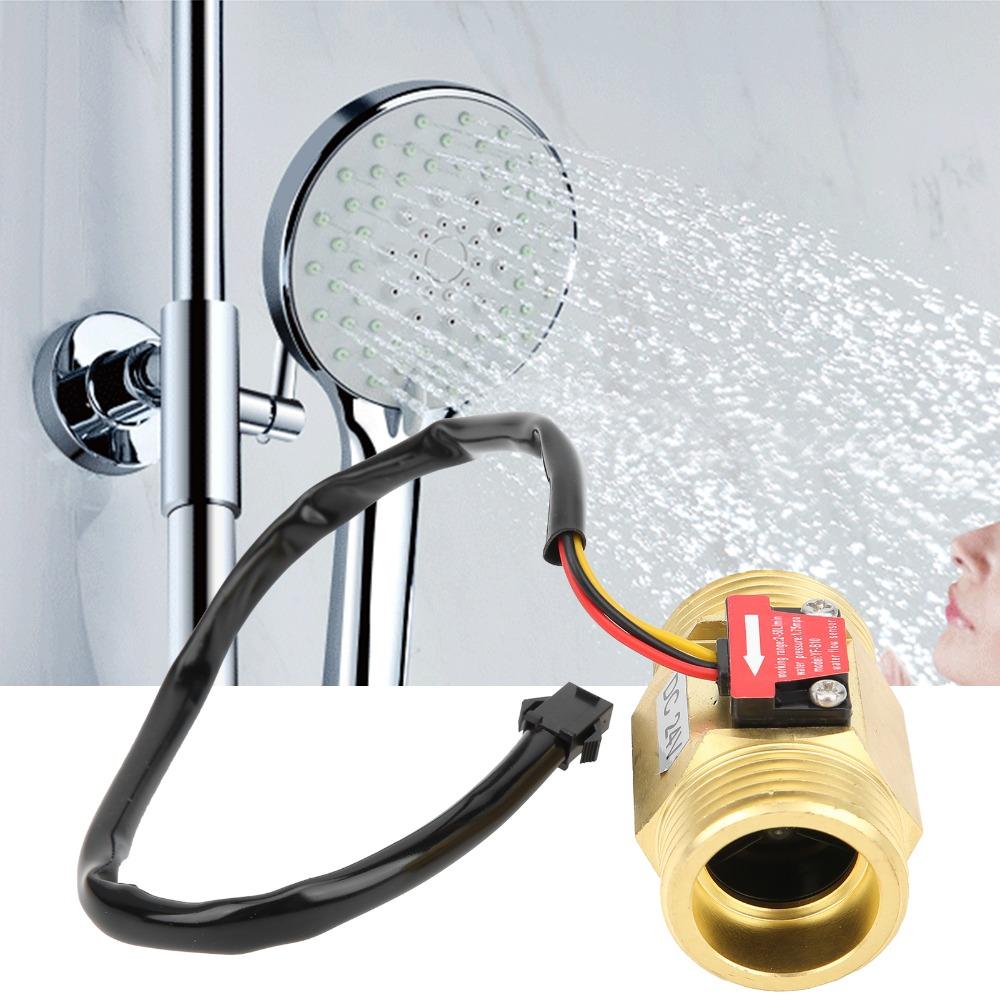

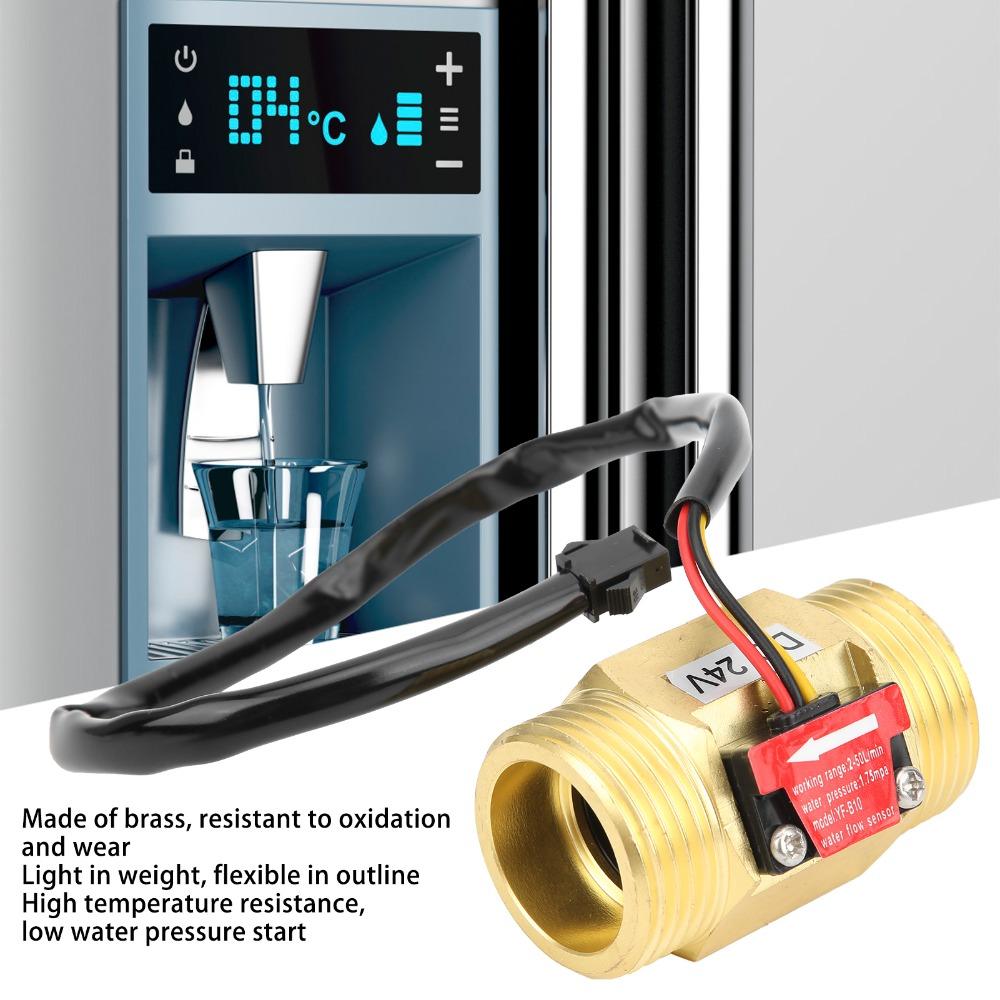

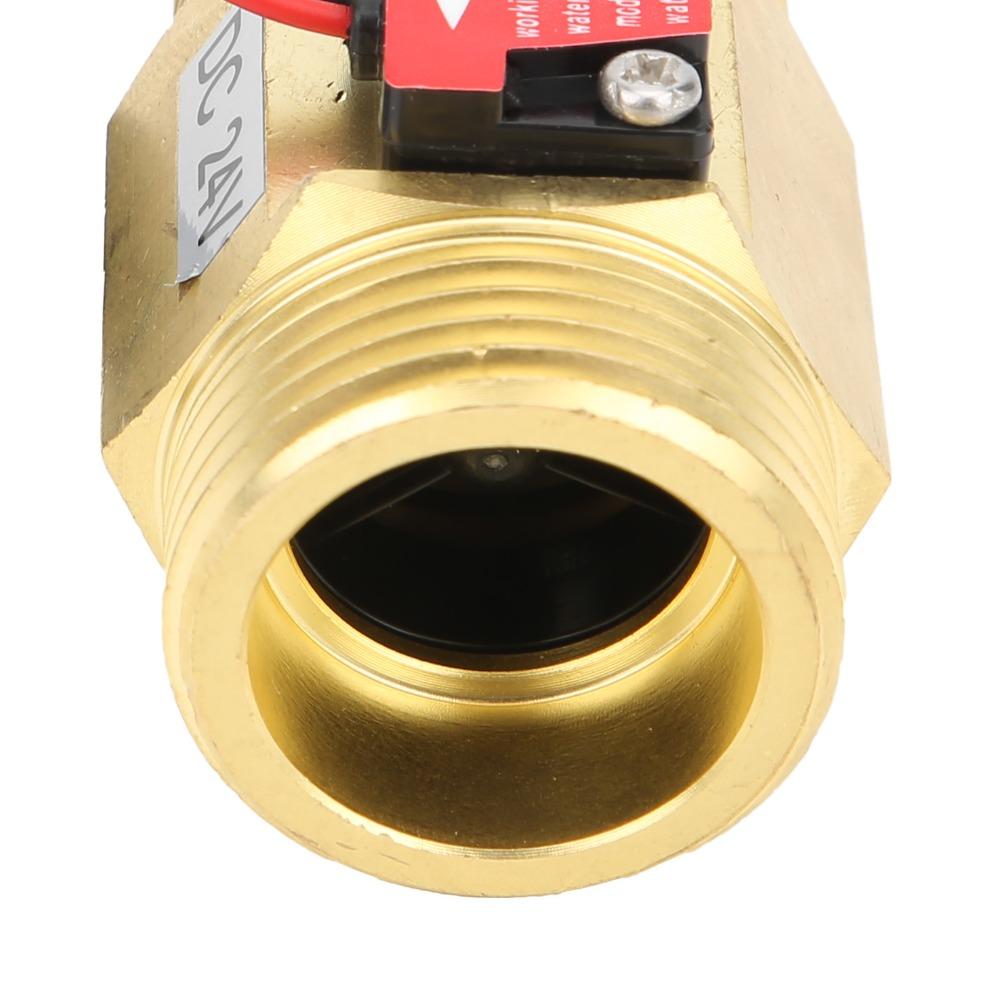

Label:Yes The water flow sensor is stable, withstands high temperatures, and can be started at low water pressure. The water flow sensor is light in weight, flexible in outline, small in size, and easy to install and store. This hall Flowmeter can be used for water heaters, credit card machines, water vending machines, flow measurement equipment, etc. With G1in male thread, the water flow sensor can be installed well on your water pipe to measure the fluid flow in the pipe. The sensor switch is made of brass, which has the characteristics of oxidation resistance and wear resistance, and has a long service life.

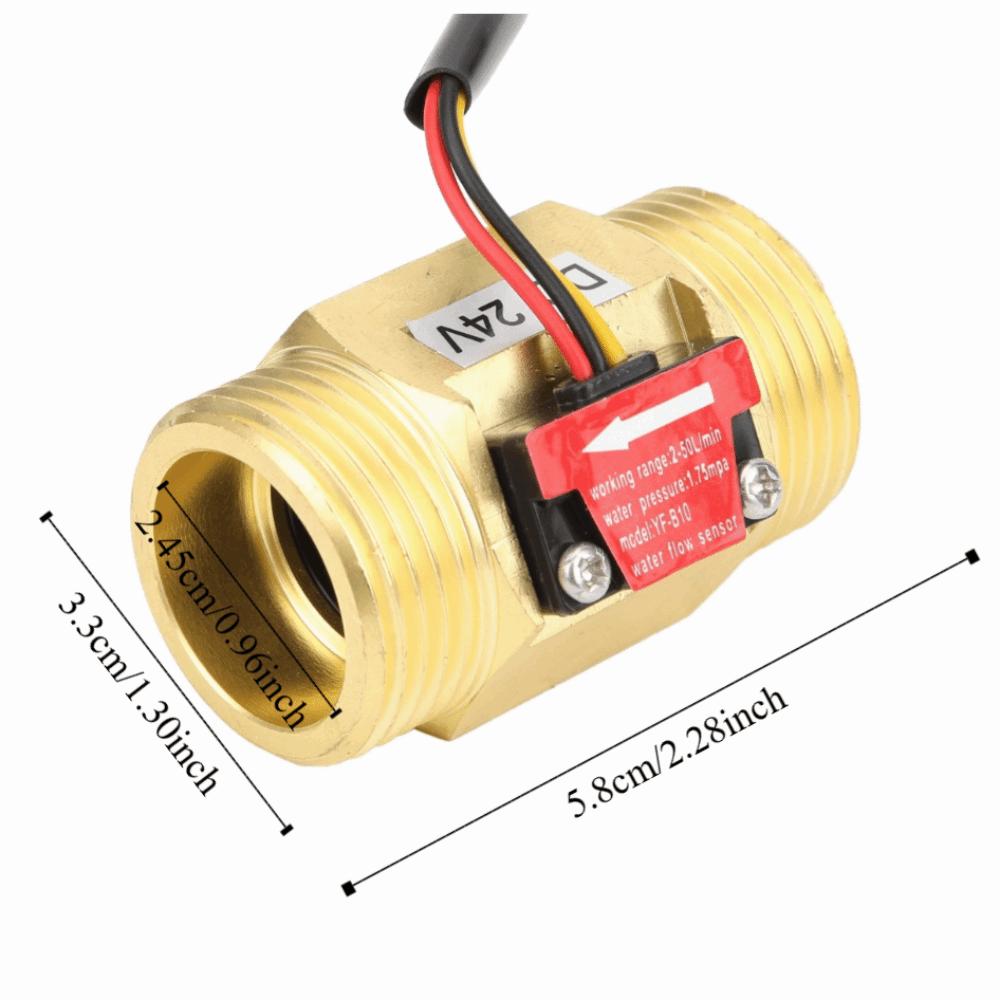

Specification Item Type: Hall Flowmeter Material: Brass Model: YF-B10 Color:As picture shown Measuring Range: 2-6000 (m³/h) Rated Voltage: DC24V Voltage Range: 3.5-24VDC Thread: G1in Male Thread Water Pressure Resistance: ≤1.75MPa Insulation Resistance: >100M Ohm Accuracy: 2~50L/MIN Flow Pulse Characteristic: F=(8 x Q-4)+5%, F is the frequency, Q is L/Min Output Pulse Duty Cycle: 50%±10% Inner Diameter: 24.5mm(0.96in) Outer Diameter: 33mm(1.30in) Thread Length: 13mm(0.51in) Length: 58mm(2.28in)

Package List 1 x Hall Flowmeter
