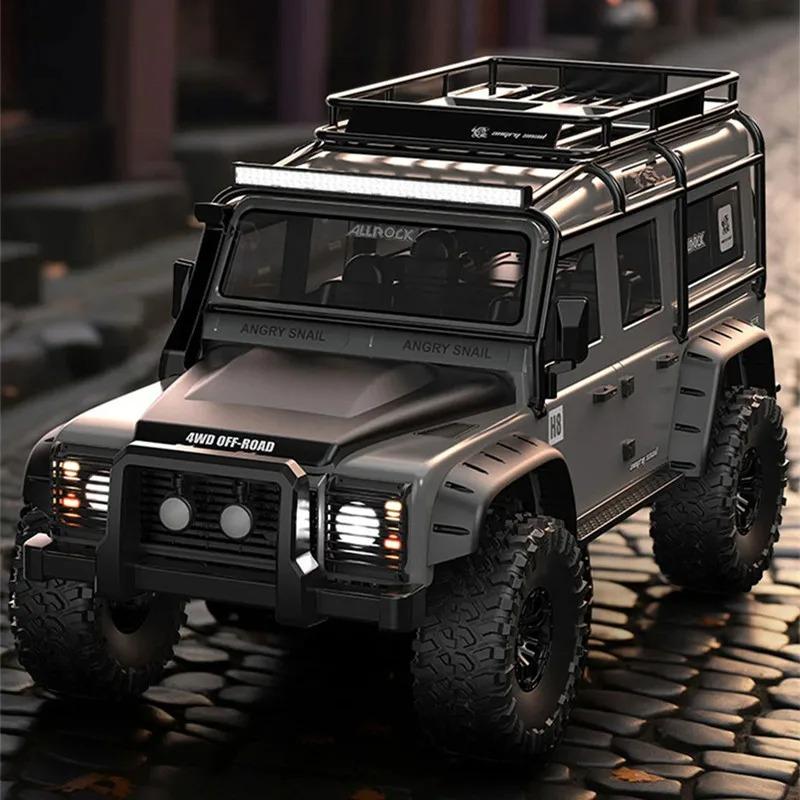

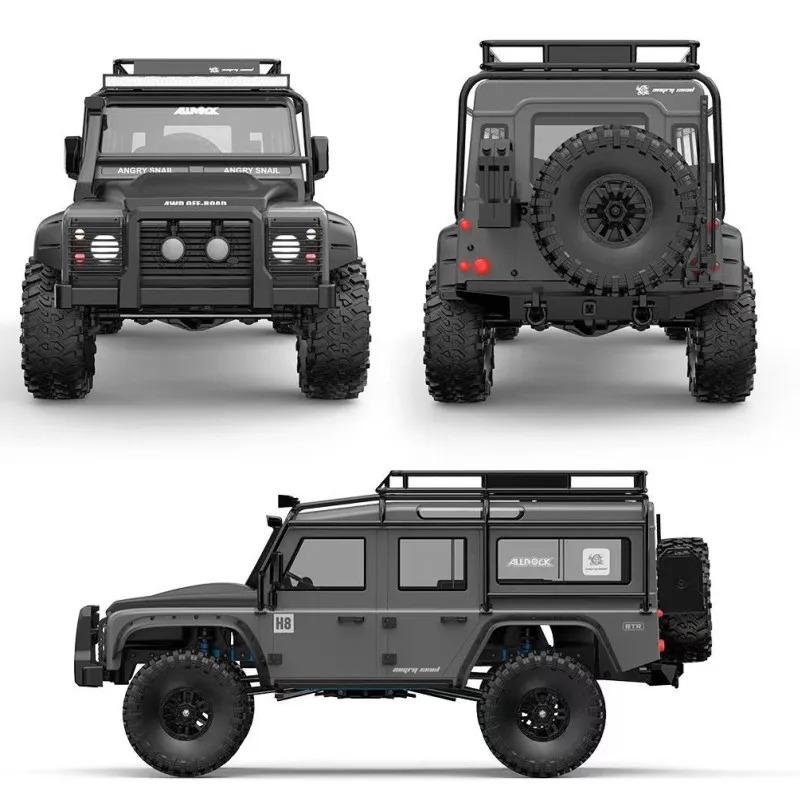

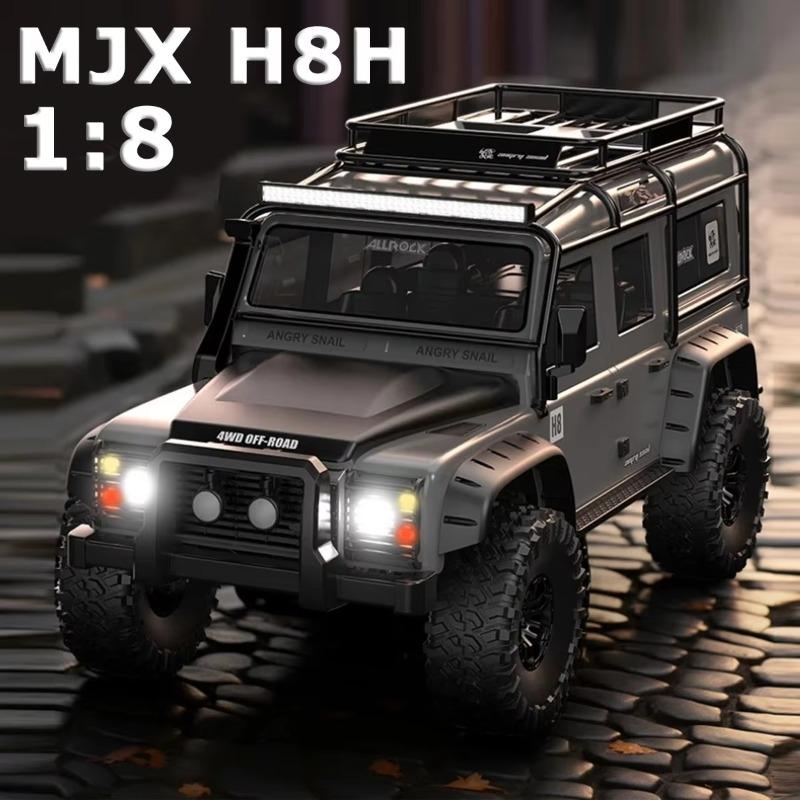

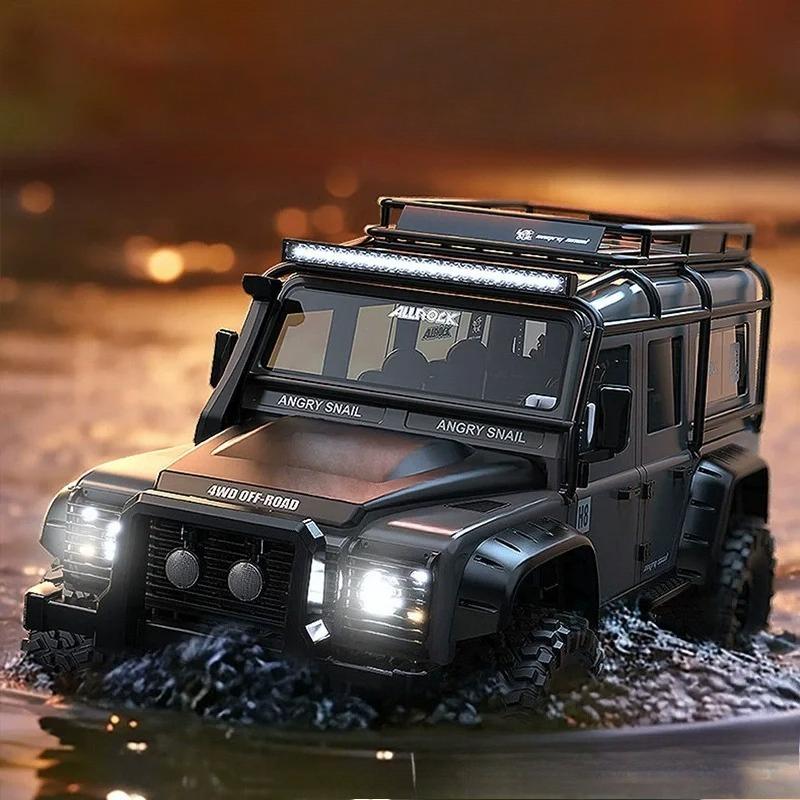

MJX West Allrock H8h 1:8 Full Scale Climbing Vehicle Rc Professional Remote Control Vehicle 4WD Brushless Off Road Vehicle Toys

Basic parameters Product model H8H Case color blue/yellow/dark gray/pink Ratio 1/8 Maximum speed (slow gear) 2s: 8 km/h 3s: 18.5km/h Maximum speed (fast gear) 2S: 13 km/h 3S: 29 km/h Remote control distance ≥120 meters

Dimensions and specifications Product size (mm) 680×298×325 Wheelbase (MM) 373 Orbit (MM) 240 Tire diameter (MM) 132mm (2.2 inches) The vehicle weighs 5.4 kg

Configuration Motor specification 3970 1500kV induction brushless motor ESC 80A foc brushless ESC Servo specification 35 kg steering servo Receive and transmit frequency 2.4GHz Remote Control 8CH Remote control battery 3*AA (excluding) Battery specifications are not included, and a battery and charger need to be purchased separately

Climbing function configuration Door bridge, including Gear 2-speed gear ratio, remote control 17G servo switch Differential front/rear differential Differential lock front/rear differential lock, remote control 17G servo switch Reverse gearbox Transmission interrupt number Two-wheel drive/four-wheel drive switch No Winch optional Shell fixing method manual screw + magnetic suction force of front flip cover Link mechanism 4-Link + rear tile link Servo position on the bridge

Product structure configuration 1. Front and rear axle differential lock, front and rear door axle structure 2. Aluminum hydraulic shock absorber 3. Two-speed mechanical transmission 4. Powder metallurgical gears of the entire vehicle (differential, front and rear axles, door shafts, transmission gearbox) 5. Steel drive shaft of the entire vehicle, steel connecting rod of the entire vehicle 6. CNC integrated aluminum alloy beam

Electronic configuration 1. Bluetooth application parameter adjustment - Focus sensor 80A brushless ESC (torque compensation function) 2. 3970 Magnetic Encoding Focus Sensor Brushless Motor 3.8 channel remote control and receiver (remote control distance 120 meters) 4. Simulated headlight set (10 models, 120 LED light beads, the whole car) 5.35kg stainless steel gear steering servo 6. Compatible with 2s-3s batteries
