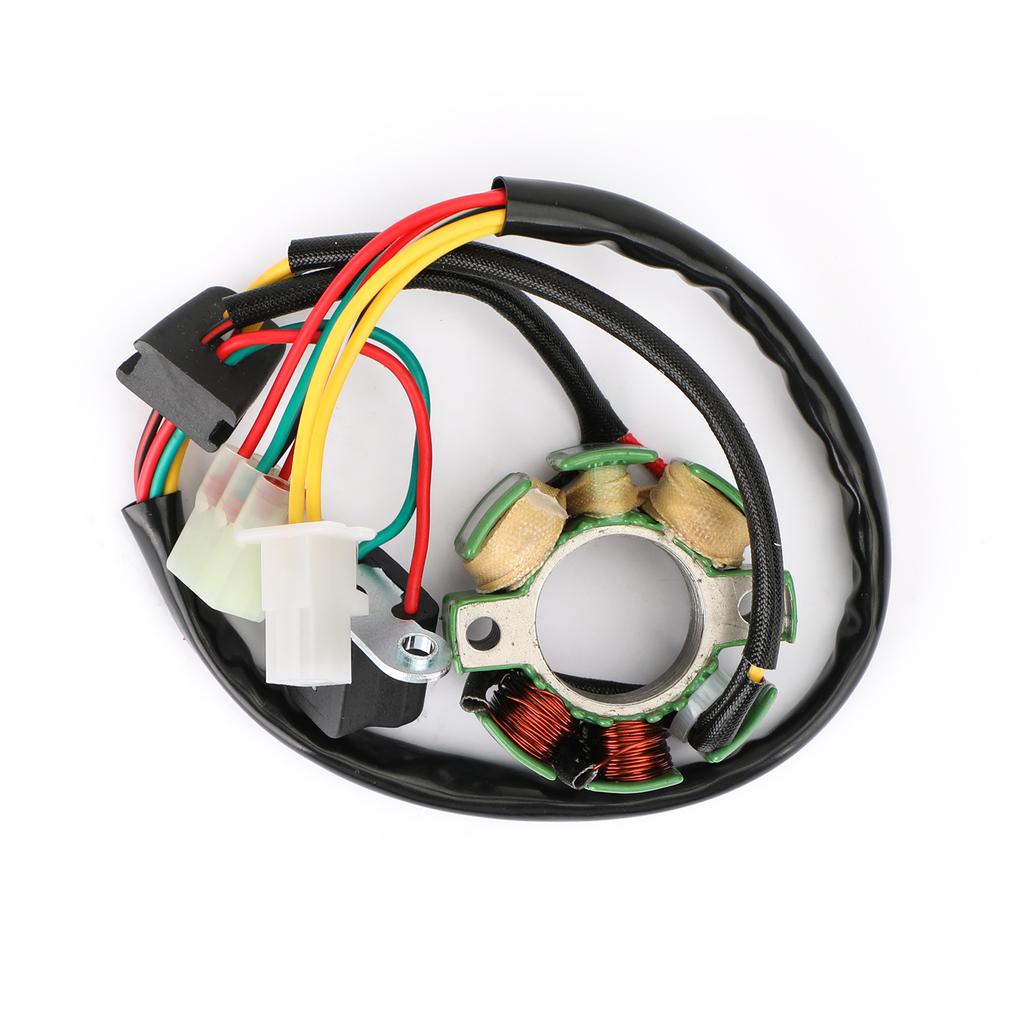

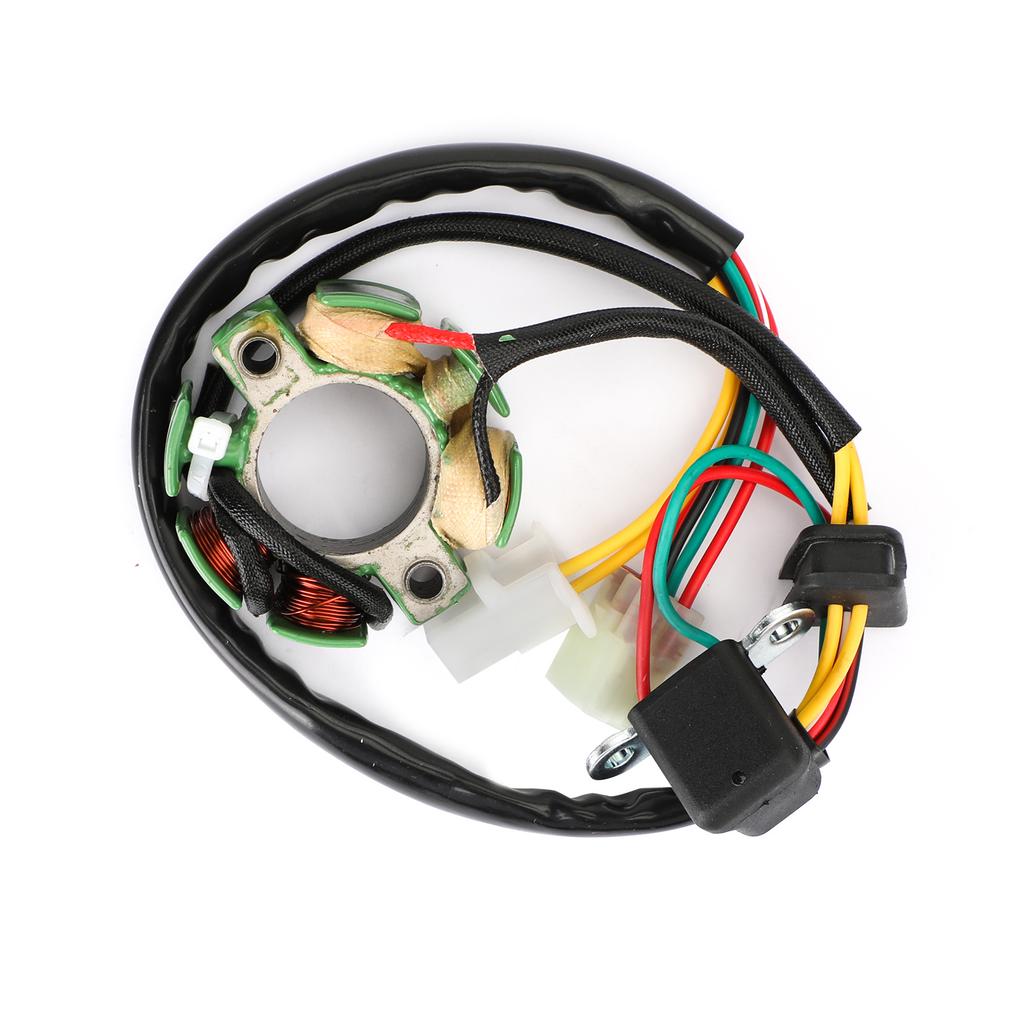

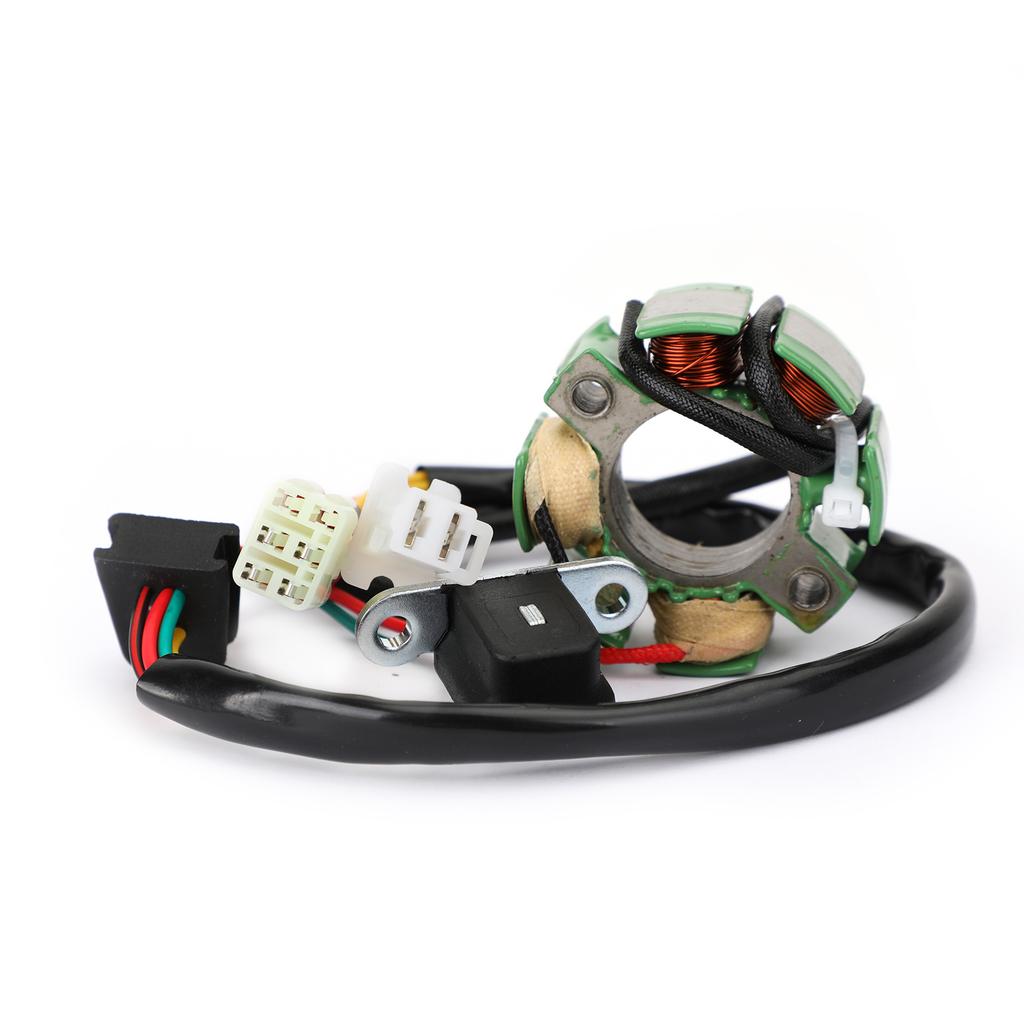

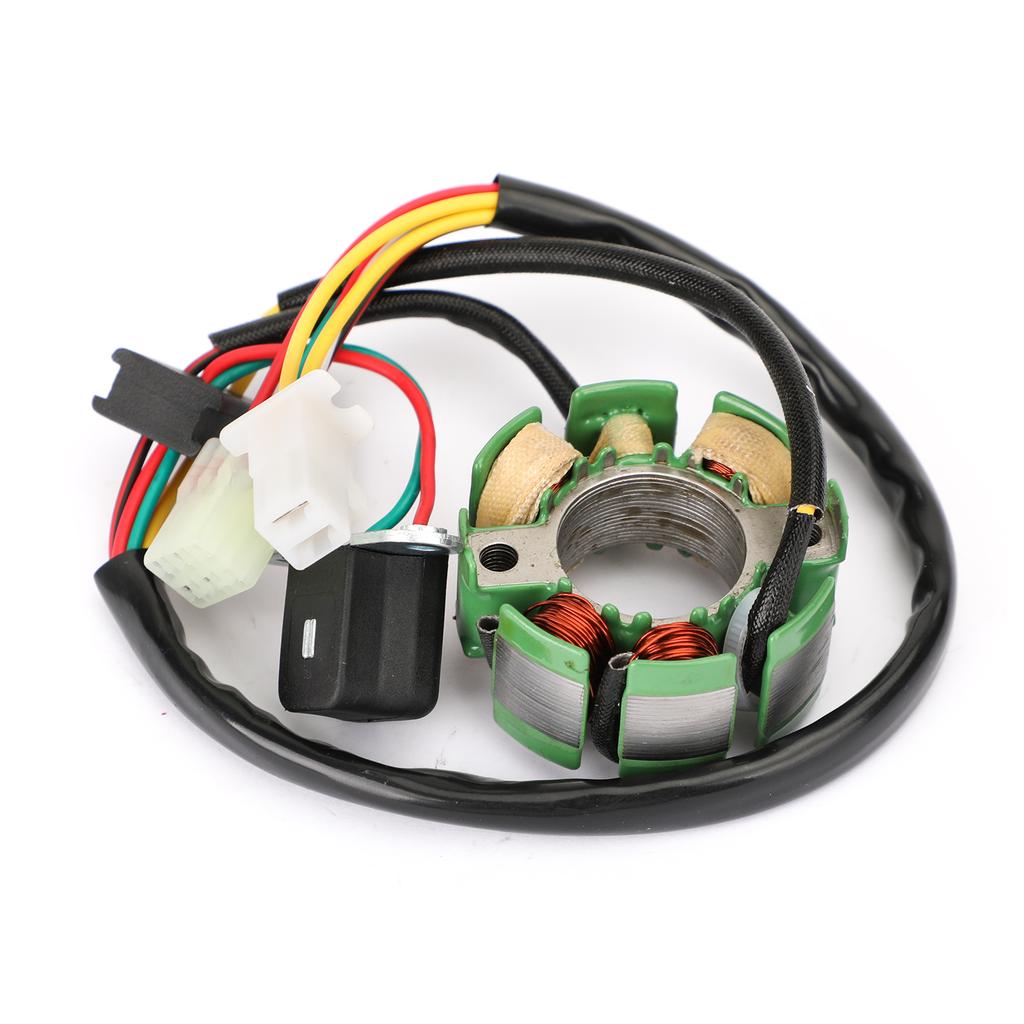

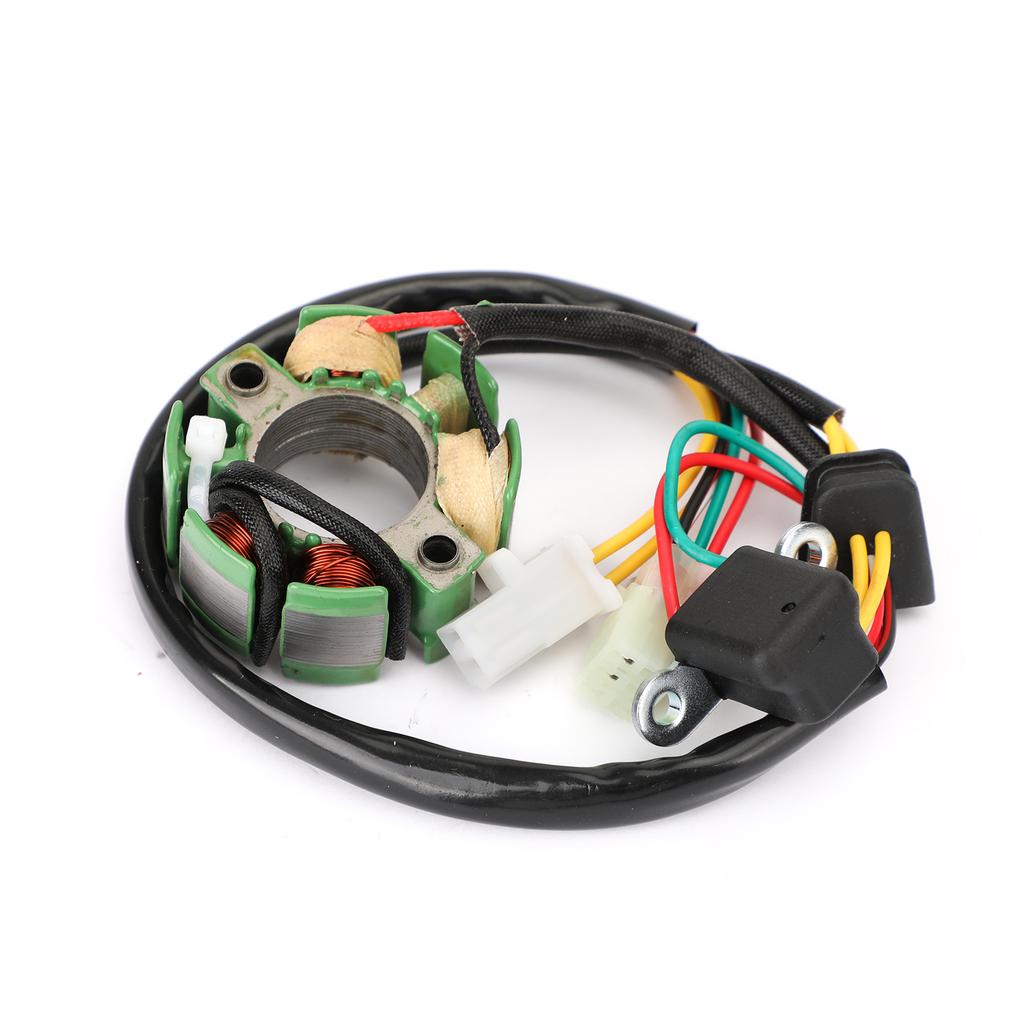

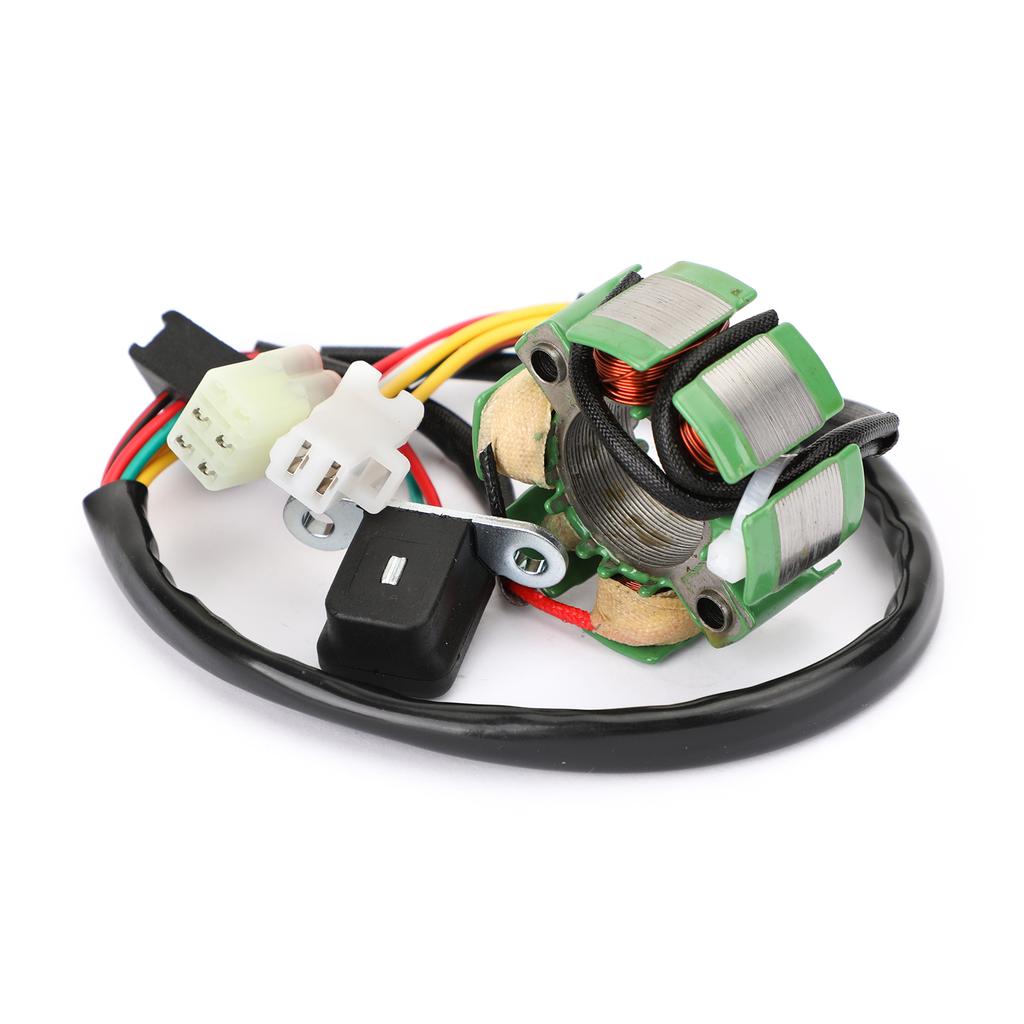

6-Pole Magneto Generator Stator Fit for Husqvarna TC TE SMR TXC 250 450 510 2005-2008
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil
other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 2 + 4
Number of fixation holes: 2
Number of poles: 6
Please compare the number of pins and plugs with the old part before purchasing.
Dimensions:
Interior diameter: 28 mm
Exterior diameter: 58 mm
Pole's Thickness : 27.4mm
Pole's Width : 17mm
(Please compare the size with the old part before purchasing.)
Replacement Part Number:
8000A1430
8000A4266
(Use the part number to verify fitment to your application. )
Fits Make/Model/Year:
8000A1430
Fit for Husqvarna TE250 2003
Fit for Husqvarna TE250 USA 2003
Fit for Husqvarna TE450 2003
Fit for Husqvarna TE450 USA 2003
Fit for Husqvarna TC250 2003
Fit for Husqvarna TC450 2003
Fit for Husqvarna SMR450 2003
8000A4266
Fit for Husqvarna SM400R 2006-2007
Fit for Husqvarna SM400R JAP 2005
Fit for Husqvarna SM450R 2005-2007
Fit for Husqvarna SM450R USA 2005/2007
Fit for Husqvarna SM510R 2005-2007
Fit for Husqvarna SM510R USA 2005/2007
Fit for Husqvarna SMR450 2008
Fit for Husqvarna SMR510 2008
Fit for Husqvarna TC250 2005-2008/2010
Fit for Husqvarna TC450 2005-2008
Fit for Husqvarna TC510 2005-2008
Fit for Husqvarna TE250 2005-2008
Fit for Husqvarna TE250 USA 2005/2007-2008
Fit for Husqvarna TE450 2005-2008
Fit for Husqvarna TE450 USA 2005/2007-2008
Fit for Husqvarna TE510 2005-2008
Fit for Husqvarna TE510 USA 2005/2007-2008
Fit for Husqvarna TXC250 USA 2008
Fit for Husqvarna TXC450 USA 2008
Fit for Husqvarna TXC510 USA 2008
The series models may have mutli versions, please check and compare with your original stator to make sure this is what you want.
Please check and see if your stator pole's number as same as our and your connectors and harness looks like the one in the photo before purchasing.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 6-Pole Stator Generator 58mm
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
