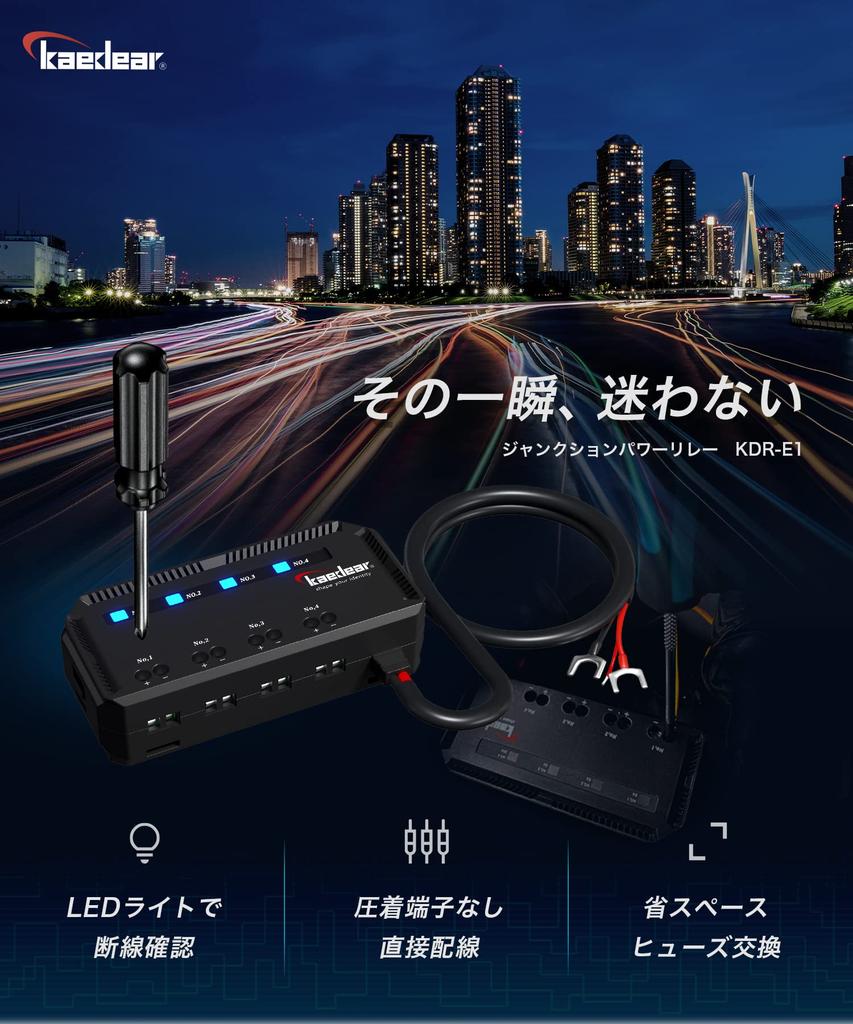

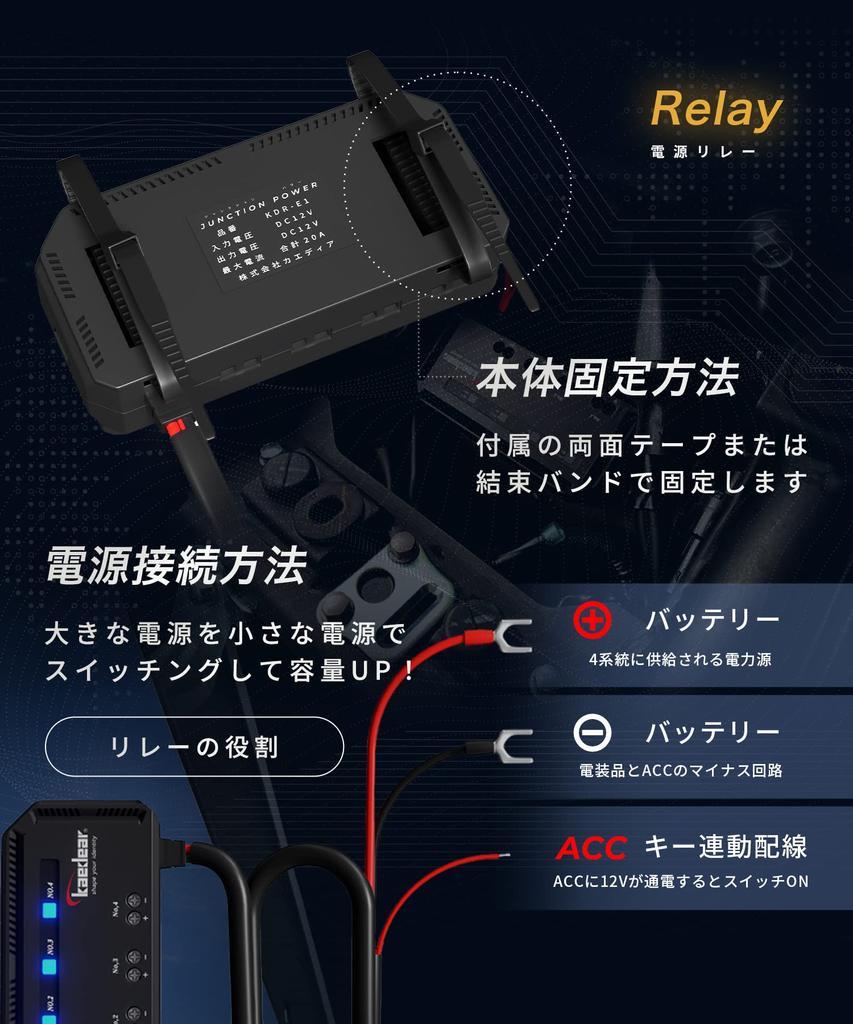

[Junction Power Relay Applications] The more electrical appliances such as QI USB smartphone holders, drive recorders, and USB power supplies, the total power consumption increases, and the current increases increases. Assuming a as a dam, the wiring has a characteristic like a pipe. The power ( pressure of the dam) is required to supply electric current ( flow) without reducing the voltage ( pressure) to each system. In addition, the distance of the wiring ( pipe) from the (dam) be shortened as much as possible to improve the supply efficiency. By introducing a distribution type relay, the small capacity ACC accessories power supply such as the power removal kit be used to switch a large capacity power supply electronically and supply a total of 20 A to 4 stations with a maximum of 4 stations

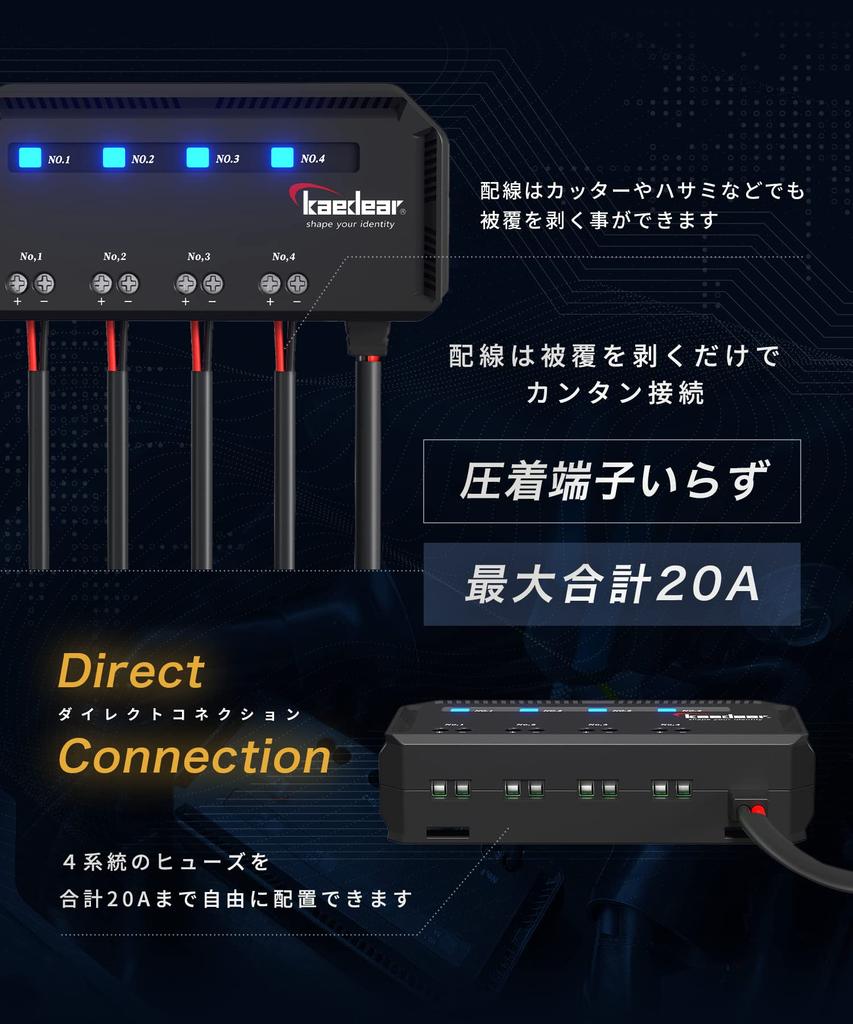

(Direct Connection) Each of the four output terminals output to each electrical unit are constructed to allow you to connect wires directly, so you connect them without worrying about the type of crimp terminals such as jibboshi. Simply loosen the positive screws beforehand and insert the copper wire part of the wire that has been peeled off and tighten the wire. Once installed, no electrical pliers or crimping terminals are required

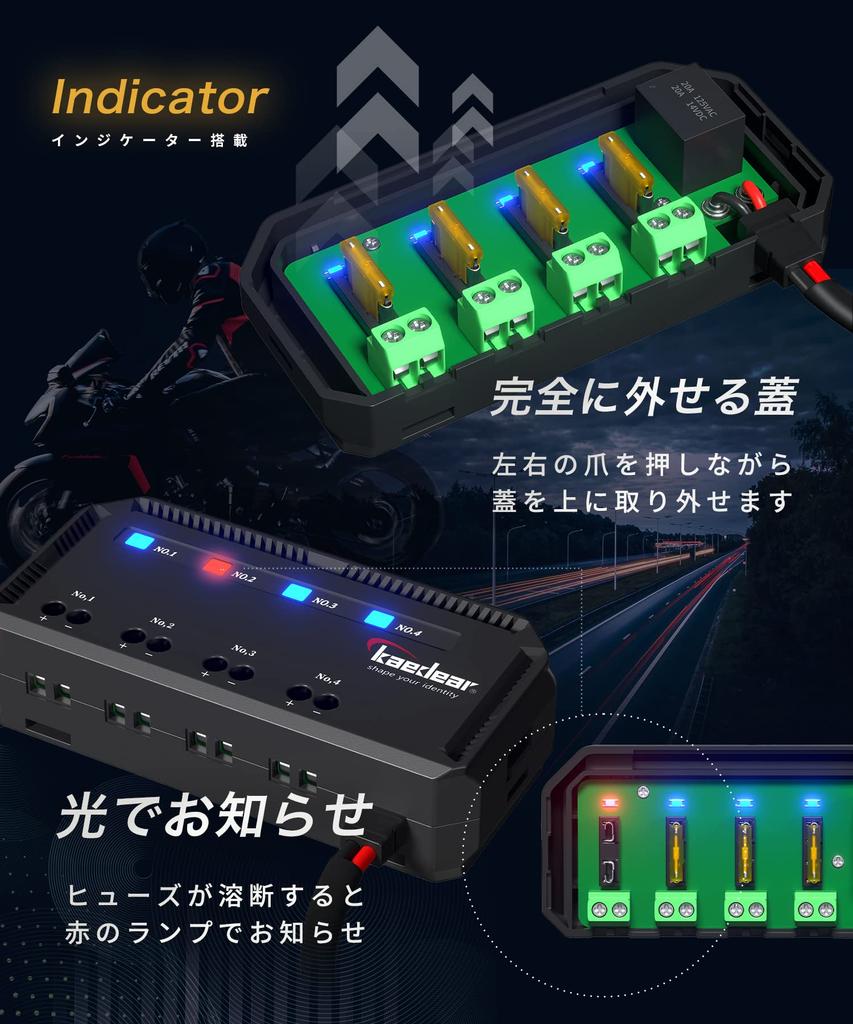

Fuse Indicator: Fuse is the first thing you about when appliances stop working. Motorcycles with little space may not have enough work space for placement, and there are situations where it is difficult to check the condition of the fuse. The fuse indicator allows you to check the flow of the fuse with the lamp. Blue indicates the fuse is going on and red indicates the fuse disconnection. The fuse is a mechanism where short circuit (short circuit) or overcurrent dissolves when the large current occurs, preventing the from being damaged by high current and burning the wiring to protect vehicles and other electrical systems

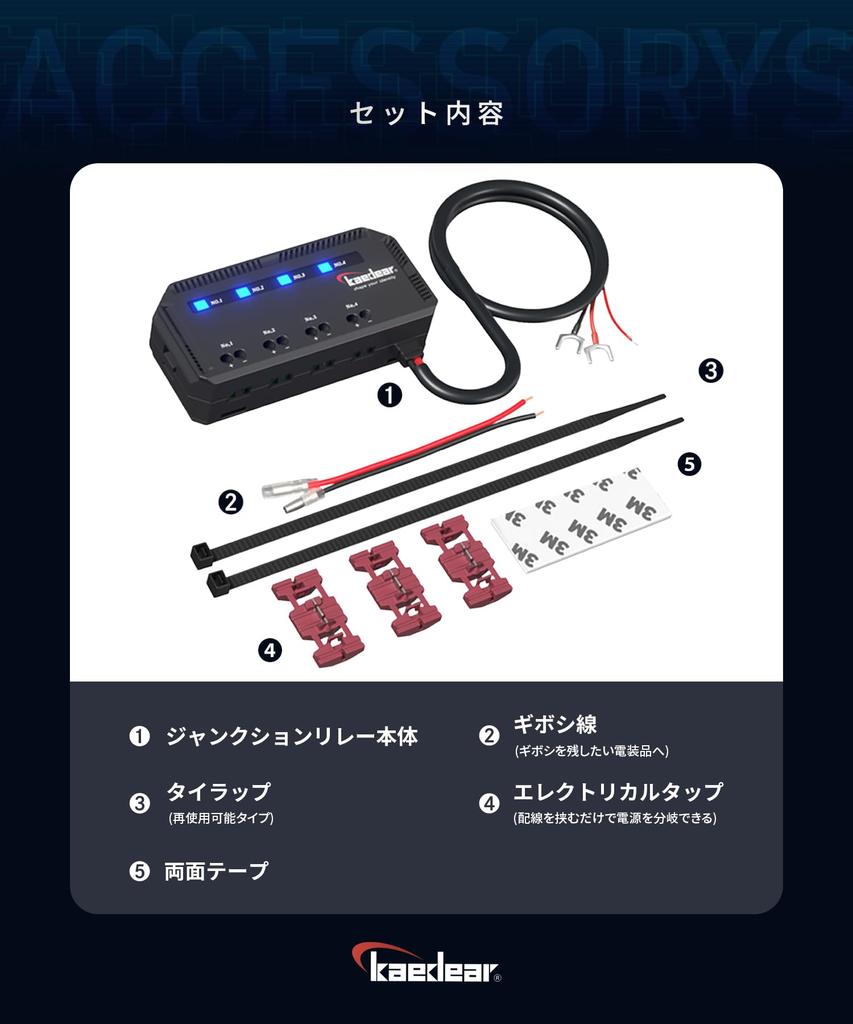

Product Details: Input: 12-16V; Output: Total 20A, 4 types; Body size: 5.1 x 2.8 x 1.0 inches (130 x 70 x 25 mm); Wiring: 27.6 inches (70 cm); Material: Polycarbonate; Contents: Junction Relay main unit (5A fuses x 4), Gibushi wire (to electric items that you want to remain residue), tile), Tie-wrap, double-sided tape, 3 x 3, Product instruction manual (English language not guaranteed)
Kaedia will support you after sale to ensure your satisfaction. Not only are the products unknowns, but we also have certified staff to consultation about installing the bike, so we will respond to our expertise. In the event that you will be diagnosed as a defective product occurs from a defective product, we will prosecute in accordance with our manufacturer warranty regulations and will repair and replace for free of charge. When used for commercial use, please take half the manufacturer's warranty period. (e.g. if the manufacturer's warranty period is 1 year, it is 6 months, and the same day with 6 months added to the date of purchase). Please see the official website for details. After installation, even after use. As a Japanese manufacturer, we will treat you with the heart of entertaining. Please feel free to contact us first. "
We will only accept returns if the item is different from the picture shown
on the product page or is not in the same condition as the product description.
All items are 100% authentic: we verify authenticity before selling.
