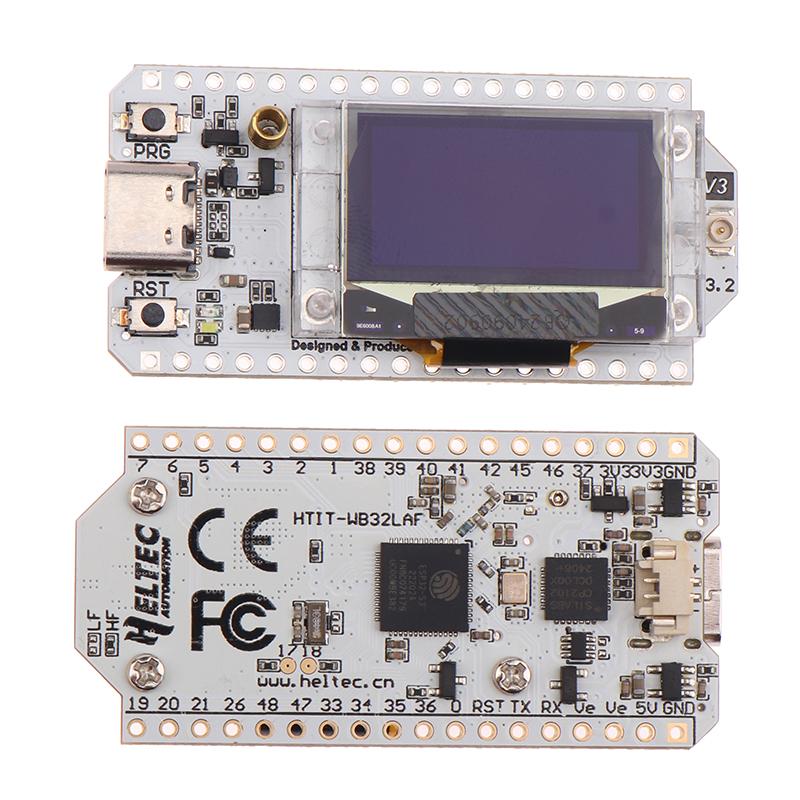

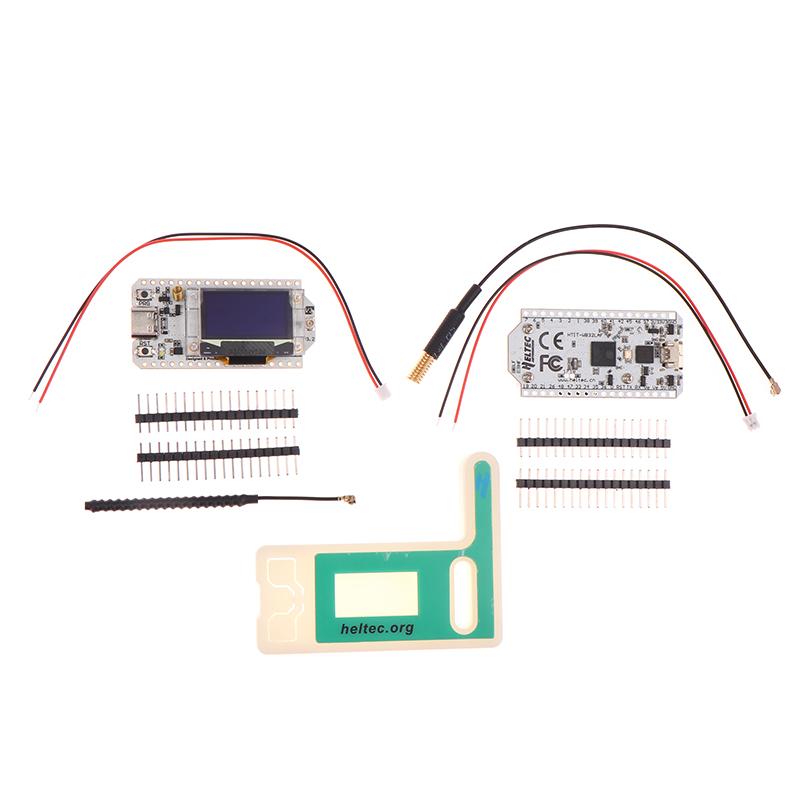

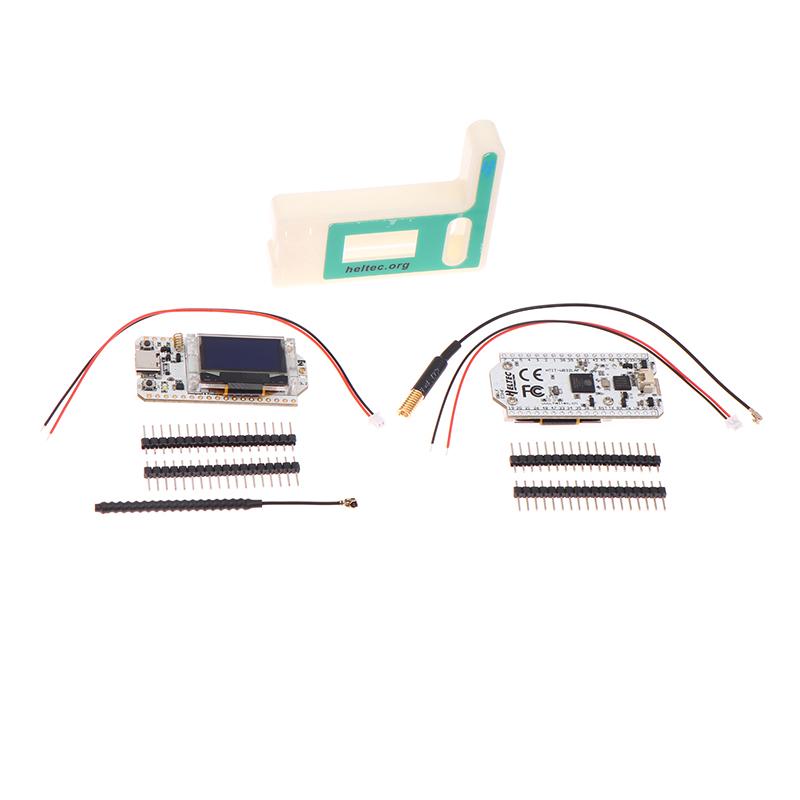

Meshtastic Wifi Heltec Lora 32 V3 With Case 868Mhz Esp32 Oled Sx1262 0.96 Inch Blue Oled Display Development Board For Arduino

Main Features Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).

SX1262 LoRa node chip.

Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and protection measures.

Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and information.

Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.

Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.

Support the Arduino development environment.

With good RF circuit design and low-power design. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
