Feature:
1. VOLTAGE RANGE: 4 to 12V adjusted voltage, adjusted voltage accuracy is 0.1V, to meet the speed requirements of tattoo artists operating different parts.
2. RCA INTERFACE: Standard RCA interface, compatible with all standard RCA rotating tattoo machine, tight mouth, not easy to drop. And the charge time is 3 hours.
3. CONVENIENT: To get rid of the shackles of the traditional power supply which requires many accessories to work, the power cord, hook line and foot are omitted, making the work of tattoo artists more convenient.
4. LONG LASTING: Built in 2000mAh large capacity battery, charging for 3 hours, fully charged state, can work continuously for about 5 to 7 hours, do a large area of tattoos can be used alternately two power sources.
5. OLED DISPLAY: OLED displays current voltage, current, operation time, remaining power, convenient tattoo artist observation and operation. Operate freely. Small size, light weight, easy to carry for tattoo artist.
Specification:
Item Type: Wireless Tattoo Power
Material: Aluminium alloy, electronic components
Interface: RCA interface
Battery: Built in lithium battery 2000mAh
Power supply size: Approx. 28 x 80mm 1.1in x 3.15in
Display mode: OLED
Input: DC5V 2A (Input voltage shall not be higher than 5V-2A)
Output: 4-12V
Output voltage adjustment accuracy: 0.1V, long press can be quickly adjusted
Display: Displays the current voltage, current, operating duration, and remaining power
Charging time: 3 hours (It is strictly prohibited to use a charger higher than 5V to charge)
Usage time: It can be used for 5-7 hours
Characteristics:
1. Pre store 5 gear voltage;
2. The screen display direction can be interadjusted left and right;
3. Work timing;
4. Overcurrent protection can be enabled or disabled as required;
5. Strong start is enabled by default and can be enabled or disabled as required;
6. You can manually shut down the machine or automatically shut down the machine without any operation in the idle state. The waiting time before the automatic shutdown is 5 minutes by default, or 15 or 30 minutes as required.
Protection function:
1. With output short circuit, overcurrent protection
2. The input overcharge overdischarge dual protection. (Battery protection and control panel protection)
Use method:
Switching machine
Press and hold the P key to power on. Press the "+" and "-" keys at the same time to power off.
Working mode
Press the "P" key to start working, the current bar will flicker with the current change, press the "P" key again to stop working.
Voltage regulation
Press or long press the "+" key, and the voltage rises by 0.1v step. Press or long press the "-" key, and the voltage drops by 0.1v step.
Double click the "p" key to use the stored voltage.
menu
Items that can be operated or set in the menu include timing reset, overcurrent detection switch, shutdown mode, screen direction, strong start switch, and prestored voltage.
In the idle state, long press the "P" key to enter the menu, then use the "+" key or "-" key to browse the menu, press the "P" key to set the option value, and long press the "P" key to exit the menu and return to the idle state.
Menu 1: Timer reset
The interface is as follows:
WORK TIME
RESET
In the idle state, long press the "P" key to enter the menu, then use the "+" key or "-" key to browse the menu to the "WORK TIME" interface, press the "P" key to clear the clock and exit the menu to return to the idle state.
Menu 2: overcurrent detection switch
The interface is as follows:.
OVER CURR
ON OFF
In the idle state, hold down the "p" key to access the menu, then use the" +" or "-" key to browse the menu to the "OVER CURR" screen. Press p to select whether to enable overcurrent detection, and hold down p to return to the idle state.
Menu 3: Shutdown mode
SLEEP MODE
5 15 30
5: In idle state 5 minutes no operation will automatically shut down;
15: In idle state 15 minutes no operation will automatically shut down;
30: In idle state 30 minutes no operation will automatically shut down;
In the idle state, hold down "p" to enter the menu, then use "+" or "-" to browse the menu to the "SLEEP MODE" interface, press "p" to select "5", "15" or "30", and hold down "p" to return to the idle state.
Menu 4: Screen direction
The interface is as follows:
SCREEN D.
LEFT RIGHT
LEFT: Use the left hand
RIGHT: Use the right hand
In the idle state, long press the "p" key to enter the menu, then use the" + "key or" - "key to browse the menu to the" SCREEN D." interface, press the "p" key to select" LEFT "or" RIGHT", and long press the "P" key to return to the idle state.
Menu 5: strong start switch
The interface is as follows:
JUMP START
ON DFF
In the idle state, long press "p" to enter the menu, then use" + "or" -" to browse the menu to the "JUMP START" interface, press "p" to select whether to enable strong start, and long press" p" to return to the idle state.
Menu 6: Prestore voltage
The interface is as follows:
UOL PRESTORE
1 6.0V
This machine can prestore 5 voltages. The number on the left of the screen indicates the level of pre-stored gear.
In the idle state, long press the "P" key to enter the menu, then use the "+" key or "-" key to browse the menu to the "VOLPRESTORE" interface, press the "P" key to read the gear level and voltage value, double-click the "P" key, use the "+" key or "-" key to change the voltage value. Long press "P" to exit the modification, and long press "P" again to exit the menu and return to the idle state..
Package List:

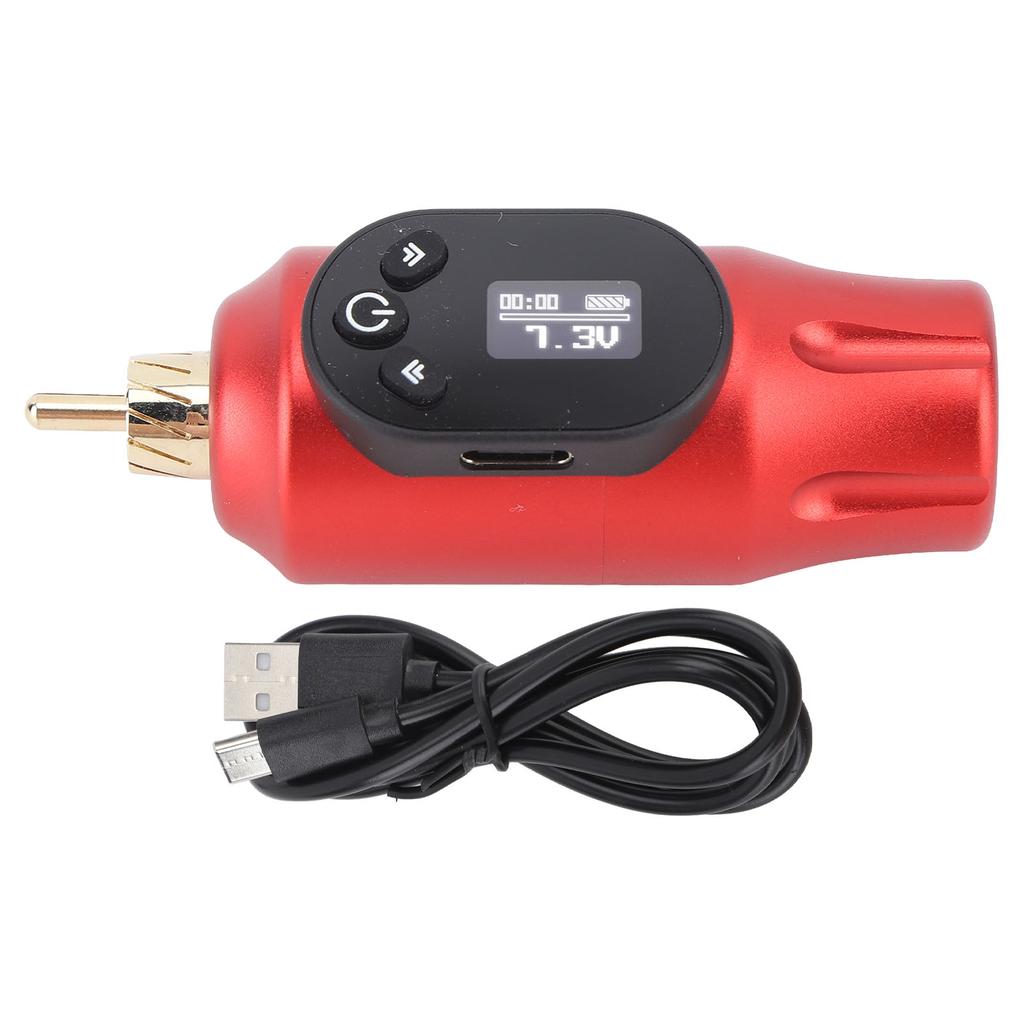

1 x Wireless Tattoo Power1 x USB Cable1 x Instruction Book
