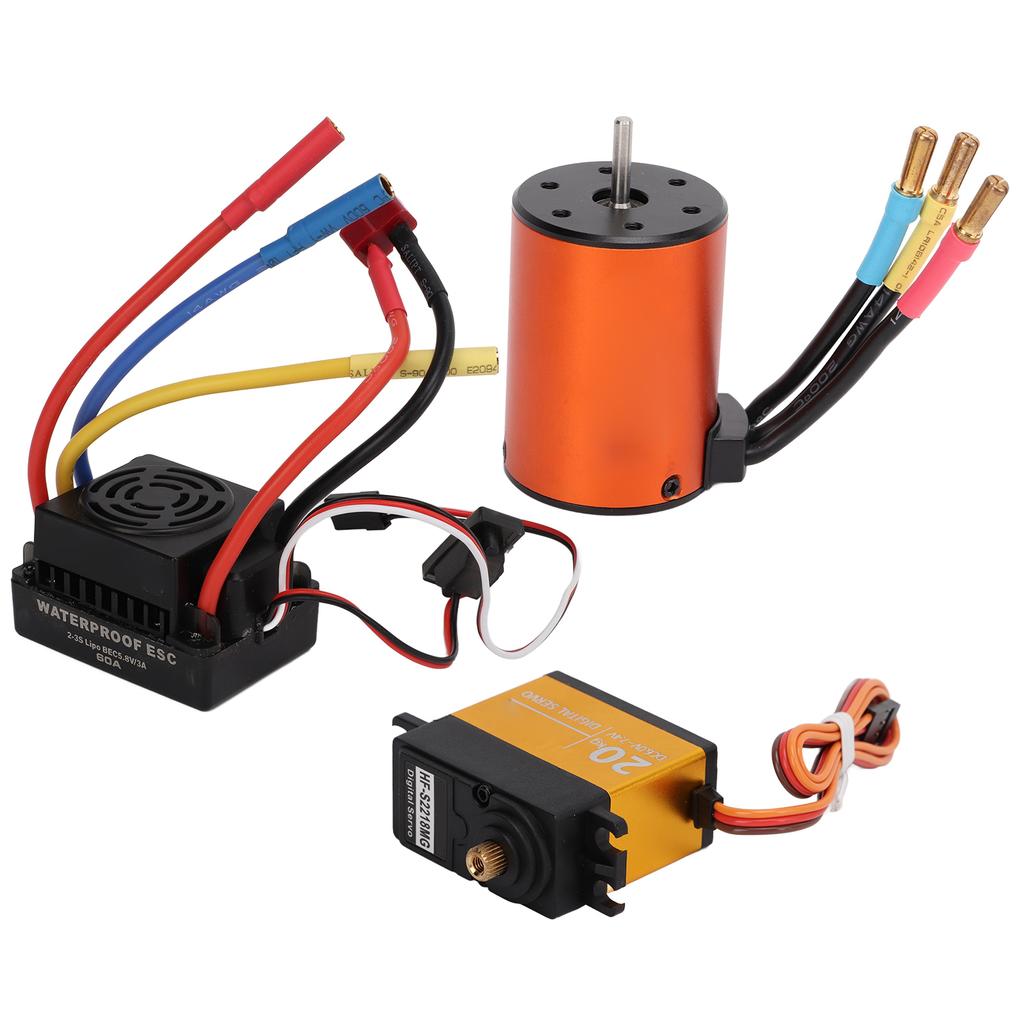

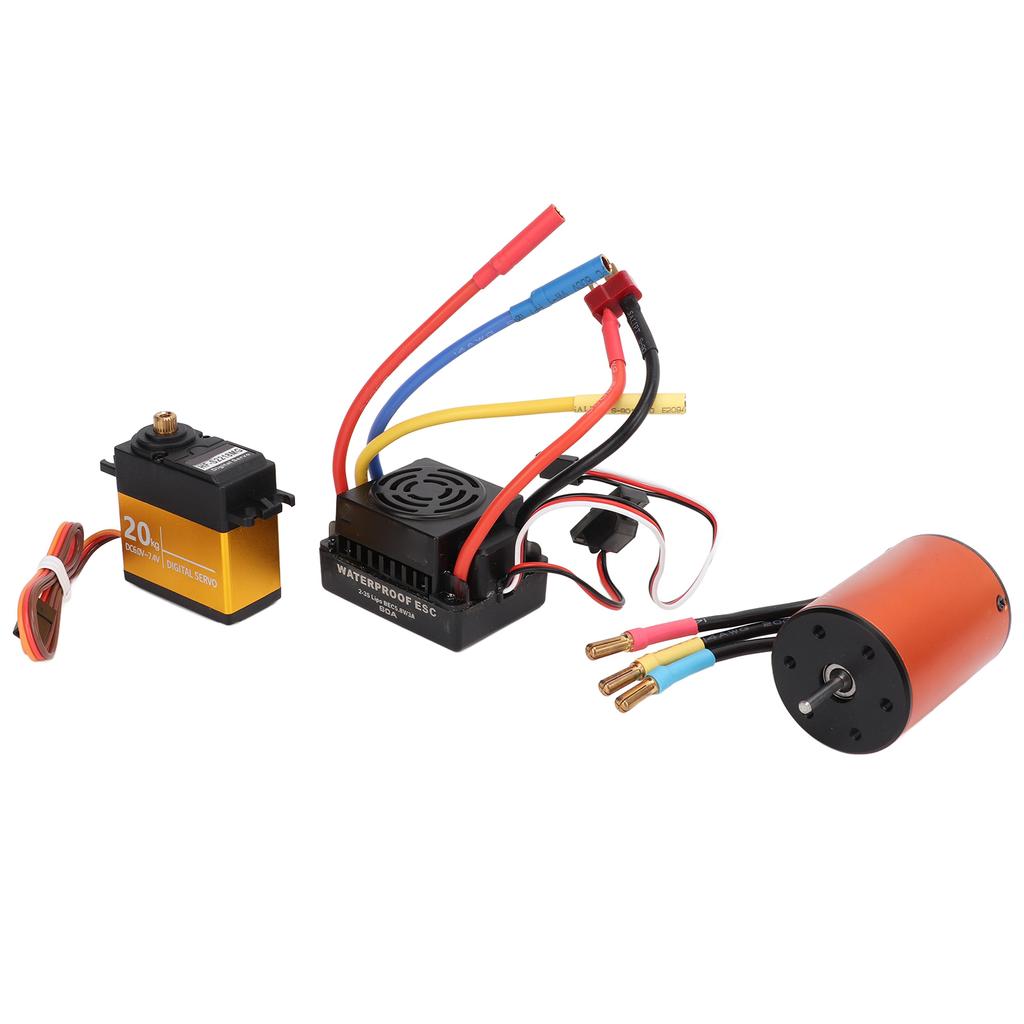

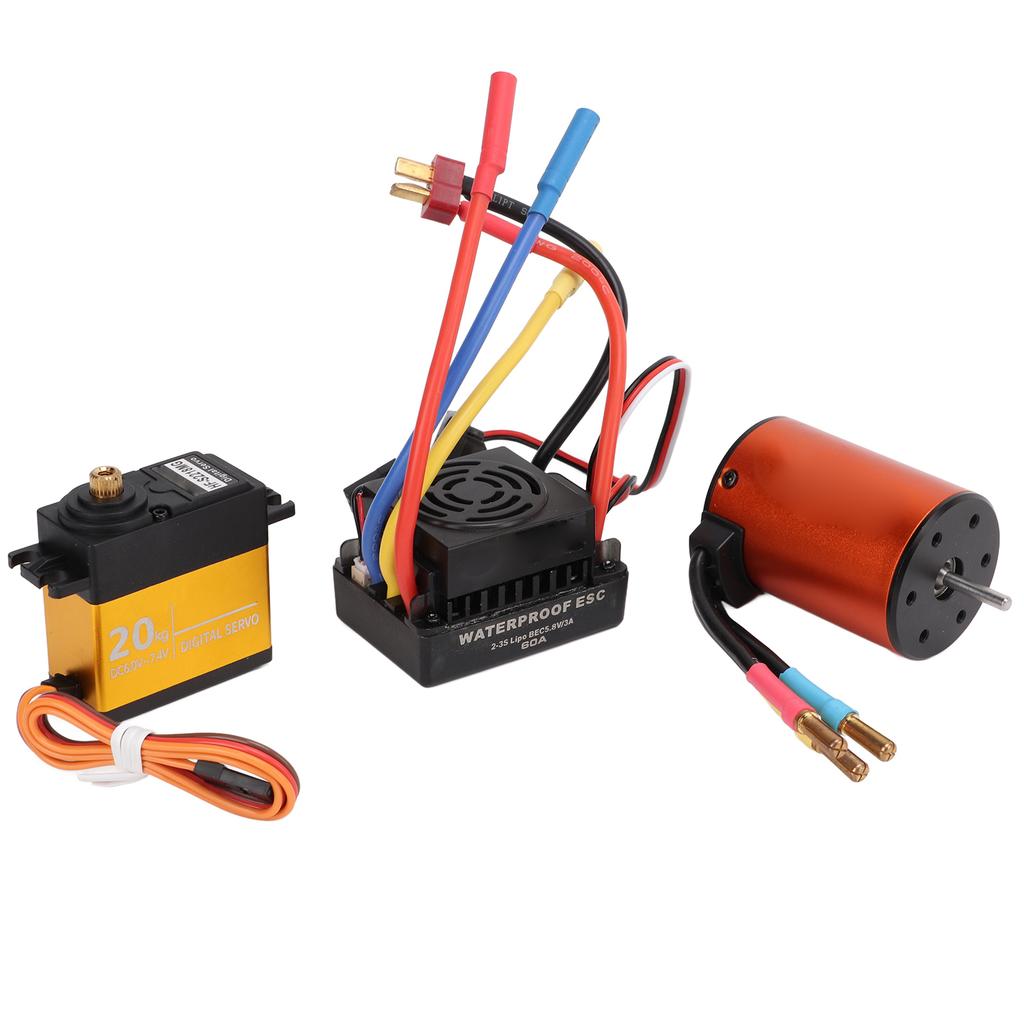

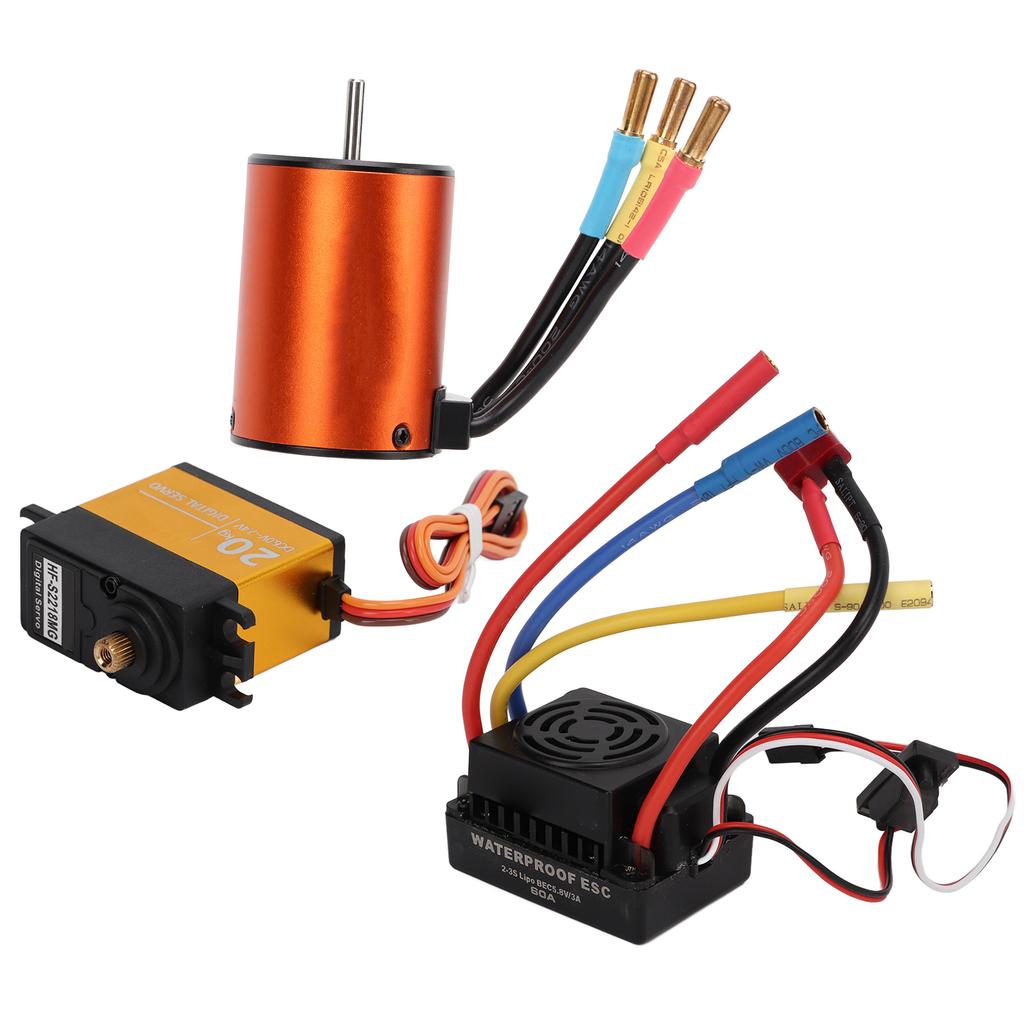

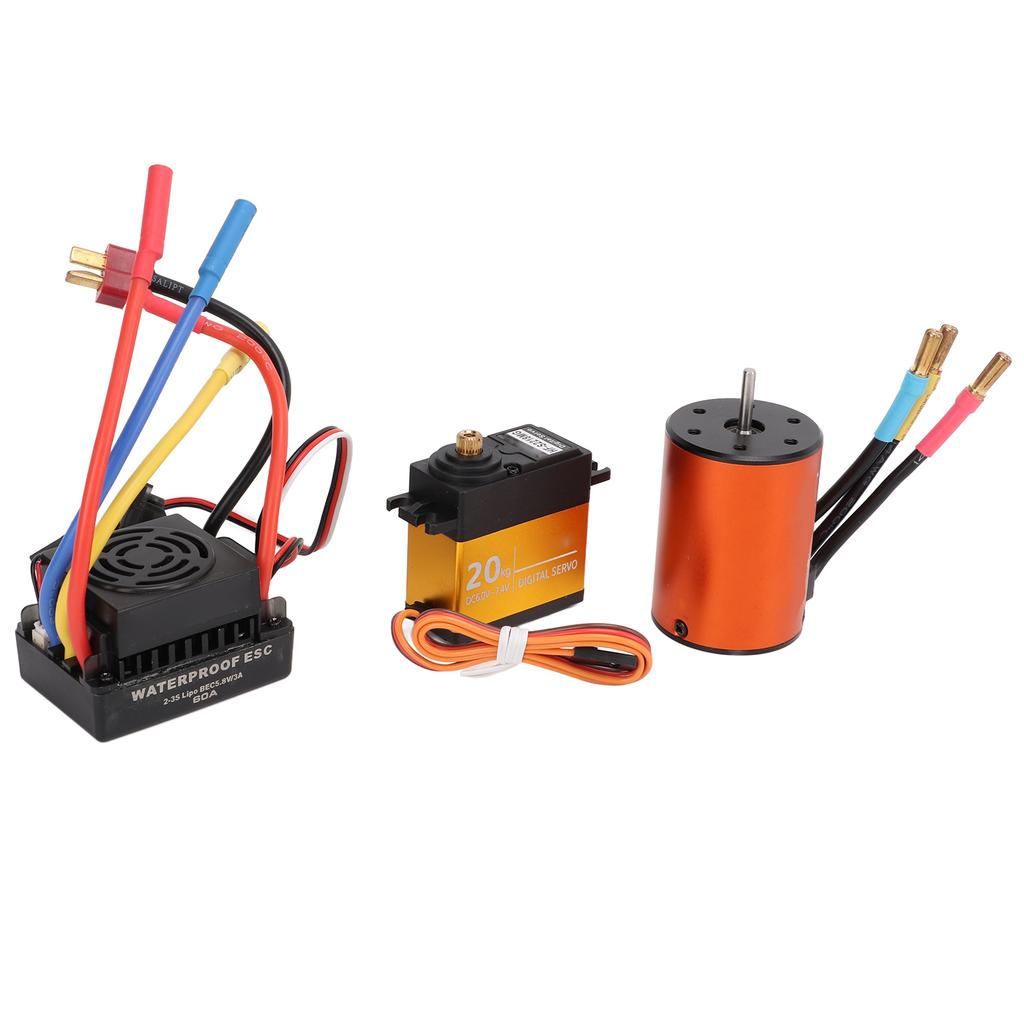

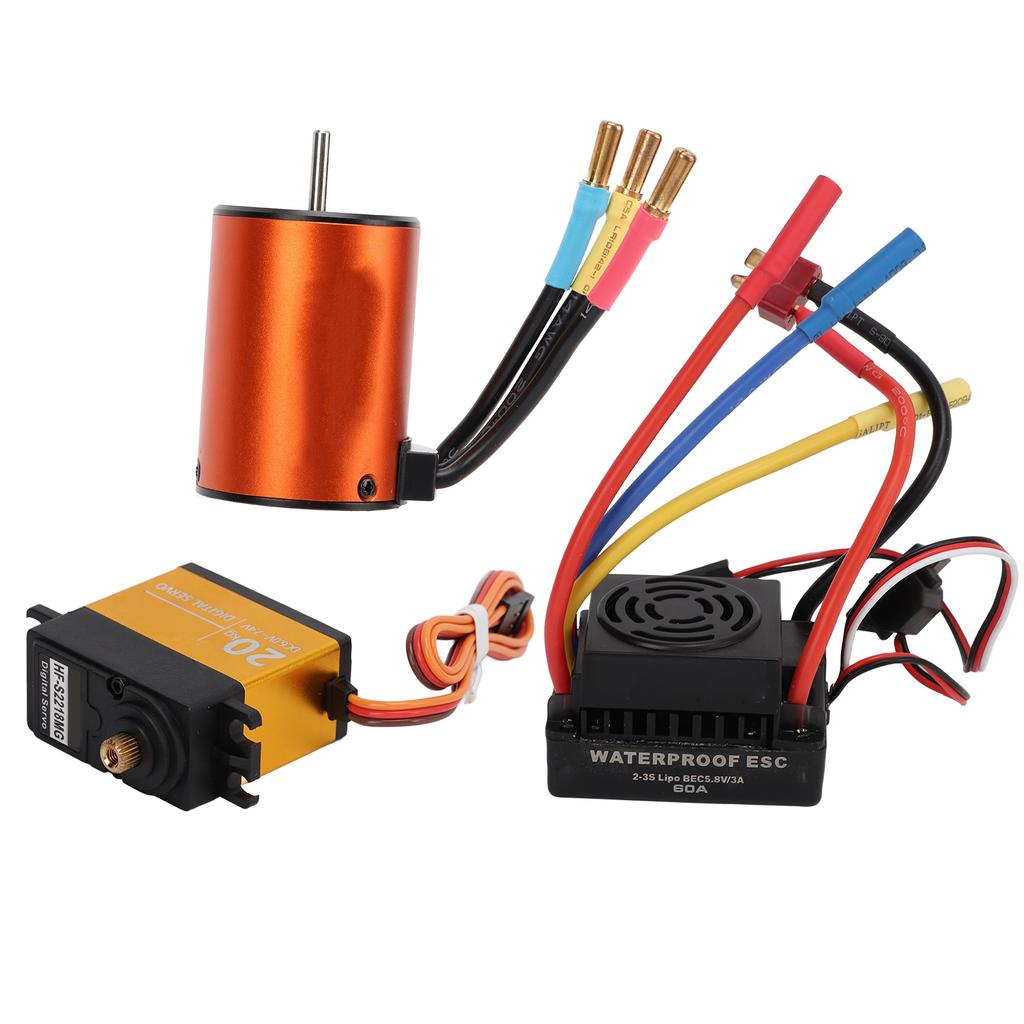

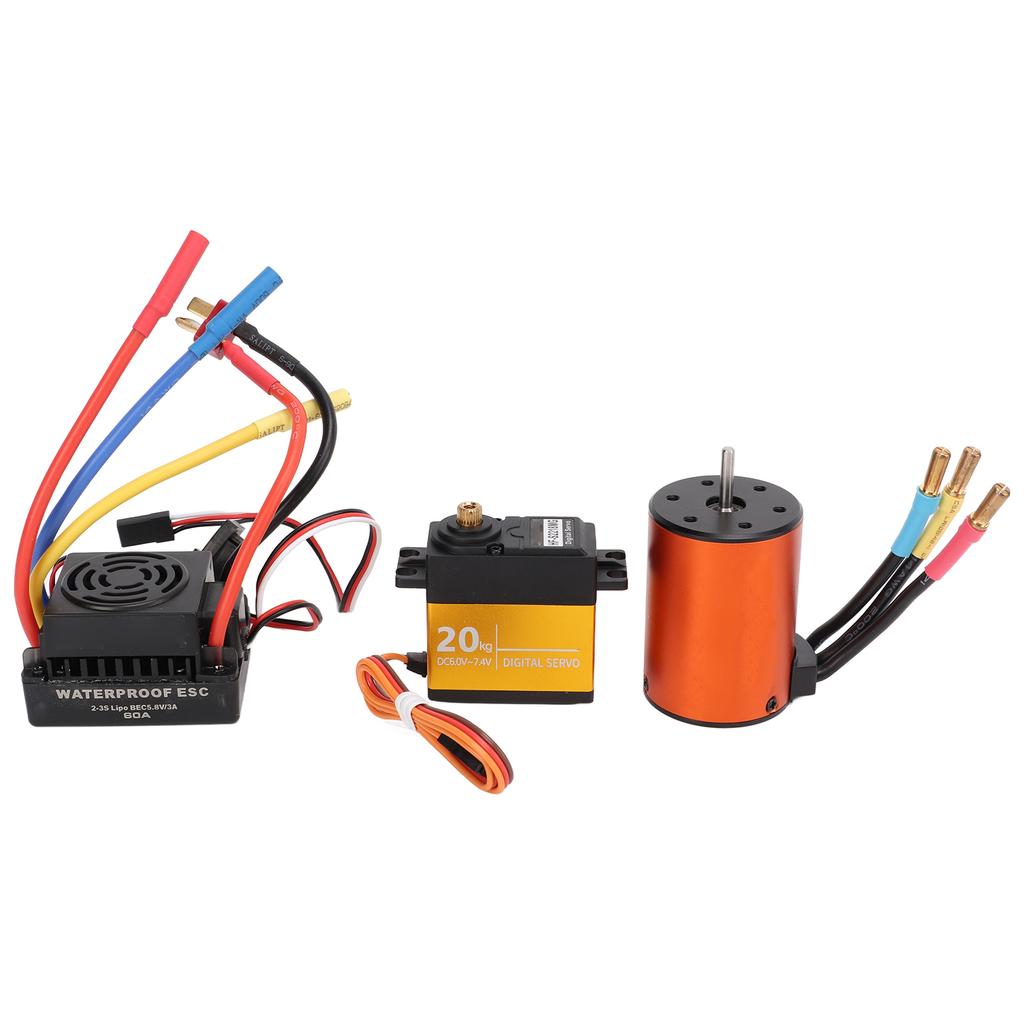

3650 3900KV Brushless Motor 60A ESC 20kg Steering Gear Set Upgraded Waterproof for 110RC Remote

Feature: 1. Has many protective measures: low?voltage cutting protection, overheating protection, throttle signal loss protection 2. Able to get the maximum energy to convert the precision balanced rotor for best reliability and maximum RPM 3. Has high purity copper winding can maximize efficiency with 4 pole 12 slot high torque motor design 3.175mm shaft Diameter , and maximum nmrpm up to 25kg.cm (7.4V) 4. CNC aluminum medium housing enhances heat dissipation and ensures that servo motors can work properly 5. Metal gears adopts hard anodized treatment to provide higher precision and longer service life Specification: Item Type: 3650 3900KV Motor SetMaterial: Aluminum alloy + plasticApplication: 110RC Remote Control Car Motor parameters: Power: 900W Maximum voltage: <12V Maximum current: 75A KV (rpm volts): 3900KV Maximum rpm: 50000 Diameter: 36mm1.4in Length: 50mm2.0in Axis length: 15mm0.6in Axis diameter: 3.175mm0.13in Plug Type: 4mm Golden Banana Plug ESC Specifications: Continuous current: 60A Burst current: 320A Applicable battery: 23S lithium battery 49S nickelhydrogen nickelcadmium battery (excluding) BEC output: 5.8V 3A Power plug: t plug male Motor plug: 4mm banana plug female Steering gear parameters Color: gold Working voltage: 4.86.8V Working speed (6.0V): 0.15 seconds 60 degrees Working speed (7.4V): 0.13 seconds 60 degreesStall Torque (6.0V) : 21kgcm Stall Torque (7.4V) : 25kgcm . Package List:

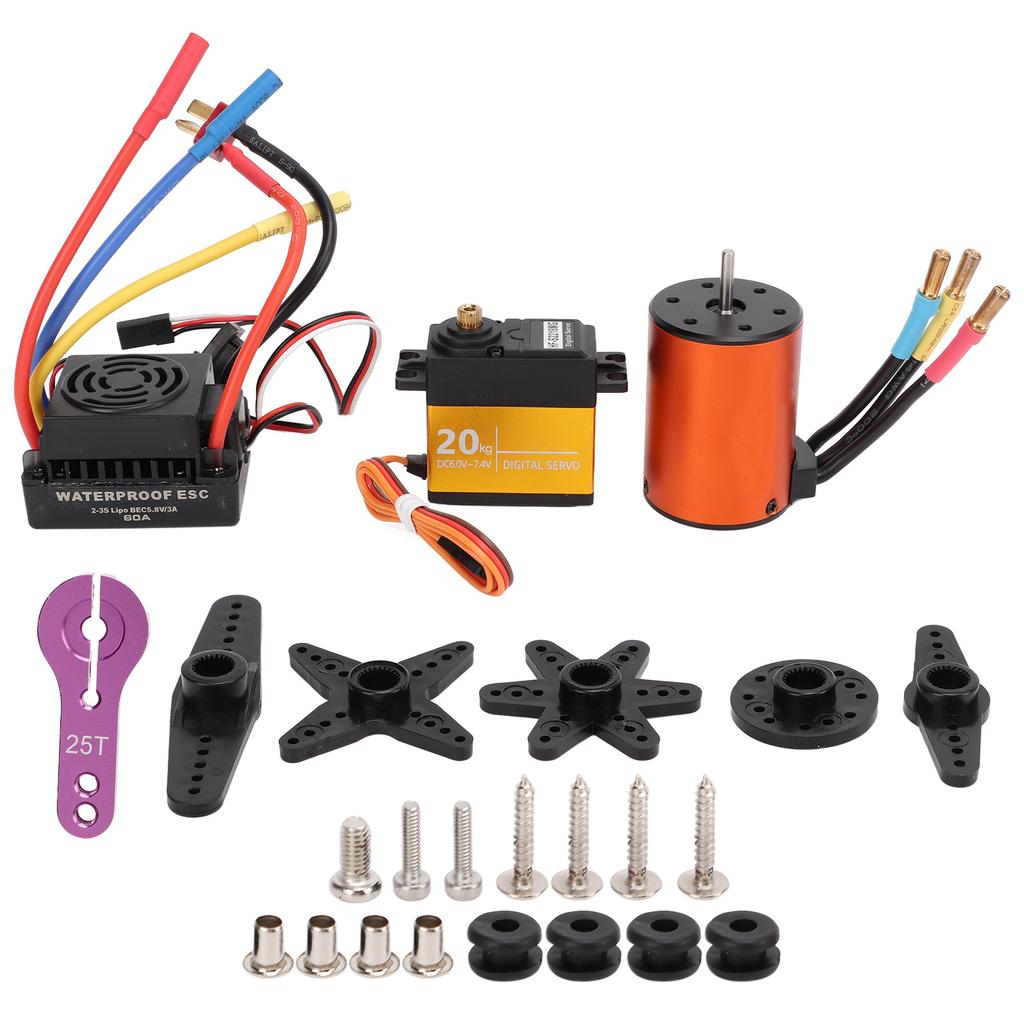

1 x Motor 1 x ESC 1 x Manual 1 x Steering Gear 1 x Metal Steering Gear Arm 5 x Plastic Steering Gear Arm 1 x Bag of Install Accessories(8PC) 7 x Screw Has many protective measures: low?voltage cutting protection, overheating protection, throttle signal loss protection Able to get the maximum energy to convert the precision balanced rotor for best reliability and maximum RPM Has high purity copper winding can maximize efficiency with 4 pole 12 slot high torque motor design 3.175mm shaft Diameter , and maximum nmrpm up to 25kg.cm (7.4V) CNC aluminum medium housing enhances heat dissipation and ensures that servo motors can work properly Metal gears adopts hard anodized treatment to provide higher precision and longer service life
