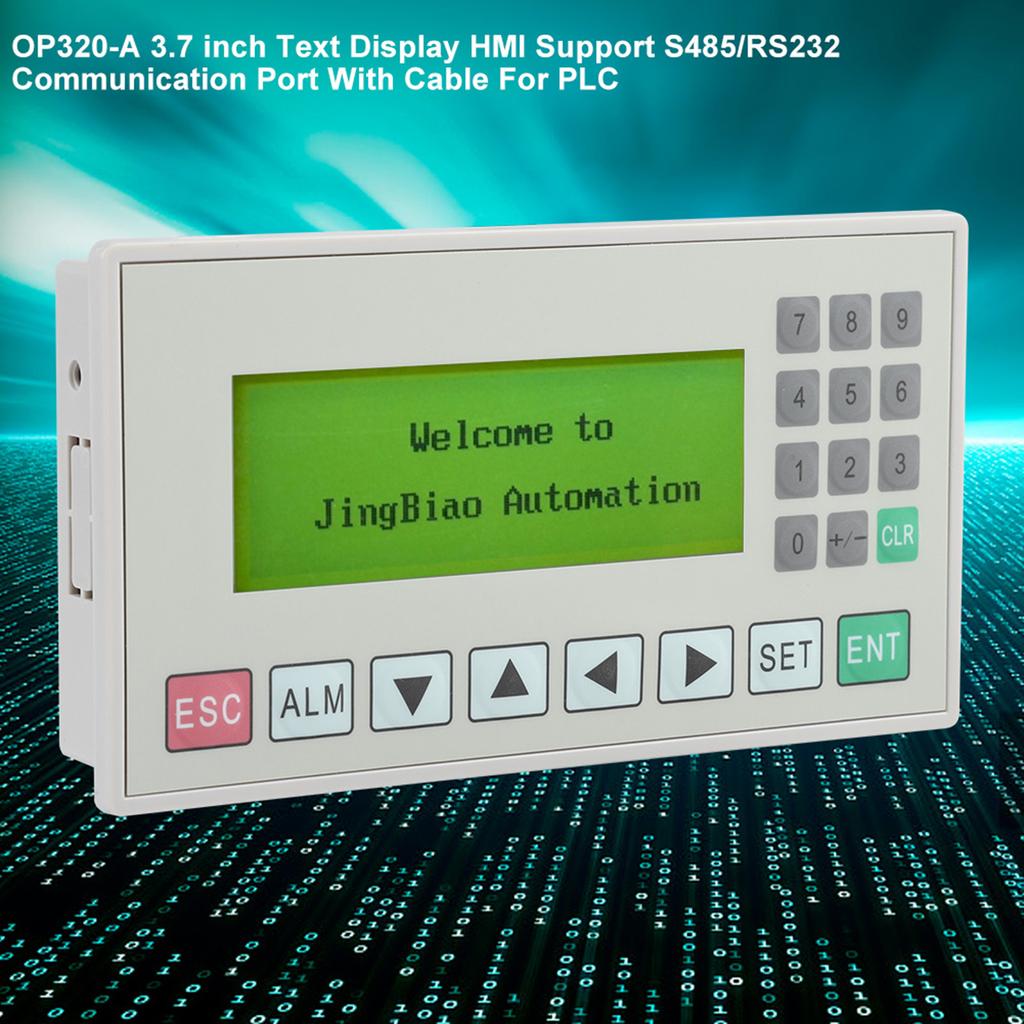

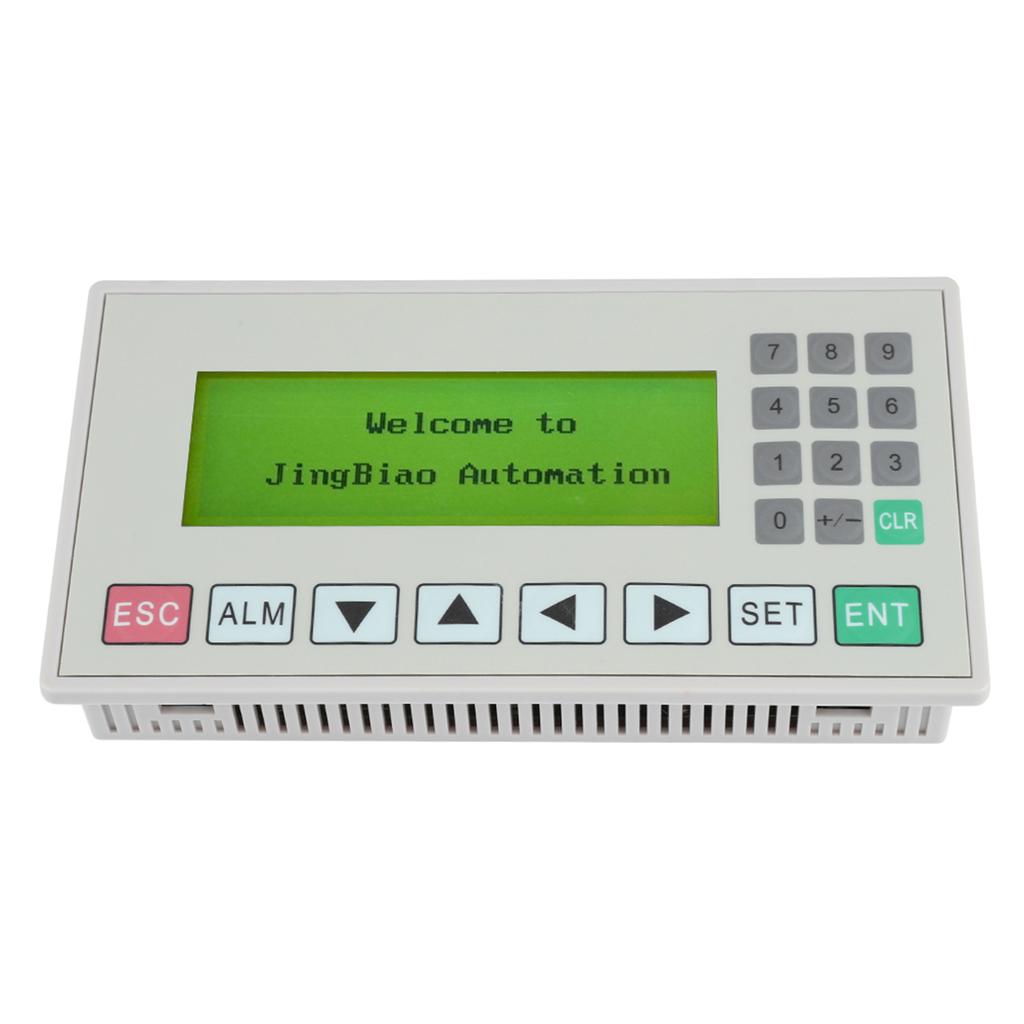

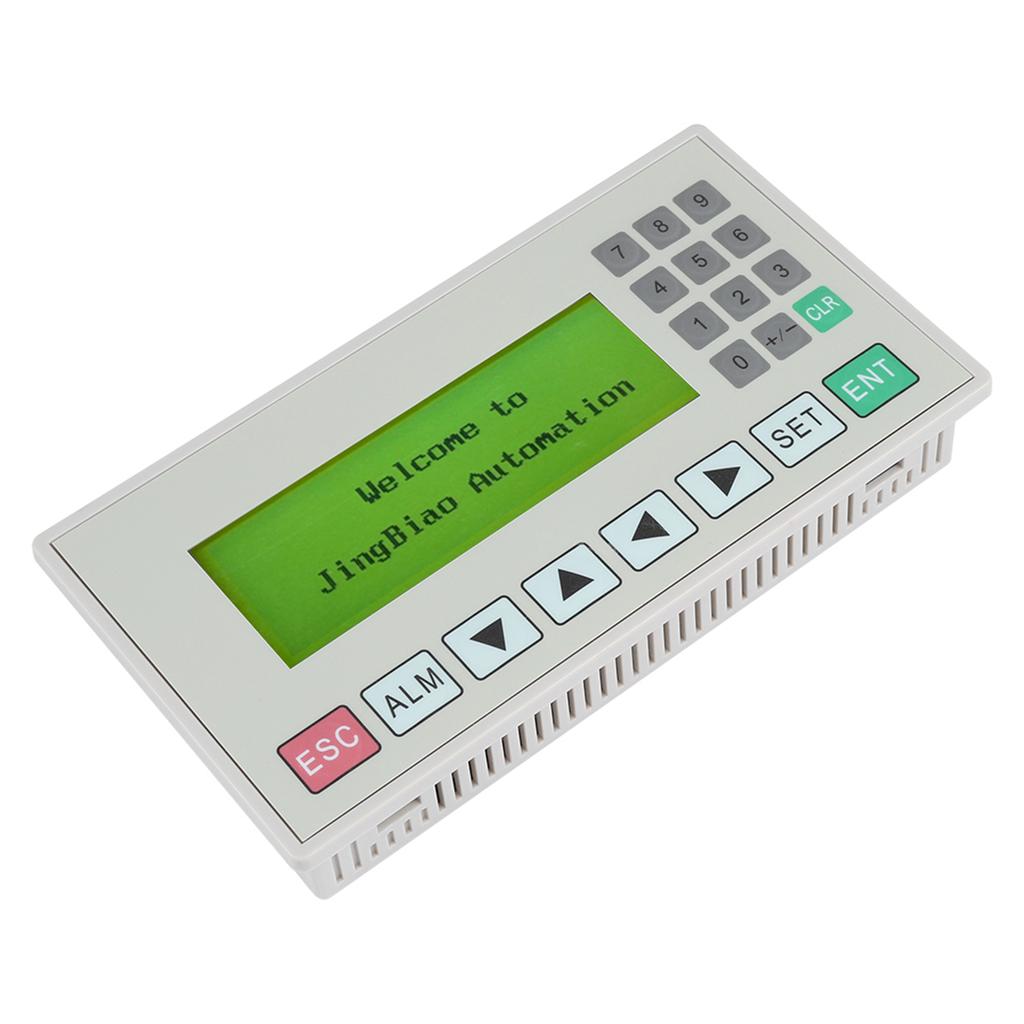

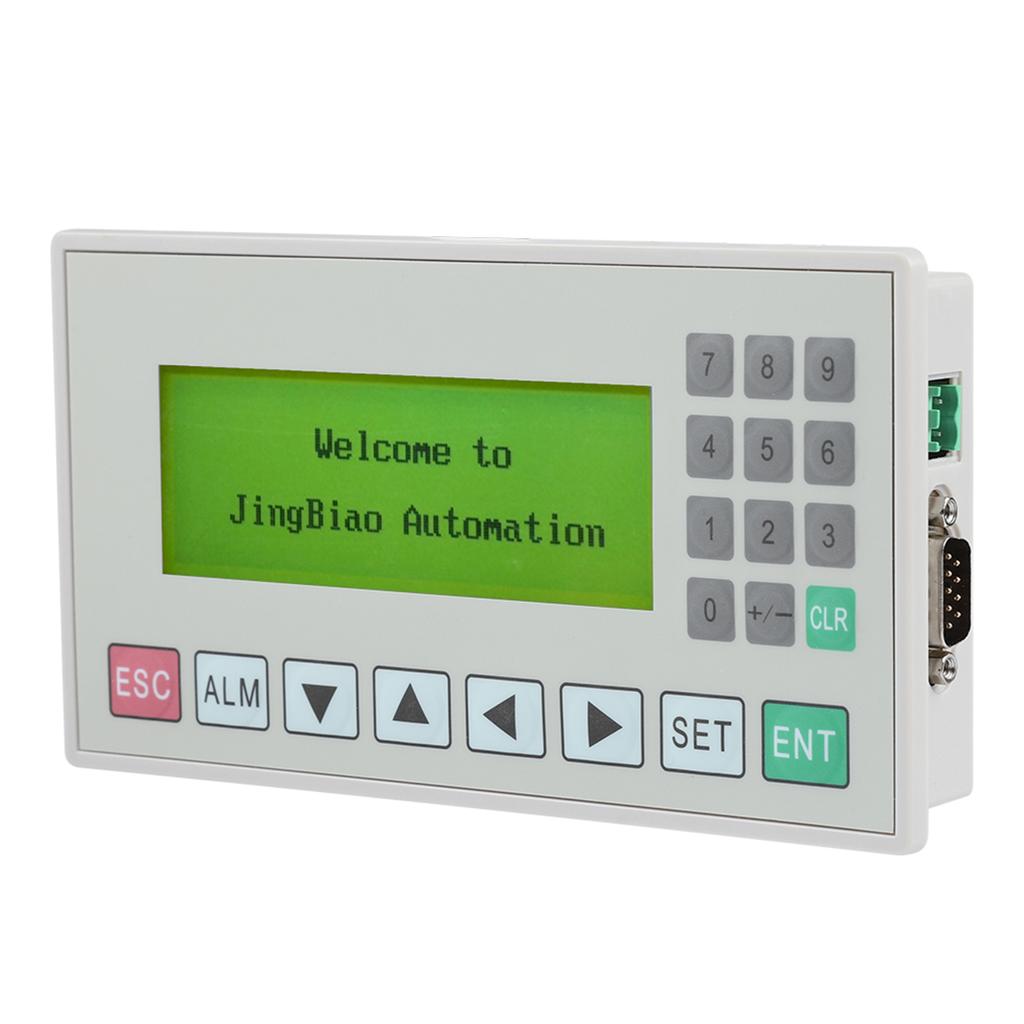

OP320A 3.7 Inch Text Display HMI Support S485RS232 Communication Port With Cable For PLC

Features: OP320A is a small manmachine interface, mainly used with various kinds of PLC (or intelligent controller with communication port) Monitor and modify the values and state of the internal registers or relays of the PLC in the form of text or indicator light so that the operator can control the equipment freely Make pictures on the computer by editing software TP200CN, input Chinese characters freely and set PLC address, use serial communication to download the screen Communication protocol and screen data are downloaded to the display without PLC writing communication program It has password protection, has alarm list function, line by line realtime display current alarm information With background light STN liquid crystal display, 24 English characters x 4 lines, that is, 12 Chinese characters x 4 lines Made of ABS material original and imported chip, good Antishock and stable working performance Specification: Model: OP320 A Display size: 3.7 inches Display type: LCD screen Display color: monochrome Resolution: 192 x 64 pixels Brightness: 60cdm2 Processor: 8bit processor Memory: 64 KB Flash ROM Input method: keyboard input Communication port: COM1:PC RS232, PLC S485RS232 Function button: 20 selfdefined Power off allowed: 20ms Power supply :12~24V (V) +10percent <150mA Antiinterference test: voltage 1500v, pp pulse cycle 1us, continuous 1S Pressure test: 500vAC 1 min Insulation resistance: >10M Ohm Shockproof test: 10~25Hz Protection grade: IP65 Working temperature: 0 ~ 50 celsius Working environment humidity: 20~90percent RH Storage temperature: d20 ~70

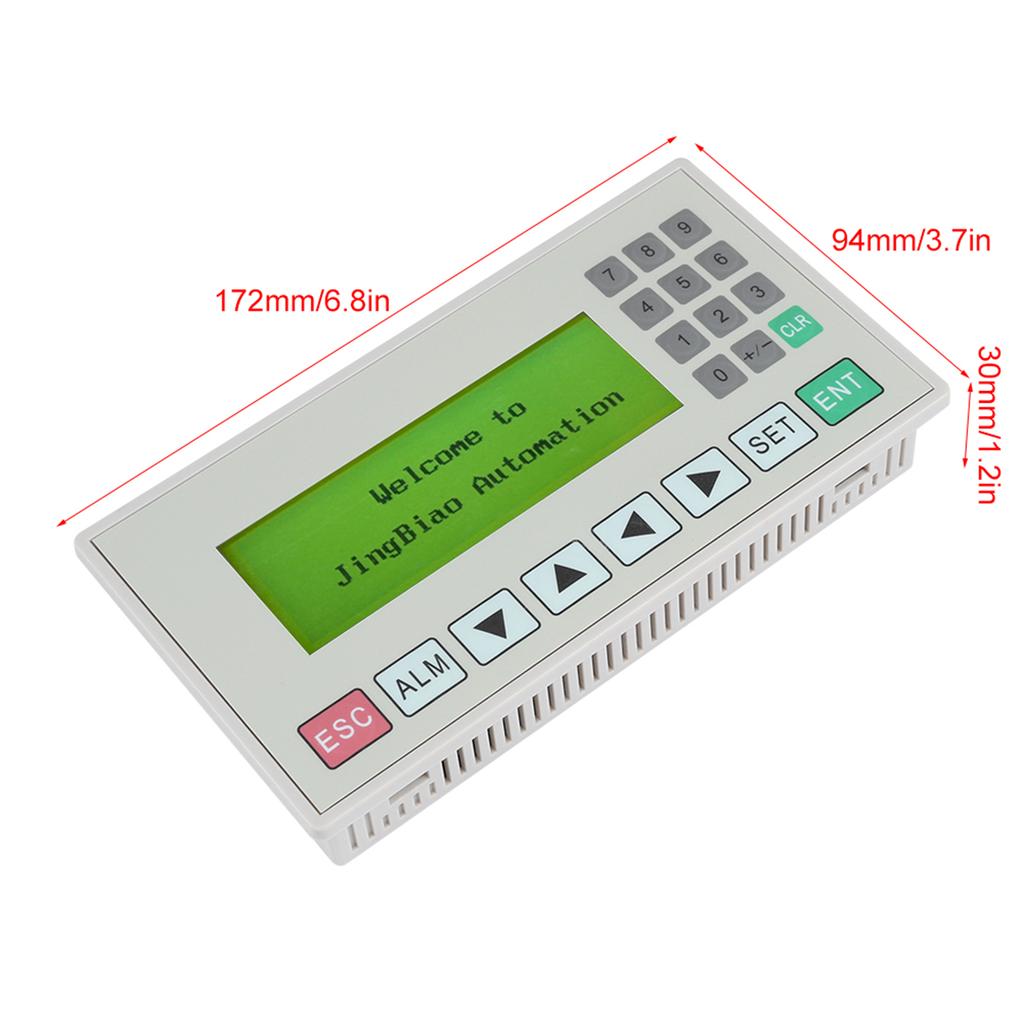

celsius Shell material: engineering plastics Display size: 101*36mm4*1.4in Mounting hole size: 165*86mm6.5*3.4in Size:172*94*30mm6.8*3.7*1.2in Weight: Approx.338g11.9oz Package list: 1 x Text Display 4 x Mounting Bracket 1 x Power Cord Terminal 1 x Download Cable Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .OP320A is a small manmachine interface, mainly used with various kinds of PLC (or intelligent controller with communication port) Monitor and modify the values and state of the internal registers or relays of the PLC in the form of text or indicator light so that the operator can control the equipment freely Make pictures on the computer by editing software TP200CN, input Chinese characters freely and set PLC address, use serial communication to download the screen Communication protocol and screen data are downloaded to the display without PLC writing communication program Made of ABS material original and imported chip, good Antishock and stable working performance
