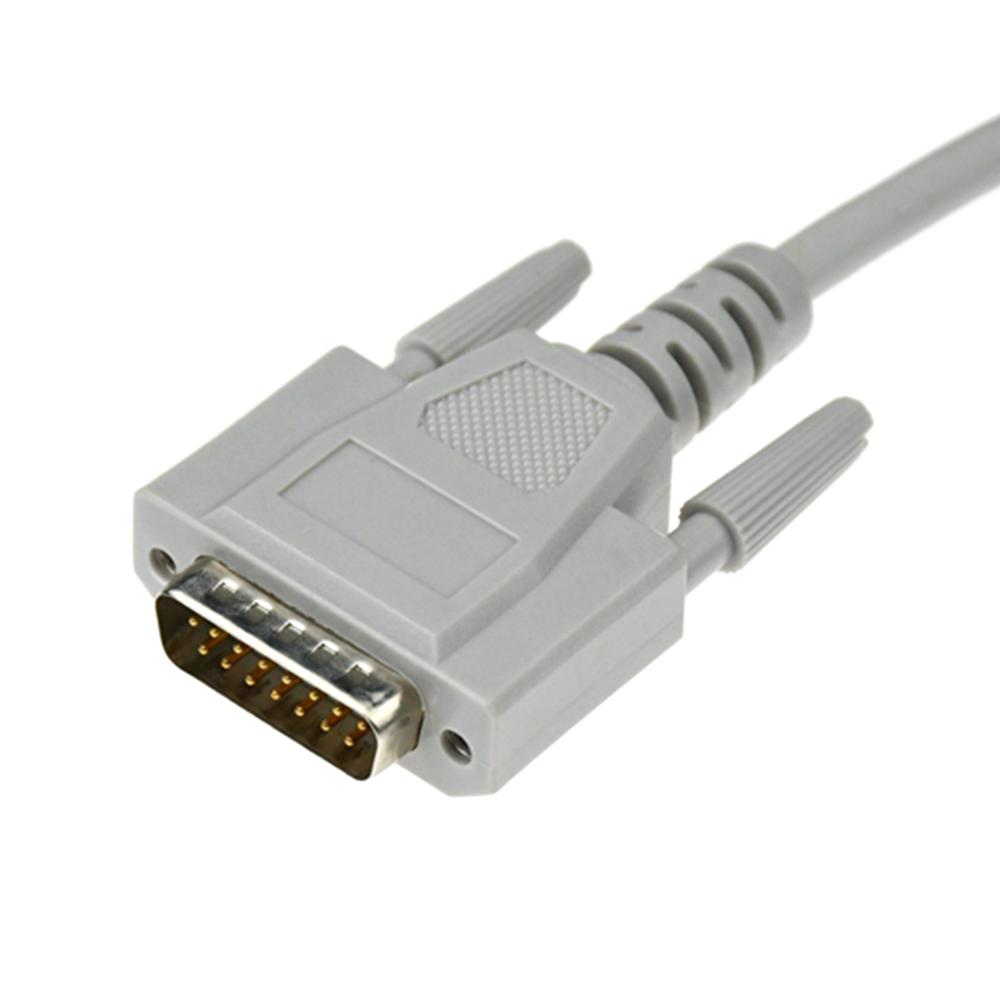

Compatible with COMMEN,NO RESISTANCE Patient Monitor, Reusable 10 Leads with Din 3.0/Banana 4.0/Snap/Clip, EKG Data Recorder Cable, Heart Rate Sensor

Reminder: when you select the Ekg cable, please check carefully the below points: 1) if the connector is really compatible to your EKG MACHINE ECG socket,such as 15 pin or 20 pin. 2)if the patient terminal is the right type you want? Snap or clip？ Banana 4.0 or Din 3.0？ or for which function， usually for popular use， banana4.0 is ok. for neonate use,pleaseselect clip type. 3) if you have special purpose, please let us know, we will try to offer you the professional serves and instruction.

【Product Feature】 Brand new Quality 100% assured Tightly woven alloy shield, to eliminate interfering signals. Superconducting welding process ensures the quality welding of cable connector, do not fall off. Built-in flexible net to make them more flexibility and not easy to split off. Compliance with:ENISO09919-2009,EN60601-1,1990+A1,1993+A2,ISO10993-5:2009,ISO10993-10:2010. 【Key technical parameter】 1.Cable Resistance:≤1Ω(anti-defibrillator circuit resistance excluded) 2.Insulation Resistance：≥5MΩ。 3.Dielectric Strength：The capacity of dielectric properties between External insulation layer and internal wire can withstand AC1500V 50HZ , which lasted 1 min and no breakdown. 4.Noise 0.3M：＜50uV。 【Working environment】 Environment Temperature：5℃～55℃； Relative Humidity：≤80％； Atmospheric pressure： 70kPa ~ 106kPa
