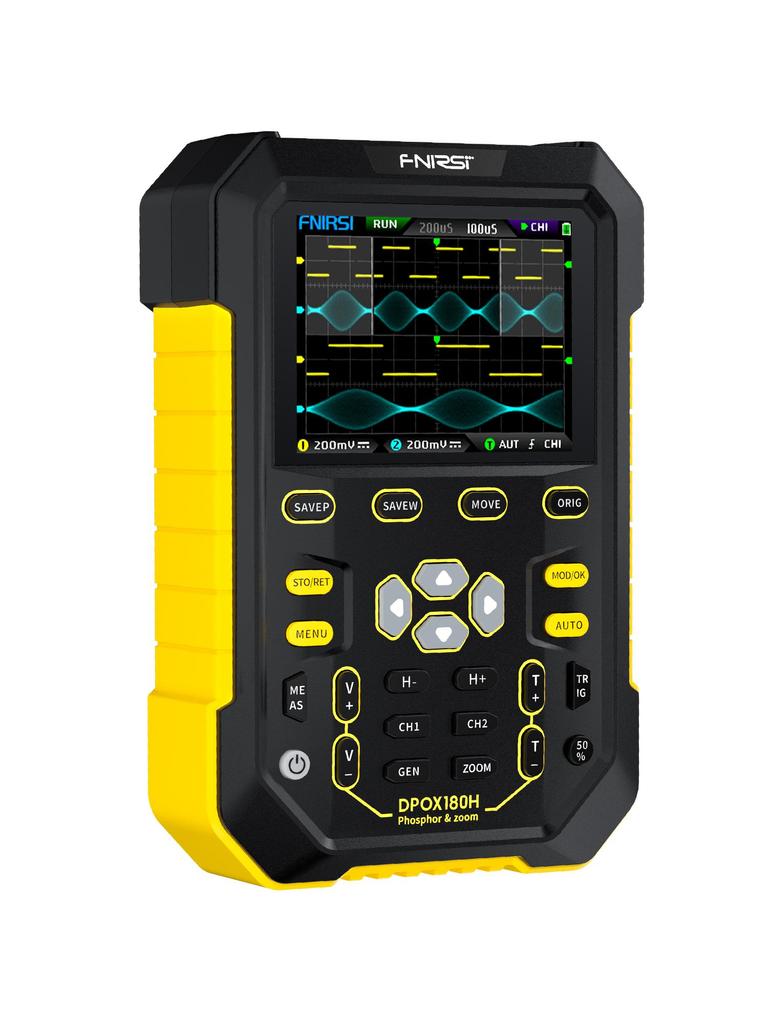

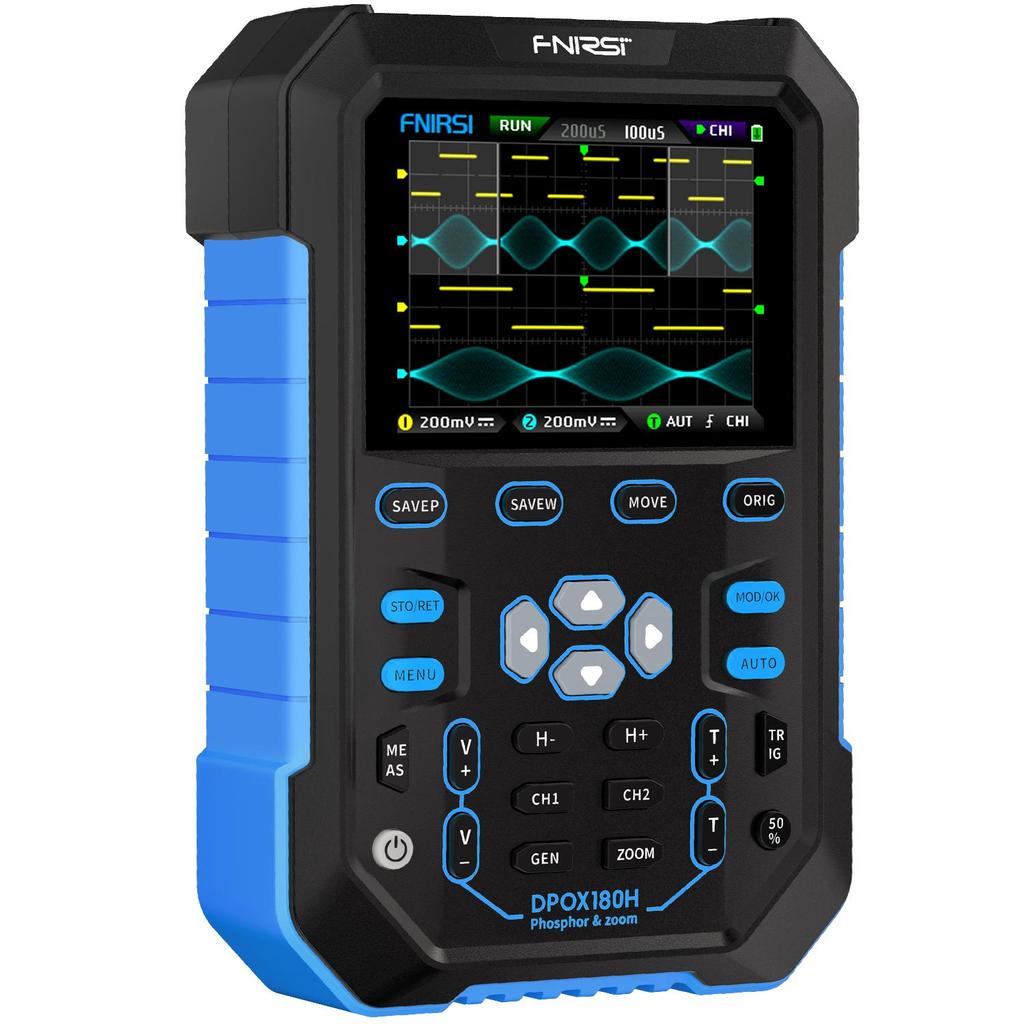

FNIRSI DPOX180H Handheld Dual Channel Digital Oscilloscope 180MHz-3DB 2 In 1 Function Signal Generator Fluorescence Display ZOOM

Number of channels：2

Analog bandwidth：180MHZ

Maximum sampling rate：500MSPS

Input coupling：DC/AC

Rise time：2.5nS

Storage depth：120Kpts

Input impedance：1MΩ-18PF

Vertical sensitivity：5mV ~ 10V(1X)

Time base range：5nS ~ 50S

DC accuracy：±2%

Time accuracy：±0.01%

Measurement range：40mV ~ 80V(1X)

Digital phosphor technology：support

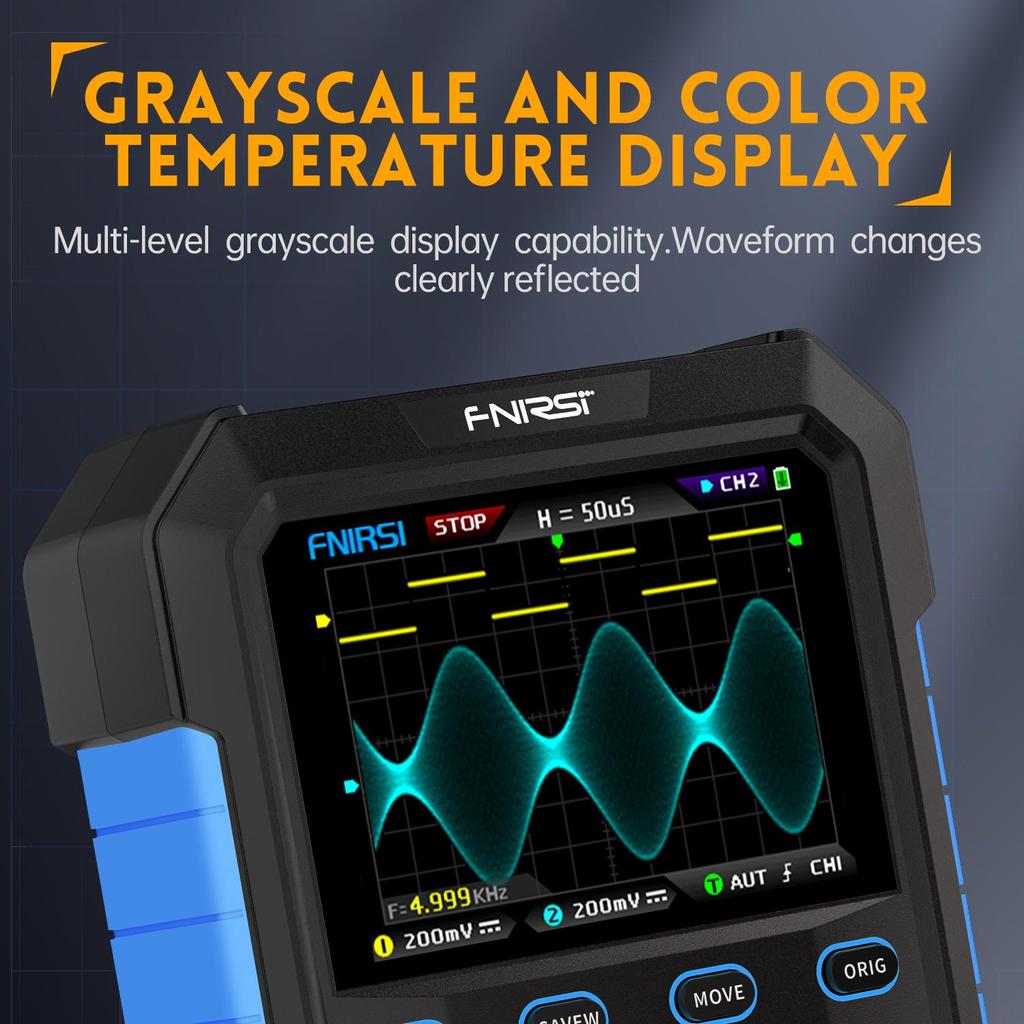

Color temperature display：support

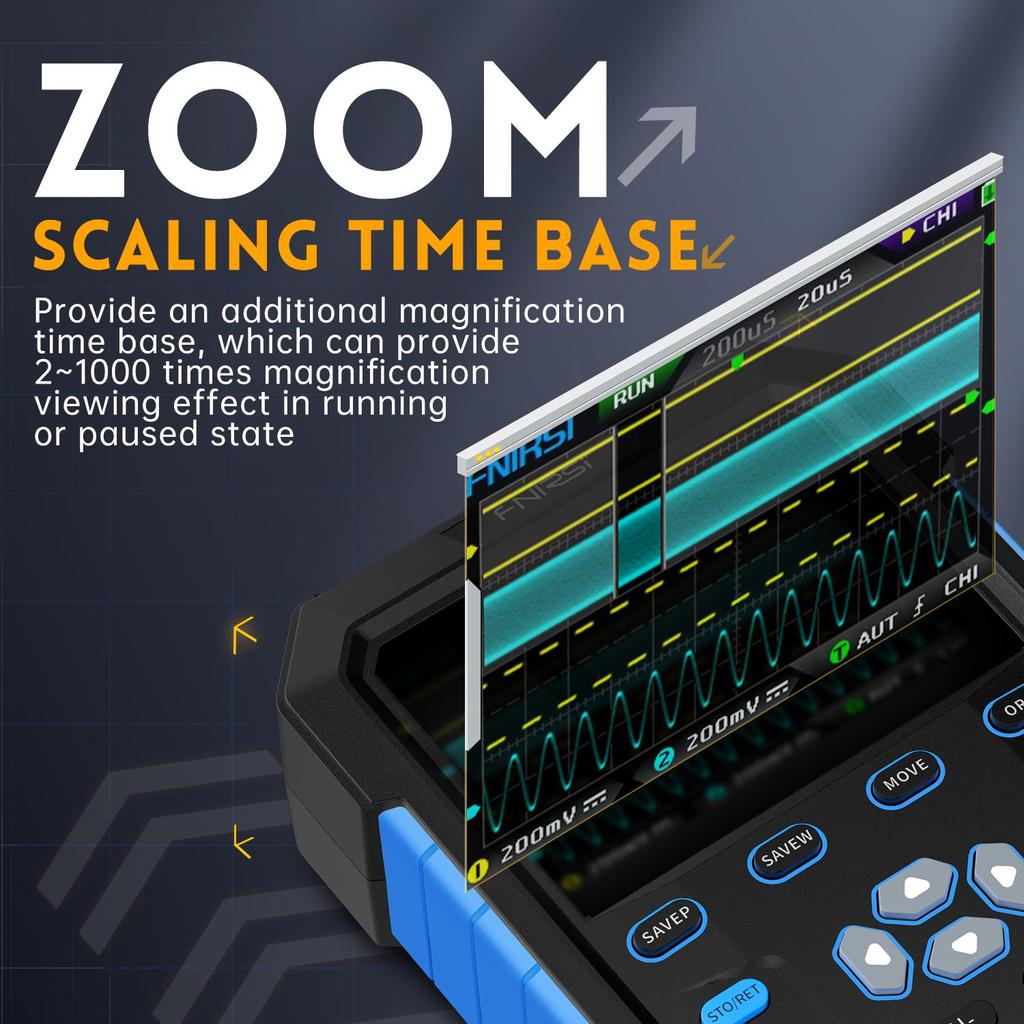

Zoom scaling time base：support

20M hardware bandwidth limitation：support

Adjustable automatic bandwidth limitation：support

X-Y mode：support

FFT：support

Cursor measurement：Frequency/Period/Amplitude

Trigger detection：Digital trigger

Trigger mode：Auto/Single/Normal

Trigger edge：Rising/Falling

Roll mode：support

Screenshot storage：90

Waveform storage：250 groups

Capture signal：500

Parameter measurement：12 kinds

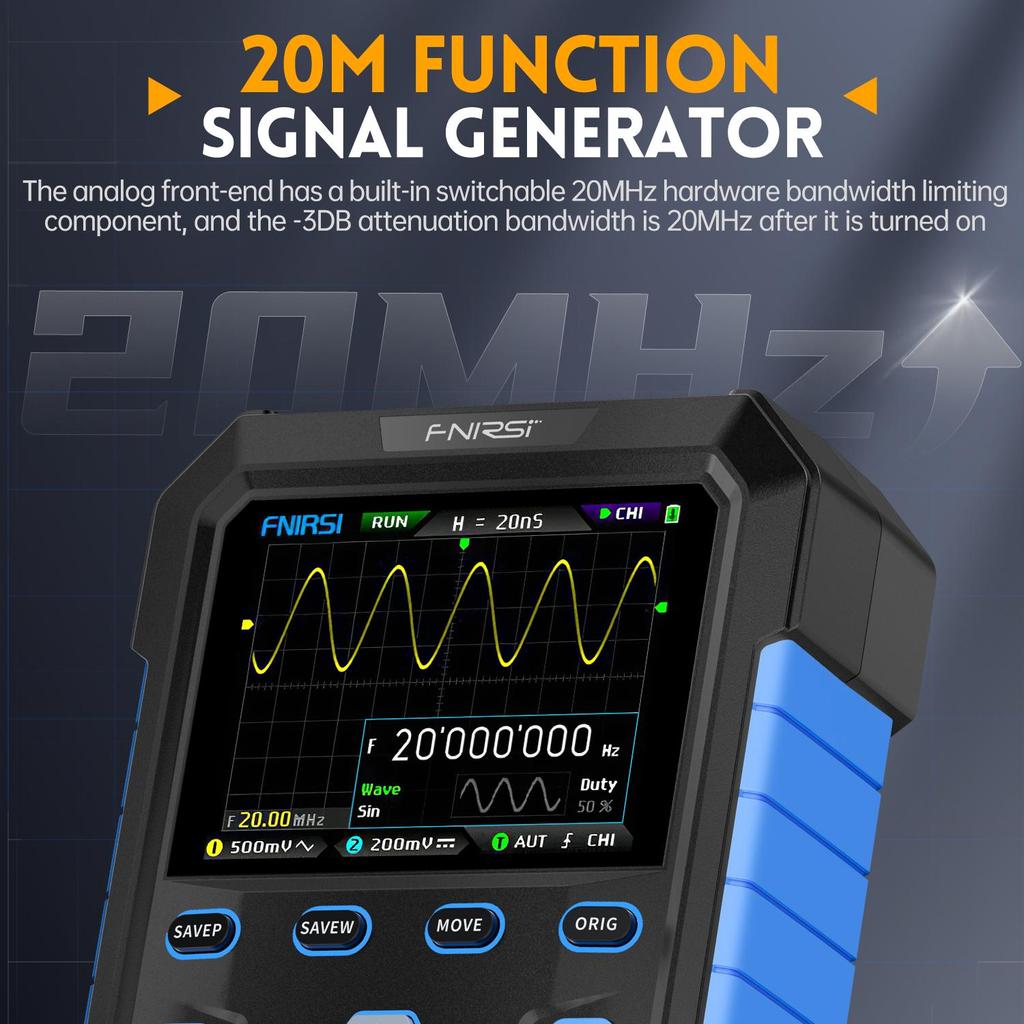

Signal generator：14 standard function signals

Auto-adjustment support

Waveform manager：support

Waveform output：support

High-voltageburnout protection：support

Screen size 2.8：inches

Screen resolution：320x240

Display technology：IPS full view

Expansion interface：USB transmission interface

Auto power-off：5minutes-2hours

Firmware upgrade：support

Charging requirements：5V 2A

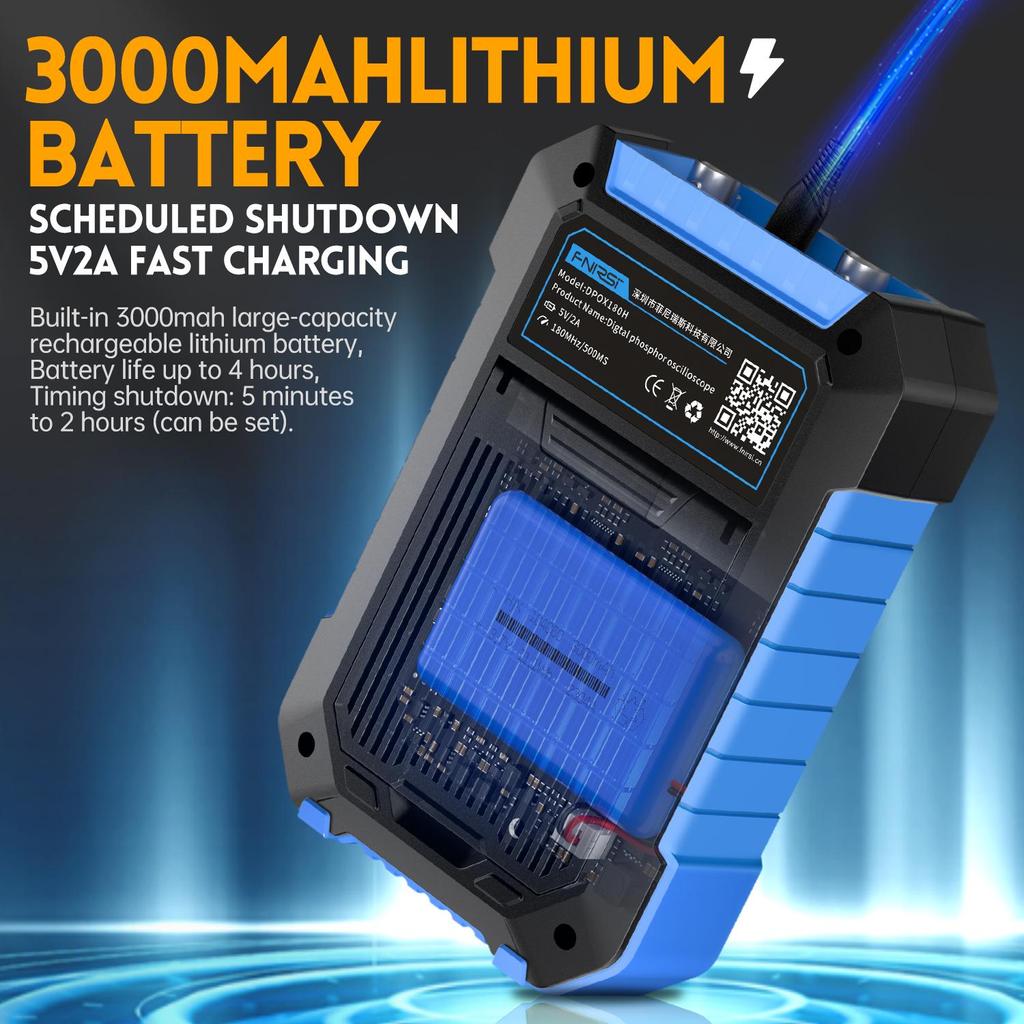

Battery capacity：3000mAh

Standby time：3.5 hours at full charge

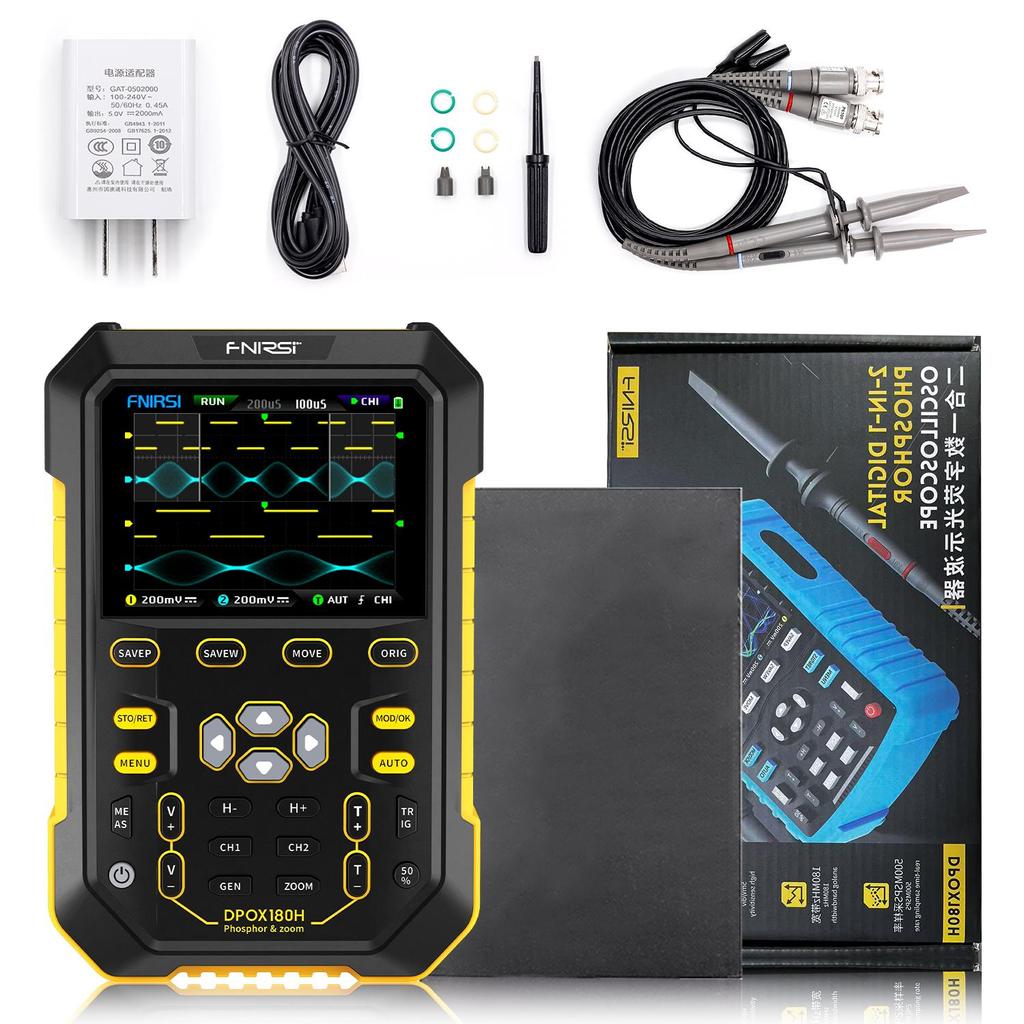

Dimensions：135mmx90mmx40mm 1 * DPOX180H Digital Phosphor Oscilloscope

2 * Matching 200MHz Probe (1X & 10X）

1 * 5V2A Power Adapter

1 * USB Data Line

1 * User Manual
