Driver control board with 6.5" monitor

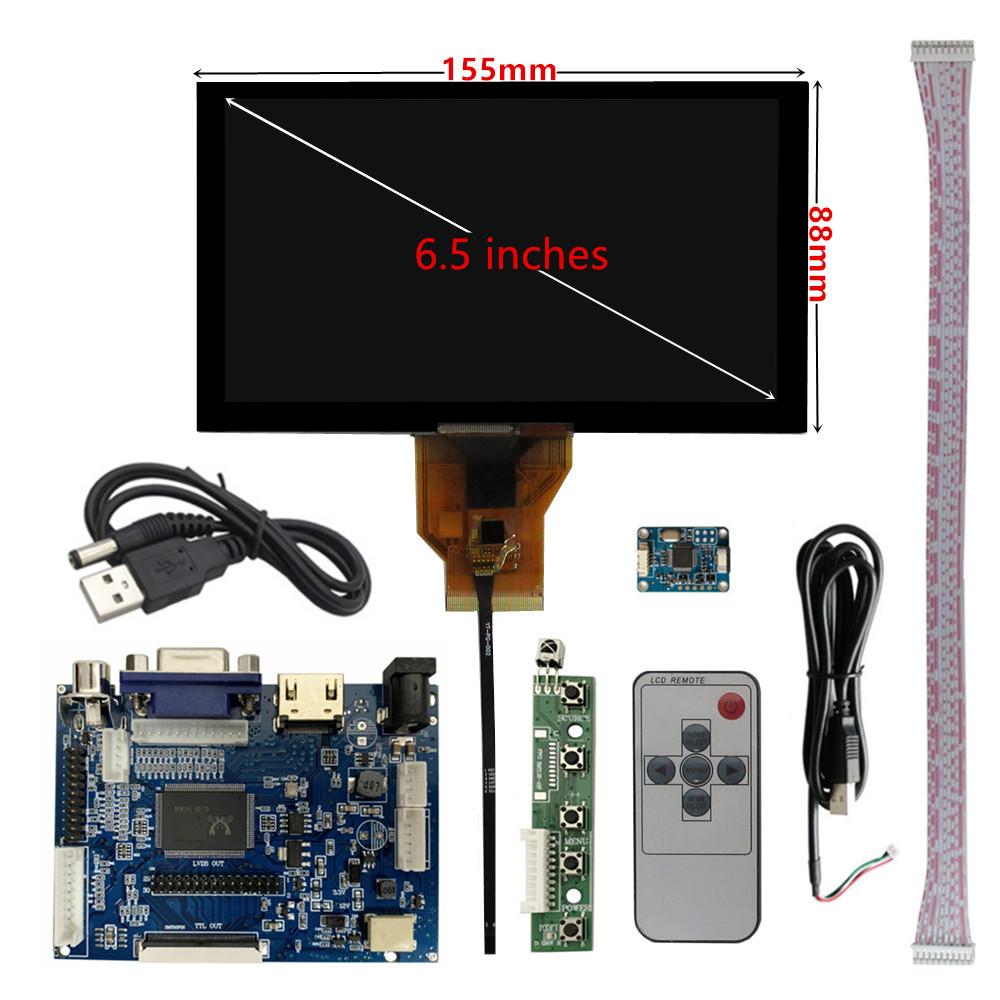

This is a multi-purpose portable display device with a 6.5-inch 800*480 high-definition display. Support HDMI/VGA/AV1/AV2 4 signal modes. It can be used to connect computer and computer secondary screen, Raspberry Pi,Banana Pi,Orange Pi,Development Board,TV box,game console, etc...... Most of the devices that support HDMI/VGA/AV signal. The DC5.5mm power supply interface can support 5V to 12V power supply.

Interface introduction: 1--AV1 Interface 2--AV1,AV2 Interface 3--VGA Interface 4--VGA Extension Interface 5--HDMI High-Definition Interface 6--DC5.5mm Power Interface 7--Power Extension Interface 8--High Voltage Board Power Supply 9--LED Display Backlight Power Supply 10--Lvds Display Interface 11--50Pin TTL Display Interface 12--Button Board Interface 13--Resolution Adjustment Shorting Block

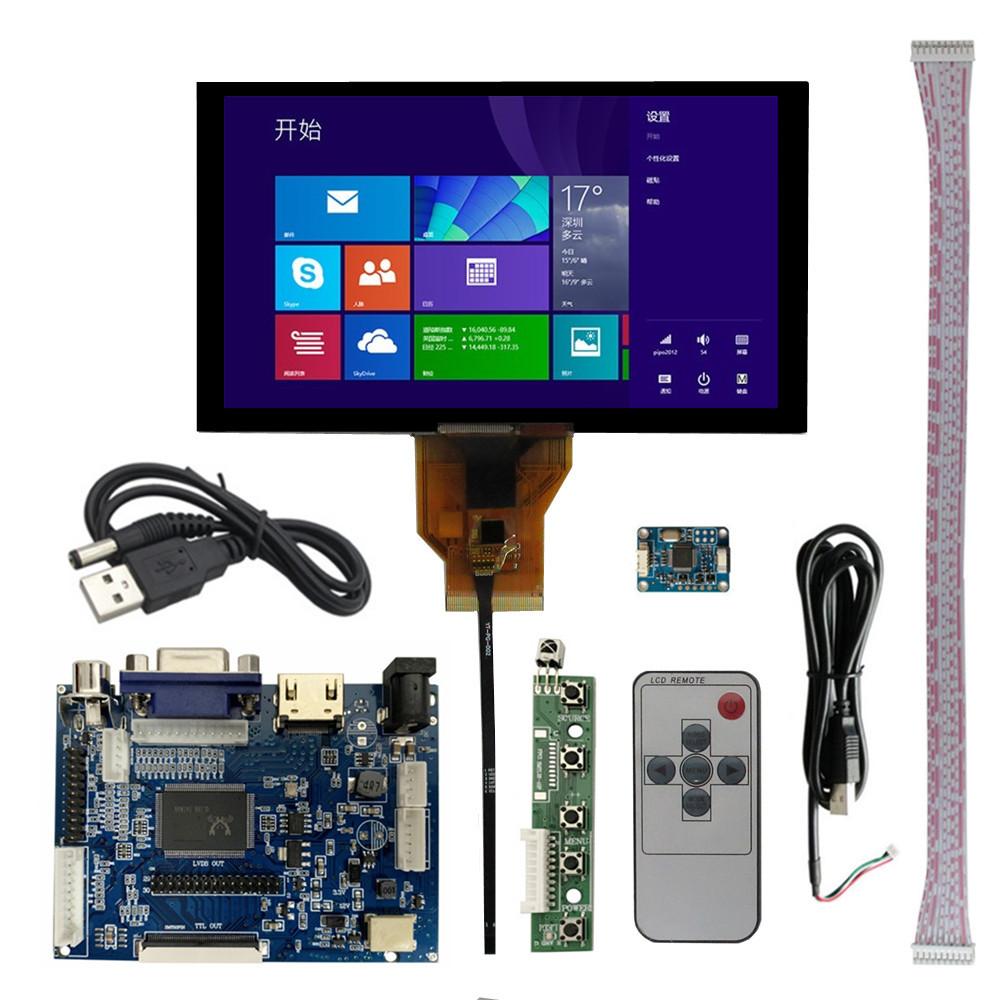

Package Content: 6.5 Inch 800*480 LCD Display Screen LCD Display Screen Driver Control Board 6.5 Inch Capacitive Touch Screen Touch Screen Converter USB Power Cable USB Touch Screen Connecting Cable Remote Control Key board Key board connection Line
