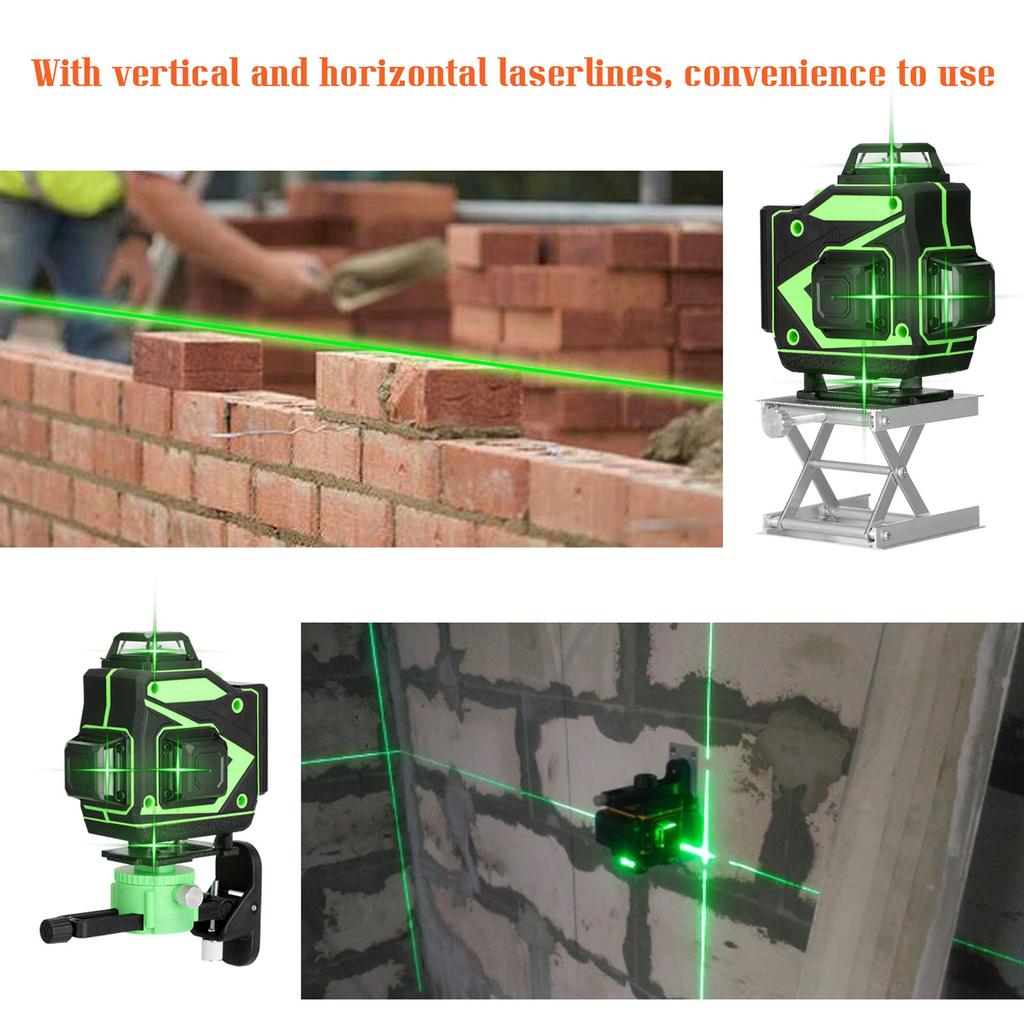

The laser level meter can emit visible lase horizontal and vertical lines for the automatic leveling separately or simultaneously. Provides accurate horizontal and vertical datum for indoor construction stakeout and calibration, easy to operate, and versatile. Suitable for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry,?wall stud layout and partition installation. You can have a try.
Features:
Compact size, lightweight and portable, easy to carry with the case, providing quick and convenient mobility and storage.

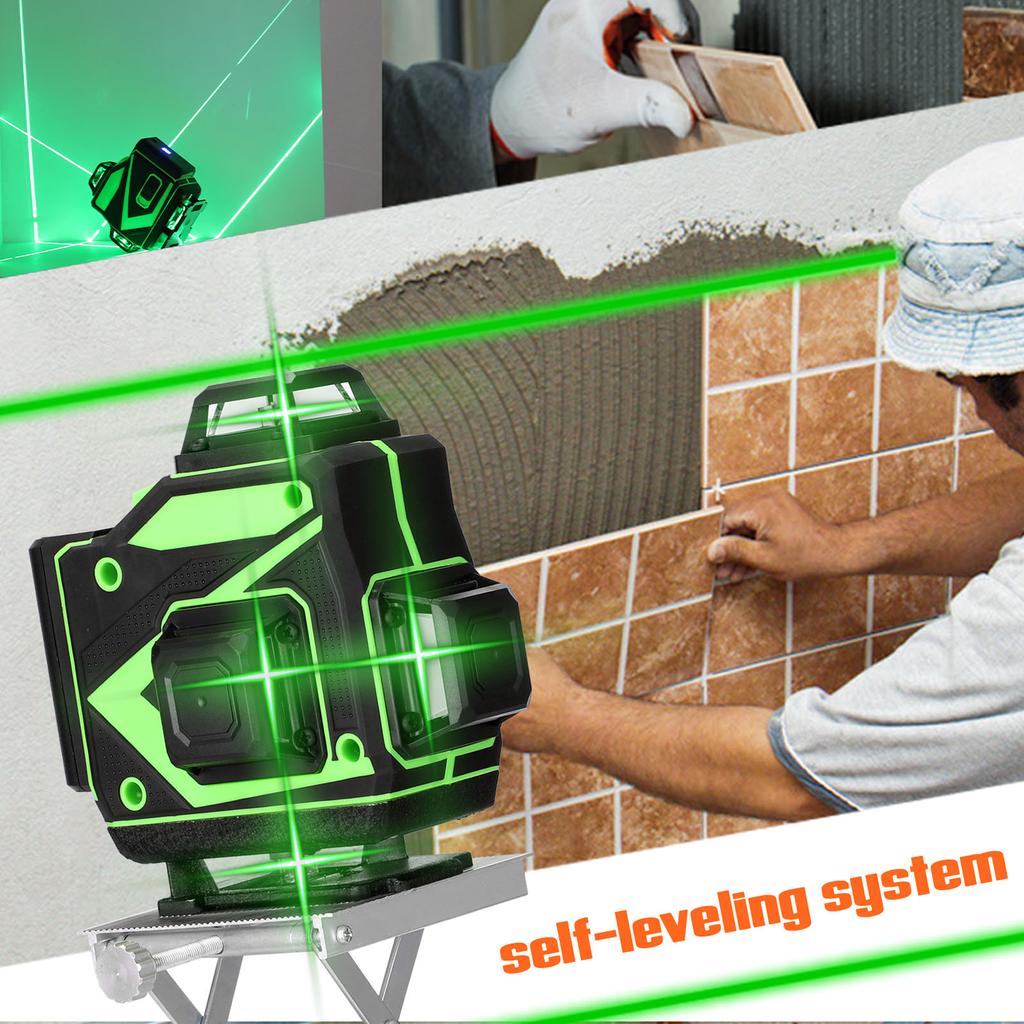

Output 16 laser lines for finer positioning, with self-leveling system, flexibility and stability.
Adopts optical glass, fine transmission, with clear laser light.
Equipped with self-test calibration function, less than 3 degrees automatic leveling, but if the angle is over 3 degrees , the laser light will keep blinking and also has beep sound to reminding you to reset them on a flat ground.
Push button design, push left to open it, push right to close it.

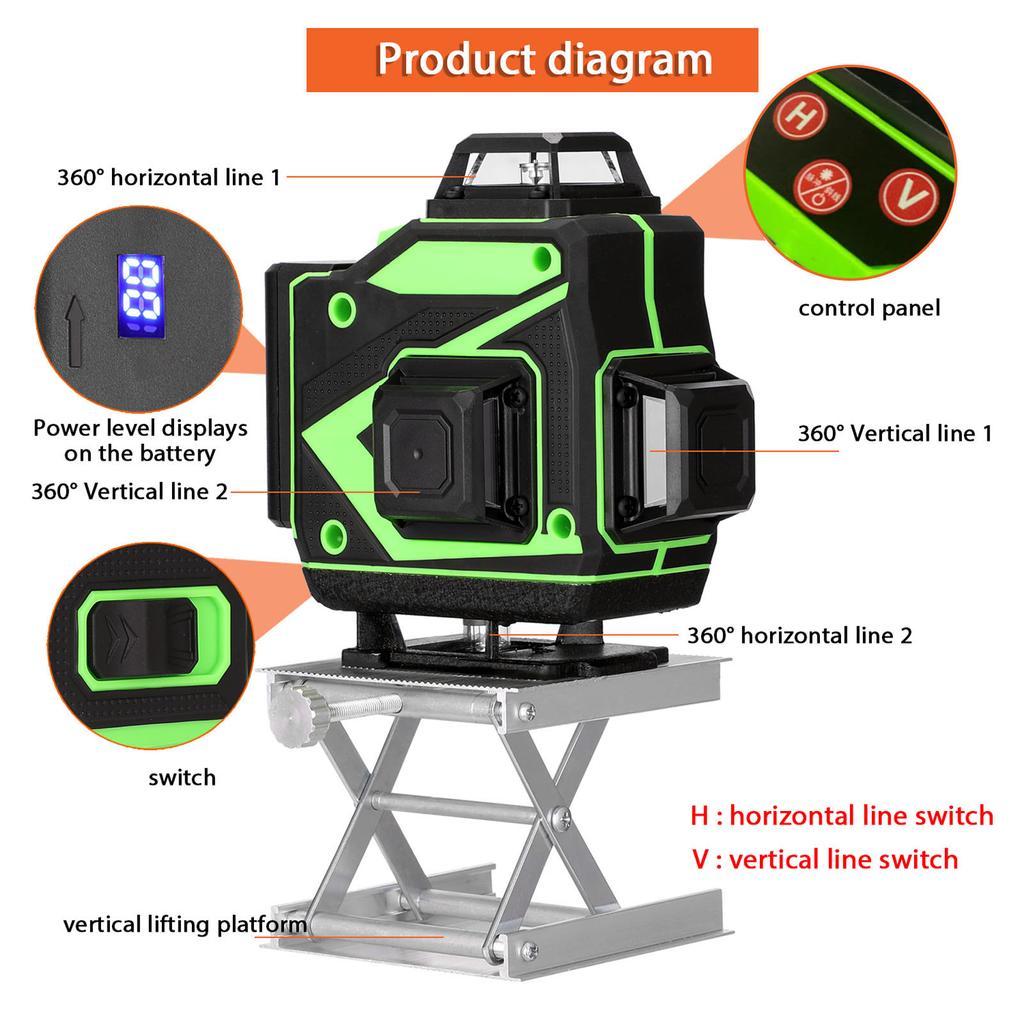

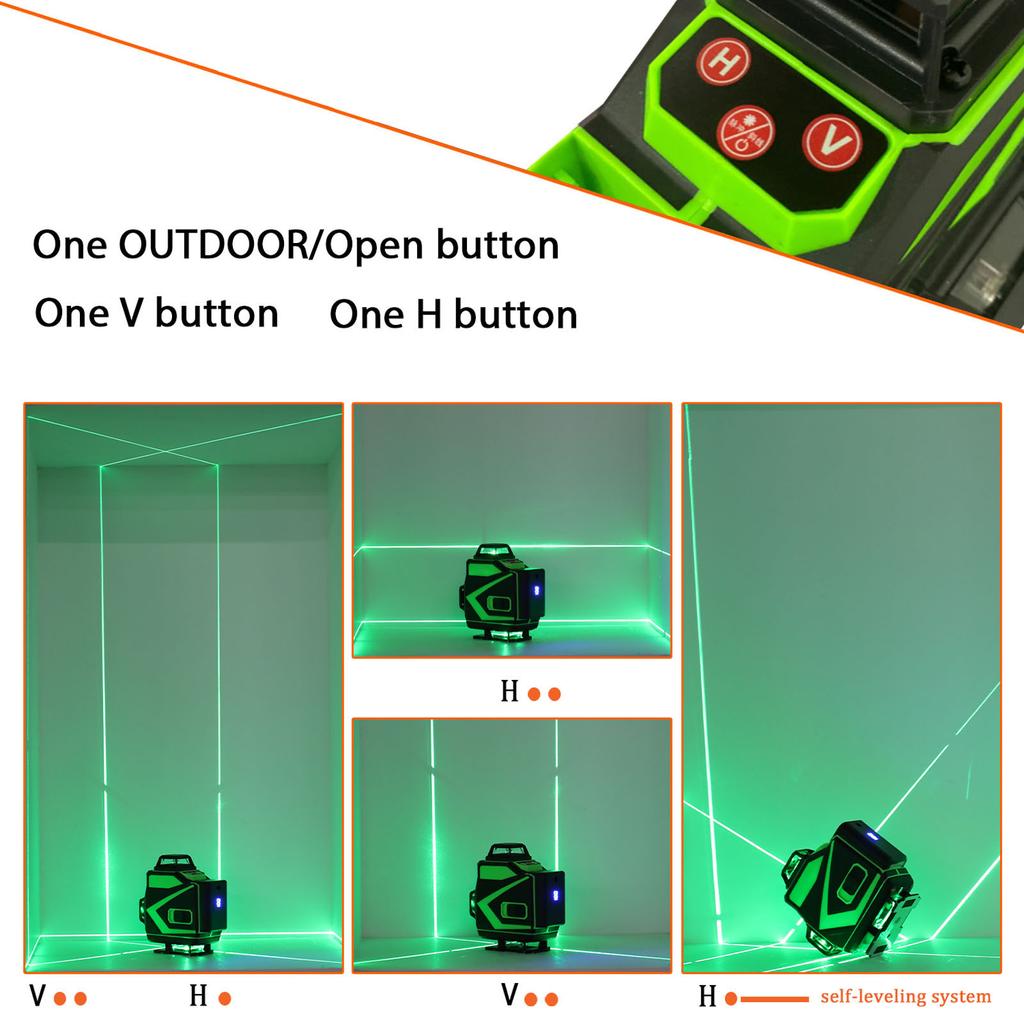

Touching buttons design, horizontal line and vertical line with a clearly division.
1/4" to 5/8" thread adapter for easy connection, it can be used with tripod to adjust the working height of the machine.
Comes with one remote controller, "H/+"=vertical line, "V/-"=horizontal line.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Scanning QR code on the back of remote controller to download cellphone APP, convenient to control the level machine.

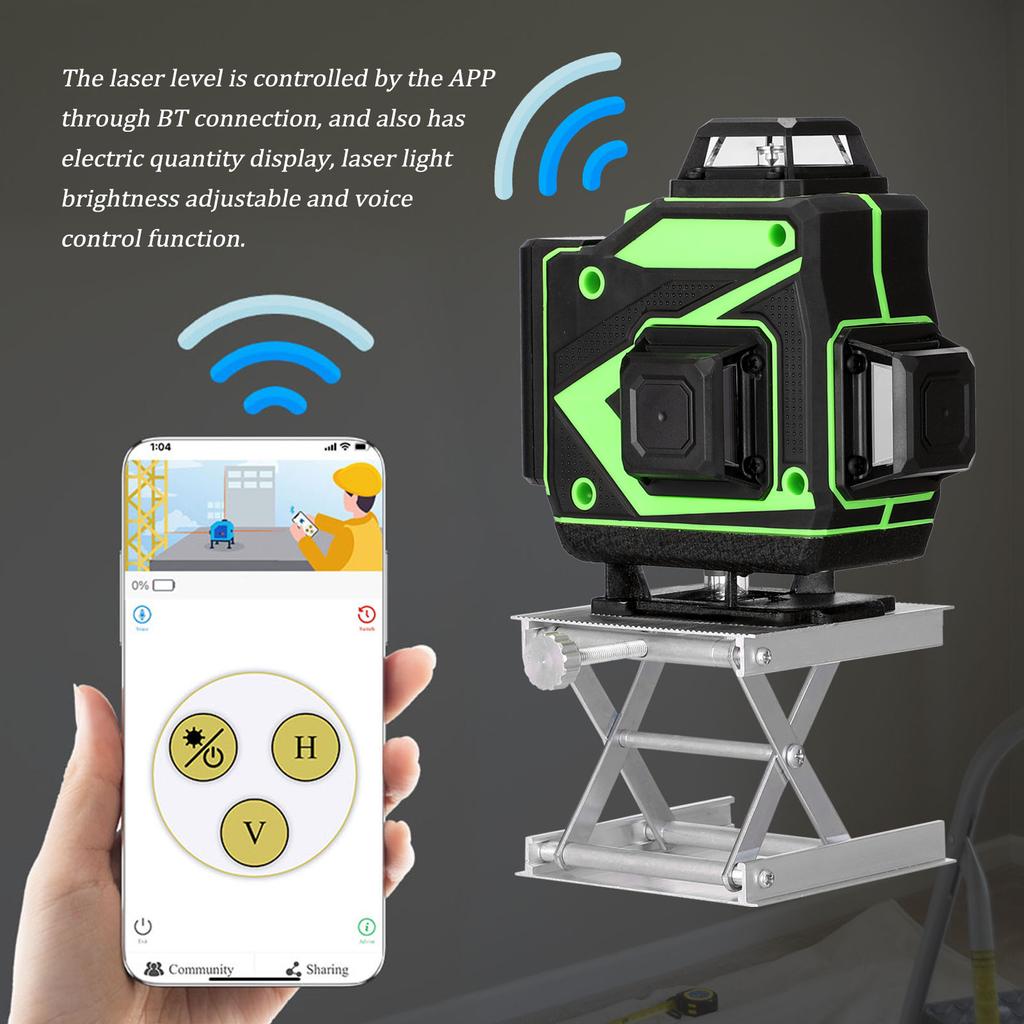

The laser level is controlled by the APP through BT connection, and also has electric quantity display, laser light brightness adjustable and voice control function.

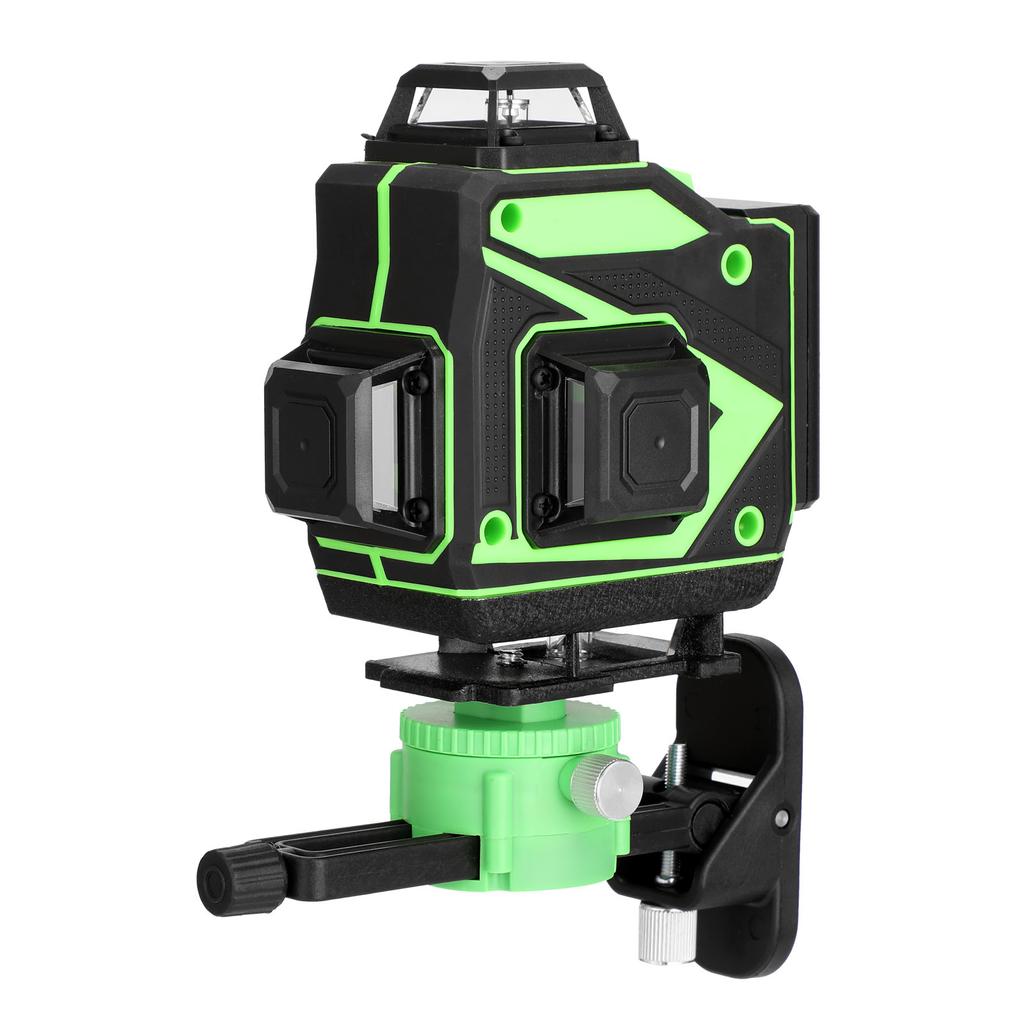

The T-shape bracket has 360 degrees rotation base, and equipped with fine adjustment mechanism, can make the machine quickly find the target(1/4" screw size).
With 7mm wall mounted distance, general for indoor and outdoor use.
Comes with one clip for works with wall-mounted bracket to clamp laser level.
Waterproof and dust-proof, suitable for both indoor and outdoor use.

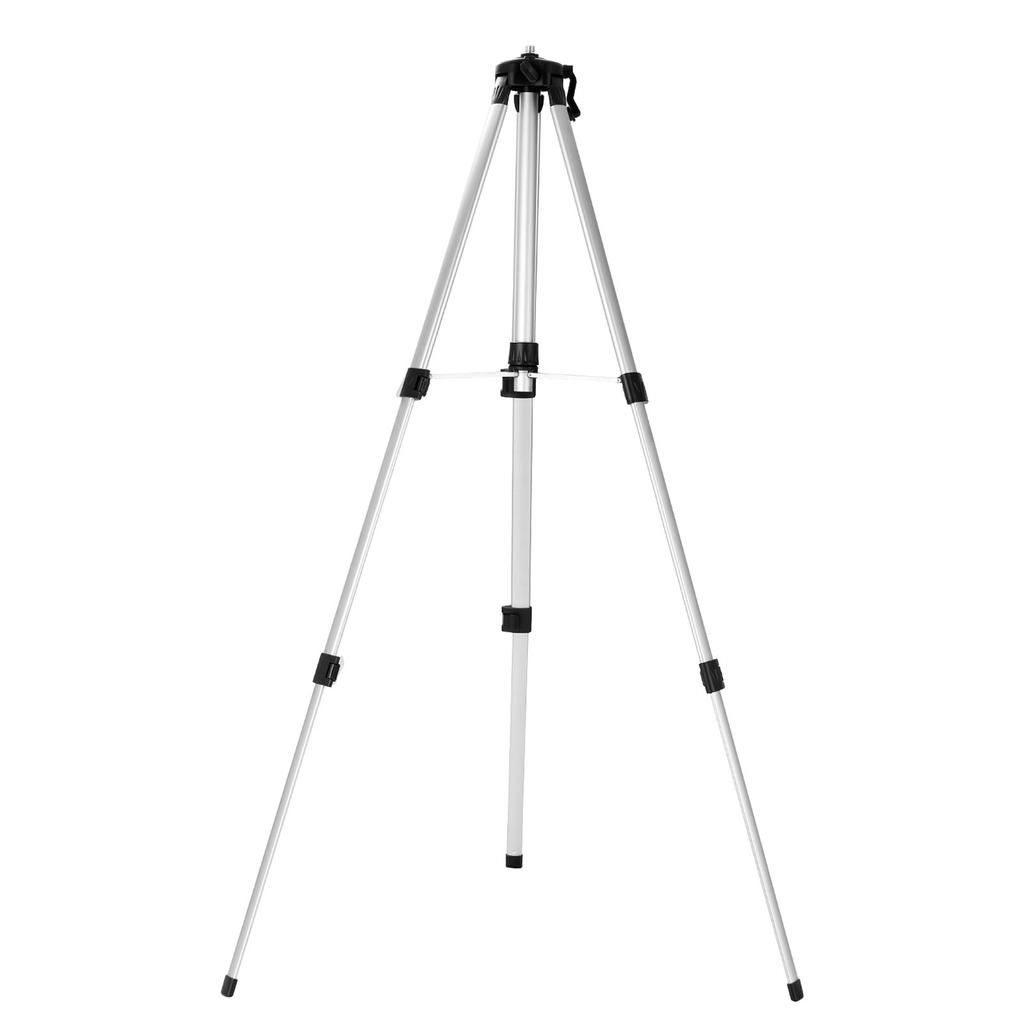

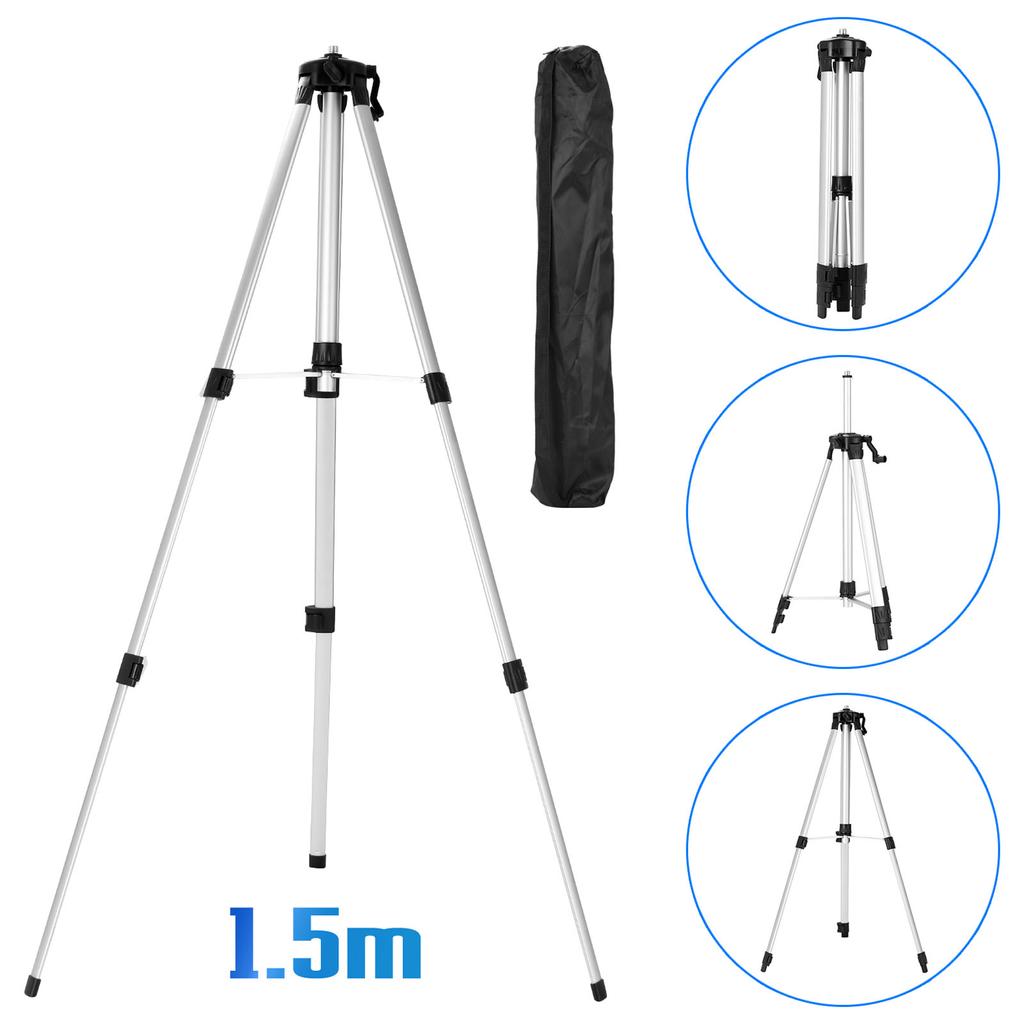

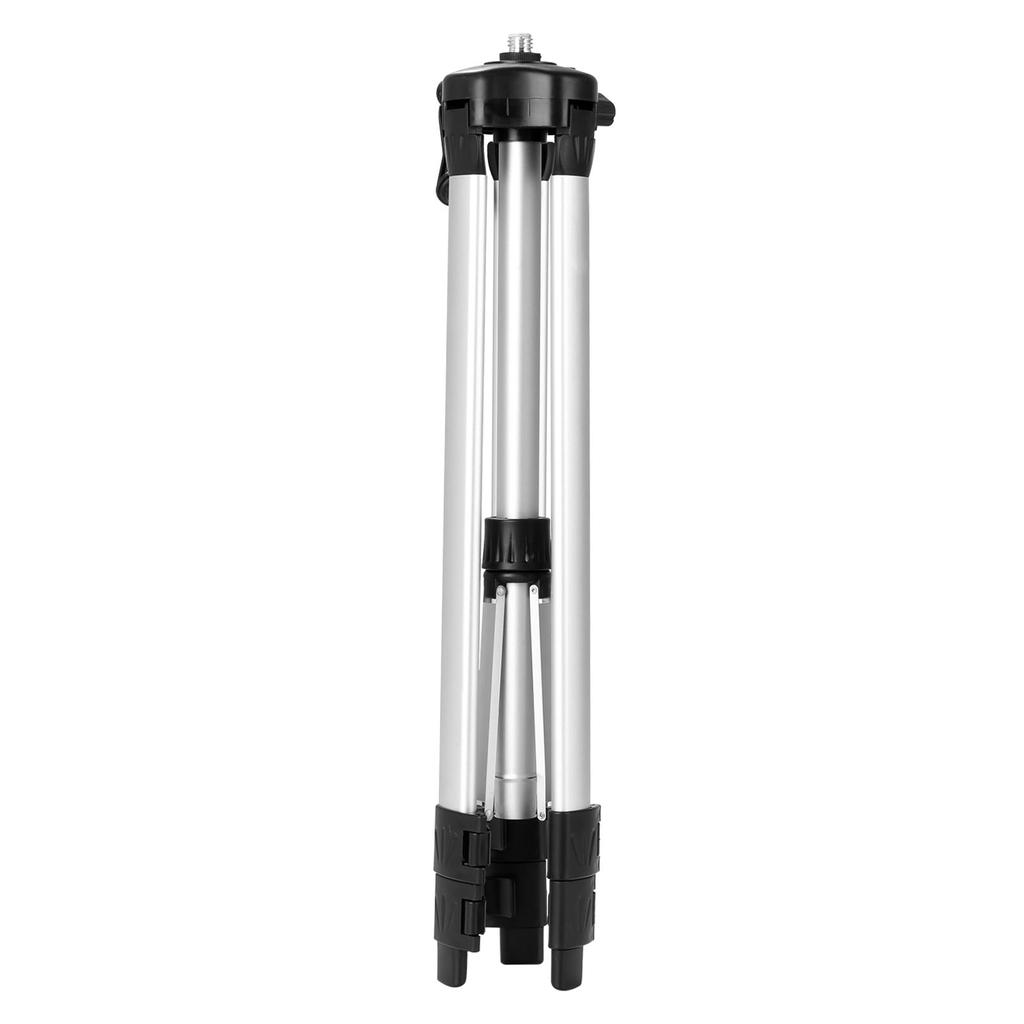

The tripod stand is made of thicken aluminium alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.
Three heights adjustable, you can adjust according to your demands easily.

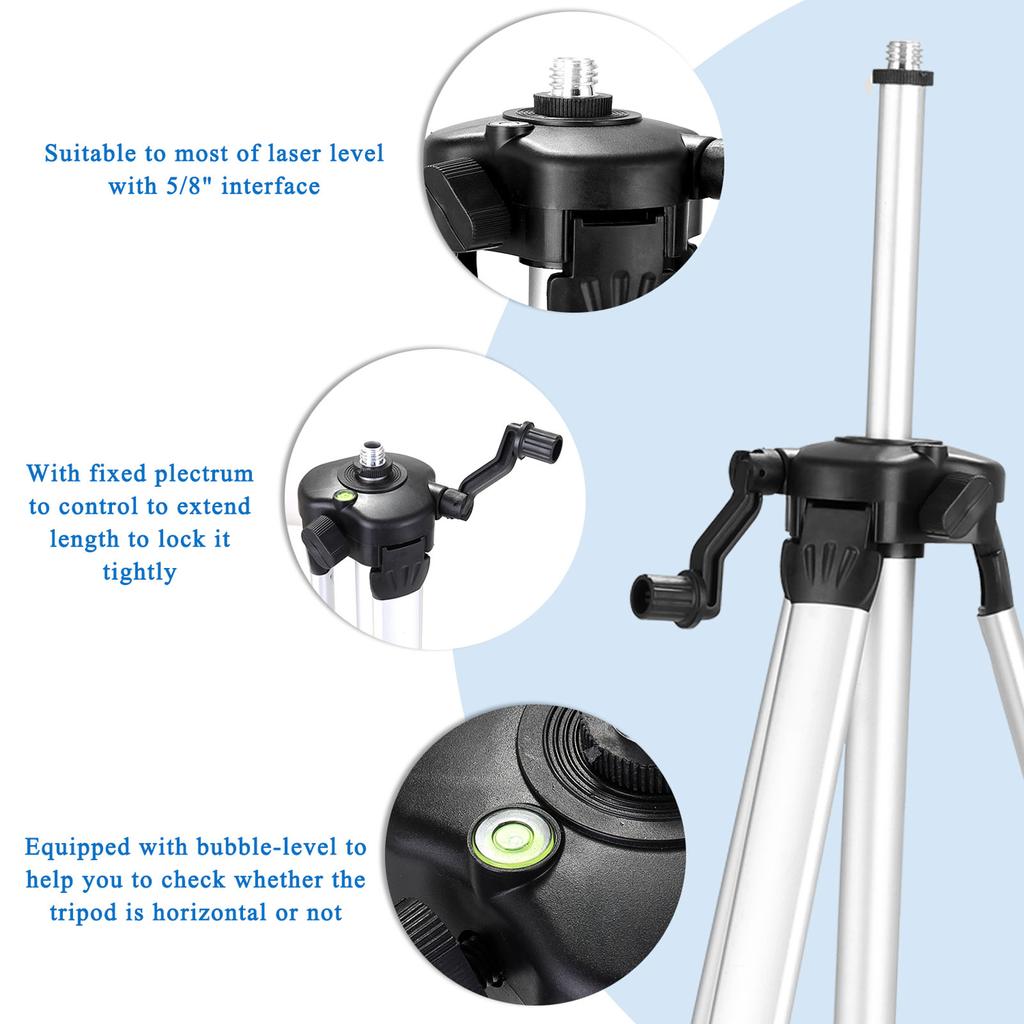

Equipped with bubble-level to help you to check whether the tripod is horizontal or not.

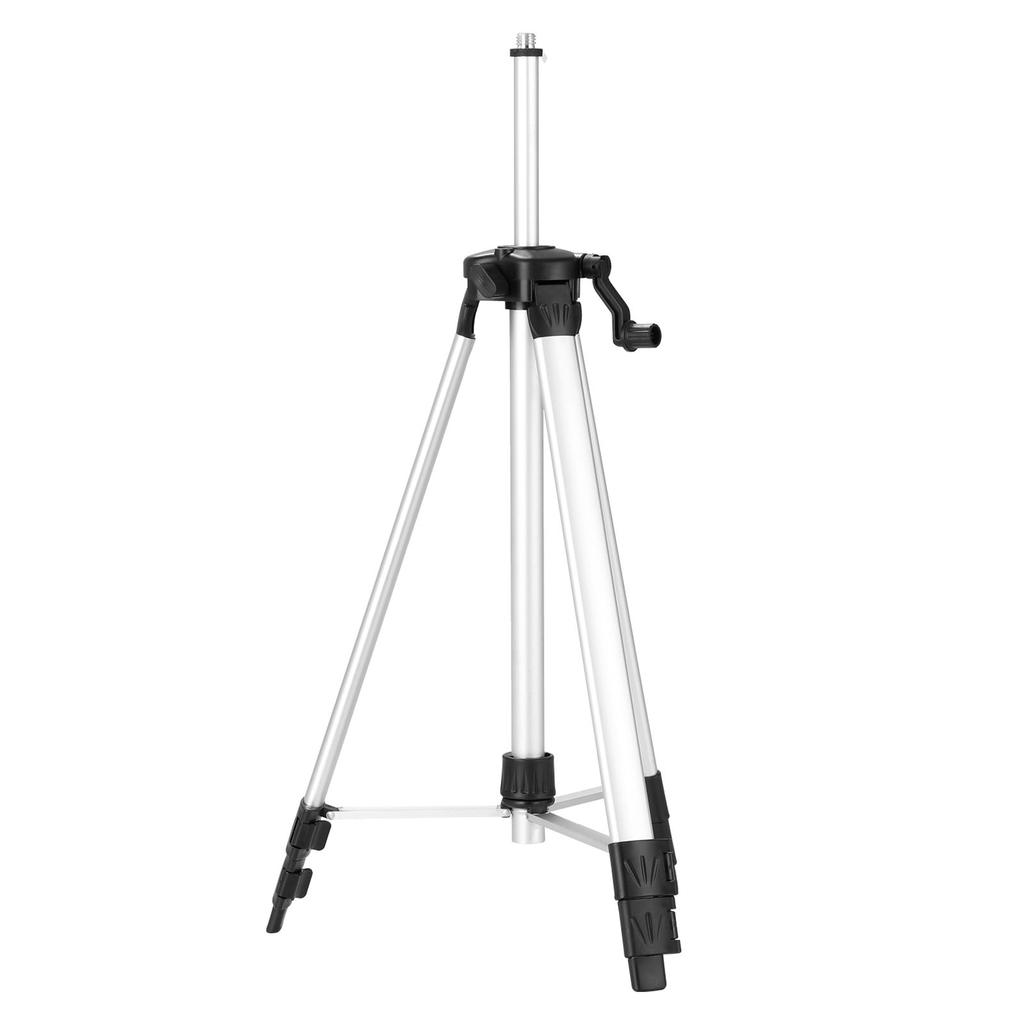

Equipped with rocking bar to adjust to height of the tripod, smooth and effort saving.
With fixed plectrum to control to extend length to lock it tightly.
Suitable to most of laser level with 5/8" interface.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable battery, 3.7V, 2400mAh (included)

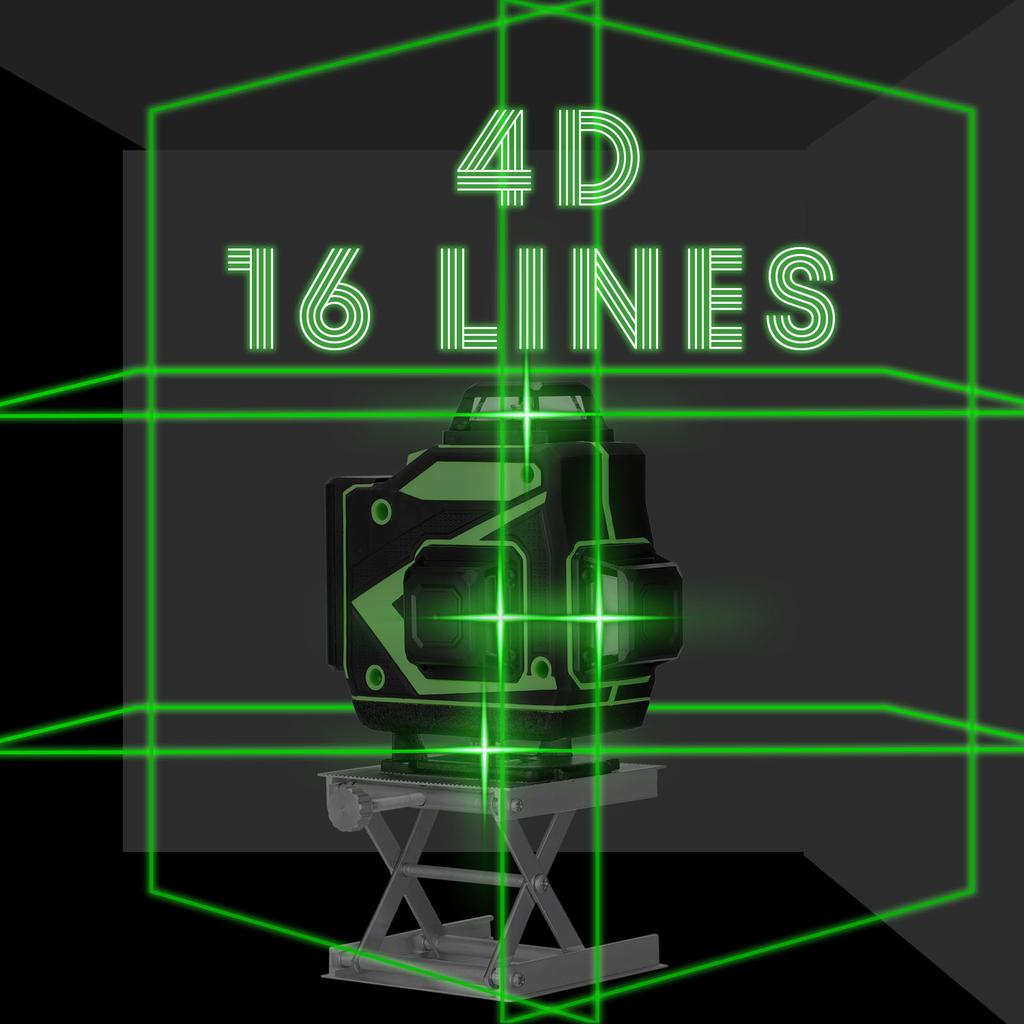

Laser ray: 360 degrees * 4, 16 lines?(4D)
Laser wavelength: green light 532nm
Laser lines accuracy: +/-0.2mm/10m
Self-leveling-range: less than 3 degrees
Working temperature: -5 celsius to 50 celsius
Working time: about 5 hours
Item size:
Level machine: 145 * 90 * 124mm / 5.71 * 3.54 * 4.88in
Base size: 110 * 103 * 97mm / 4.33 * 4.06 * 3.82in
Tripod stand size: 560 * 105 * 90mm / 22.05 * 4.13 * 3.54in
Package size: 440 * 215 * 255mm / 17.32 * 8.46 * 10.04in
Package weight: 1777g / 3.92lb

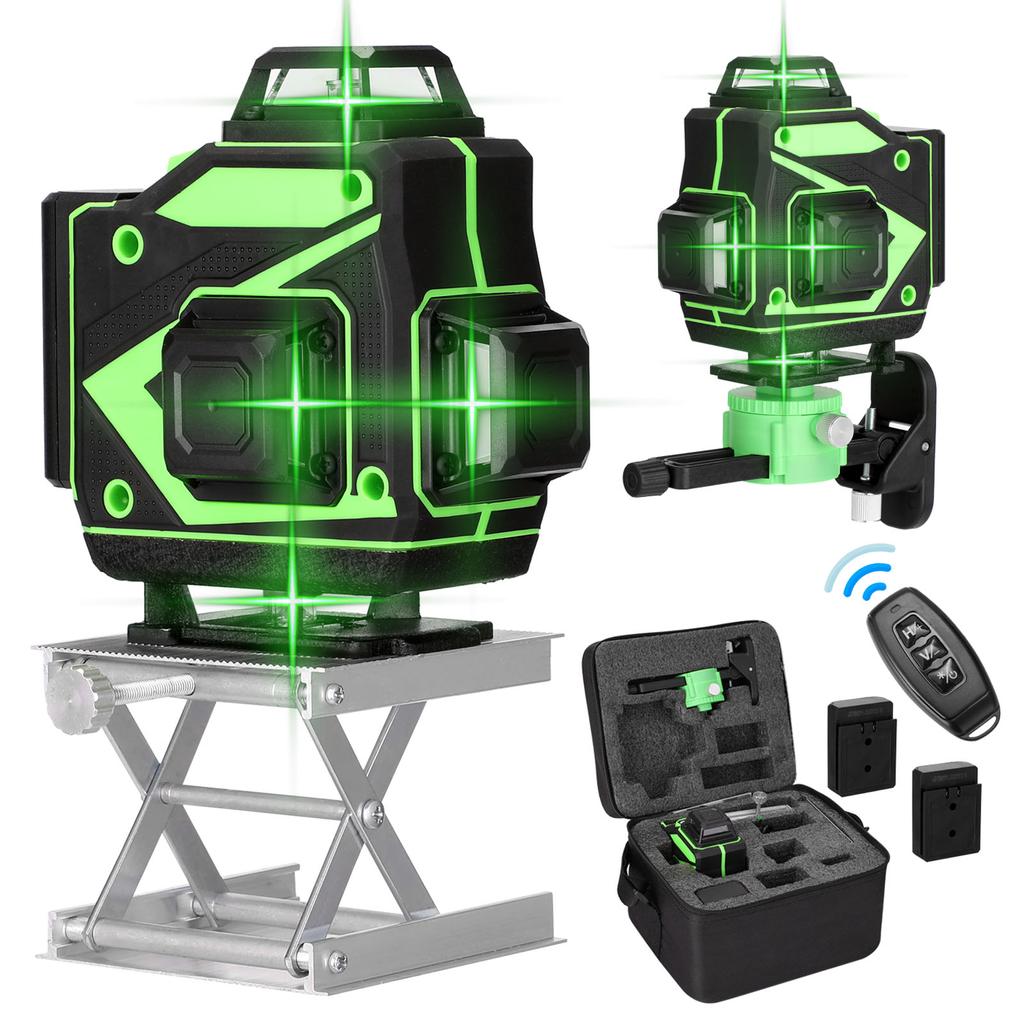

Packing List:
1 * Level Machine
1 * Lifting Platform
1 * Iron Board
1 * Wall-mounted Bracket
1 * Clip Holder
1 * Remote Controller
2 * Battery
1 * Power Adapter
1 * 1/4" to 5/8" Adapter
1 * Tripod Stand
1 * Carrying Bag
1 * Guideline
